Description
xAlpine’s iLX-407A is designed to provide the ultimate experience for smartphone users, all while unleashing an array of audio visual and connectivity capabilities in an ultra-compact 2.4” deep chassis.
With its stunning display and smartphone-like gesture control you can command the system with ease and customise the screen to exactly the way you want it. By using drag-and-drop motions you can move over 29 available widgets, change the GUI colour and even add your own wallpaper.
Entertainment and connectivity is virtually endless with DAB+ digital radio, USB music and video, HDMI and Dual Camera input, plus bring all of your favourite smartphone music and navigation apps to the dashboard with Apple CarPlay and Android Auto.
Moreover, expert tuning and sound quality is available with digital time correction, 10 audio pre-sets, 5-band graphic EQ, 24Bit DAC and 4Volt pre-outs.
The iLX-407A is a remarkable display centre piece rivalling features and performance beyond its modest price point.
Features
GENERAL
- 7-inch capacitive touch screen with swipe graphical user interface
- DAB+ Digital Radio Tuner
- AM / FM (RDS) Tuner
- Preset Stations (FM: 2×6 / DAB: 3×6 / AM: 1×6)

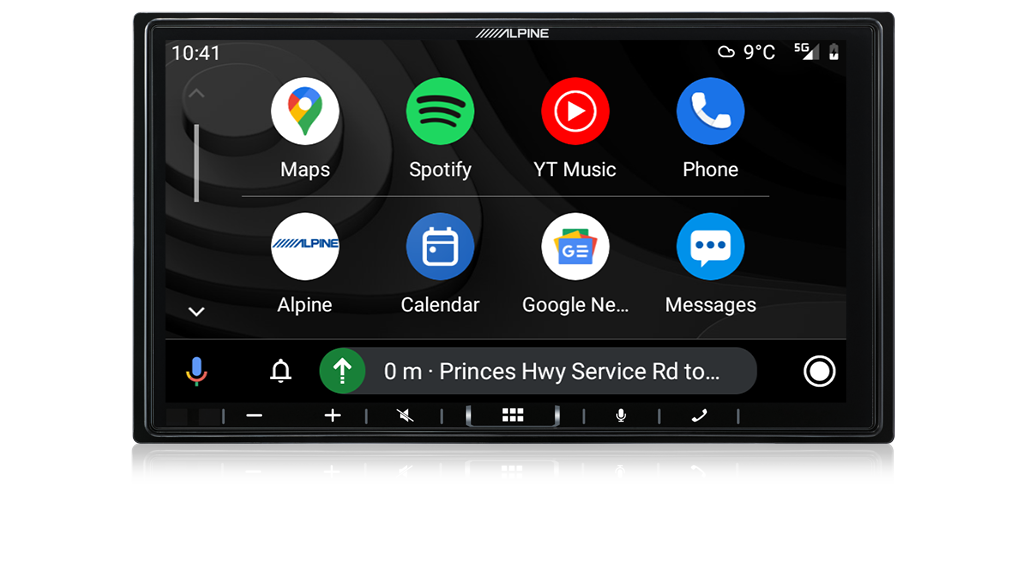

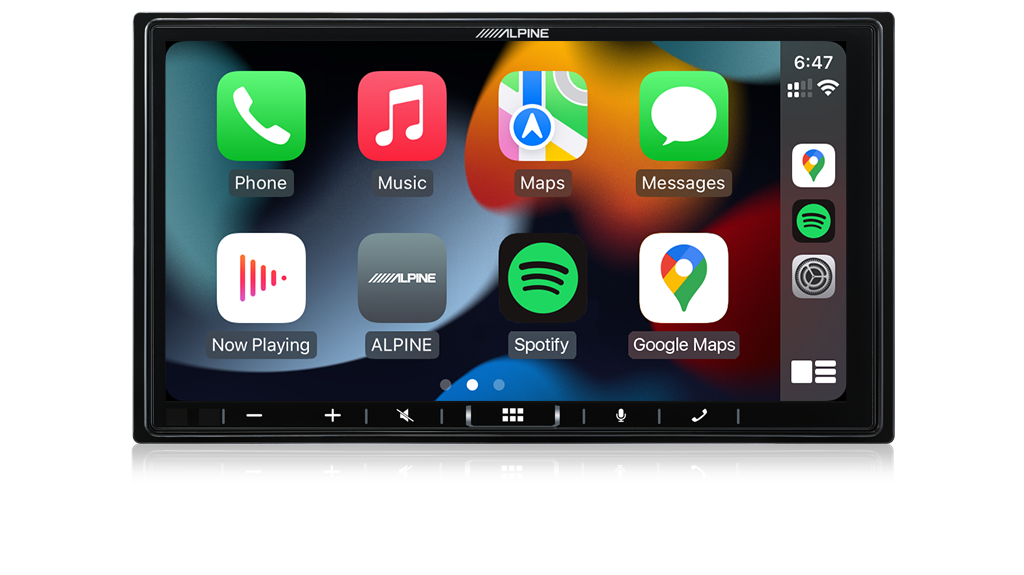

- Works with Apple CarPlay
- Works with Android Auto
- 5-Band Graphic EQ
- 10 EQ Pre-Sets
- Digital Crossover
- 6-Chanel Digital Time Correction
- Media Xpander
- Independent Source Volume Level Setting

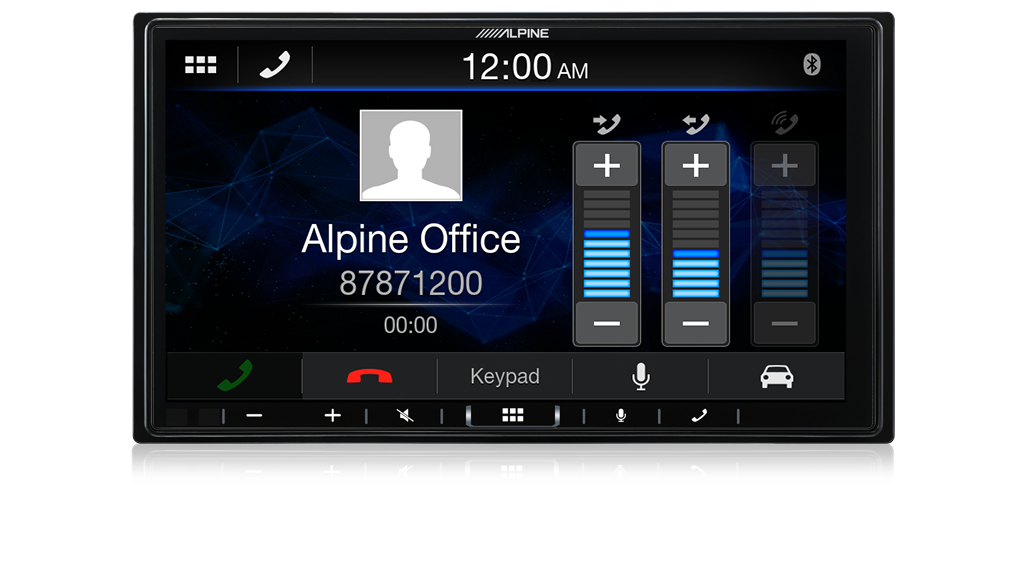

- Built-in Bluetooth for audio streaming and hands-free operation
- Included microphone
- 1 A/V AUX Input (RCA)
- 1 Video Output (RCA)
- 2 RCA Camera Inputs (front and rear)
- HDMI Input
- 3 PreOuts (4 Volts)
- KTA-450 and KTA-200M Power Pack Ready
- Built-in Rear USB port

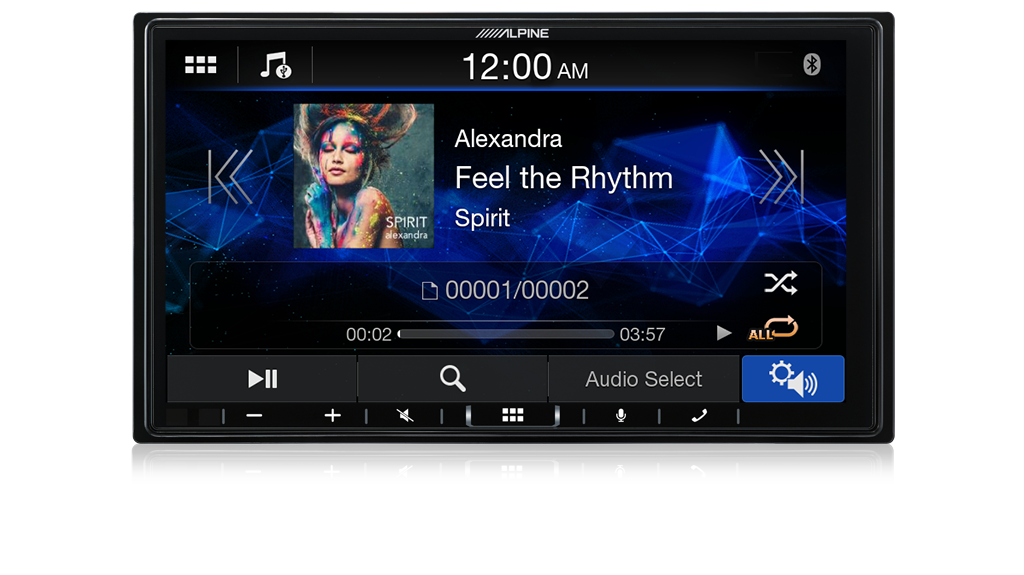

- USB video, audio and photo playback
- Steering Wheel Remote Control Ready
- Remote Control Ready
- Various vehicle specific installation kits available
Specifications
MONITOR SECTION
- Screen Size: 7 inch
- LCD Type: Transparent type TN LCD
- Operation System: TFT active matrix
- Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))
- Effective Number of Picture Elements: 99% or more
- Illumination System: LED
TUNER SECTION
- FM Tuning Range: 87.5 – 108.0 MHz
- AM Tuning Range: 531 – 1,602 kHz
- Signal-to-Noise Ratio: 65 dB
- DAB Tuning Range: 174.928 – 239.2 MHz
- Usable Sensitivity: -92dBm
- Signal to Noise Ratio Band III: 70dB
USB SECTION
- USB requirements: USB 2.0
- Max. Power Consumption: 1,500 mA (CDP Support)
- USB (Play From Device) / USB (Mass Storage Class)
- File System: FAT16/32
- Dynamic Range: 95 dB (at 1 kHz)
- Signal-to-Noise Ratio: 100 dB
- WAV / FLAC / MP3 / WMA / AAC Audio Playback (from USB)
- MP4 / MOV / AVI / WMV / MPG Video Playback (from USB)
- JPG / PNG / BMP Photo Playback (from USB)
HDMI SECTION
- Input Format: 720p/480p/VGA
BLUETOOTH SECTION
- Bluetooth Specification: Bluetooth V4.1
- HFP (Hands-Free Profile)
- PBAP (Phone Book Access Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
GENERAL
- Power Requirement: 14.4 V DC (11–16 V allowable)
- Operating temperature: -20 degree Celsius to + 60 degree Celsius
- Power Output: 4x 50 Watts
- Weight: 1.0 kg
CHASSIS SIZE
-
- Width: 178 mm
- Height: 100 mm
- Depth: 60 mm
For more information see manufacture's website
