xAlpine R-Series R2-A60F Hi-Res Audio Certified 4ch Amplifier
The innovative and highly anticipated all-new R-Series amplifiers are truly remarkable powerhouse masterpieces.
With a meticulous approach, every aspect of their design composition and engineering has been embarked upon to achieve sonic excellence and power performance, all-while embodied in a compact form factor. Furthermore, they incorporate advances in technology gained from the ultra-high-end Alpine Status series amplifiers.
The R2-A60F is class-leading in every way by combining both power output and high-definition sound with Hi-Res Audio specifications to allow your music to remain faithful to the original recording with realism and authority, that puts you right in the centre of the performance.
Be wowed by the bold aesthetic design and stunning build quality—from the moment you see, touch and hold these amplifiers exudes quality. With their solid cast aluminium body, precision machined finishes and high quality terminal blocks, every detail is premium and first-class.
Smaller and more powerful than ever. Alpine’s all-new exclusive digital design architecture has enabled the footprint size to be significantly reduced without compromising on audio specifications and power output. In fact, they are 15% smaller than their predecessors and the completely new R2-A150M is Alpine’s most powerful ever in a highly compact chassis.
Beneath the exquisite beauty cover panel lay the top panel controls providing convenient access to configure the amplifier and fine-tune audio calibration adjustments. What’s more, the single sided terminal layout and integrated chassis mounting makes installation a breeze.
These pint-sized, yet potent amplifiers gives you enormous and effortless power delivery, coupled with incredible audiophile-grade sound quality, making them the perfect choice for the astute system builder enthusiast and discerning music fans.
Born to be played Loud—the all-new R-Series gives you legendary performance with extreme power output matched with unrivalled sound quality and reliability.
Features
- All-new Bold Design
- Compact Chassis
- Easy Access Controls
- RCA and Speaker Level Inputs
- Bandpass Filter
- Superior Sound Stage
- Bridgeable
- Bass EQ
- Variable High Pass/Low Pass Filters
- Thermal Protection
- Hi-Res Audio Certified
Extended Dynamic Range For Hi-Res Audio
The Next-Gen R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce frequencies from 10Hz to 45kHz. This ultra-wide bandwidth helps elevate your music to a whole new level of clarity and nuance to achieve a level of detail far closer to that of the original studio recording.
Trickle-Down Technology
Using “trickle-down” technology inspired design, and performance cues from the High-Resolution Alpine Status systems, the Next-Generation R-Series Amplifiers feature Alpine’s exclusive circuit design architecture that will take this legendary system to the next level in sound performance.
Exquisite Design, Inside and Out
The all-new ultra-modern R-Series amplifiers are beautifully designed and constructed with machined alloy detailing and premium finishes throughout. Internally, An all-digital dual post-filter feedback loop is added for unmatched accuracy and control, while minimising internal noise.

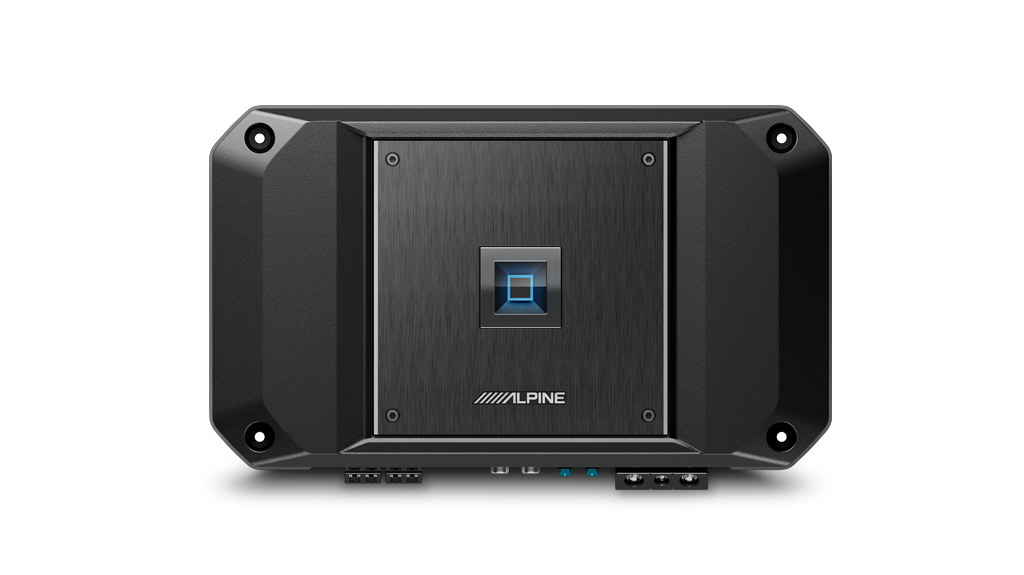

Top Panel Controls
There when required and hidden when not, gain and crossover controls have been relocated beneath a sleek brushed alloy cover panel atop the amplifier for convenient, yet discreet use. Furthermore, mounting feet are now integrated into the chassis of the amplifier for improved aesthetics and installation simplicity.

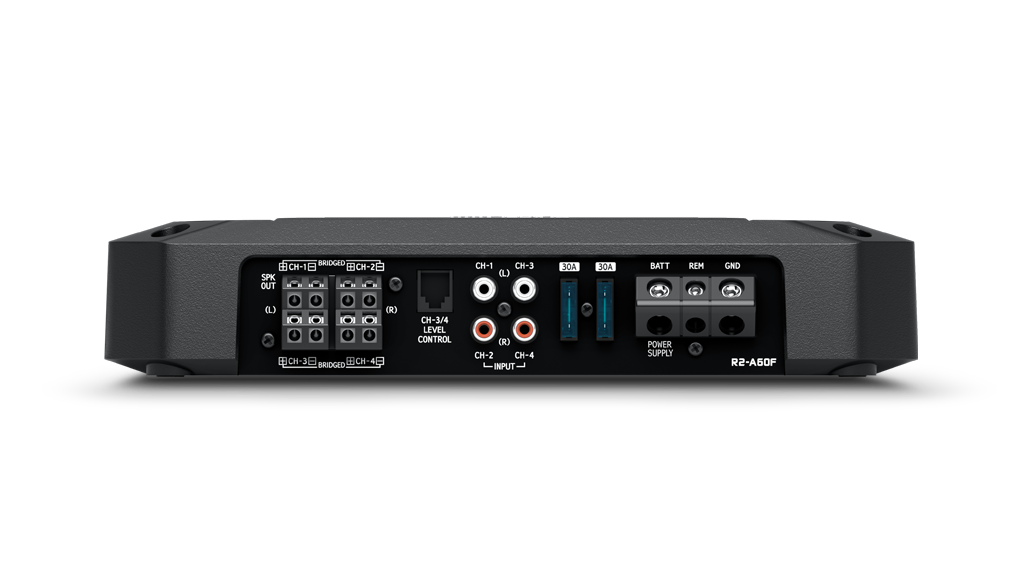

Single Sided I/O Terminals
A considered design from every aspect, all speaker I/O is consolidated onto a single side of the chassis. This not only makes positioning and connecting the amplifier easier and more flexible, but also allows for beautifully clean installations.
Compact and Powerful
The R2-A60F has a footprint that’s a whopping 15% smaller than the outgoing model (R-A60F). This compact size greatly expands installation flexibility, making it suitable for almost any vehicle application while still punching out the same potent performance.
Perfect for R-Series 3-Way Speakers
The R2-A60F produces 100 Watts RMS per channel, perfectly matching Alpine’s R2-Series speakers. Especially, it’s matched with the R2-S653 3-Way professional speakers to drive two woofers with 2-Channels and the Mid/Tweeters with the remaining 2-Channels, plus you can finely tune the crossover settings.
Control your Subwoofer
The optional RUX-KNOB.2 remote bass knob controller (sold separately) connects directly to R-Series amplifiers, providing easily accessible subwoofer control to make bass adjustments on the fly to enhance your listening experience. It’s tiny dimensions allow it to be mounted a number of handy locations for convenient control.
Extended Dynamic Range For Hi-Res Audio
The Next-Gen R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce frequencies from 10Hz to 45kHz. This ultra-wide bandwidth helps elevate your music to a whole new level of clarity and nuance to achieve a level of detail far closer to that of the original studio recording.
Specifications
|
Output |
Output Channels: 4/3/2 Channels |
|
Power Ratings |
Power (@14.4V 1% THD) Per Channel into 4 Ohms: 100W X 4 Per Channel into 2 Ohms: 150W X 4 Bridged 4 Ohms: 300W X 2 [4Ω@14.4V] Max Power Output: 1200W |
|
THD+N |
Ref.: 10W into 4Ω: ≤0.04% Ref.: 10W into 2Ω: ≤0.06% Ref.: Rated Power into 4Ω: ≤0.5% Ref.: Rated Power into 2Ω: ≤1.0% |
|
S/N Ratio |
IHF A-wtd +AES-17 Ref.: 1W into 4Ω: >80 dB IHF A-wtd +AES-17 Ref.: Rated Power into 4Ω: >100 dB |
|
Frequency Response |
Frequency Response: 10Hz-45kHz (+/-3dB) |
|
Damping Factor |
Damping Factor: >100 |
|
Input Select |
Selectable Input Signal Configuration (2ch/4ch Input) CH- 3/4 CH-1/2 or CH- 3/4 |
|
Input Sensitivity |
RCA Input Ref.; Rated Power into 4Ω Hi: 0.5 – 10V Lo: 0.2 – 4.0V |
|
Crossover |
Variable HPF/LPF/HPF-H (CH- 1/2) HPF/LPF: 50Hz – 400Hz (-12dB/oct.) HPF-H: 400Hz – 6kHz Bridged 4 Ohms: 300W X 2 [4Ω@14.4V] Variable HPF/LPF/BPF (CH- 3/4) HPF/LPF/BPF-L: 50Hz – 400Hz BPF-H: 400Hz – 6kHz (-12dB/oct.) |
|
Remote Level* |
Linear Attenuation CH-3/4: 0 to -20dB * Requires optional RUX-KNOB.2. |
|
Input Impedance |
> 10kΩ |
|
Dimensions |
(WxHxD): 282 x 55 x 165mm Weight: 3.3kg |
For more information, please visit the manufacturer's website.
