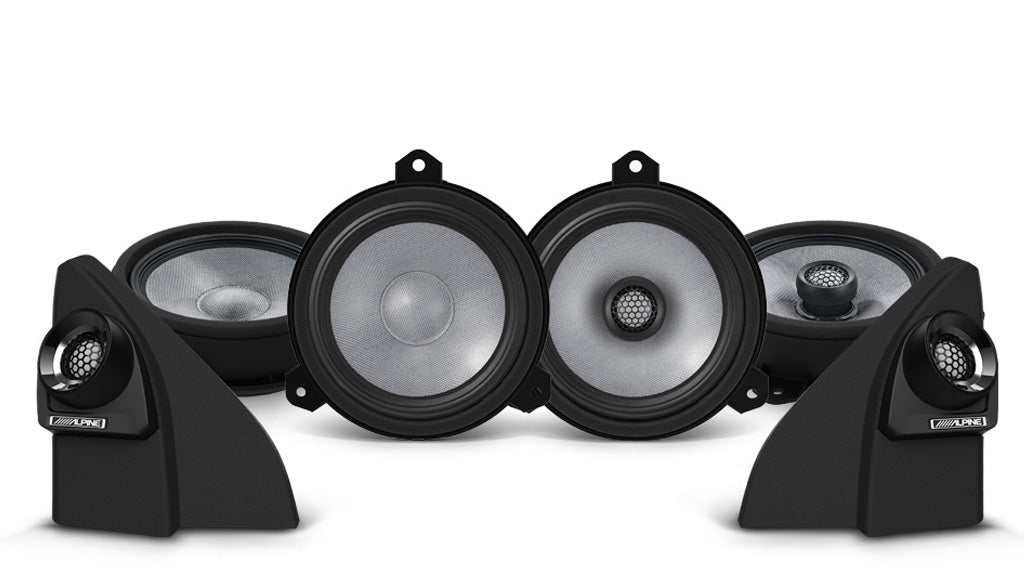

xAlpine R2-Series HL20-R265 Speaker Package Suitable for Toyota Hilux AN130 (BUILD 06/20 - ONWARDS)
Turn up the bass in your Toyota Hilux — the next Generation R-Series are born to be played loud with Alpine’s all-new R-Series ‘direct fit’ premium speaker upgrade. Equipped with Alpine’s exclusively designed tweeter housing superior sound quality is achieved, all-while your cabin space is enhanced with its striking appearance and premium finishes inclusive of a machine finished metal Alpine logo and contrasting black chrome accent.
Alpine engineered and reborn from the ground up, the all-new R-Series speaker housings unites true Hi-Fi sound quality and ultra-bass performance with precise and direct replacement of the factory installed speakers. All parts are pre-assembled with ‘plug-n-play’ connections providing a straight forward, no-fuss installation with no need of any modifications, cutting of wires, nor soldering.
Perfect Integration

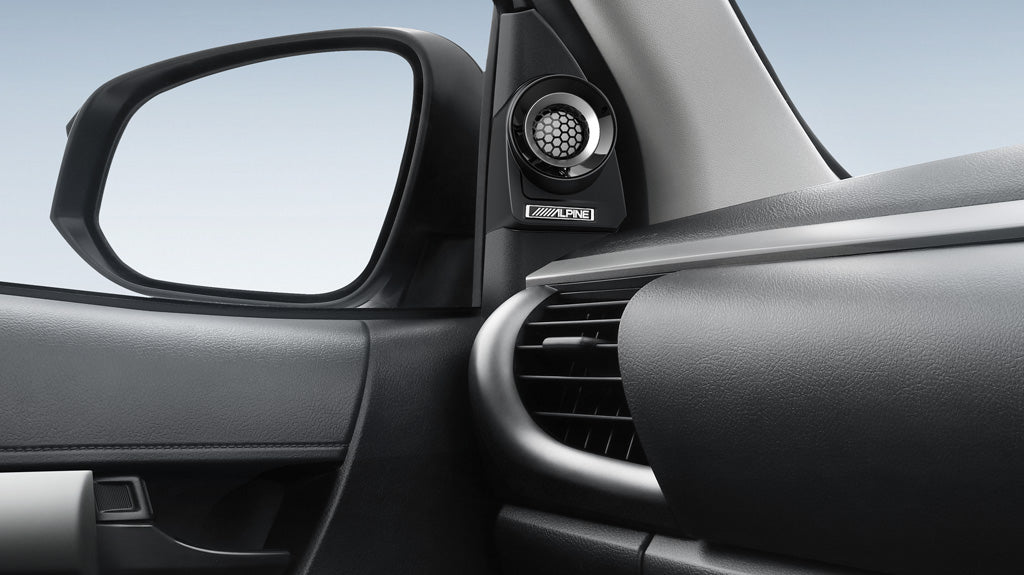

Alpine’s premium design ‘A Pillar’ direct-fit tweeter housing with a machine cut Alpine logo and an elegant black chrome bezel which are all pre-assembled parts ready for direct installation to your Toyota Hilux.

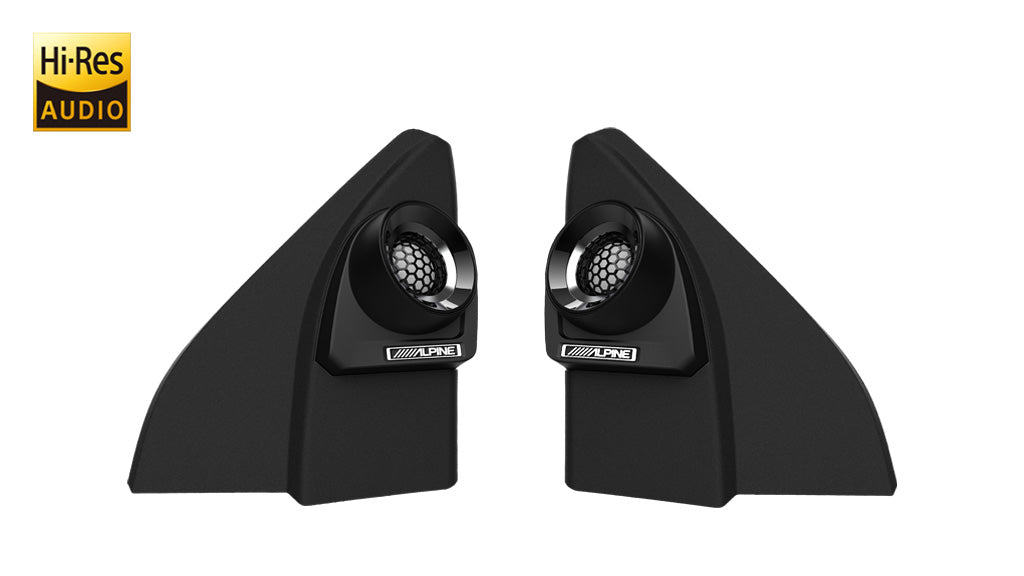

Premium Design Tweeter Housing
Premium audio never looked so good. The bold, yet ornate design of the tweeter housing directly replaces the OEM which elevates the interior aesthetic and optimises the tweeter axis for superior sound quality.

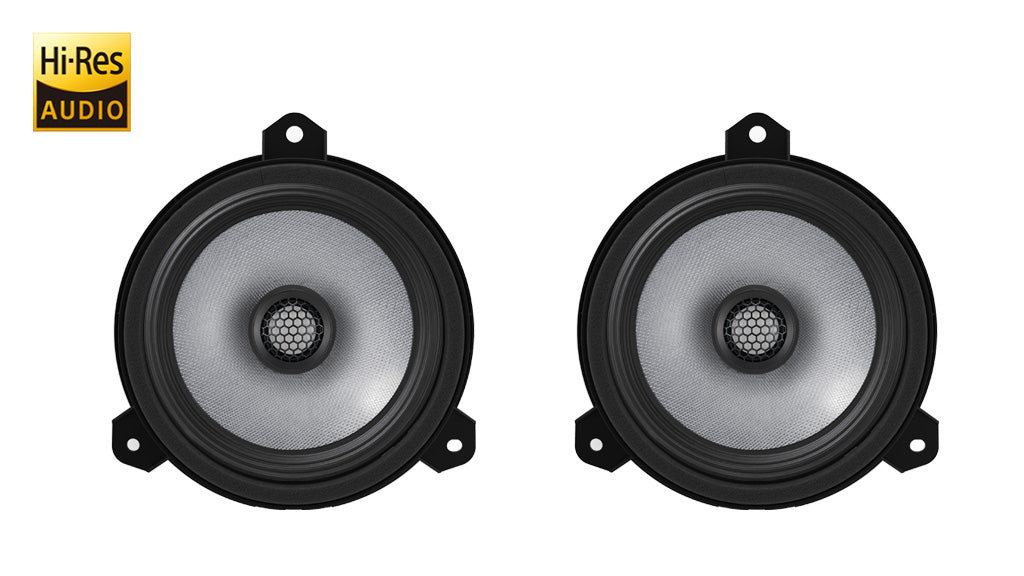

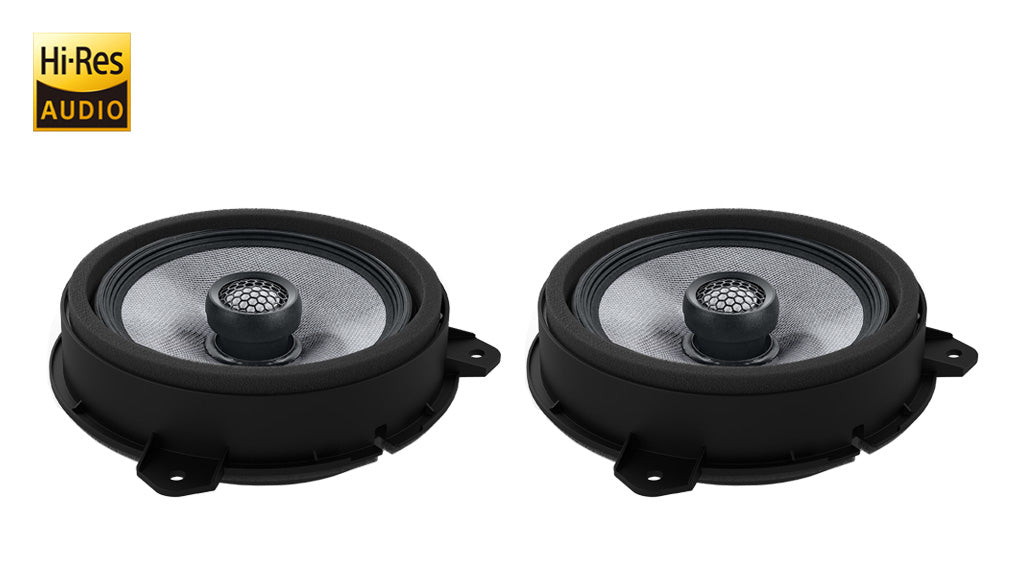

Hi-Res Audio Certified Hard Dome Tweeter
The all-new magnesium hard-dome tweeters housed within the centre of the speaker and tweeter delivers an ultra-clear, yet highly detailed and smooth response. They play right up to 40kHz allowing harmonics to reveal the finest of nuances for an authentic sound experience, faithfully to the original recording.
Direct Fit Installation
All speakers interface directly to the OEM, providing a quick and easy ‘plug-n-play’ connection. This means there is no need to cut, solder or modify any of the vehicle’s original wiring — saving you time by easily utilising the original speaker wires, allowing for a straight and simple installation.

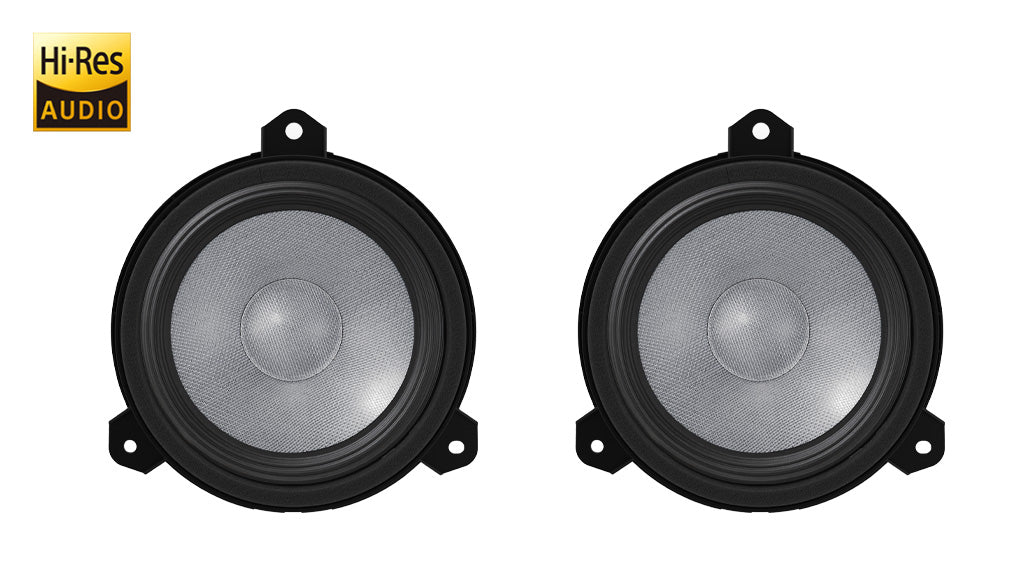

Larger Magnet Structure
The new R-Series speakers feature a larger magnet structure for incredible bass. Despite this, the driver depth is unchanged from the previous generation to retain installation versatility, but with improved performance.

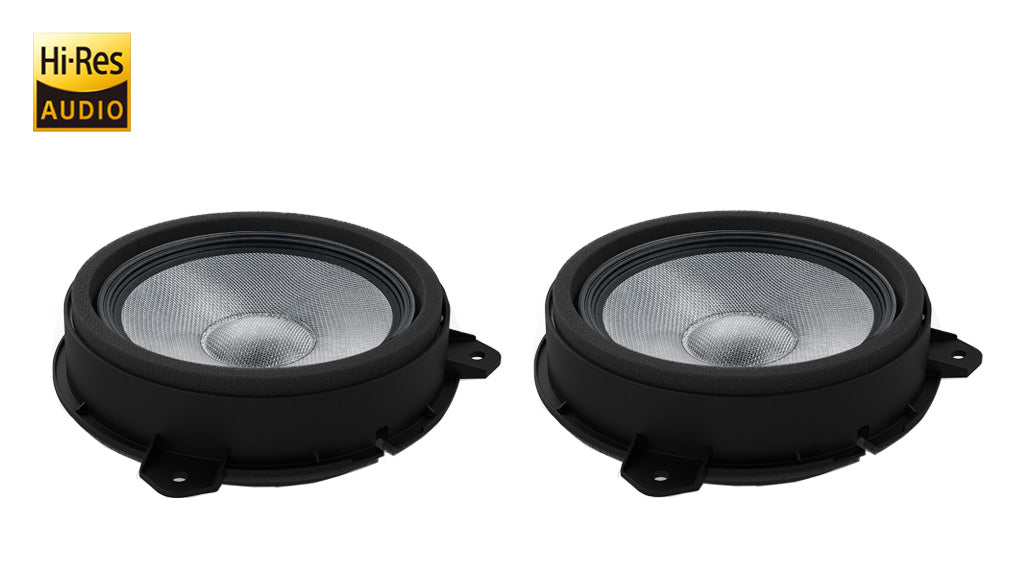

Glass-Fibre Reinforced Cone
The high-performance midrange and woofer drivers feature an all-new glass-fibre reinforced cone. This material is extremely rigid and light-weight, resulting in exceptionally fast cone velocity and response time, delivering highly accurate music reproduction.
Exclusive HAMR Surround
Alpine’s High Amplitude Multi-Roll (HAMR) surround provides a greater maximum and linear cone excursion for high SPL. The HAMR surround maintains full control over the cone at any excursion stage for powerful bass and pure sound.
High-Pass X-Over Network
This small X-Over networks are very easy to install – in may cases you can keep the original wiring in the vehicle’s doors by simply putting this network in, saving lots of time during installation. You can adjust the tweeter level by -3dB / 0dB / +3dB.
Features
Tweeter
- Tweeter Type: 1” (2.5cm) Ring Radiator Tweeter
- Voice Coil Type: Dual Gap for optimum linearity and clarity
- Magnet Material: Neodymium Magnet
- Swivel Application allowing the sound to be focused for the best in-car sound performance
Woofer
- Cone Material: Hybrid Multi Layer Cone
- Motor Technology: Linear Drive Technology
- Surround: HAMR Surround
- Voice Coil Type: Dual Gap Voice Coil for optimum linearity and clarity
- Magnet: Ultra High Density Neodymium Magnet
- DX Ring: DX Ring
- Wave Guide: Wave Guide
- Mounting: Shallow Mounting Design
- Mounting Adapters: Mounting Adapter Kit Included
- Design: Bi-Amp Ready Design
Specifications
|
General |
|
|
Peak Power Handling |
300W |
|
RMS Power Handling |
100W |
|
Nominal Impedance |
4ohms |
|
Frequency Response |
65Hz-40kHz |
|
In-Line High Quality Crossover |
|
|
59mm Mounting Depth |
|
|
Swivel Tweeters |
|
|
Neodymium Magnet |
|
|
Multi-layer Hybrid Cone |
|
|
Dual Gap Voice Coil |
|
|
All-New Design Circuit for Precision Response |
|
|
|
|
|
Dimensions |
|
|
Woofer Diameter (mm) |
165mm |
|
Woofer Diameter (in) |
6-1/2″ |
|
Woofer Mounting Diameter (mm) |
176mm |
|
Woofer Mounting Diameter (in) |
6-15/16″ |
|
Woofer Mounting Depth (mm) |
59mm |
|
Woofer Mounting Depth (in) |
2-3/8″ |
For more information, please visit the manufacturer's website.
