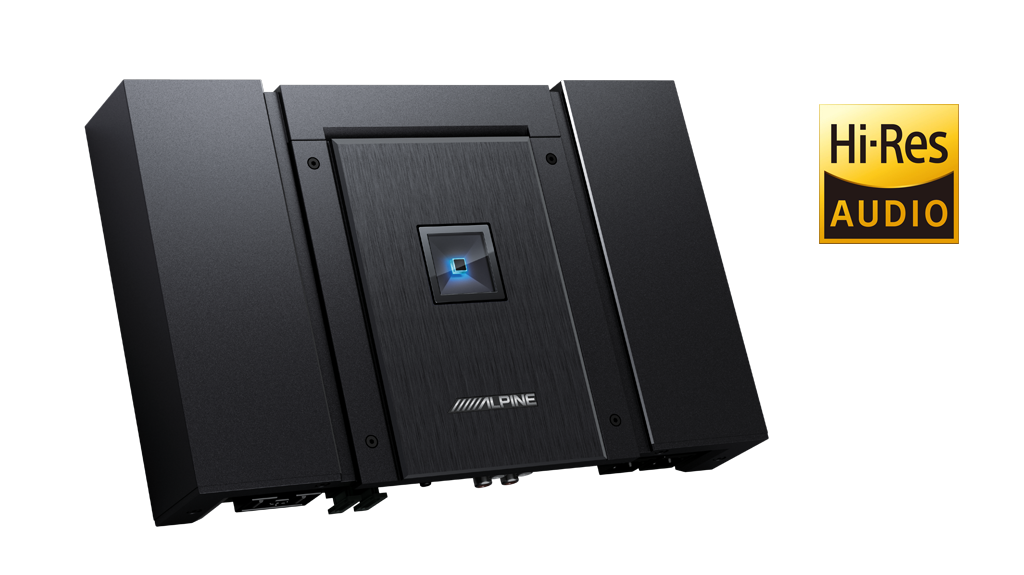

xALPINE STATUS HDA-V90 5CH AMPLIFIER
Alpine introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in “stand-alone” configuration.
The HDA-V90 Hi-Res Audio certified 5 channel amplifier redefines the industry benchmark in sound performance, delivering true high-resolution sound reproduction. The all-new digital design provides huge amounts of power output and an extraordinary damping factor making these amplifiers class-leading in every way. With performance at the highest standard, the HDA-V90 has a frequency response of 10-60kHz and a CH1-4: >500, CH5: >1,000 dampening factor to deliver high power output with precision, as well as a superlative high-definition sound experience.
Hi-Res Audio Made Accessible
The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction – at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.
Clean Cut Design

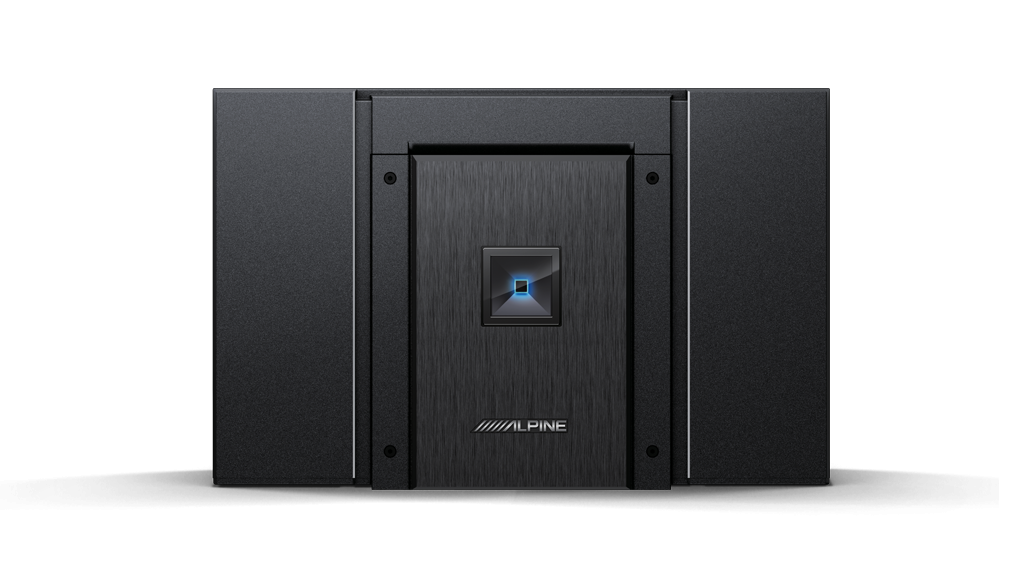

The all-new HDA-V90 5 channel amplifier boasts an advanced digital design with a copper plated chassis and black circuit board, along with Alpine’s exclusive blue power indicator light seamlessly integrated within the centre of the amplifier for a premium finish.
Hi-Res Capabilities
Alpine Status amplifiers specifications must be heard to be believed. The HDA-F60 has a dampening factor of CH1-4: >500, CH5: >1,000, achieving precision control of cone movement at high power outputs with minimal distortion. This combined with the HDA-M80’s sonically excellent Hi-Res playback creates the ultimate high-resolution sound system, allowing you to experience true high-definition sound with remarkable accuracy.
Thermal Protection
Along with Alpine’s new intelligent amplifier platform, the new Alpine Status amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.
Power and Speaker Connectors

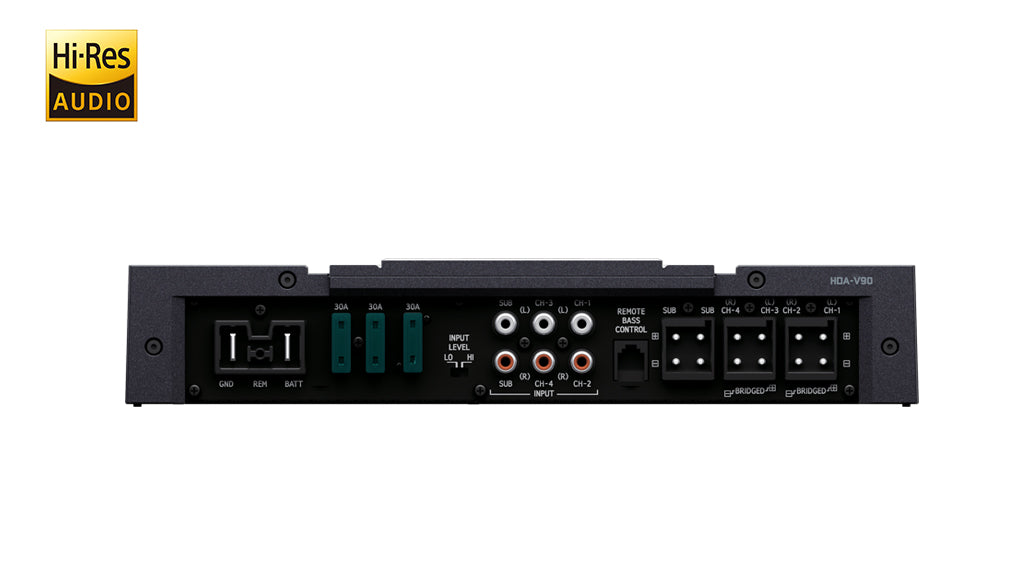

The HDA-V90 features Alpine’s quick-connect power and speaker connectors for a safe and easy installation. The one-sided terminal layout and top-panel sound controls provide the user quick access to controls on the amplifier.
Specifications
|
RMS Output Power |
75Wx4ch+300Wx1ch (4Ω) 100Wx4ch+500Wx1ch (2Ω) Bridged 200Wx2ch (4Ω) |
|
THD+N |
≤0.02% (10W), ≤0.07% (Rated Power) |
|
S/N Ratio |
CH1-4 >105dB, CH-5 >104dB |
|
Frequency Response |
(-3dB) 10-60kHz (Hi-Res) |
|
Damping Factor |
CH1-4 >500, CH-5 >1,000 |
|
Size (mm) |
W297xD192xH50.8 |
For more information, please visit the manufacturer's website.
