Alpine UTX-A09 HI-RES Audio Player

UTX-A09 Hi-Res Audio Digital Media AM/FM Receiver with Bluetooth and Dual USB

Built for audiophile purists and music lovers the UTX-A09 is designed without compromise. Ensuring ultimate sound quality performance the UTX-A09 is engineered with high-end audio circuitry and is Hi-Res Audio certified to playback FLAC, WAV and APE high-resolution audio files with support of sampling rates up to 24Bit/192kHz without down-sampling.

Moreover, the UTX-A09 has incredible versatility, functioning as a stand-alone head unit or can be added to an OEM system. Features include a built-in amplifier, AM/FM Tuner, Bluetooth (4.0) hands-free and music streaming, dual USB inputs, iPod/iPhone connectivity and an auxiliary input with ‘navi mix’ function allowing voice guidance to be heard when using OEM navigation.

High-end sound tuning capabilities include digital time correction, digital crossovers ready for a 3-way active speaker system setup, 9 band parametric EQ, MediaXpander HD and TuneIt App ready for sound tuning via a smartphone. The 3 pre-outs (4 Volt) with subwoofer level control allows for expansion to multiple power amplifiers, plus the optical and SPDIF digital coax output enables connection to an external audio processor for ultra-high-end system configurations.

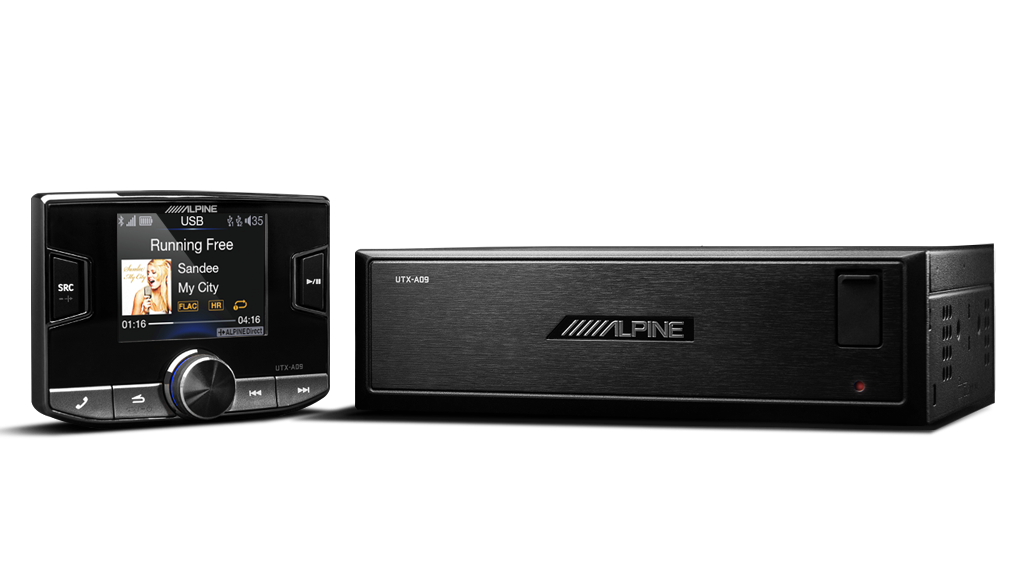

A unique high-end design that suits a multitude of installation applications

Perfect for stealth, vintage or exotic vehicle applications the stunning 2.4-inch TFT display controller has a slim profile which can be mounted virtually anywhere and for bespoke installations the included flush mount bezel can be utilised. The black box can be installed into a 1-DIN space or hidden away in a glove-box compartment or other discrete location such as under a seat or dashboard within a distance limited to the 2.5mtrs controller display cable length.

Hi-Res Audio sound quality exceeding CD, a realistic and high-definition sound experience faithful to the original studio recording

The Hi-Res Audio certification is the industry benchmark for which has been standardised through JAS (Japan Audio Society). In summary, it is the collaboration of digital processes and formats that allow the encoding and playback of high-definition music files which require higher sampling rates and wider frequency dynamic range compared to what is found on typical CDs.

Hi-Res Audio encompasses the playback of high-resolution music such as FLAC, WAV or APE files that contain high sampling rates of 24Bit/192kHz (above the CD standard 16Bit/44.1kHz). These audio files can be reproduced with high fidelity sound via the UTX-A09 and companioned with Hi-Res Audio certified speakers and amplifiers.

Listening to Hi-Res Audio allows you to feel every emotion and immerse in the realistic nuances and fine details of your favourite artist’s original studio performance which is reproduced in high-definition sound. Furthermore, Hi-Res Audio has absolutely no distortion and incredible dynamics for an authentic and exhilarating audiophile listening experience.

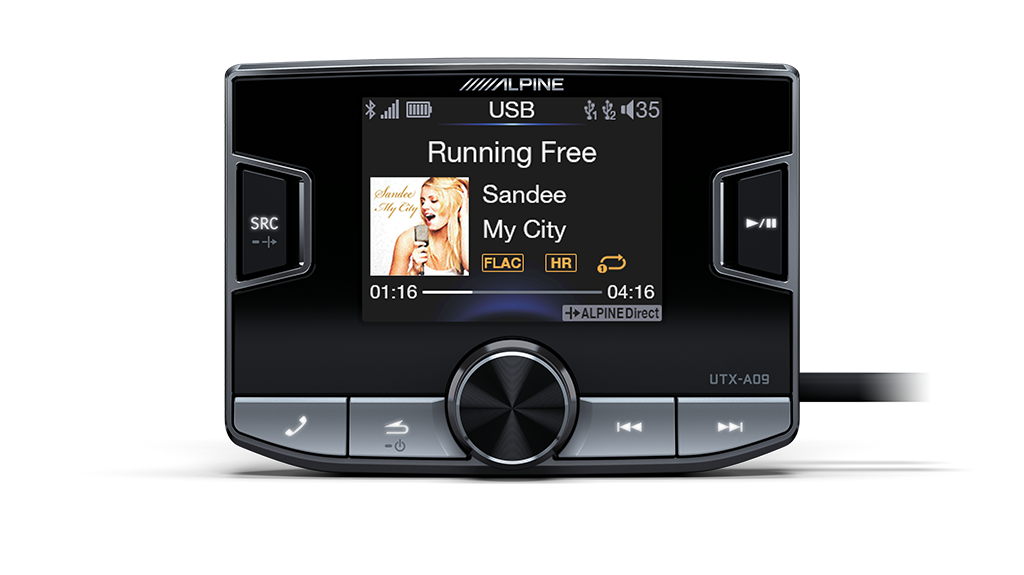

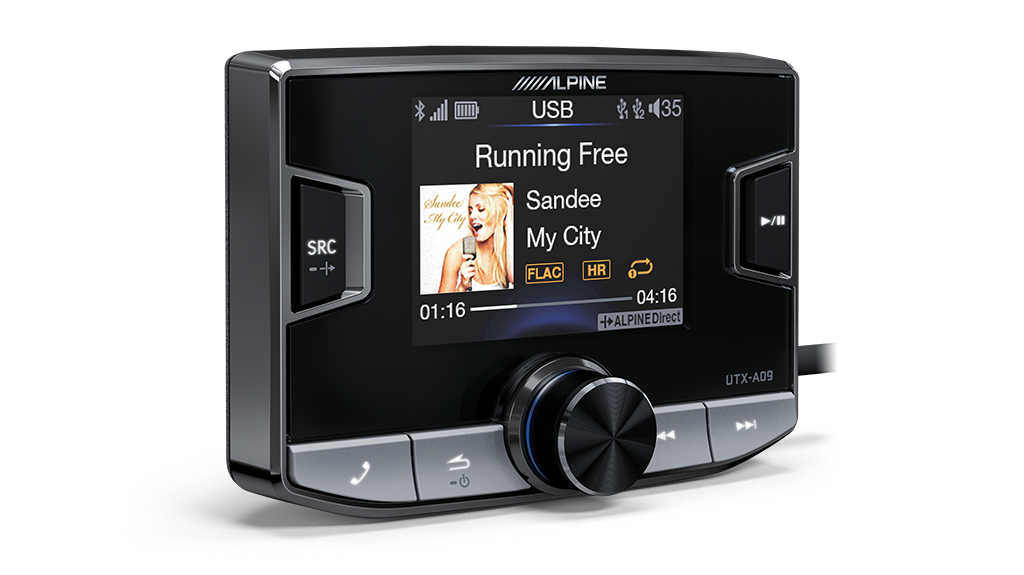

Easy to use controller to select sources, browse music and make sound adjustments

Controlling the UTX-A09 is a simple and easy task. The hard keys provide instant control of main functions such as phone and track up/down selection. Moreover, the rotary encoder makes volume adjustment, selecting menus and sources, as well as browsing through music your and phone book intuitive and fast. The vibrant 2.4-inch display delivers a rich user interface experience displaying Hi-Res Audio info, album artwork, artist and song titles. Selecting between preset EQ and MediaXpander HD modes is a breeze and on-the-go sound adjustments is easy and effective too.

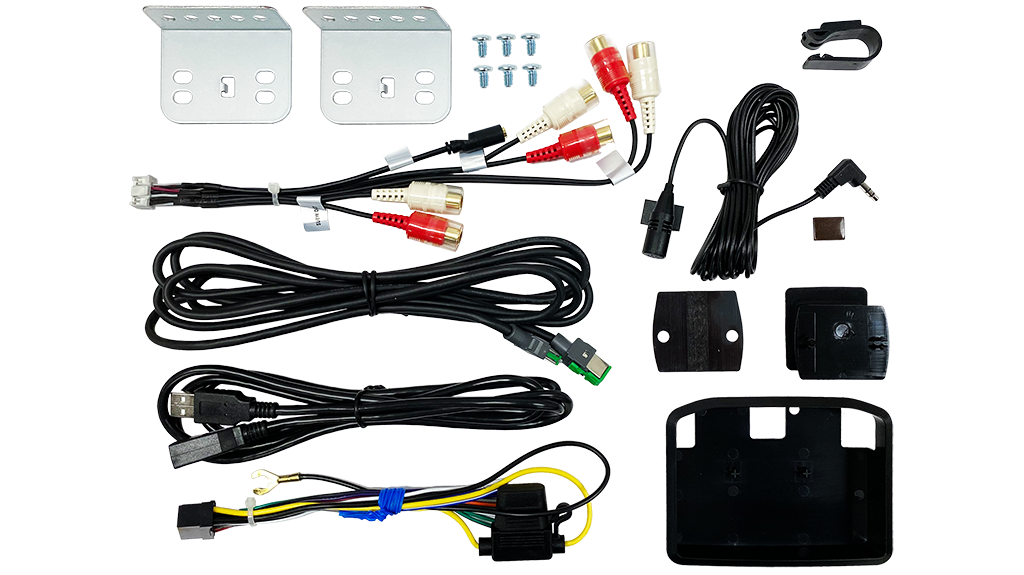

All parts included for an OEM add-on system or bespoke custom installation

The UTX-A09 gives you virtually limitless installation flexibility when compared to a typical 1-DIN head unit. The slim profile 2.4-inch TFT display controller is separate from the black box which can be fitted up to 2.5mtrs away. Furthermore, the display controller flush mount housing allows for the  bespoke fitment into a flat surface

Hi-Res Audio solution for premium vehicles equipped with factory navigation

Vehicles equipped with a factory navigation system and integrated vehicle controls often cannot be changed. The UTX-A09 keeps your OEM system intact by allowing it to be added to or integrated with the OEM system for pure high-end sound and additional functions such as Bluetooth (4.0) for music streaming and hands free phone with compatibility of newer smartphones. Plus, the auxiliary input with ‘nav mix’ lets you hear voice guidance from the factory navigation system.

High-end connections provide the foundation for the ultimate Hi-Res Audio system

The ultimate audiophile experience is awaiting, the UTX-A09 enables playback of your Hi-Res Audio music with sampling rates up to 24Bit/192kHz, all while Alpine Hi-Res Audio certified speakers and amplifiers reproduce sound recordings with extraordinary accuracy and definition, including nuances in upper harmonics way beyond the typical 20Hz-20kHz range.

Features

Tuner

• Memory Presets: Preset Stations (18 Total; 12 Stations for each band FM and AM
• Memory: Auto Memory

BLUETOOTH®

• Built-in BLUETOOTH® Module
• HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Connection: SSP (Simple Secure Pairing) Supported
• Phone Book: Phone Book Synchronisation
• Speed Dial: 4 Preset Memory (per phone)
• Multiple Phone Number Registration: 4 Phone Numbers can be stored for one name
• Device Name Display
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Signal Strength Indicator
• Battery Level Indicator
• Microphone Included

Made for iPod® / iPhone®

• Music Playback
• Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook / iTunes Radio
• Repeat

USB Media Connection

• USB Connection: USB Extension Cable Included
• Music Playback: FLAC/MP3/WMA/AAC/WAV/APE compatible
• File / Folder Name Search
• Folder Up / Down
• Repeat

Sound Tuning

• Bass Engine SQ
• Subwoofer Level Adjustment
• Subwoofer Phase Select
• 4V High Voltage PreOut
• Equaliser: Flat (Initial Setting), Pops, Rock, News, Jazz, Hip Hop, Easy Listening, Country, Classical, Customise
• Dual HD EQ (9-band Parametric Equaliser front/rear)
• 6 Channel Digital Time Correction
• Digital Crossover Setting
• MediaXpander HD
• Easy, Step-by-Step Sound Customisation
• Alpine TuneIt App ready

General

• Power Output: 4 x 22 W Power Amplifier
• 3 PreOuts (4V)
• AUX-In: 1 AUX Input (3.5mm micro jack)
• Aux Input Navi Mix Level Adjustment (0~12)
• Steering Wheel Remote Control Function (via optional steering wheel interface)
• Remote Control Ready (Optional)
• Menu Language: 2 Languages, English / Chinese (Initial Setting)
• Auto Dimmer
• Power Antenna Lead

Specifications

For more information, please visit the manufacturer's website.
