Description

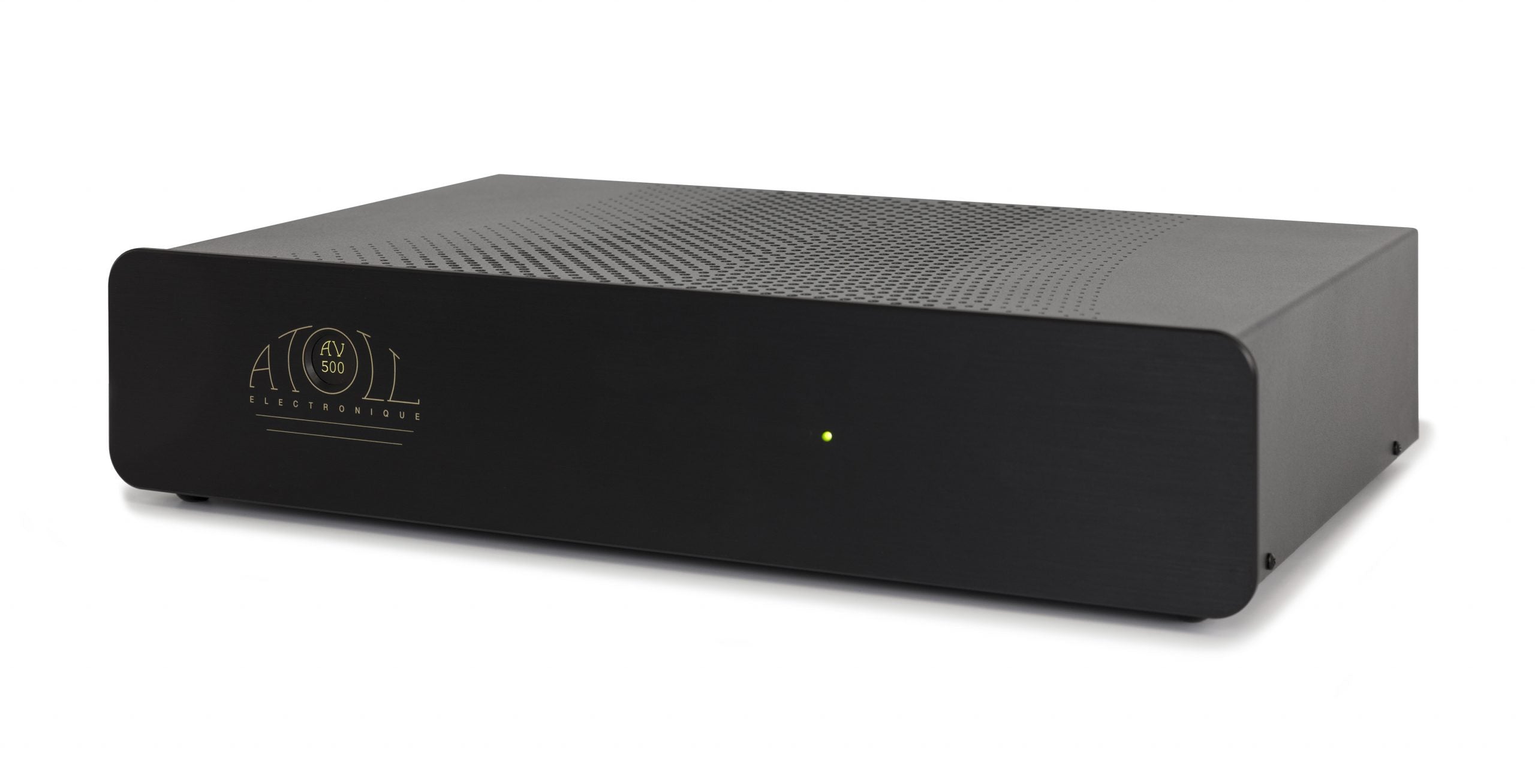

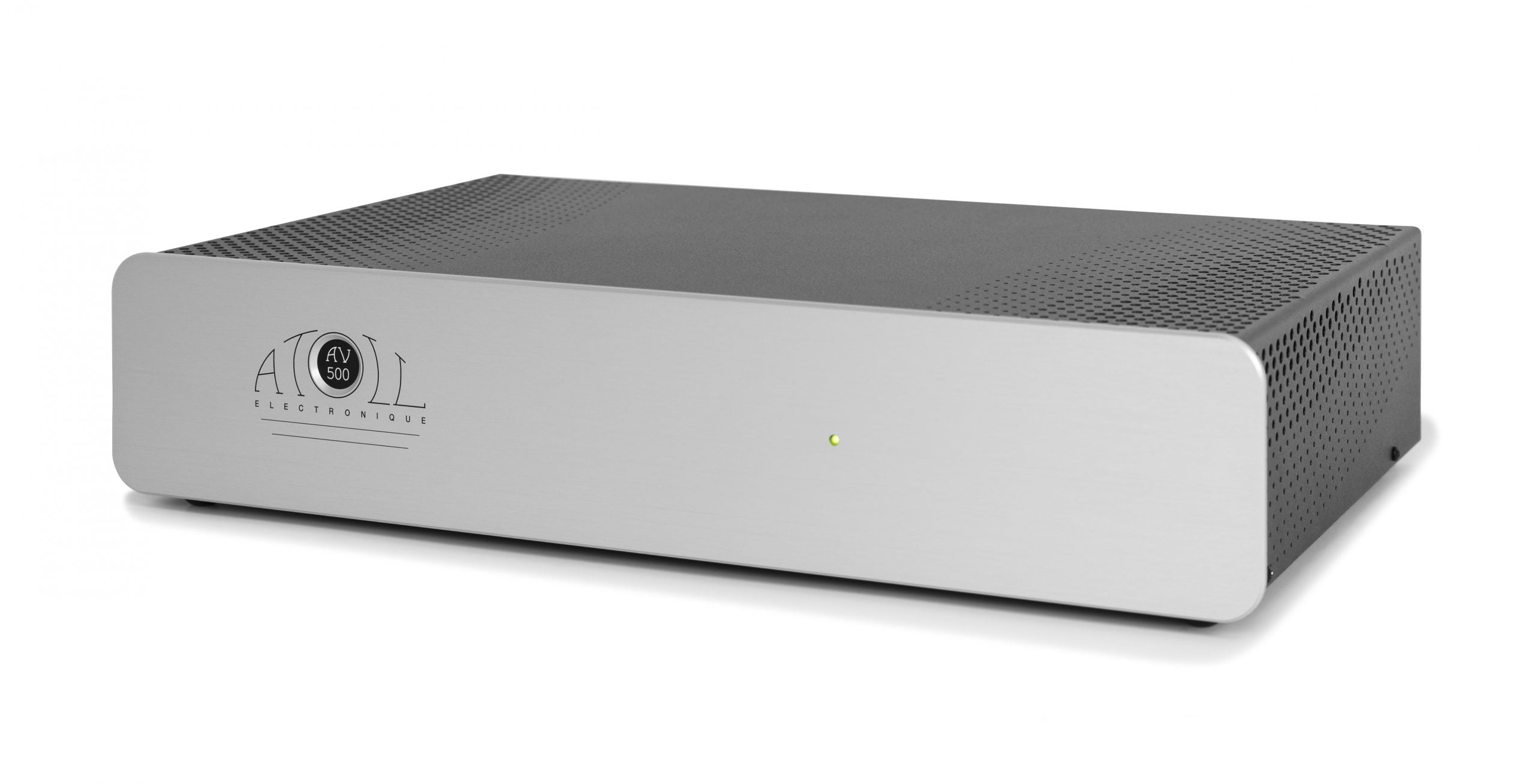

xThe AV500 home cinema power amp is a 5-channel model developing up to 85 watts per channel into 8 ohms. Equipped with high quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-out outputs, in order to amplify the front and surround channels. This very musical amp, combining power and finesse, allows the listener to dive into the heart of the action.
Features
-
Aluminium front panel of 4 mm
-
Complete steel chassis of 1,5 mm
-
Fully symmetrical stages with discrete components
-
Single pair of MOS-FET transistors per channel on outputs
-
Double 340VA toroidal transformers

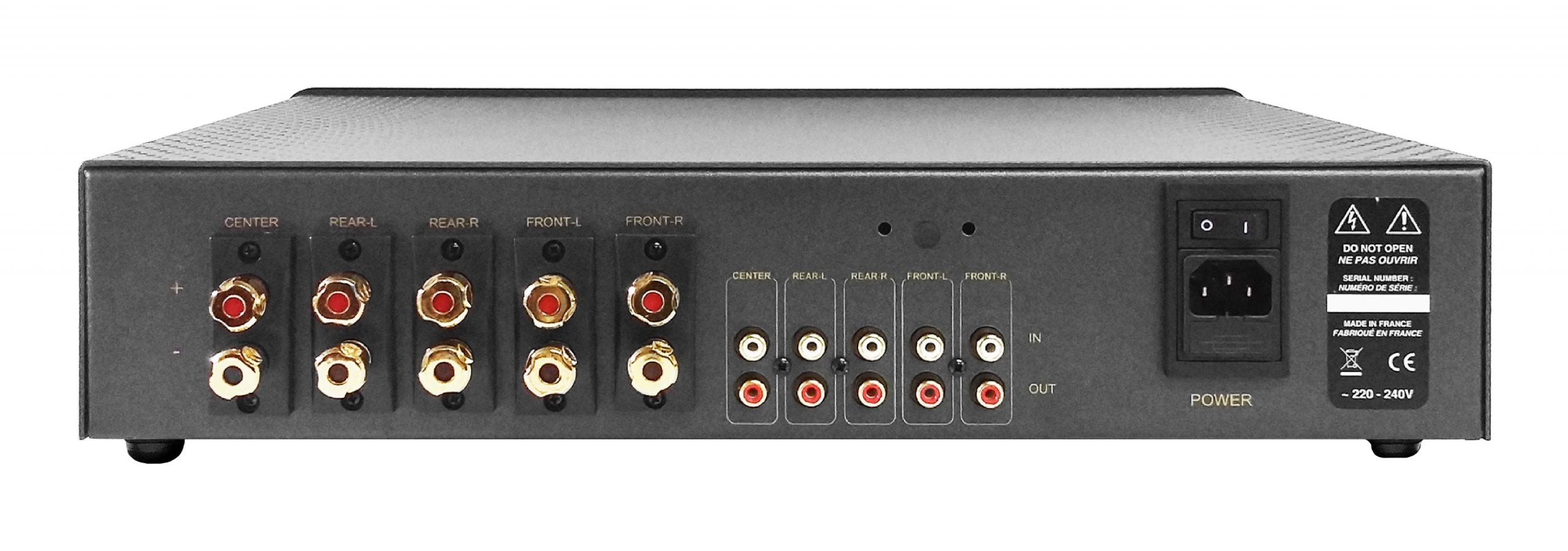

Connectivity
- 5 RCA inputs.
- 5 RCA outputs (bi-amplification).
- 5 Loudspeaker outputs strong section to screw accepting banana plugs.
- Same gain as AM and AV series.
Specifications
|
Power Wrms/channel/8 Ω |
5×85 W / 2×100 W |
|
Power Wrms/channel/4 Ω |
5×100 W / 2×140 W |
|
Supply (VA) |
680 VA |
|
Total of capacitors (µF) |
73 000 |
|
Inputs |
5 |
|
Input Impedance (kΩ) |
47 kOhms |
|
Sensibility (mV) |
from 1,58 V to 1,77 V |
|
Distortion at 1 kHz |
0,005 % |
|
Bandwidth |
5 Hz – 200 kHz |
|
Signal/noise ratio (dBA) |
100 dB |
|
Weight (kg) |
12 kg |
|
Dimensions (mm) |
440x90x290 |
For more information, please visit the manufacturer's website.
