Description
xATOLL HD120 HEADPHONES AMP / DAC / PRE AMP WITH USB & BLUETOOTH - MADE IN FRANCE
The Atoll HD120 is a high-performance pre-amp and digital/analog converter that delivers stunning audio quality. It features a Burr Brown PCM5102 converter that can process digital audio signals up to 32 bits and 384 kHz, as well as an asynchronous USB input that can process up to 24 bits and 192 kHz. The HD120 also includes a Bluetooth controller for wireless music streaming, and it is compatible with the Atoll MA100 power amplifier.

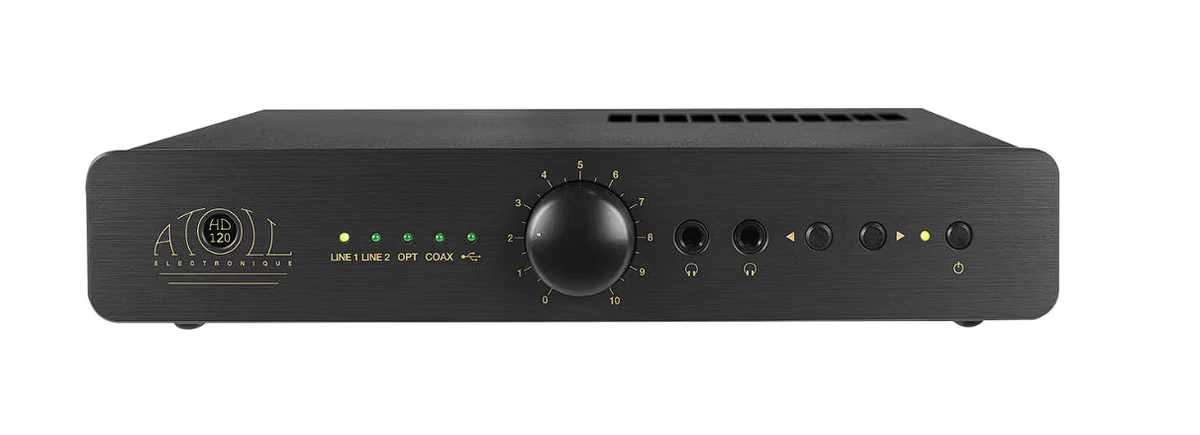

The HD120 is built with high-quality components and features a solid power supply that provides the current necessary to amplify the two headphone outputs. It has a sleek, brushed aluminum front panel with a central volume potentiometer, headphone sockets, source selector, and on/standby button. The rear panel of the HD120 houses the power connector, power switch, S/PDIF inputs, USB input, line inputs, and line outputs.
The Atoll HD120 is a versatile and musical pre-amp and digital/analog converter that is perfect for audiophiles who demand the best possible audio quality. It is also a great choice for those who want to enjoy high-resolution audio files and wireless music streaming.
Features
- Burr Brown PCM5102 converter for up to 32 bits and 384 kHz digital audio processing
- Asynchronous USB input for up to 24 bits and 192 kHz digital audio processing
- Bluetooth controller for wireless music streaming
- Compatible with the Atoll MA100 power amplifier
- High-quality components and solid power supply
- Sleek, brushed aluminum front panel
- Rear panel with power connector, power switch, S/PDIF inputs, USB input, line inputs, and line outputs
If you are looking for a high-performance pre-amp and digital/analog converter that delivers stunning audio quality, the Atoll HD120 is a great option.
Connections
- 2 Headphones Jack Outputs (6,35mm – 1/4″)
-
2 Line Inputs (RCA)
-
1 Preamp. Output (RCA)
-
1 Coaxial Input (32bits/384kHz)
-
1 Optical Input (24bits/192kHz)
-
1 Trigger 12V output (direct switch on/off with MA100)
-
1 USB-B 24/192kHz asynchronous input
-
1 Bluetooth input (i2C direct)
Specifications
|
Supply |
12.8 VA |
|
Power |
1.4W / 32ohms |
|
Impulse Power |
6.8W/ 32ohms |
|
Total of capacitors |
12 425 µF |
|
Input Impedance |
220 kohms |
|
Output Impedance on Headphones (X2) |
1 ohm |
|
Bandwidth |
1Hz – 150kHz |
|
Rising Time |
3 µs |
|
Signal/Noise Ratio |
112 dBA |
|
Distortion at 1kHz |
< 0.01% |
|
Dimensions |
320x220x60 mm |
|
Weight |
2.5 Kg |
For more information, please visit the manufacturer's website.
