Description

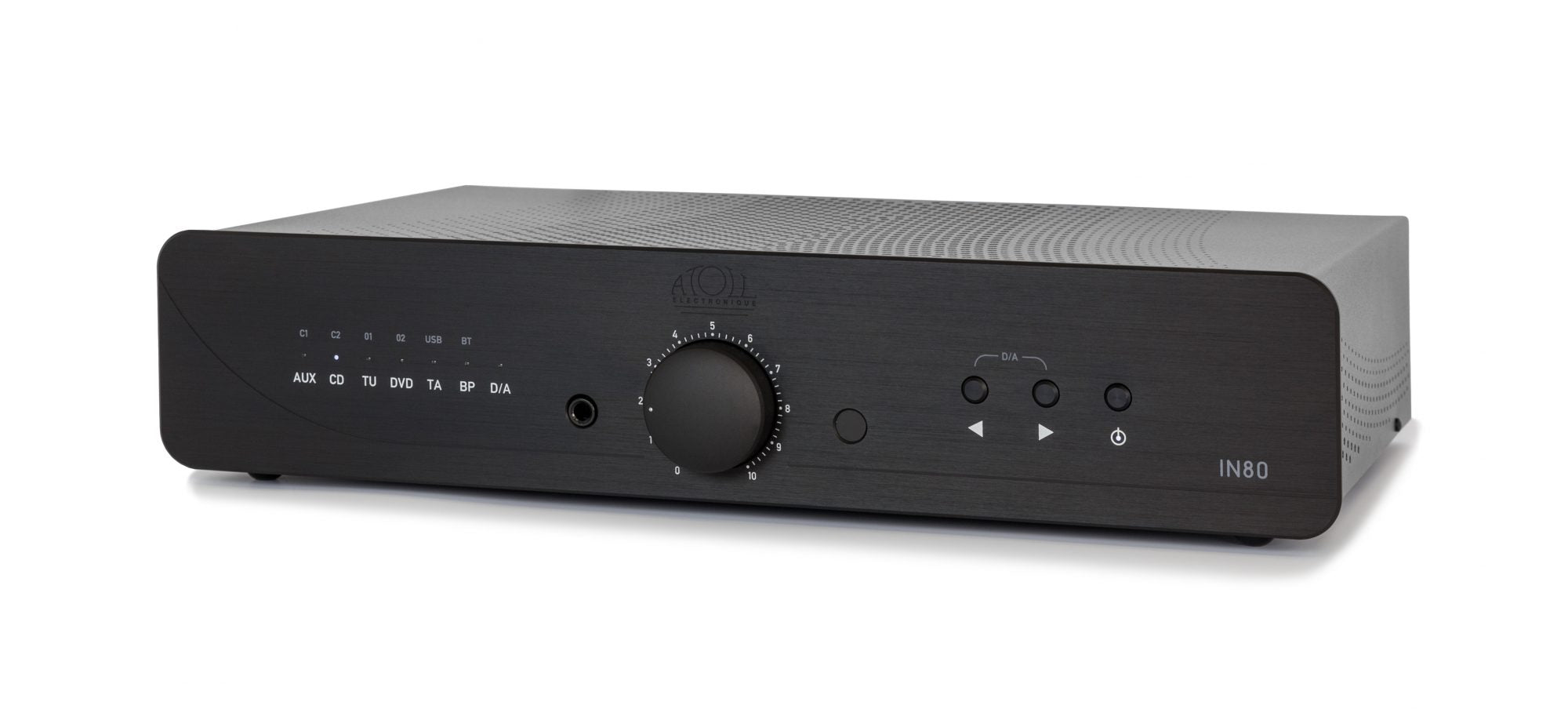

xAtoll IN80 Signature 2X80W Integrated Amplifier With DA200 DAC
The IN80 Signature integrated amp-preamp is manufactured with the greatest care: we choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection goes through the design of proprietary ATOLL circuits in order to preserve the integrity of the most subtle musical signals.
Features
- 4 mm brushed aluminium front panel.
- Power 2×80 W / 8Ω.
- Toroidal transformer of 340 VA.
- ALPS motorized potentiometer.
- Filter capacitors: 4×6800 μF.
- Single push-pull MOS-FET power stage.
- Monitoring loop.
- Discrete component audio stages.
- MKP Technology Link Capacitors.
- High-performance heat sinks, direct thermal coupling.
- Double-sided circuit boards with nickel/gold finish.
- Polarization of output stages in class A/B.
- Thermal protection.
- DAC board: DA200.
- Optional PHONO board: P50 or P100, can be combined with the DAC board.
- Optional ATOLL global remote control.

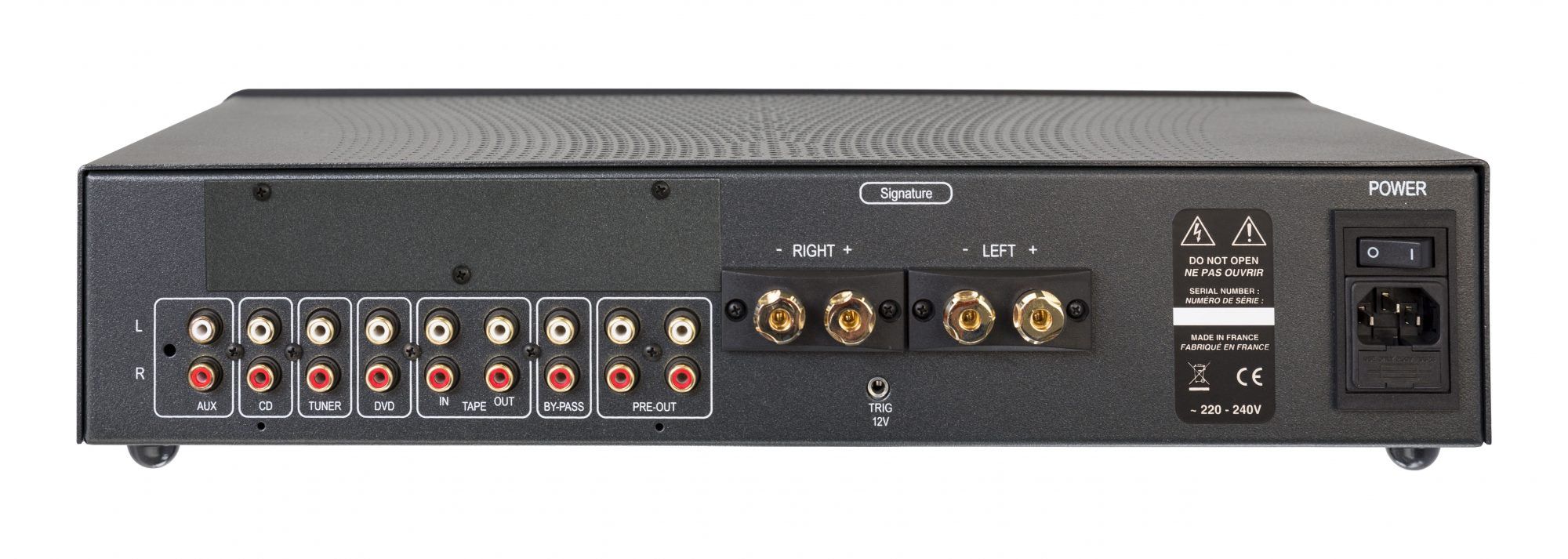

Connectivity
- Inputs
- 5 Audio inputs (RCA): AUX (or optional P50 / P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT)
- 1 BY-PASS input (used as a power amplifier)
- Outputs
- 2 Line preamp outputs (for bi-amplification or to connect a subwoofer)
- 1 Trigger output (12V)
- Various
- 1 Headphone jack Ø 6,35 mm
- DA200 DAC
- 2 Coaxial inputs (24 bits/192 kHz)
- 2 Optical inputs (24 bits/192 kHz)
- 1 Bluetooth receiver
- 1 USB-B input: PCM & DSD
Specifications
|
Output power/8Ω |
2×80 W |
|
Output power/4Ω |
2×120 W |
|
Power supply |
340 VA |
|
Total of capacitors |
31 474 µF |
|
Number of inputs |
5+1 BY-PASS |
|
Preamp outputs |
2 |
|
Bandwidth |
5 Hz – 100 kHz |
|
Rising time |
2,5 µs |
|
Input impedance |
357 kΩ |
|
Sensitivity |
100 mV |
|
Signal/Noise ratio |
100 dBA |
|
Distortion rate at 1 kHz |
0,05% / 10 W |
|
Dimensions |
440×305×95 mm |
|
Weight |
8 Kg |
For more information, please visit the manufacturer's website.
