Description
xAtoll SDA200 Signature Streamer/Dac/Amplifier - Made in France
Integrated Amplifier
-
Power Wrms/channel/8ohms: 120 W
-
Power Wrms/channel/4ohms: 200 W
-
Impulse Power: 200 W
-
Power supply: 670VA
-
Total of capacitors: 65 800µF
Streamer
-
Reading all audio files in the network (compatible DLNA and UPnP) connected on Wifi or wired RJ45.
-
Displays the name, tags, album cover, resolution.
-
“gapless” system (uninterrupted playback of consecutive audio tracks).
-
Possibility to create Playlists.
-
External control (with Qobuz, Audirvana…) with RTSP protocole.
Compatibility Roon
This product is certified Roon Ready.
Music Streaming
Direct access from the ATOLL app to streaming portals: Qobuz, Tidal, Deezer
Streaming Spotify Connect
Direct access to Spotify with Spotify Connect
Streaming Tidal Connect
Direct access to Tidal with Tidal Connect
Internet Radio
-
Access to all internet radios with Airable system in high quality:
-
choices of more than 100 000 stations, podcasts…
-
Displays logos stations and further information: titles, artists, resolution…
-
Possibility to add radios to a « favorite » menu.
Audio
-
Symmetrical outputs stages with no feedback and discrete components polarized in A class.
-
Analog volume control (with commutated resistors) with possible By-Pass.
-
Transformer specifically dedicated to audio stages.
-
High Quality MKP link condensators.
-
Burr-Brown PCM1792 converter.
End Users
-
5″ TFT led display (800*480).
-

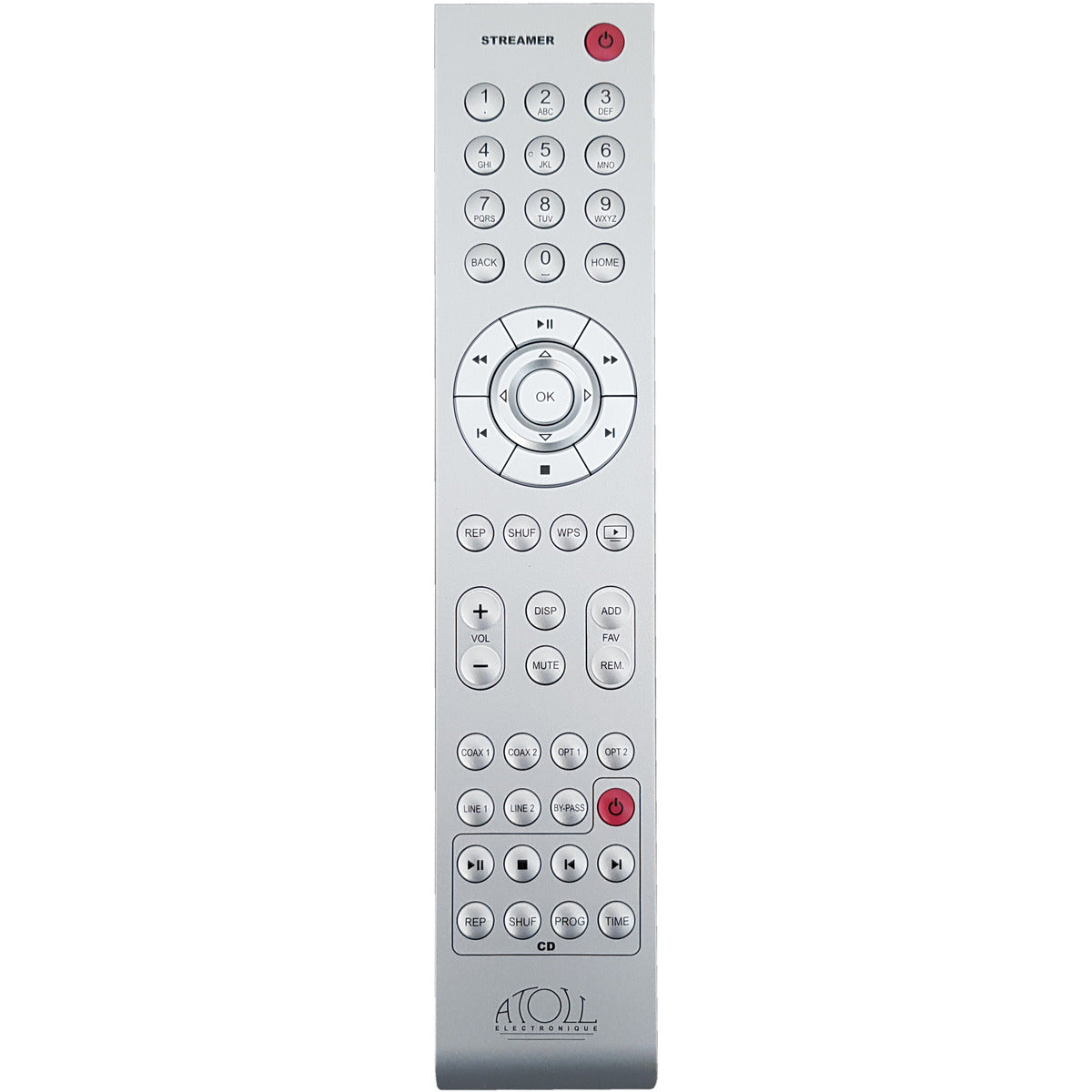

Serial remote control.
-
Apple® and Android® free app.
-
Readable files: MQA, DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.
-
Acceptable Resolution: PCM up to 24bits/192kHz and DSD64 & 128.
-
USB-A format: FAT32, NTFS, EXT2/3/4.

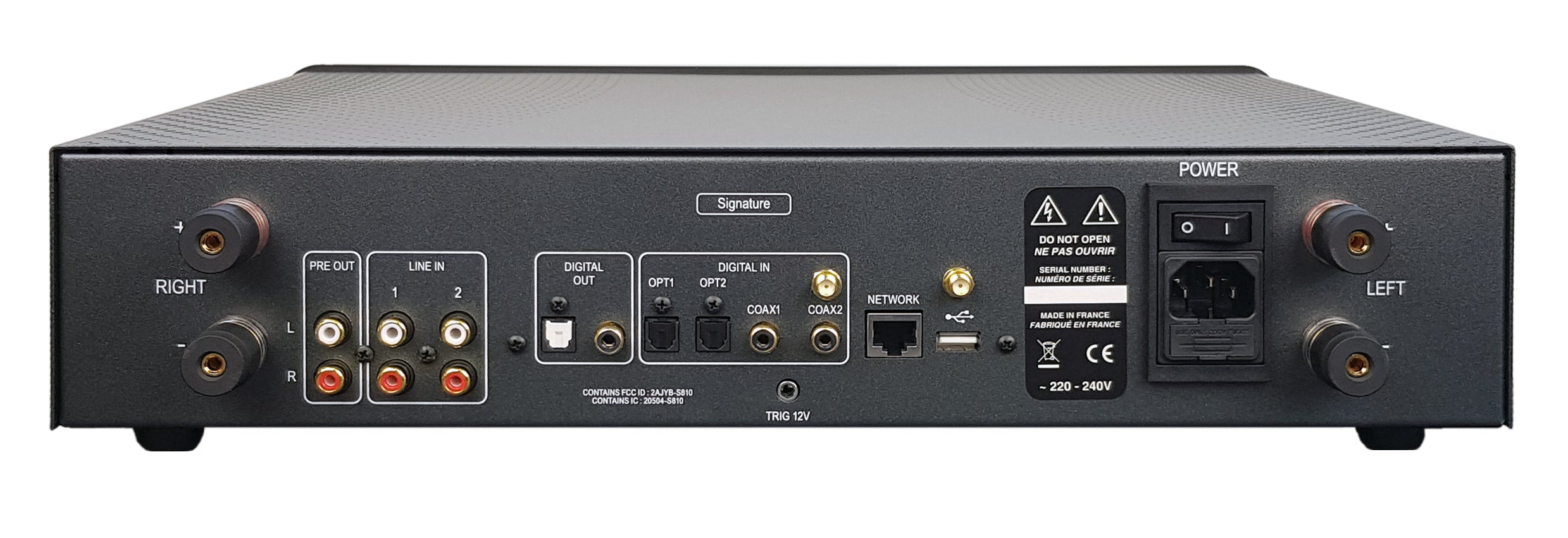

Pre-amp/Connections
-
Inputs:
-
2 analog
-
2 S/PDIF coaxial (PCM 24bits/192kHz)
-
2 S/PDIF optical Toslink (PCM 24bits/192kHz)
-
2 USB-A (1 front and 1 rear)
-
1 RJ45 network
-
1 Bluetooth® receiver (antenna)
-
Outputs:
-
Speakers
-
Pre-out
-
1 S/PDIF coaxial
-
1 S/PDIF optical Toslink
-
1 Wifi antenna (802.11b/g/n)
-
1 trigger 12V output
-
1 headphones output front (6,5mm)
-

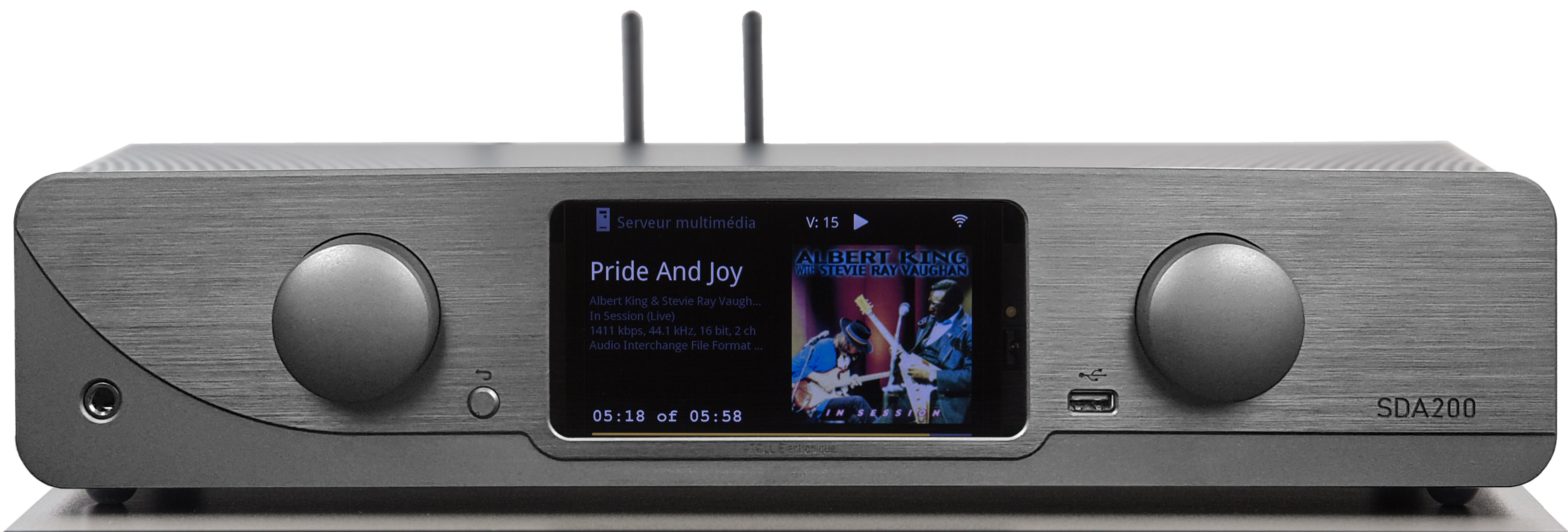

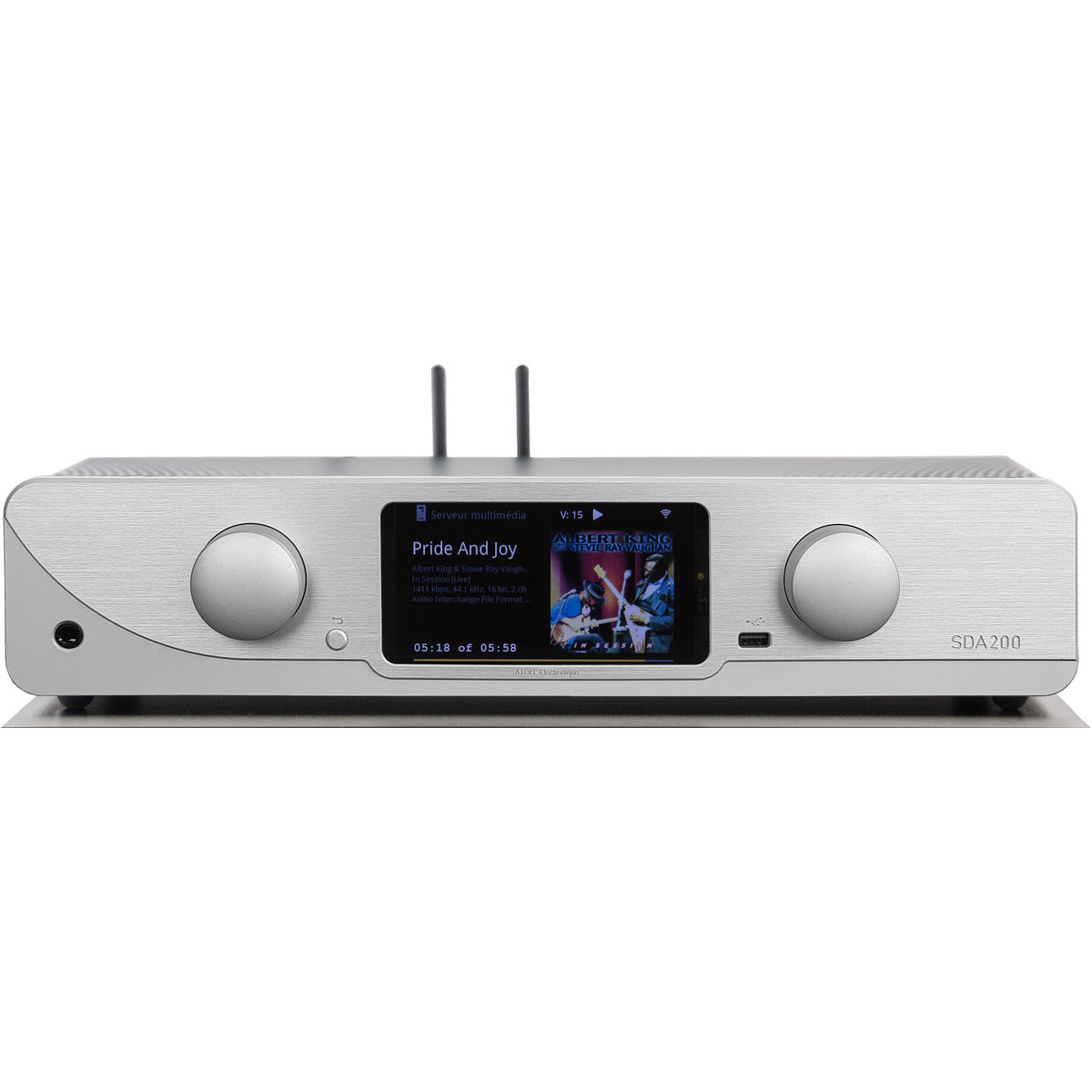

Available in black or silver
Specifications
|
Power Supply |
2x330 VA +10 VA |
|
Wrms/channel/8Ω |
2x120 W |
|
Wrms/channel/4Ω |
2x200 W |
|
Total of capacitors |
65 800uF |
|
Dynamic |
112 dB |
|
Input Impedance |
330 kOhm |
|
Distortion at 1kHz |
0.005% |
|
Bandwidth |
5Hz – 100kHz |
|
Rising Time |
2 µs |
|
Sensibility |
500 mV |
|
Signal/Noise Ratio |
100 dBA |
|
D/A converter |
Burr-Brown PCM1792 |
|
Dimensions |
440x320x90mm |
|
Weight |
11 Kg |
For more information, please visit the manufacturer's website.
