Brand: Audison
SKU: AP1
Availability: In Stock
Tweeters (pair)
Dimensions: 26mm (1")
Frequency response: 2k - 20k Hz
Power handling: Hi-pass filtered 3.5 kHz @ 12 dB Oct. 150 W Peak Power

Purchase

If you are interested in buying this item please contact us via our contact page.

Contact Us
$15 Flat rate shipping*

Description
Description
x

Audison AP1 Prima 1 Inch Tweeters

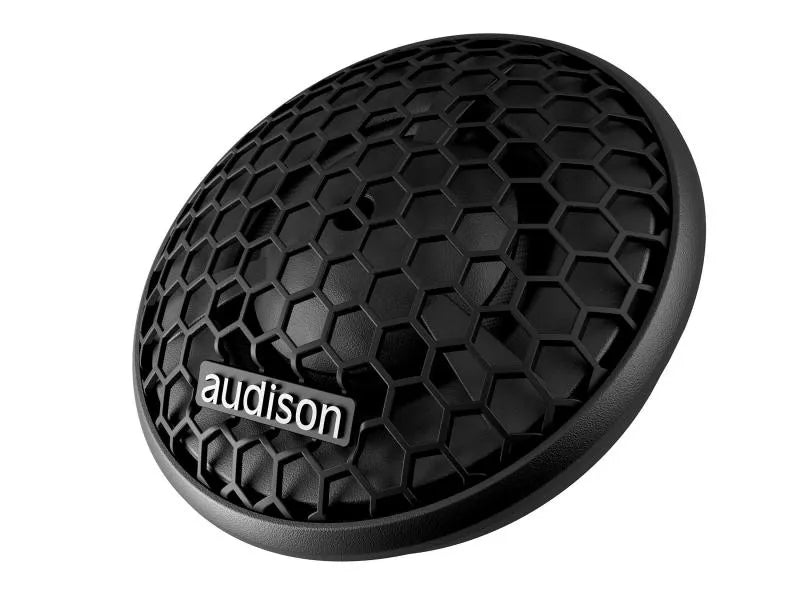

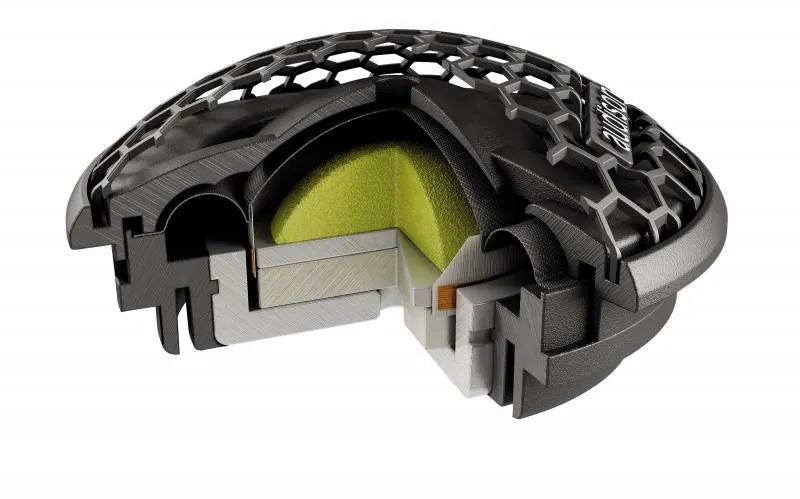

The AP 1 tweeter features an innovative design. The 26 mm diaphragm, combined with a wide external suspension, actively contributes to the overall emission, providing the ability to increase sound pressure while lowering the resonance frequency, all with extremely low moving mass. The powerful motor is characterized by a large Neodymium magnet.

Features

  • 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • Extremely compact dedicated passive crossover APCX TW supplied with the product, optimized
  • for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with “OEM Integration compliant”, fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
  • A wide array of mounting accessories is supplied with the product, for high fitment flexibility in OEM Integration.
  • CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound on a Kapton former, for better heat dissipation.
  • The Dome profile and motor are optimized with FEM (Finite Element Method) simulation technology.
  • Developed with the KLIPPEL suite.

Specifications

Comp Tweeter
Size 26 mm (1″)
Power Handling Hi-pass filtered 3.5 kHz @ 12 dB Oct. 150 W Peak Power
Impedance 4 Ω
Frequency Response 2k - 20k Hz
Sensitivity 93 dB/Spl
Magnet Neodymium
Dome Tetolon fibre



For more information, please visit the manufacturer's website.
