Audison APBX10S4 10 Inch 4 ohm Subwoofer
Audison APBX10S4 10 Inch 4 ohm Subwoofer
Audison APBX10S4 10 Inch 4 ohm Subwoofer
Audison APBX10S4 10 Inch 4 ohm Subwoofer
Audison APBX10S4 10 Inch 4 ohm Subwoofer
Audison APBX10S4 10 Inch 4 ohm Subwoofer

Audison APBX10S4 10 Inch 4 ohm Subwoofer

$574.00
$0.00
$574.00
Brand: Audison
SKU: APBX10S4
Availability: In Stock

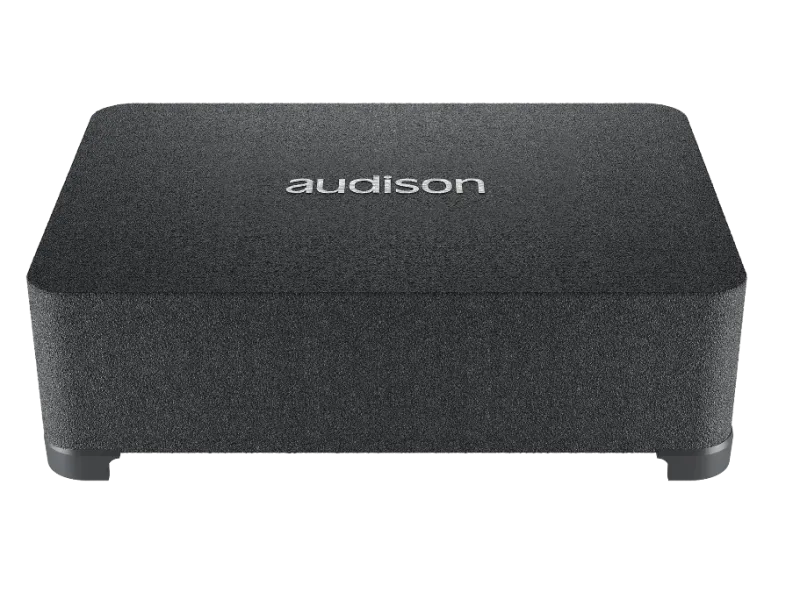

Ultra-low profile sealed subwoofer box
10" subwoofer single 4Ω voice coil
RMS Power: 400 watts
Dimensions: 470 x 334 x 120mm

Purchase

If you are interested in buying this item please contact us via our contact page.

Contact Us
$15 Flat rate shipping*

Description
Description
x

Audison APBX10S4 10 Inch 4 ohm Subwoofer

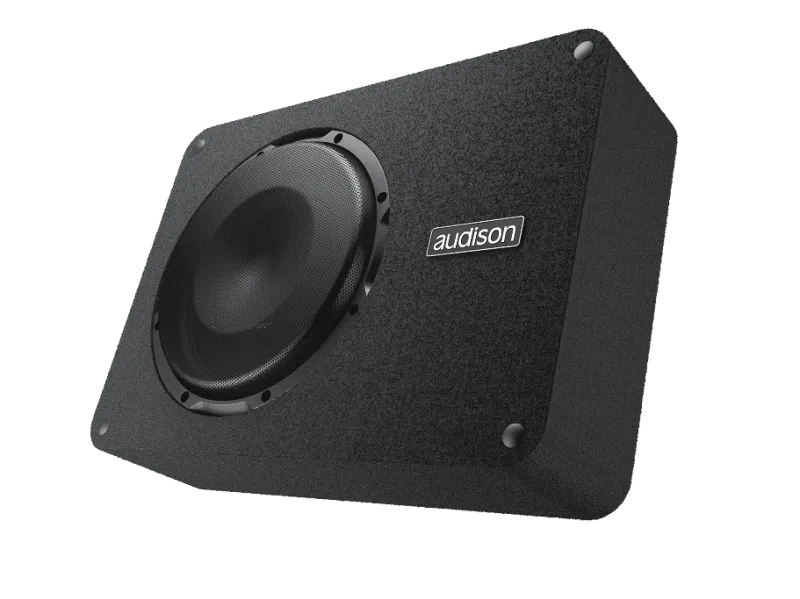

The APBX 10 S4S sealed enclosure is the ideal choice to be driven by the new AP F8.9 bit using two channels bridged. Designed to house the single 4 ohm voice coil APS 10 S4S subwoofer, it offers an ultra-performing Plug & Play solution boasting all the features that make the Prima boxes unique such as the SSP (Sub Smart Plug) terminal block for a quick connection leaving no room for errors.

Features

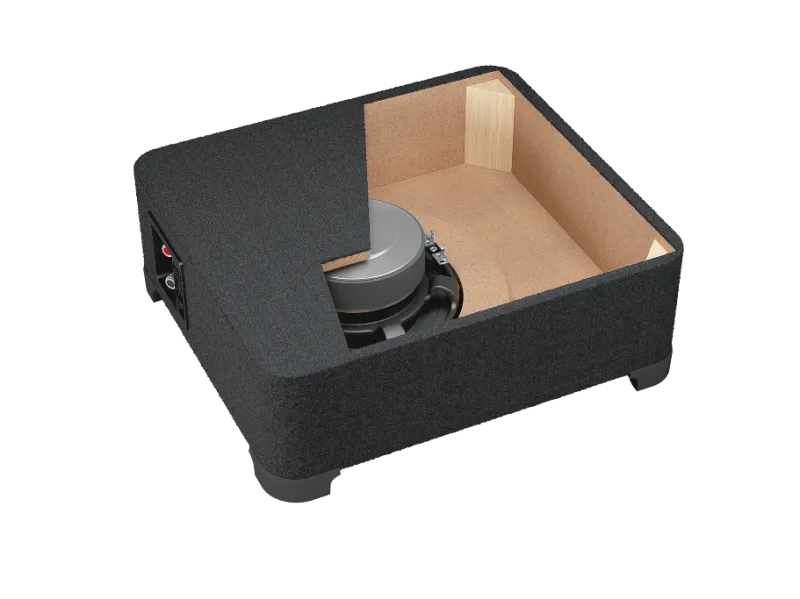

  • Ultra-low profile (5.6 in. / 142 mm) box with a sealed design perfectly tuned to fully exploit the APS 10 D driver.
  • 2 Sides/2 Sounds design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing installation to obtain more punch and definition.
  • Leveling feet with Velcro inserts included for a secure grip on the carpet while maintaining easy removal.
  • SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
  • Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
  • Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way).
  • Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
  • Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
  • Specifically developed to be combined with AP F8.9 bit (2 CH bridged 260 W RMS) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
  • A sturdy metal grid is included for the total protection of the subwoofer driver.

Specifications

Size

250 mm

Power Handling - Peak

800 W

Power Handling - Continuous

400 W

Magnet Material

HIGH DENSITY FLUX FERRITE

Cone Material

COTTON-FIBRE PRESSES PAPER CONE

Dimensions

470 mm x 334 mm x 120 mm

Weight of one component kg (lb.)

8.63 (19.03)

Voice Coil Ø mm (in.)

60 (2.36



For more information, please visit the manufacturer's website.
