8" Slim Subwoofer 4Ω
Power Handling: 250 watts RMS
Peak Power: 500 watts
Ultra-low profile (3.11 in. / 79 mm)
Power Handling: 250 watts RMS
Peak Power: 500 watts
Ultra-low profile (3.11 in. / 79 mm)
Purchase
If you are interested in buying this item please contact us via our contact page.
$15 Flat rate shipping*
Description

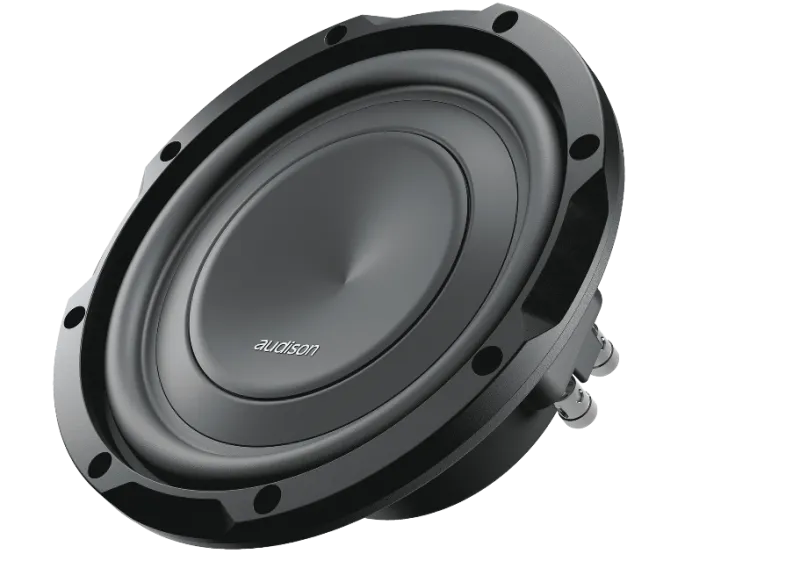

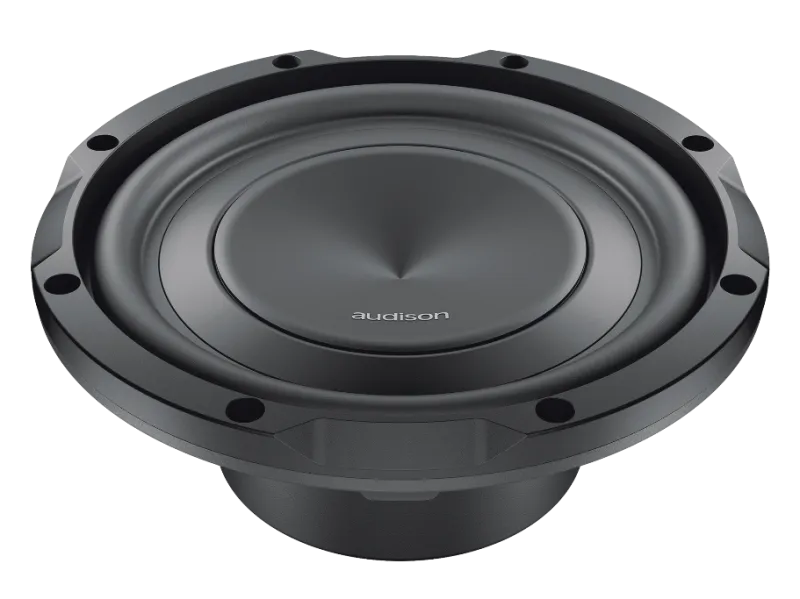

xAudison APS8R Slim 8 Inch Subwoofer
With the aim of providing high acoustical output even when used with lower power, the APS 8 R was designed for use in an 8.5-litres reflex enclosure, with tuning between 30 and 40Hz. The APS 8 R has been specifically developed to be combined with either the AP8.9 bit or AP4.9 bit / AP4 D. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.
Features
- Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a reflex enclosure starting from 8.5 lt.

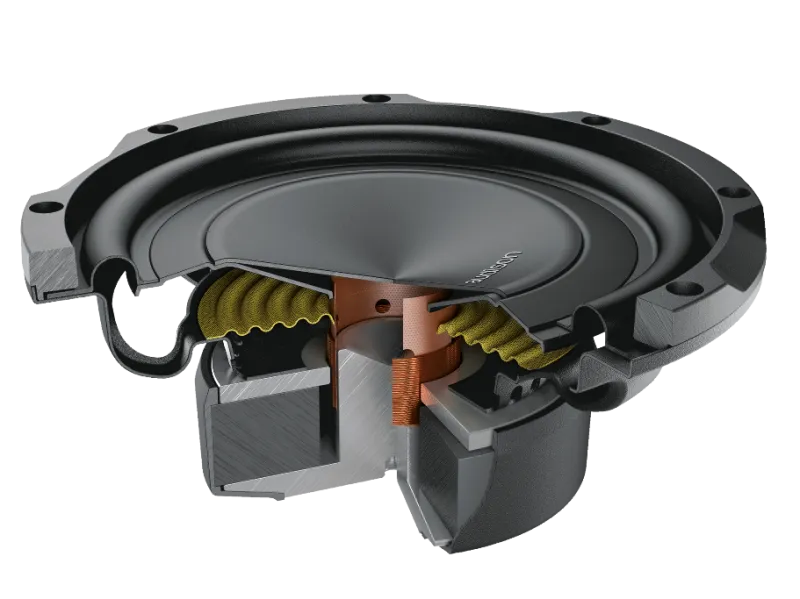

- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (almost 9 mm, one-way) while keeping the mounting depth to minimum.

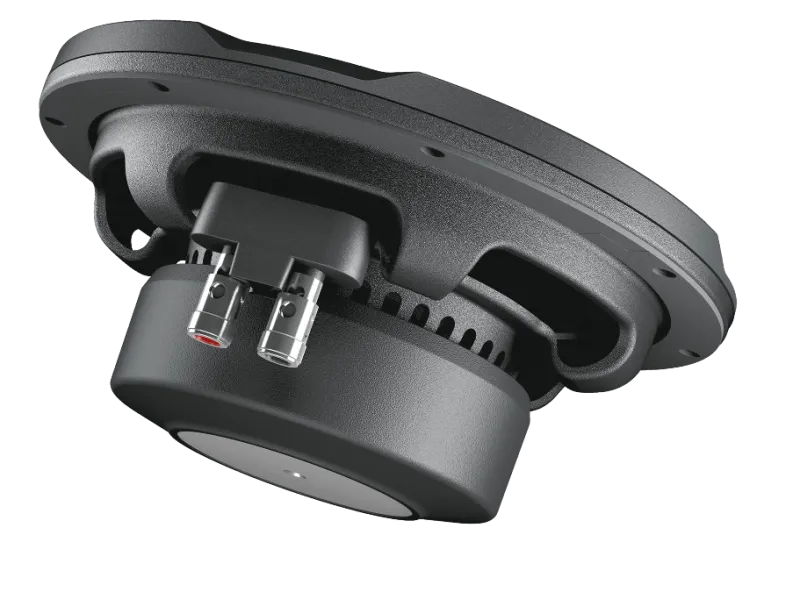

- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
- Massive motor assembly optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
- Water-repellent pressed paper 8 in. cone featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
- Specifically developed to be combined with either the Audison AP8.9 bit (2 CH bridged) or AP4.9 bit /AP4 D (2 CH bridged) amplifiers.

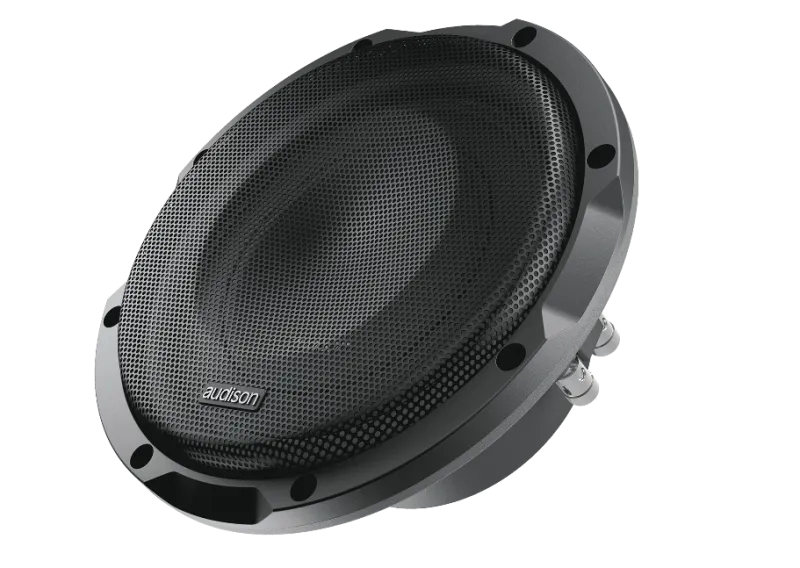

- Steel mesh grille and plastic gasket included.
Specifications
|
Size |
200 mm |
|
Power Handling - Peak |
500 W |
|
Power Handling - Continuous |
250 W |
|
Impedance |
4 Ohm |
|
Magnet Material |
HIGH DENSITY FLUX FERRITE |
|
Voice Coil Ø |
40 mm |
|
Woofer Qes |
0,43 |
|
Cone Material |
WATER REPELLENT PRESSED PAPER |
|
Xmax |
8.8 mm |
|
Xmech |
16.5 mm |
For more information, please visit the manufacturer's website.
