Audison Forza AFM5.11 bit 5ch Amp with 11ch DSP
Audison Forza AFM5.11 bit 5ch Amp with 11ch DSP
Audison Forza AFM5.11 bit 5ch Amp with 11ch DSP
Audison Forza AFM5.11 bit 5ch Amp with 11ch DSP
Audison Forza AFM5.11 bit 5ch Amp with 11ch DSP
Audison Forza AFM5.11 bit 5ch Amp with 11ch DSP

Audison Forza AFM5.11 bit 5ch Amp with 11ch DSP

$2,415.00
$0.00
$2,415.00
Brand: Audison
SKU: AFM511B
Availability: In Stock
5ch Amp with 11ch DSP
DSP working at 24 bit/96 kHz
4 x 150 watts @ 2Ω + 1 x 600 watts @ 2Ω
Class D fully bridgeable

Purchase

If you are interested in buying this item please contact us via our contact page.

Contact Us
$15 Flat rate shipping*

Description
Description
x

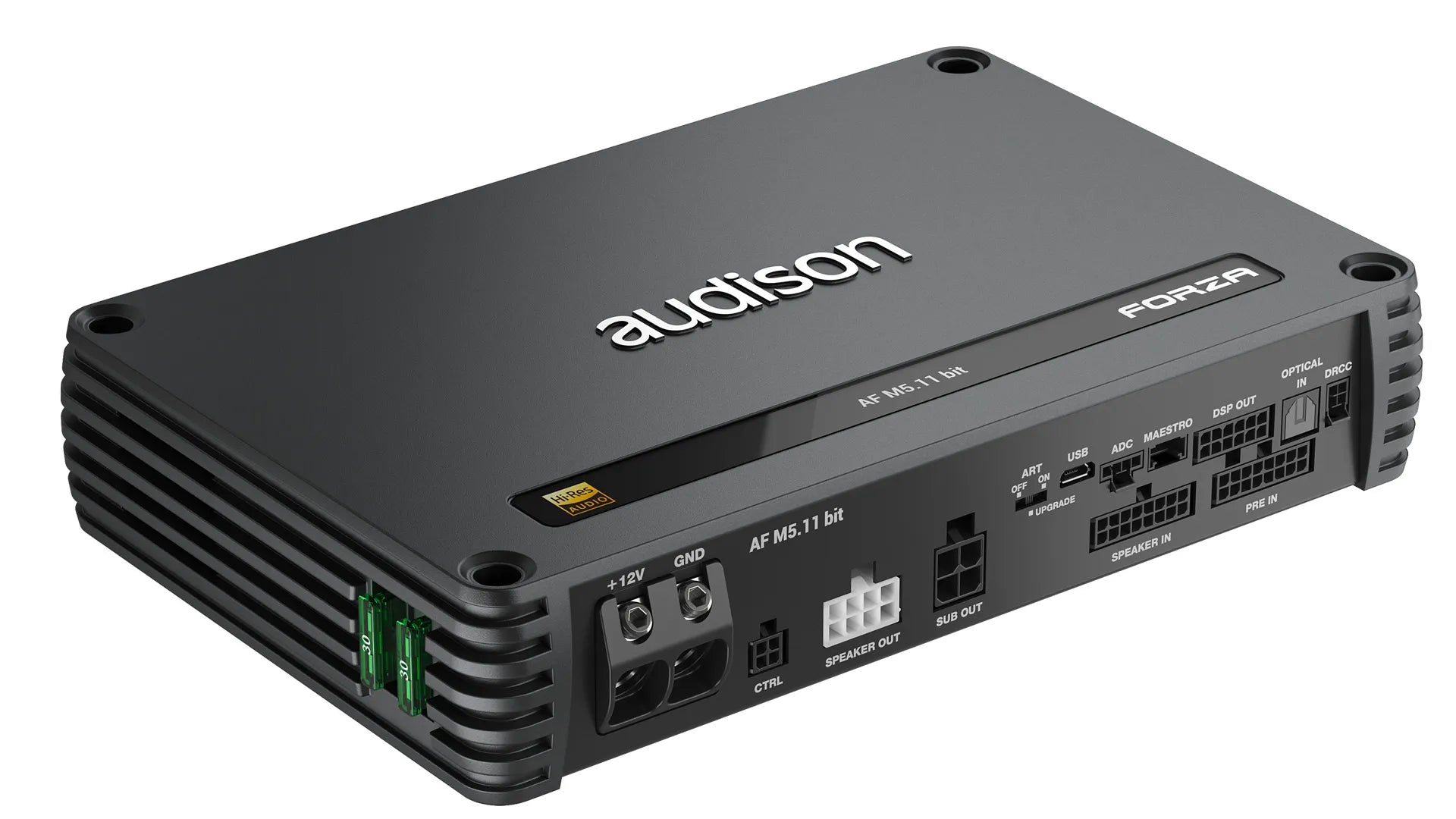

Audison Forza AFM5.11 bit 5ch Amp with 11ch DSP

AF M5.11 bit boasts five high-fidelity amplified channels 100W x 4 + 400W @4Ω*, 150WP x 4 + 600W @2Ω* with the audiophile sound of the latest generation Audison D-Class technology.

Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification.

Bridging channel pairs results in 200W x 2 + 400W @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections! Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Features

  • Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
  • Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
  • Next-generation bit Drive software platform
  • Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
  • Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
  • Up to 11 output channels (5 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
  • 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
  • Extension card slot (additional 4 analog or 1 digital inputs)
  • Electrical signal analysis for each input channel ensures proper integration and correction
  • Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
  • Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

Specifications

Amplifier Tech Data


Channels

5

Class

D-Class

Power supply voltage / fuse

11 ÷ 15 VDC / 2 x 30A

Operating power supply voltage

6.5 ÷ 17.5 VDC

Idling current

1.5 A

Standby Current Draw

1.5 mA

Consumption @ 14.4 VDC, 2Ω, Max Musical Power

53.4 A

Remote IN

4 ÷15 VDC (1 mA)

Remote OUT

6.5 ÷15 VDC (150 mA)

ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers

1.5V DC

Efficiency Rated Power

80.5%

Amplifier Stage


Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power

0.02%

Bandwidth @ -1.5 dB

10 Hz ÷ 42 kHz

Damping factor @ 1 kHz, 4Ω, 2 VRMS

100 kHz , 4Ω, 2 VRMS SUB Channel): 140 | 1 kHz , 4Ω, 2 VRMS: 140

S/N ratio (A weighted @ 1 V Input) Master Input

98 dBA

S/N ratio (A weighted @ 1 V Input) Optical Input

105

Total Power RMS

1200 W

Minimum load impedance

2Ω

Output Continuous Power (RMS) @14.4 VDC, 1% THD

5 Ch @ 4Ω: 100 W x 4 + 400 W x 1


5 Ch @ 2Ω: 150 W x 4 + 600 W x 1


3 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2 + 400 W x 1


3 Ch (Bridge 1/2; 3/4) @ 4Ω / 2Ω: 300 W x 2 + 600 W x 1

Adjustable Crossover

Yes

CEA Specifications


Output power @ 4Ω, 1% THD+N, 14.4 V

85 W x 4 + 340 W x 1

SN ratio (ref. 1W output)

78 dB

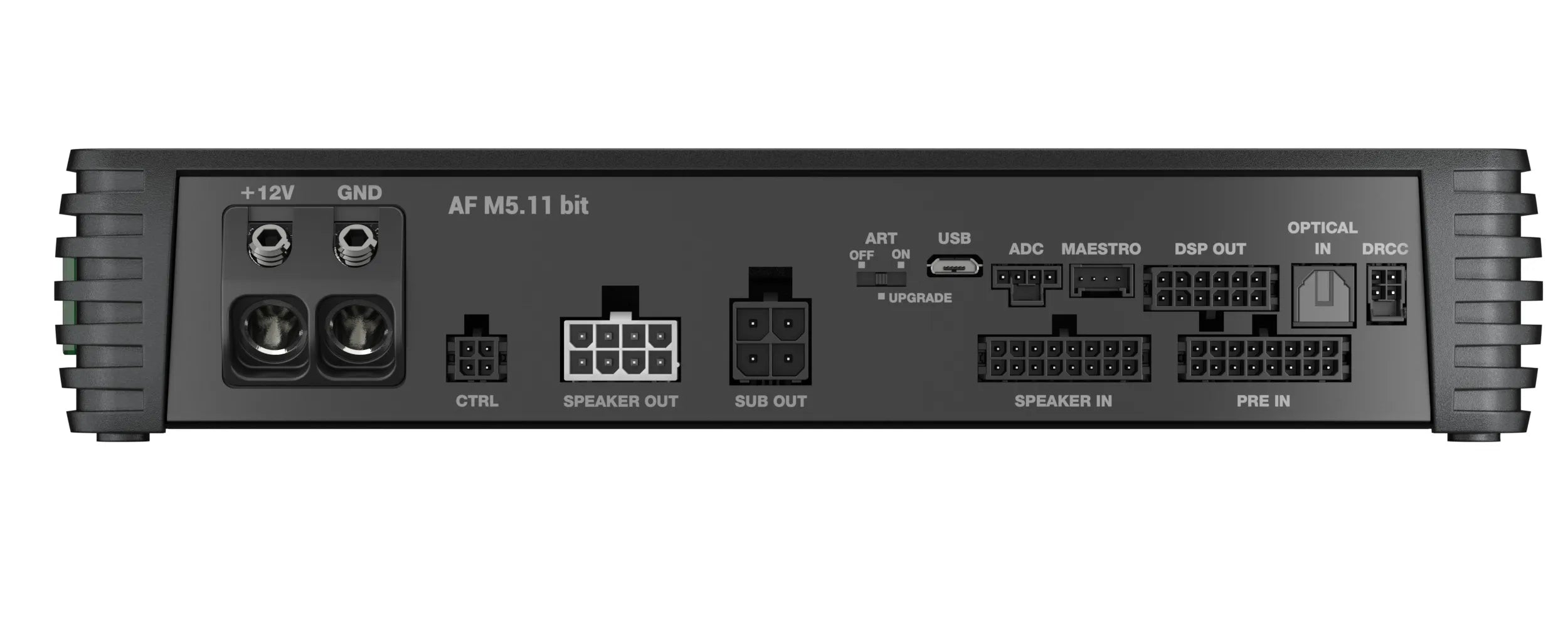

Inputs / Outputs


Pre-In Inputs

0.6 ÷ 6 VRMS (15 kΩ Imp.)

Digital Input

Yes

Pre Outputs

6

Hi Level Inputs

8

Low Level Inputs

8

Speaker-In Inputs

2.2 ÷ 22 VRMS (5 Ω Imp.)

Digital IN

1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card

Sub Out (RCA Pre Out)

5V RMS

Digital Signal Processor


Audio DSP Converter

Analog Devices ADAU1467 automotive qualified audio processor.



Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance


Filter mode and slope

Linkwitz-Riley @ 12/24/36/48 dB/Oct.


Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.


Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.


Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.


QLP @ 6 dB/Oct.

Crossover frequency

20 Hz ÷ 20 kHz

Phase control

0° / 180°, All-Pass filters

Analog Input Equalizer (20 ÷ 20k Hz)

12 Biquad + Delay

Output Equalizer

Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz

Time Alignment Distance

0 ÷ 510 cm / 0 ÷ 200.8 inches

Time Alignment Delay

0 ÷ 15 ms

Input Output Real Time Audio Monitor

RTA

Control Connections


DRC Port

Input for DRC AC remote control (Optional)

ADC Port

Manage other Audison devices that support this standard

1 Wire

Customizable functions (+ 12 V activated)

2 Wire

Customizable functions (+ 12 V activated)

General Requirements


PC connections

Micro USB 1.1 / 2.0 / 3.0 Compatible

Software/PC requirements

Windows 10, Windows 11 (min. res. 1024 x 768

Ambient operating temperature range

0 °C to 55 °C (32 °F to 131 °F)

Size

240 x 47 x 156 / 9.44 x 1.85 x 6.14

Weight

2.04 kg

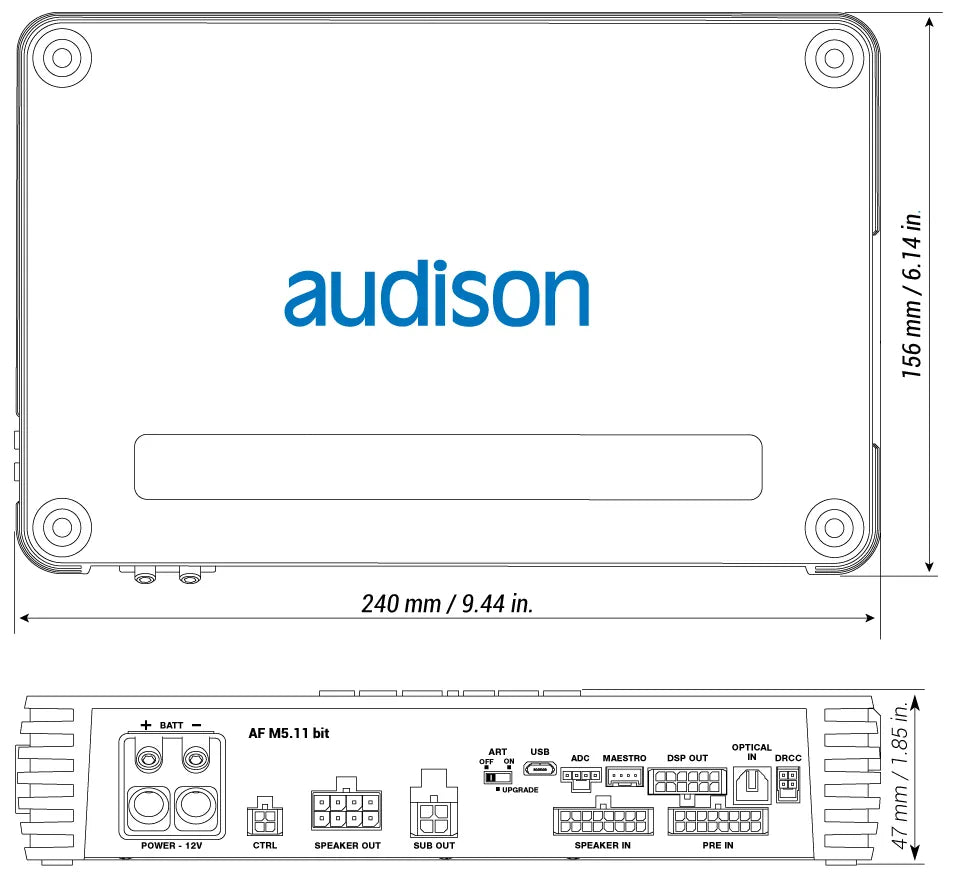

Dimensions


Dimension A

240 mm

Dimension B

156 mm

Dimension C

47 mm



For more information, please visit the manufacturer's website.
