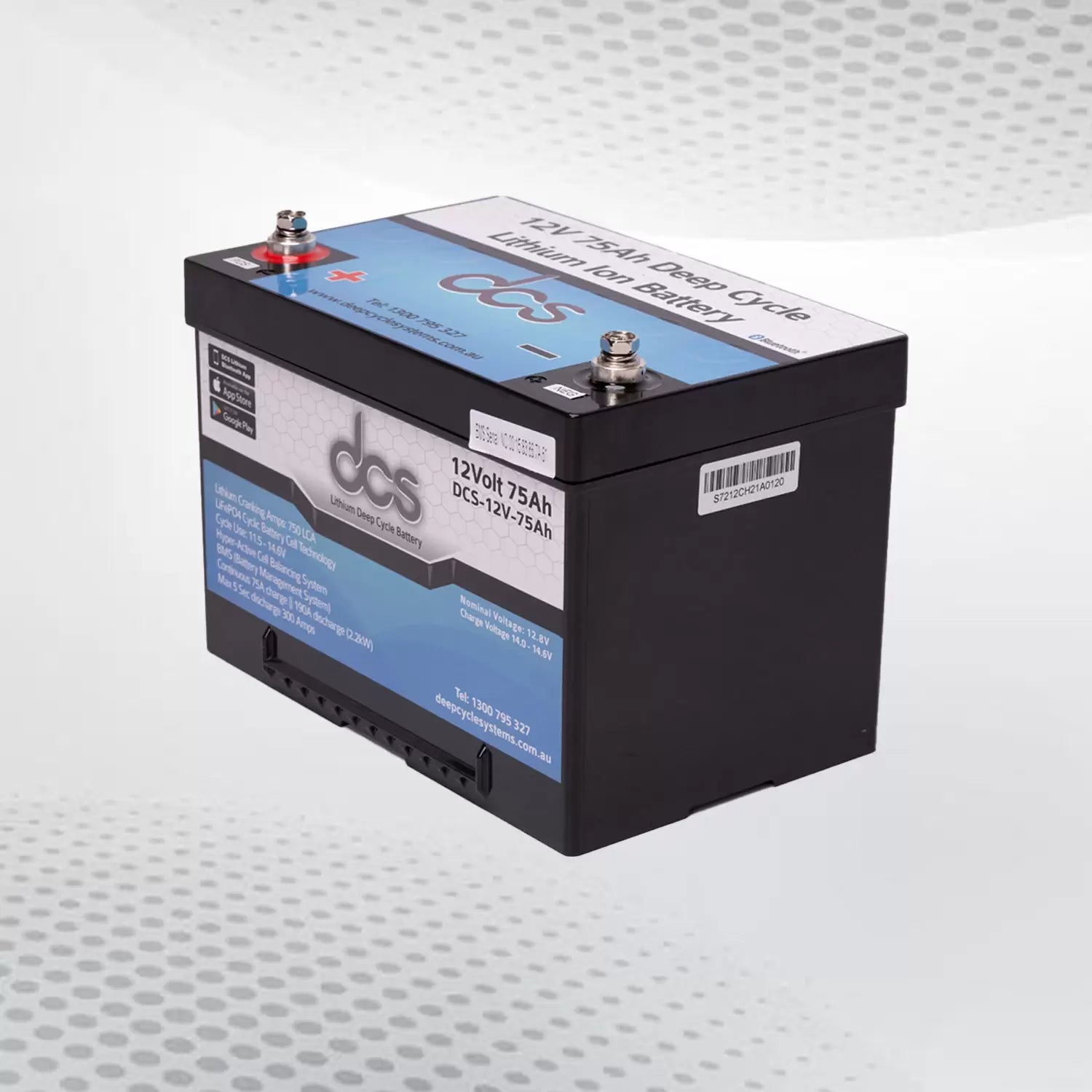

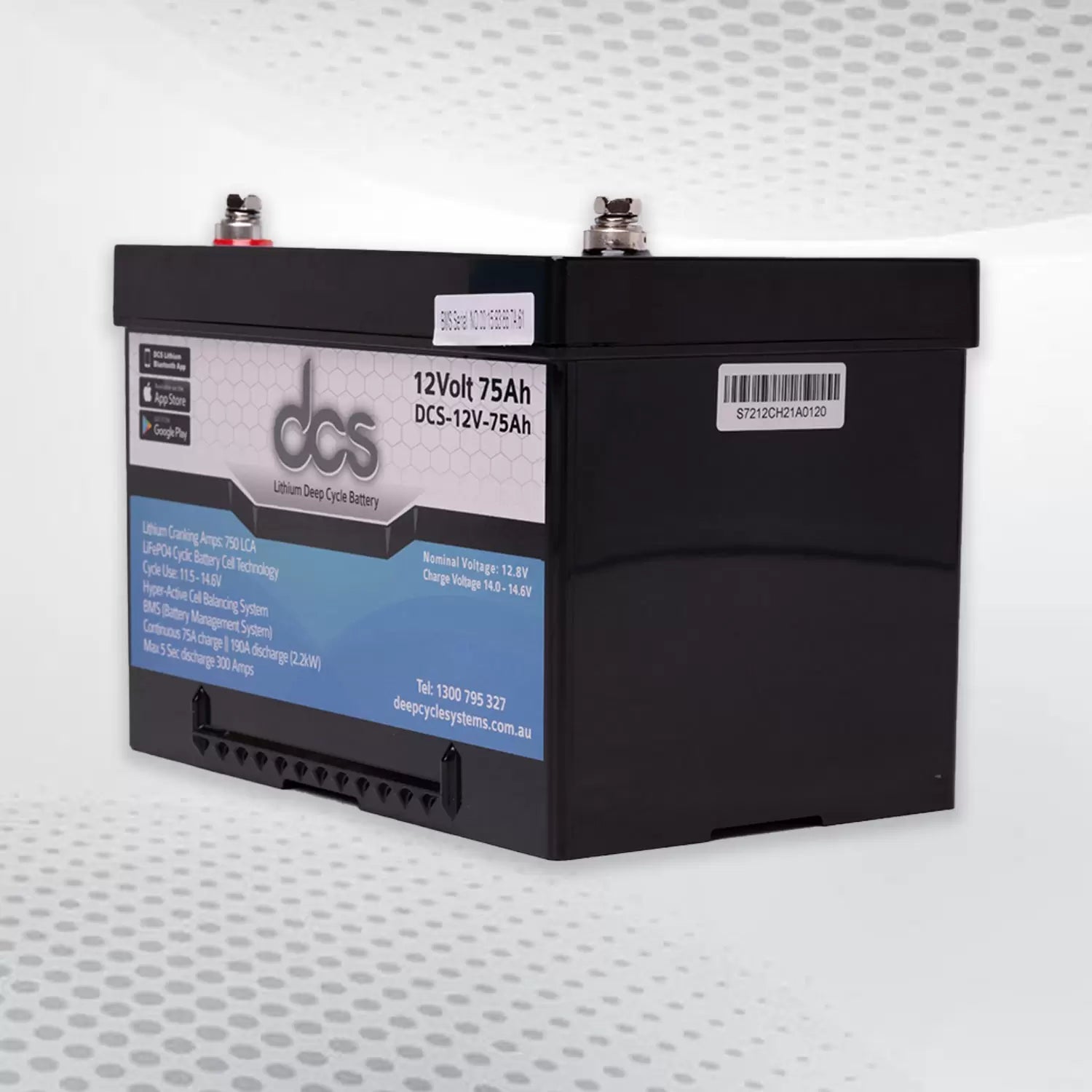

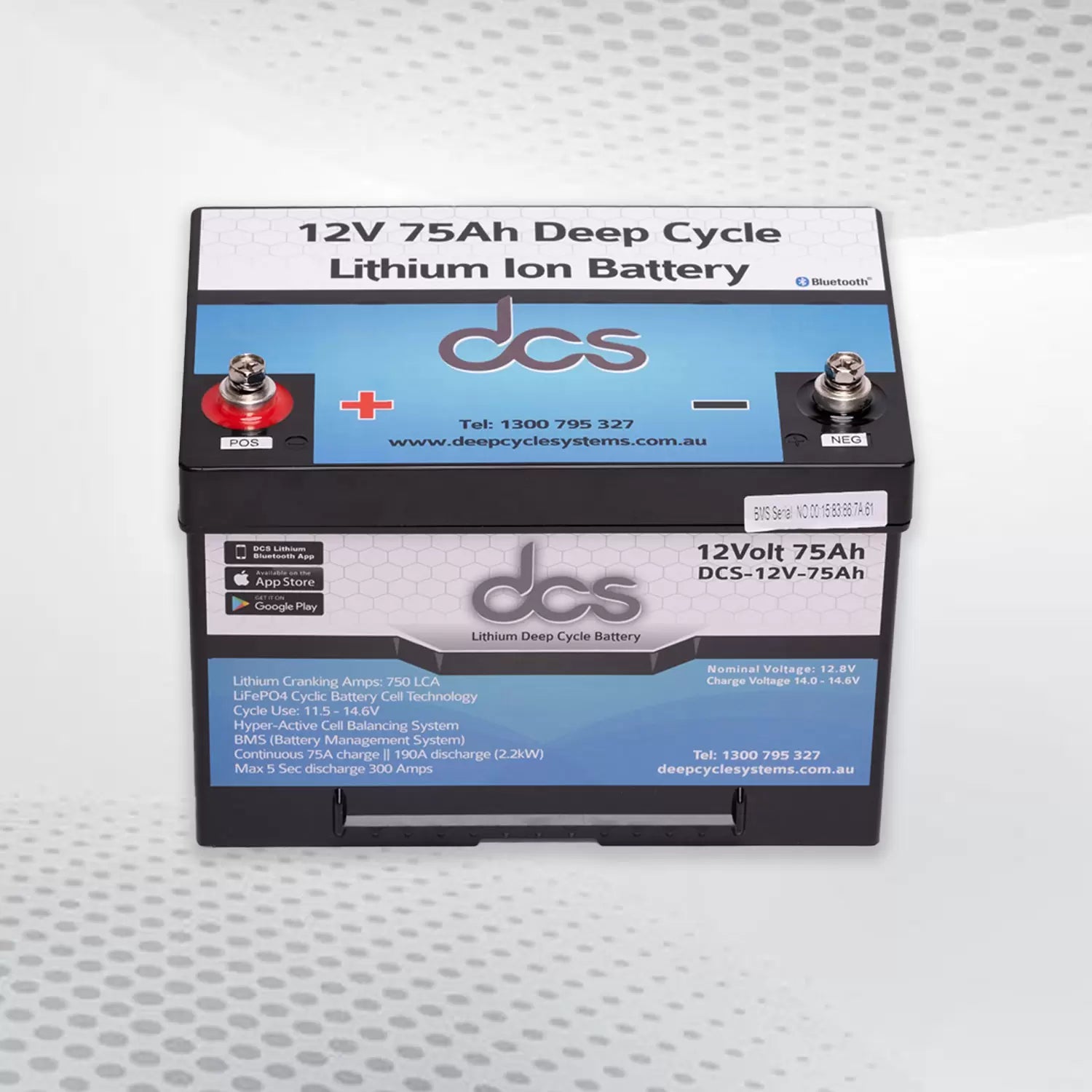

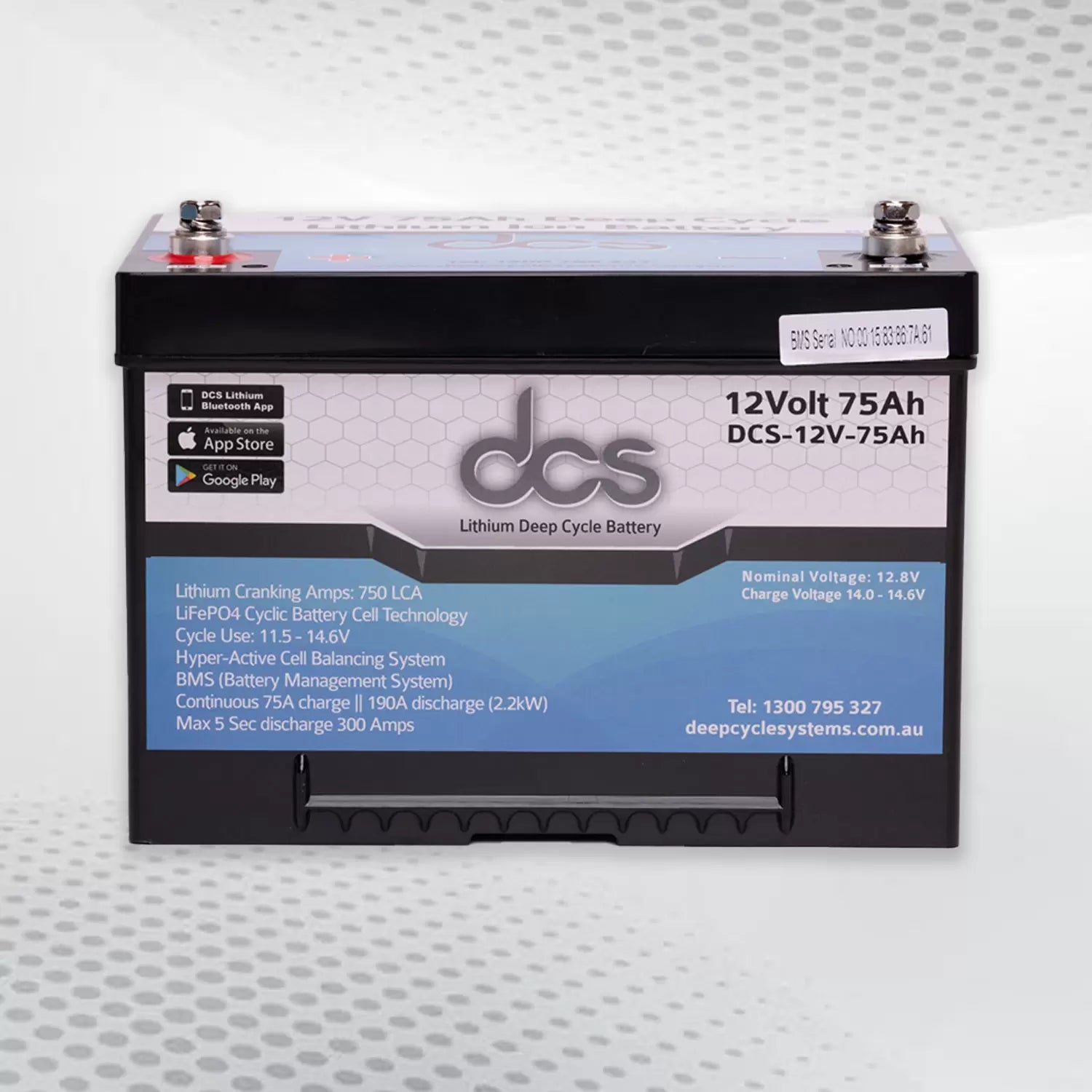

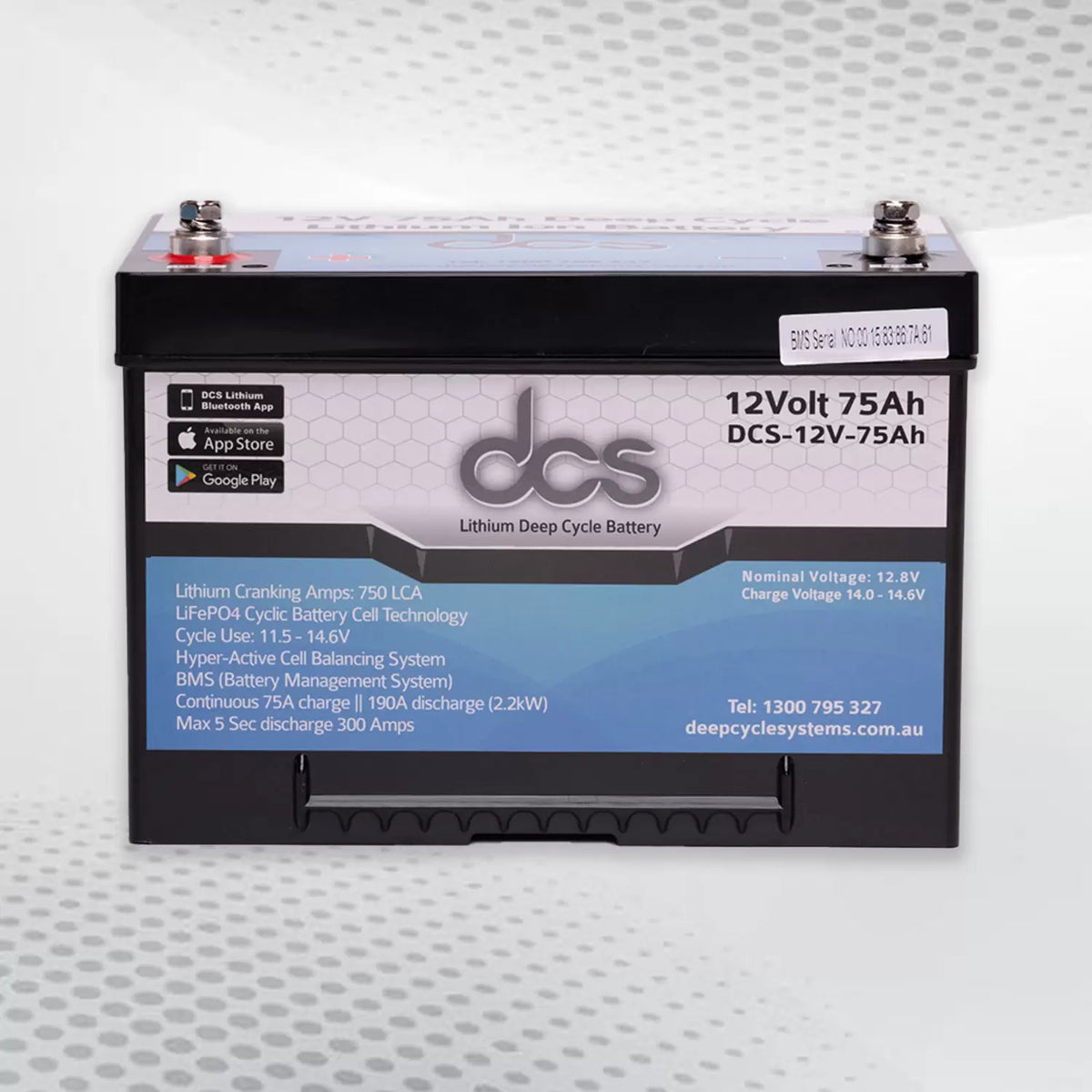

xDeep Cycle Systems 12V 75AH Lithium Battery
DCS Batteries are the ideal replacement & upgrade from AGM, Gel or other lead-acid batteries for any application. DCS gives you the ability to upgrade your current batteries to lithium-ion technology that can deliver a minimum of 2500 cycles and has tremendous advantages in weight, performance, reliability and service life compared to traditional lead-acid batteries.
All DCS batteries now feature our comprehensive Bluetooth System available on both Android and Apple operating systems that shows a lot of cool things.
- Cell status showing real-time cell balancing operation
- BMS MOSFET temperature (great info when you are winching or running a large inverting load or your trolling motor to know how hard you are pushing the electronics).
- SOC% estimate (using impedance tracking – the App learns the SOC after the first 10 cycles)
- Battery pack voltage and cycle count
- Amp meter – showing charge and discharge current
- Connectivity distance up to 10m
- Now there is no need to install battery monitors or shunts in boats, campers or vehicles. You have all the info you need at your fingertips.
- The SOC estimate is accurate on single batteries, the more batteries that are expanded in parallel, the less accurate the SOC becomes.
- This free application provides the perfect tell-tale about the battery packs state of health as it ages
- Assists installers & integrators to quickly diagnose any system issues.
Specifications
|
Nominal Voltage |
12.8V |
|
Nominal Capacity (1Hr) |
75Ah |
|
Case Dimensions (L x W x H) |
260mm x 169mm x 175mm |
|
Weight |
8.60 Kgs |
|
Cycling voltage |
11.5 ~ 14.6V |
|
Charge voltage |
14.0 ~ 14.6V |
|
Float Voltage |
13.5 ~ 13.7V |
|
Maximum Charge Current |
75A |
|
Recommended Charge Current |
≤50A |
|
Maximum Discharge Current |
≤150A |
|
DCS BMS (internal) |
DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections |
|
Cell Chemistry |
DCS 3.2V 5.0 – 7.2Ah Cylindrical (LifePO4) |
|
Cycle Performance |
2500 Cycles @ 100% DOD |
|
LCA |
750 |
|
Ingress Protection |
IP54 |
|
Case |
ABS (flame retardant plastic) |
|
Operating temp Range |
-30 to +110 degrees C |
|
Terminals |
Top Mount M8 Stainless steel / Copper |
|
Parallel Connections Only |
YES |
|
Series Connections |
No |
|
Warranty |
4 years | 3 years under bonnet |
|
Certifications |
UN 38.3, UL 1642, IEC 62133 & 62619, CE |
For more information, please visit the manufacturer's website.
