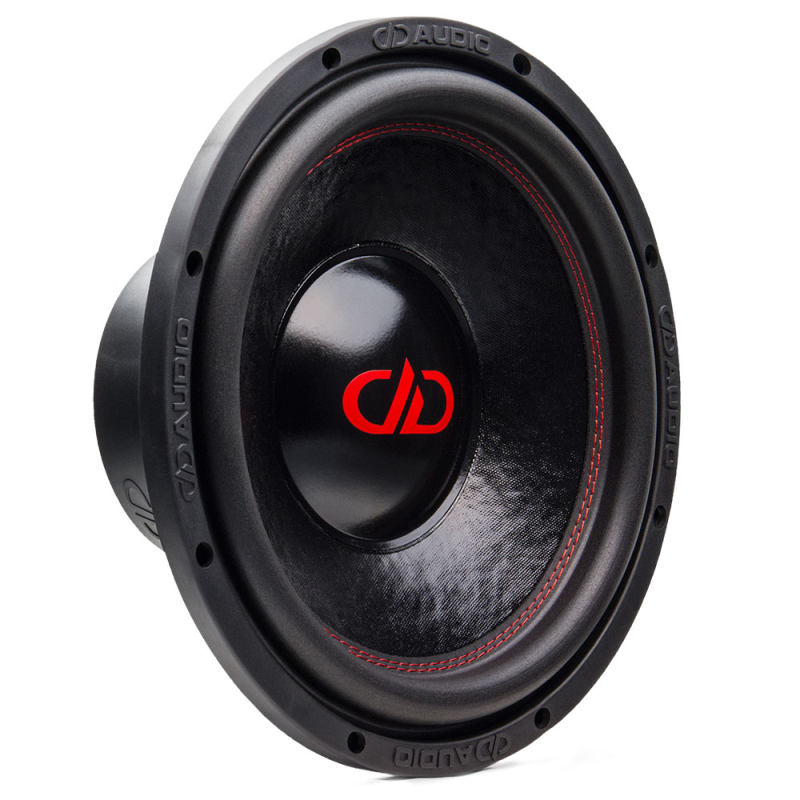

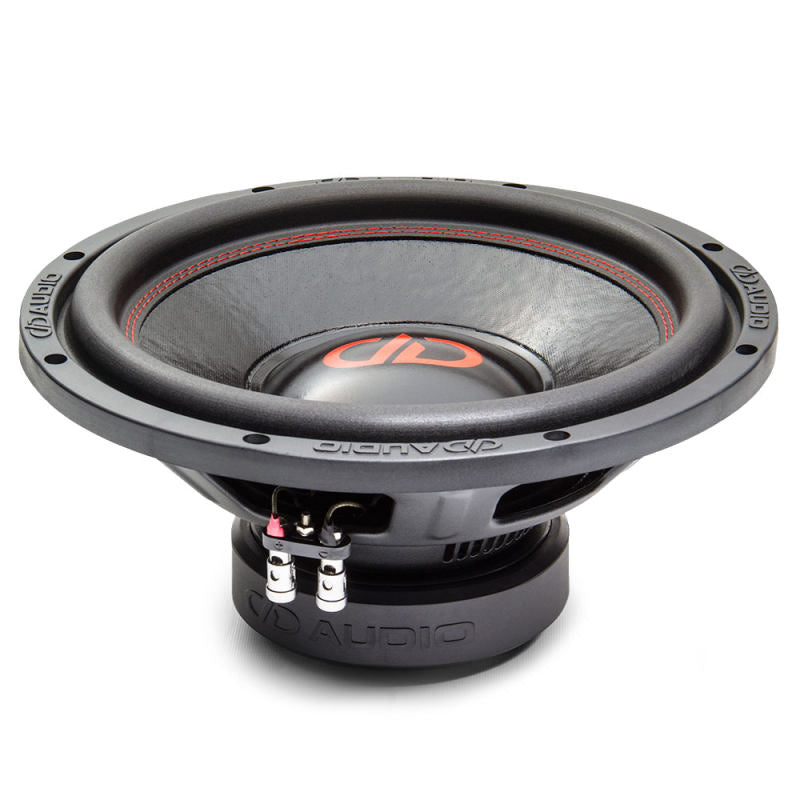

Description
xThe 200 series is designed to provide some satisfying boom on as little as 100-300 Watts. Enhancing these sub’s output efficiency is their smooth, wide bandwidth. They’re hand built and tuned to work well in sealed enclosures as well as compact vented designs.
Features
-
EROM surround
-
High-temp, 2.0”, voice coil
-
Double Layer Deep bass, high excursion spider system
-
Unique glass fiber and natural pulp cone
-
Back plate coil gap venting
-
Extended pole piece
-
DD stamped steel basket
Specifications
| Speaker Size (In) | 12 |
| Watts RMS | 100 - 300 |
| Watts Peak | 900 |
| Impedance | D4 |
| VCD (In) | 2 |
| Piston Diameter (In) | 10 1/4 |
| Fs (Hz) | 34.99 |
| Qms | 7.3 |
| Qes | 1.019 |
| Qts | 0.894 |
| Vas | 50.78 |
| Xmech (MM) | 64 |
| Xmax (MM) | 10 |
| Frame OD (In) | 12 1/4 |
| Frame OD w/Gasket (In) | 12 1/2 |
| Mounting Diameter (In) | 11 1/8 |
| Mounting Depth (In) | 5 1/2 |
| Motor Diameter (In) | 6 |
| Motor Depth (In) | 2 13/16 |
| Woofer Displacement (CuFt) | 0.08 |
| Sealed Enclosure (CuFt) | 0.8 - 1.5 |
| Ported Enclosure (CuFt) | 1.75 - 2.75 |
| Shipping Weight (Lbs) | 12.5 (5.5kg) |
For more information, please visit the manufacturer's website.
