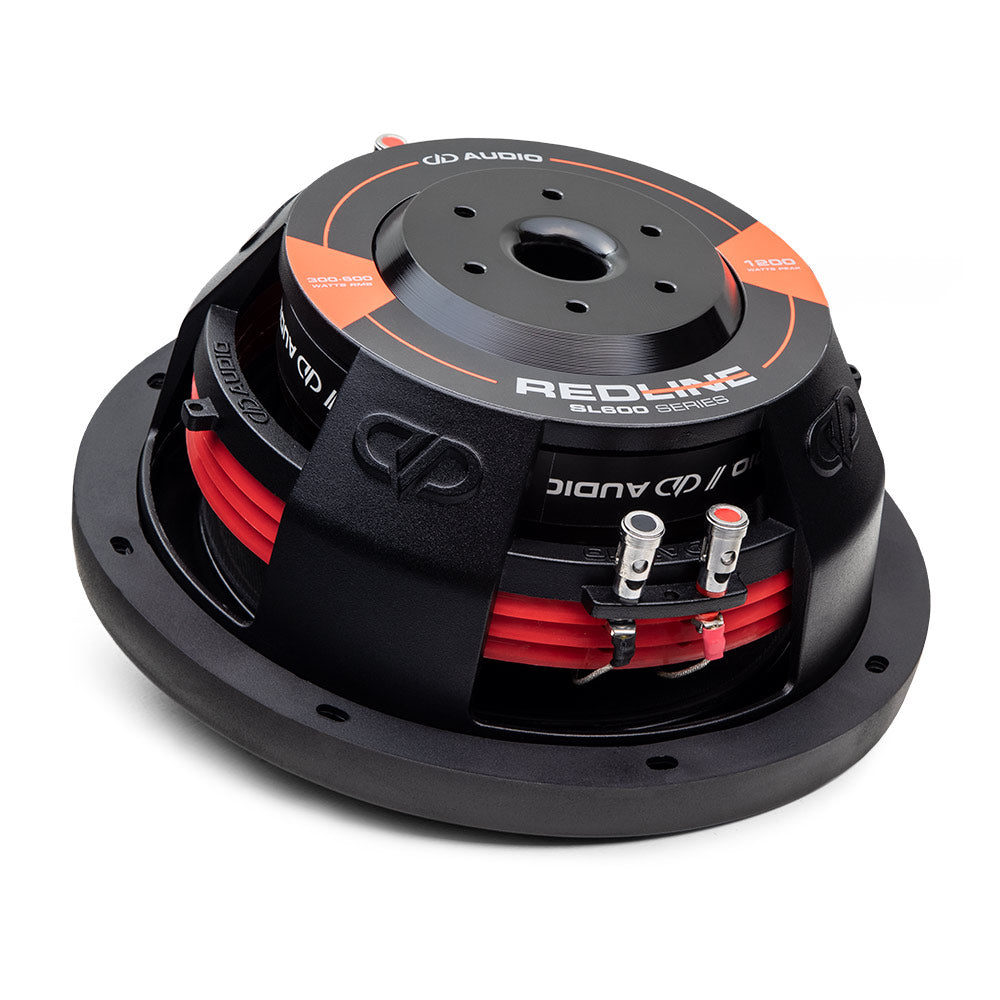

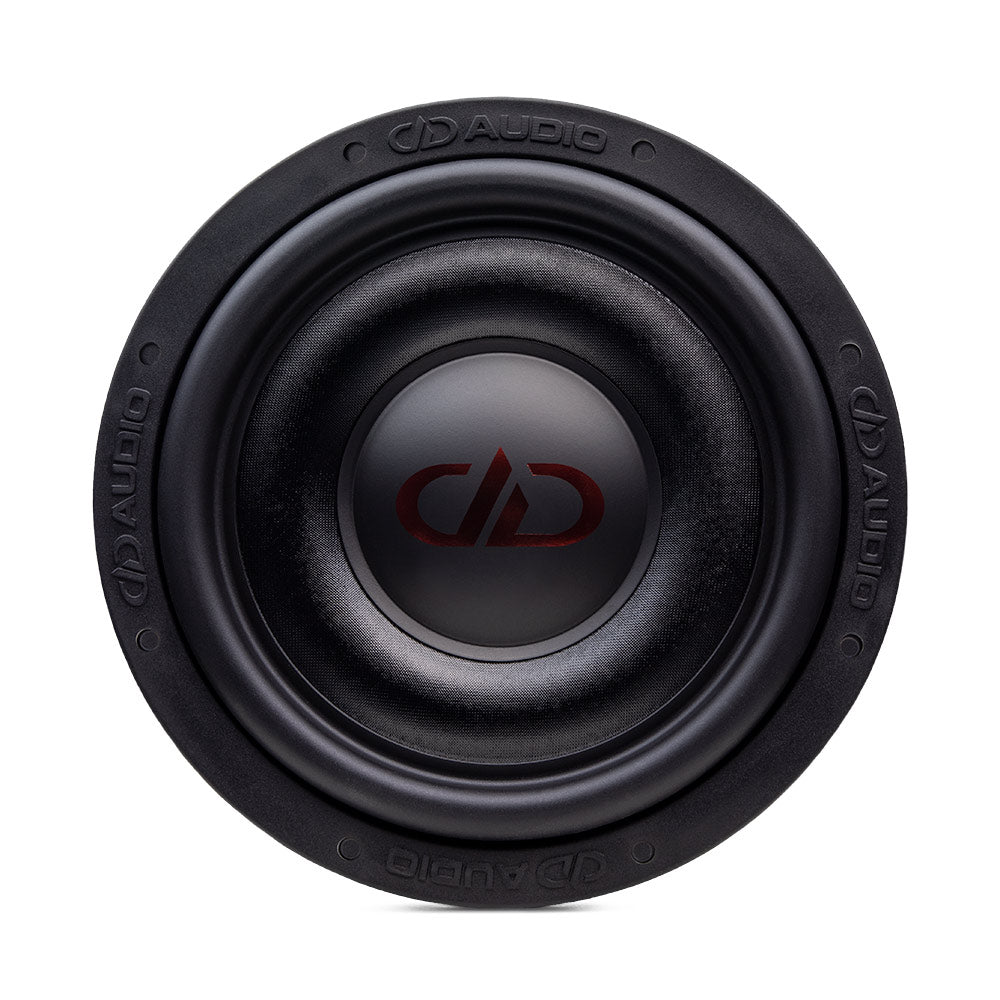

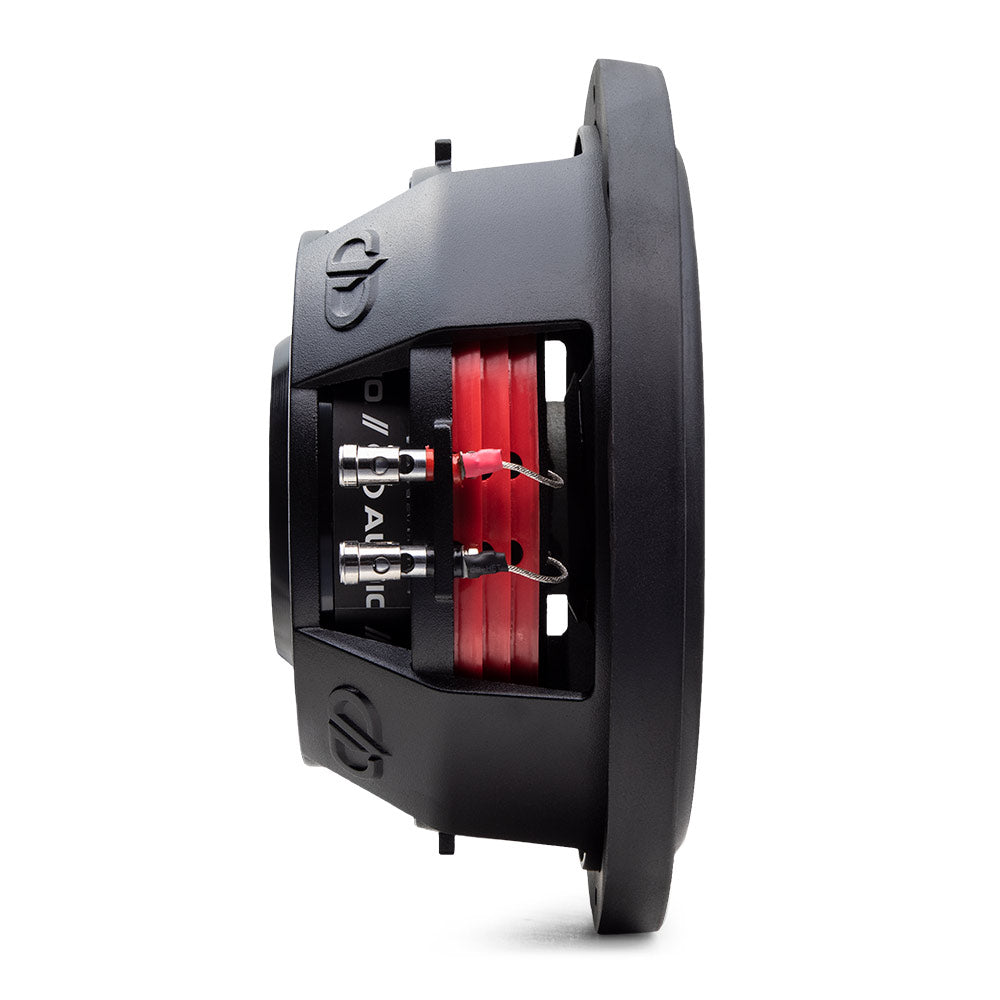

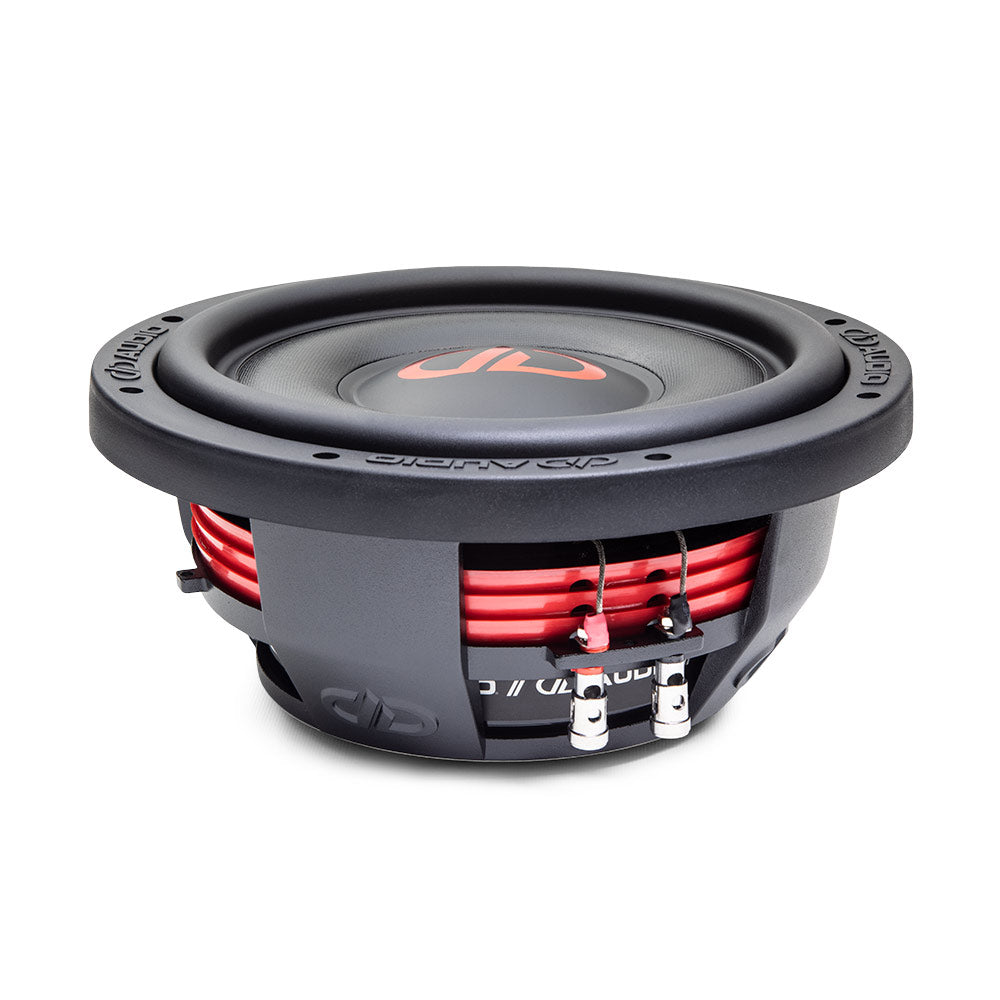

DD Audio SL610 Hi-Def Tuned 10 Inch Slim Sub

$479.95
$0.00
$479.95
Brand: DD Audio
SKU: DD-SL610-D4
Availability: In Stock
10" Subwoofer dual 4Ω voicecoils
Power Handling: 300-600 watts RMS
Peak Power: 1200 watts
Mounting Depth: 10.1cm (3.976")
$15 Flat rate shipping*

DD AUDIO SL610 HI-DEF TUNED 10" SLIM SUB

DD Audio SL610 Hi-Def Tuned 10 Inch Slim Sub

$479.95
DD AUDIO SL610 HI-DEF TUNED 10" SLIM SUB
DD AUDIO SL610 HI-DEF TUNED 10" SLIM SUB
DD AUDIO SL610 HI-DEF TUNED 10" SLIM SUB
DD AUDIO SL610 HI-DEF TUNED 10" SLIM SUB

DD Audio SL610 Hi-Def Tuned 10 Inch Slim Sub

$479.95
Description
Description
x

The SL600 Series subwoofers that give you the bass you want, in almost any space you want to put it. They feature super shallow mounting depths, and the suspensions have been tuned to perform in sealed and small vented enclosures. To maintain power handling, cooling and excursion the SL600s utilize full size sub features such as 2.5 ” high temperature voice coil, 72oz magnet, back plate coil gap venting, and an EROM surround. One of the features unique to the SL600s is the triple layer shallow body cone. By compressing a layer of foam between two layers of pulp the cone is kept as light and rigid as a standard cone, yet shallow enough to allow suspension travel equal to a full size sub.

Features

  • EROM surround
  • High temperature 2.5” voice coil
  • Double layer spider system
  • Triple layer shallow body cone
  • 72oz magnet
  • Back plate coil gap venting
  • DD cast aluminum frame

Specifications

Speaker Size (In)

10

Watts RMS

300 - 600

Watts Peak

1200

Impedance

D4

VCD (In)

2.5

Piston Diameter (In)

8.32

Fs (Hz)

29

Qms

6.878

Qes

0.393

Qts

0.372

Vas

26.769

Xmech (MM)

40

Xmax (MM)

14.5

Frame OD (In)

10.6

Frame OD w/Gasket (In)

10.827

Mounting Diameter (In)

9.252

Mounting Depth (In)

3.976

Motor Diameter (In)

6.496

Motor Depth (In)

1.5

Woofer Displacement (CuFt)

0.03

Sealed Enclosure (CuFt)

0.5 - 1.0

Sealed Enclosure (Liters)

14.16 - 28.32

Ported Enclosure (CuFt)

0.75 - 1.25

Ported Enclosure (Liters)

21.23 - 35.40

Shipping Weight (Lbs)

15



For more information, please visit the manufacturer's website.
