Description

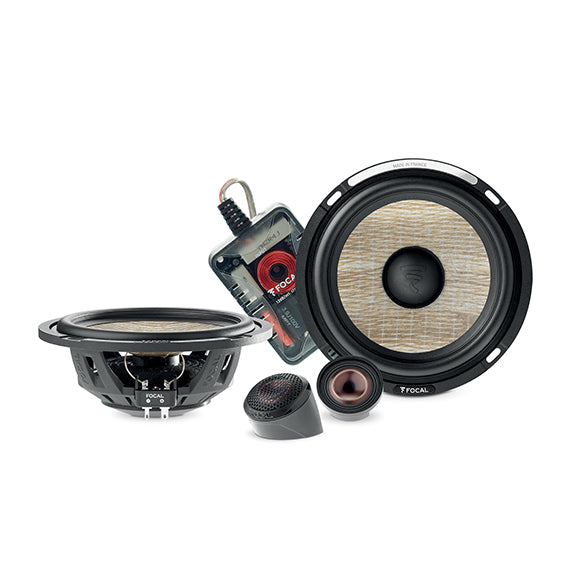

x16.5CM (6½'') 2-WAY KIT WITH SHALLOW BASKET DESIGN

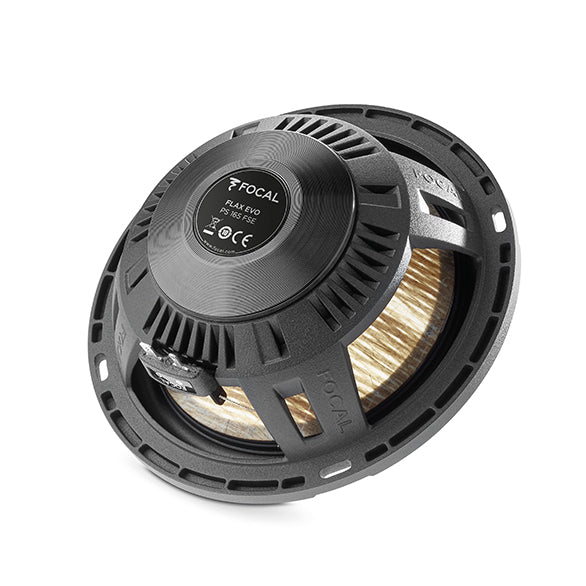

Equipped with the Flax cone, the woofers from the PS 165 FSE kit deliver a very dynamic, natural sound without colouration. The TMD (Tuned Mass Damper) surround they incorporate stabilises the surround to achieve better control, and even greater neutrality and linearity. Thanks to their built-in neodymium motor, their depth is reduced (slim, shallow basket profile): this more compact design makes them even easier to install in factory locations.

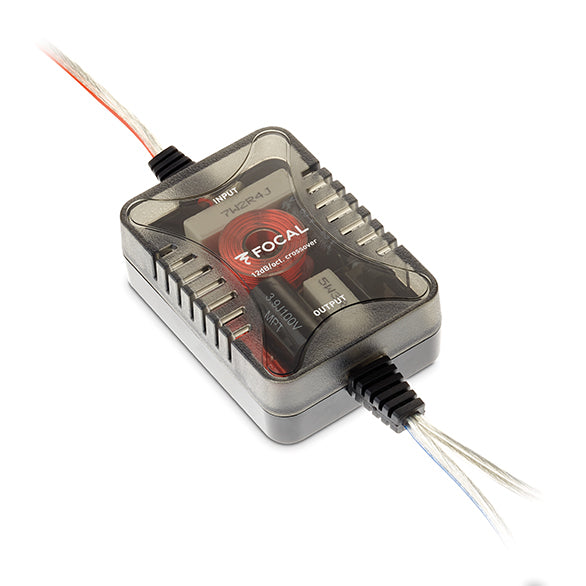

The ‘M’-profile inverted dome TAM tweeters included in the kit offer a wider diffusion angle and greater sound definition, without directionality. Thanks to their tilted mounting, they are easy to install in the vehicle. A compact, pre-cabled audiophile crossover completes this kit. Finally, with its engraved aluminium basket and meticulous finishes, PS 165 FSE combines style, discretion and modernity for a premium system.

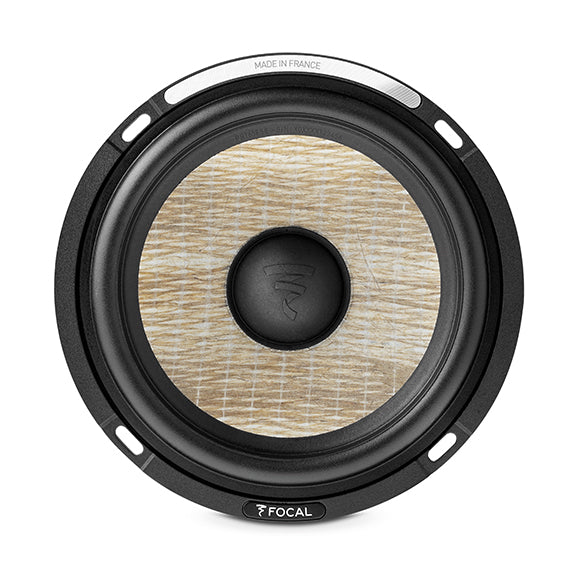

THE FLAX CONE, EXPRESSIVE AND NATURAL
This flax cone has been exclusively made in France by Focal since 2013. With its original design, it is 100% geared towards acoustic performance. This sandwich cone is formed of a flax fibre core placed between two thin sheets of glass fibre. Flax is a fibre with the unique ability to reproduce a very natural sound without colouration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, while its rigidity sustains the bass and provides good damping to deliver a faithful listening experience. Flax fibre is twice as light as glass fibre as it is hollow. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.

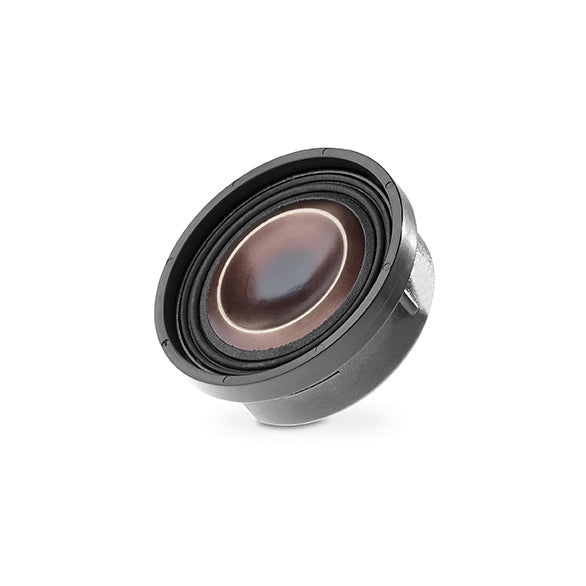

THE TAM TWEETER
Made in France in the Focal workshops, the TAM tweeter stands out for its many qualities, particularly in terms of wide-angle diffusion, beneficial for in-car environments characterised by “off-axis” listening. Comprising a cone that is an aluminium/magnesium ‘M’-profile inverted dome, this tweeter unites an impressive array of cutting-edge Focal technologies to reproduce a faultless harmonic balance and highly-detailed treble.
THE TMD SURROUND
A patented Focal technology, the TMD surround makes an appearance on all speaker drivers in the Flax Evo line, playing a key role in the reproduction and purity of the midranges as well as in the elimination of acoustic distortion, particularly when listening at high volumes.
Features
- Unique, patented Flax cone
- Butyl surround with exclusive 'TMD’ profile
- Al/Mg ‘M’-profile inverted dome TAM tweeter
- Made in France in the Focal workshops
- High sensitivity
- Slim design: easy installation
- Wider diffusion angle
- Natural, precise sound
- Easy installation
Specifications
|
Type |
2-way component kit |
|
Woofer |
6 1/2” (165mm) |
|
Woofer depth |
2 1/8” (54.5mm) |
|
Cone |
Flax sandwich |
|
Tweeter |
TAM tweeter (Aluminium/Magnesium ‘M’-profile inverted dome tweeter) |
|
Max. power |
120W |
|
Nom. power |
60W RMS |
|
Sensitivity (2,83 V/1 m) |
91.5dB |
|
Frequency response |
70Hz-28kHz |
|
Voice coil diameter |
11/4” (32mm) |
|
Magnet |
Neodymium |
|
Surround |
TMD |
|
Impedance |
4Ω |
|
Crossover |
12dB/oct @3kHz |
For more information, please visit the manufacturer's website.
