Description

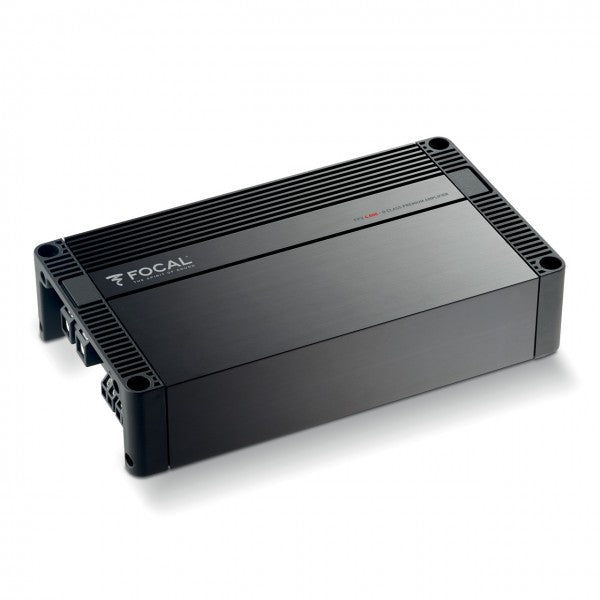

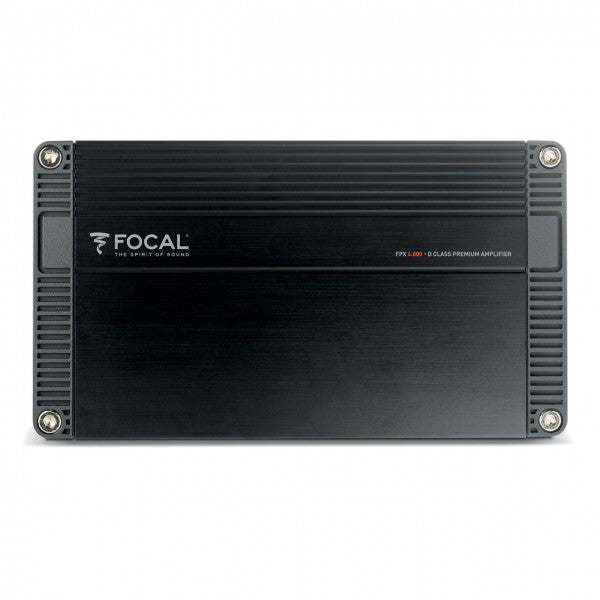

xFocal FPX 4.800 4ch Class D Amplifier
The FPX 4.800 is a very compact 4-channel amplifier with a power of 4×120 Watts RMS at 4 Ohms. Offering a 4-/3-/2-channel mode, stable at 2 Ohms and equipped with an active crossover for each pair of channels, the FPX 4.800 is the most versatile model in this range. Thanks to its very high power, this is the ideal amplifier for powering front and rear speaker drivers, or for hi-fi installations with a 2-way kit in the front and a subwoofer. The 2-/4-channel input modes ensure compatibility with head units only equipped with a pair output lines. The high power and musicality of this amplifier will ensure you get the best out of your high-end speaker drivers from our Performance line.
Features
- 4-/3-/2-channel Class D amplifier
- 2-/4-channel input modes
- Stable at 2 Ohms
- Active crossover for each pair of channels
- The FPX 4.800 measures 921⁄64 x 513⁄64 x 23⁄32″ (23.7 x 13.2 x 5.3 cm).
- A compact and versatile amplifier
- Optimised heat dissipation
- Remarkable power/performance/price ratio
Thanks to its 4×120 Watts RMS at 4 Ohms and its compact chassis barely bigger than half a page of A4 paper, the FPX 4.800 is an ideal solution for a wide range of uses.

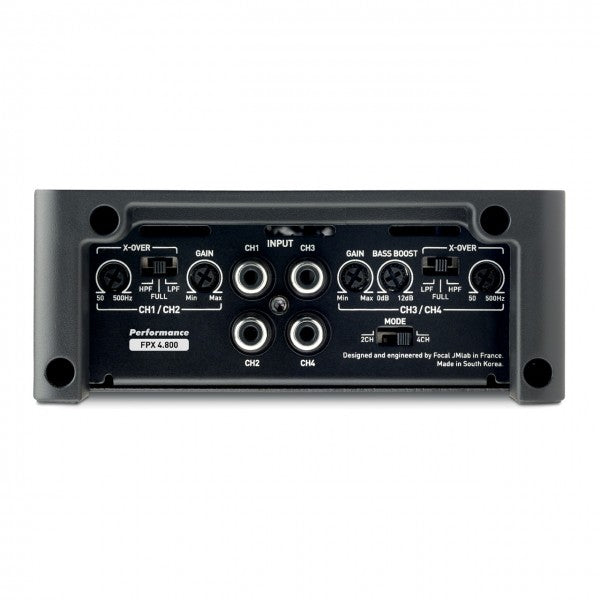

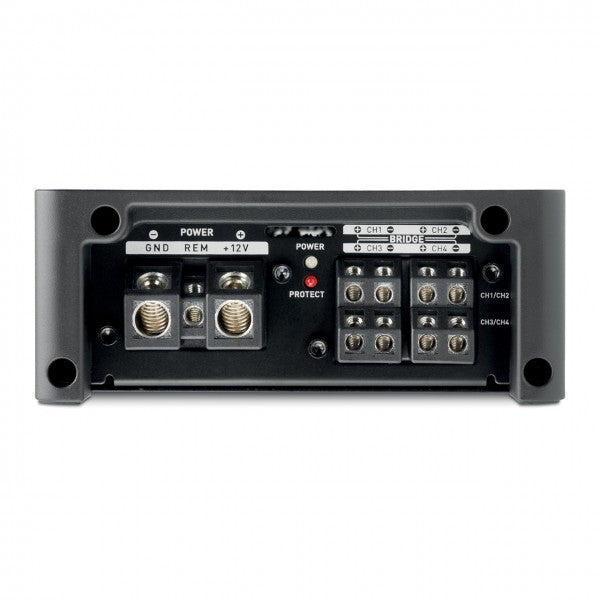

In bridged mode, it delivers 2×370 Watts RMS at 4 Ohms, enabling it to power a significant subwoofer channel with channels 3 and 4. It is also stable at 2 Ohms (4×185 Watts RMS) so it can also be used for powering different types of speaker drivers. In order to perfectly power the speaker drivers, each pair of channels is equipped with an adjustable active crossover from 50 to 500 Hz: high-pass, low-pass or wideband. Channels 3 & 4 are equipped with bass correction. The 2-/4-channel input modes ensure compatibility with mid-range head units only equipped with a pair output lines.
Specifications
|
AUDIO SPECIFICATIONS |
|
|
CEA power (4 ohms) |
4x120 Watts RMS |
|
Max. power (2 ohms) |
4x185 Watts RMS |
|
Max. power (4 ohms bridged) |
2x370 Watts RMS |
|
Bandwidth (-3dB) |
10Hz – 20KHz |
|
THD |
0.01 % |
|
Crosstalk (1 KHz) |
> 55dB |
|
SNR (1W/A) |
> 76dBa |
|
GENERAL FEATURES |
|
|
Subsonic filter |
- |
|
High-pass/low-pass filter |
configurable High-pass/low-pass 50Hz-500Hz |
|
Bass boost |
0 to12 dB linear (¾) |
|
Phase |
- |
|
Full-range function |
✓ |
|
Mirror mode |
✓ |
|
Standby current (A) |
1.1 a |
|
Protections |
Short circuit/low impedance/reverse polarity/DC/voltage drop/overheat protection |
|
Dimensions (LxWxH) |
921⁄64 x 513⁄64x 23⁄32" (237x132x53mm) |
|
Weight (kg) |
4.40lbs (2kg) |
For more information, please visit the manufacturer's website.
