Description
xRich bass out of compact dimensions
The chassis of the K subwoofer series can all be used in very compact enclosures in which they perform magnificently with exceptional bass performance. Especially when it comes to using the available space in the vehicle as good as possible due to an individual enclosure design, these woofers open up completely new possibilities for installation without making any acoustic compromises.
Clever down to the last detail
The extremely stiff cone made of hand-scooped paper fibers in connection with the heavy-duty driver system not only converts amplifier power easily and without compression effects into loads of sound pressure, but also scores sonically with subtle beats.
Maximum flexible connection – 2 x 2 or 1 x 2 Ohms
The chassis of the K-Subwoofer series are available with 1 x 2 Ohms single voice coil (SVC2) or alternatively 2 x 2 Ohms dual voice coil (DVC2). Thus, these subwoofers always offers the right solution for every amplifier configuration to get the maximum performance out of it – whether mono, 2-channel or even multi-channel amplifier.
"All inclusive" for the do-it-yourselfer
In addition, the solid protective grille and gasket are also included. For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency as well as DSP settings in our technical data sheet.
Features

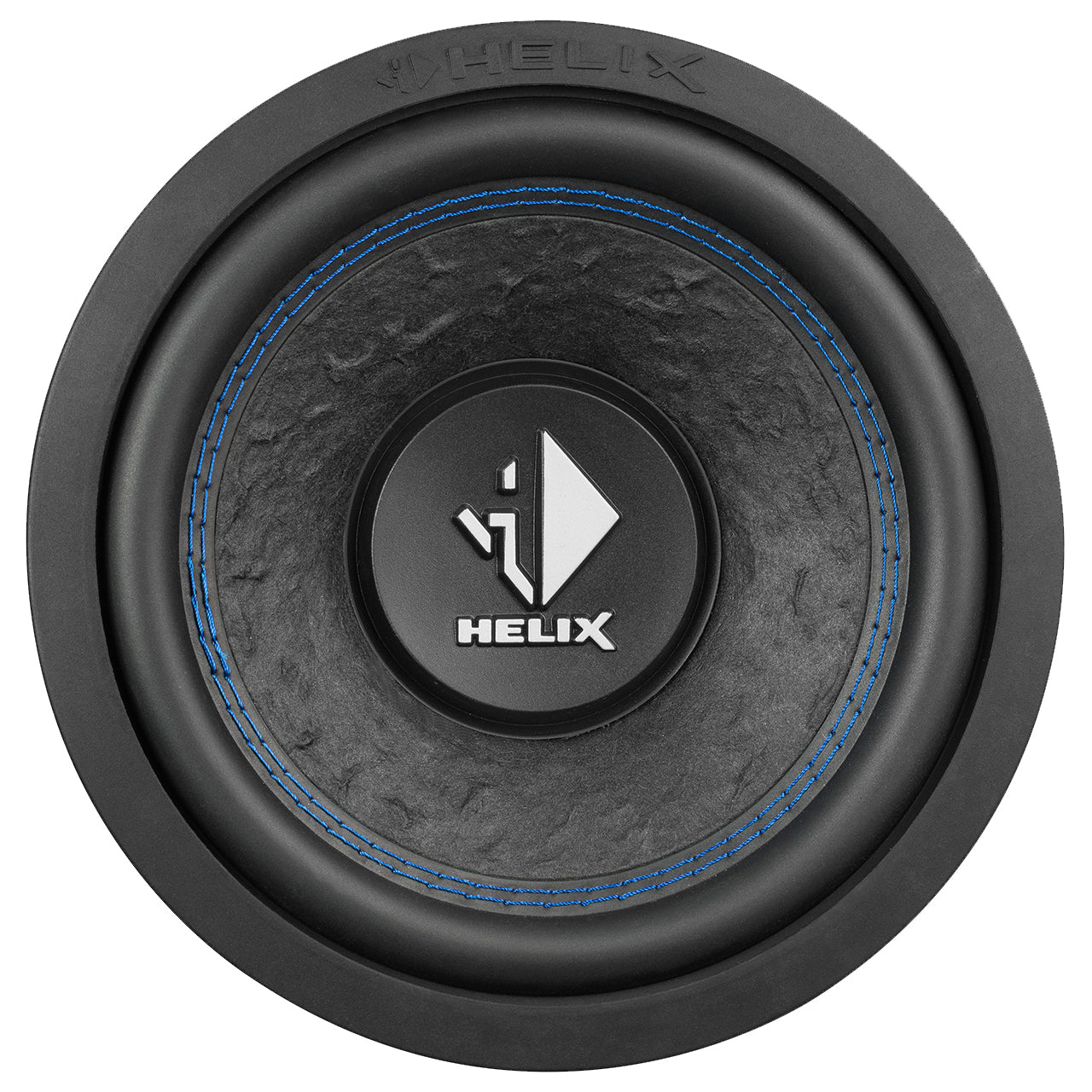

- Extremely stiff, hand-scooped paper cone
- Double ventilated voice coil for minimum compression effects and high power handling
- Rugged magnet cover with HELIX lettering for perfect magnet protection
- Long-excursion rubber surround for highest mechanical rating
- 2 x 2 Ohms dual voice coil for flexible system configuration

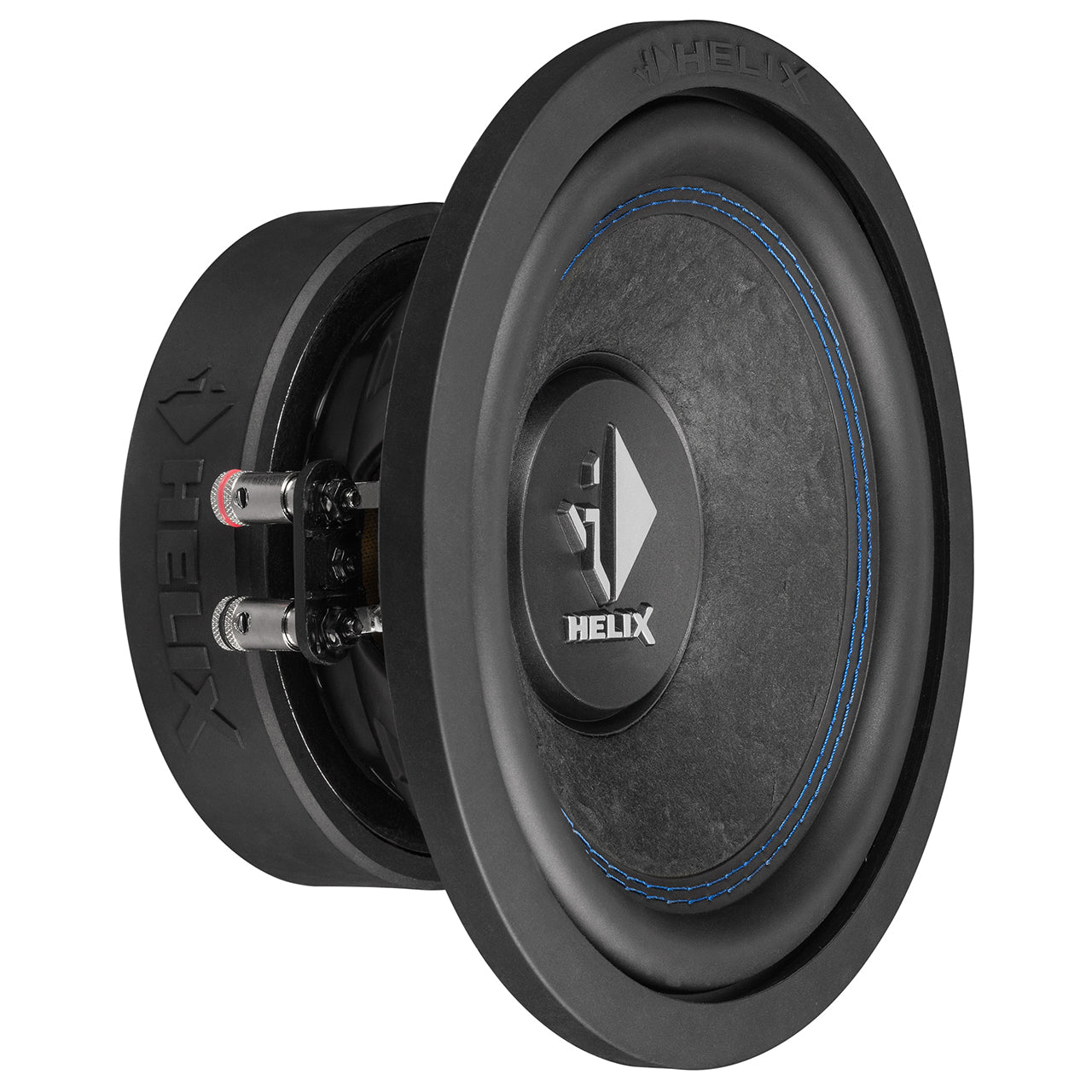

- Solid push terminals
- Powerful magnet system for compact vented enclosures

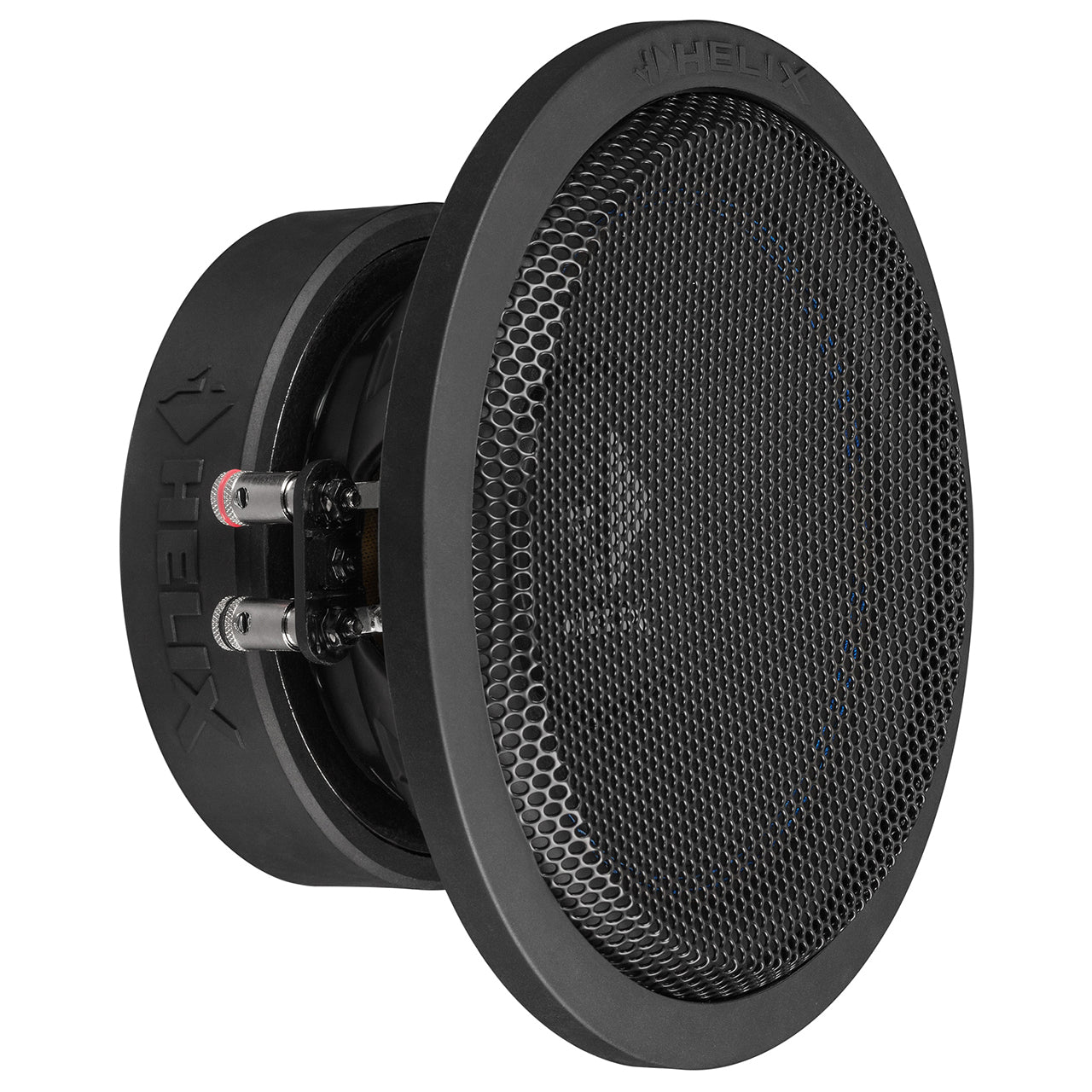

- Grille and gasket included in delivery
Specifications
| Power RMS / max. | P | 300 / 600 Watts |
| Impedance | Z | 2 x 2 Ω |
| DC resistance | Re | 2 x 1.6 Ω |
| Resonance frequency Fs | 37 Hz | |
| Mechanical Q factor | Qms | 3.56 |
| Electrical Q factor | Qes | 0.46 |
| Total Q factor | Qts | 0.41 |
| Compliance | Cms | 262 μm/N |
| Equivalent air volume | Vas | 17 L |
| Force factor | B*I | 10.7 Tm |
| Efficiency 1 W / 1 m | SPL | 86.0 dB |
| Cone area | Sd | 219 cm² |
| Moving mass | Mms | 69 g |
| Cone material | Hand-scooped paper cone | |
| Mechanical resistance | Rms | 4.54 kg/s |
| Voice coil diameter | ø | 50.8 mm |
| Voice coil winding height | 24 mm | |
| Max. linear excursion | Xmax | +/- 8.0 mm |
| Outer diameter | ø | 213 mm / 8.38" |
| Installation diameter | ø | 182 mm / 7.17" |
| Installation depth | 101 mm / 3.98" | |
| Recommended enclosure volumes | ||
| Sealed box | ||
| Net volume | 8 L | |
| Lower limiting frequency (-3dB) | 50 Hz | |
| Recommended DSP settings | Recommended "self-define" highpass filter with 50 Hz cut-off frequency and Q = 1.5, additional EQ filter 115 Hz / Q = 1.0 / -2.5 dB | |
| Vented box | ||
| Net volume | 8 L | |
| Port diameter | ø | 60 mm / 2.36" |
| Port area | 28 cm² | |
| Port length | 42 cm / 16.5" (angled port) | |
| Port tuning frequency | Fb | 43 Hz |
| Lower limiting frequency (-3dB) | 45 Hz | |
| Recommended DSP settings | Recommended "self-define" highpass filter with 43 Hz cut-off frequency and Q = 1.5, additional EQ filter 120 Hz / Q = 0.8 / -3.5 dB |
For more information, please visit the manufacturer's website.
