Description

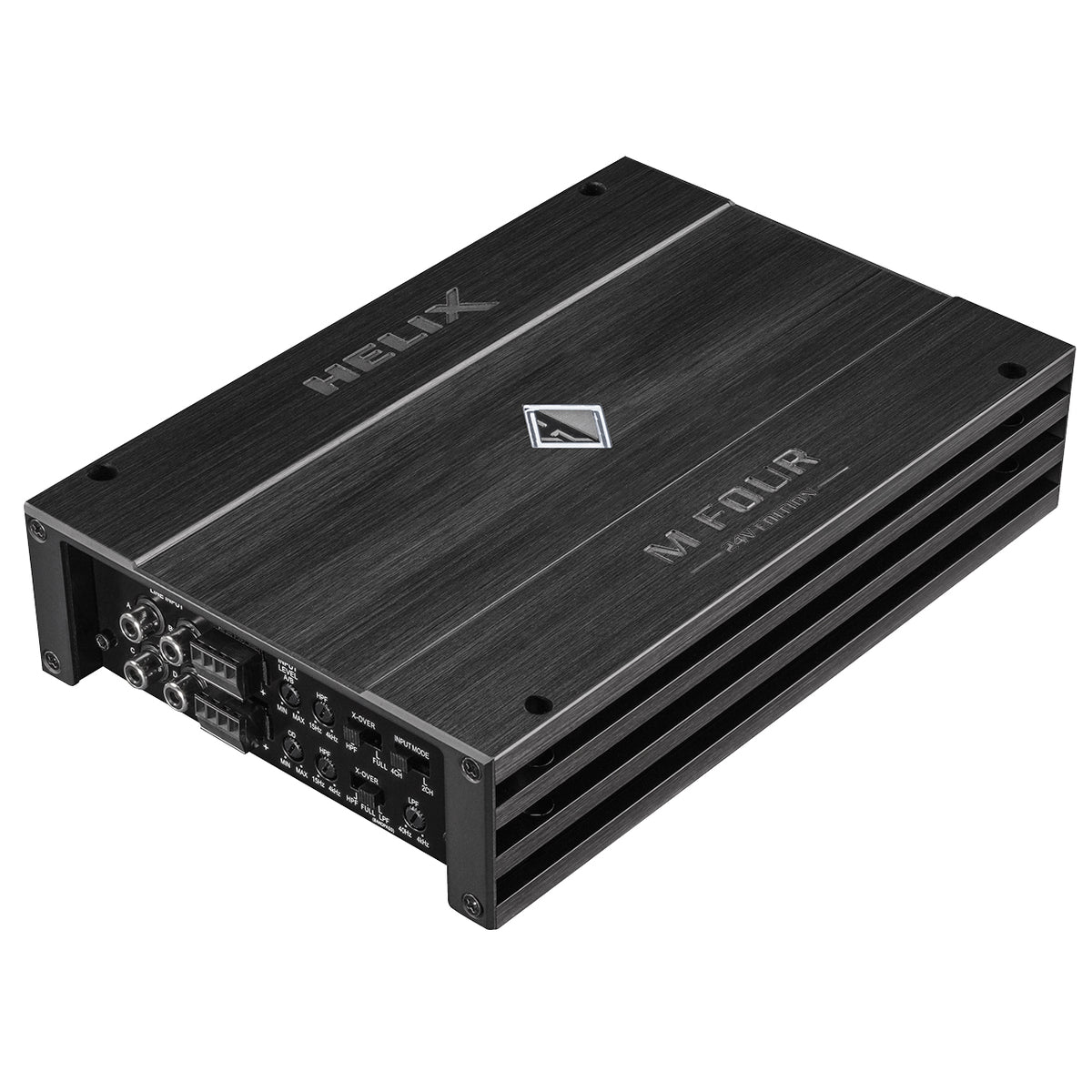

xHelix M Four 24 Volt 4 Channel Amplifier
If you like to rev up your front and rear speakers, the M FOUR - 24V Edition will be exactly the right "tool" to do so. With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp will heat up your voice coils in no time despite its super-compact dimensions. On the other hand the M FOUR - 24V Edition stays totally cool thanks to the highly efficient Class D design topology. 3-channel or 2-channel configurations are possible as well, delivering up to 2 x 200 Watts RMS of clean and undistorted output power.
Needless to say that the M FOUR - 24V Edition is equipped with a bunch of intelligent attributes like "start-stop capability" and our proprietary "ADEP" highlevel input so that it easily deals with all installation challenges of modern cars. Finally the extensive audio features will offer a sound quality at its best.
Features
- Small footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms load
- Start-Stop capability down to 12V supply voltage
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Integrated, active crossover with highpass, lowpass and bandpass
- “Input mode” switch for flexible input signal routing
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M FOUR - 24V Edition.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M FOUR - 24V Edition assures operation even if the battery’s voltage drops down to 12 Volts during engine crank.
Specifications
|
Output power RMS ≤ 1% THD+N |
|
|
- @ 4 Ohms |
4 x 100 Watts |
|
- @ 2 Ohms |
4 x 100 Watts |
|
- @ 1 Ohm |
- |
|
- bridged @ 4 Ohms |
2 x 200 Watts |
|
- bridged @ 2 Ohms |
- |
|
Max. output power per channel* |
Up to 135 Watts RMS @ 4 / 2 Ohms |
|
Amplifier technology |
Class D |
|
Inputs |
4 x RCA / Cinch 4 x Highlevel speaker input 1 x Remote In |
|
Input sensitivity |
RCA / Cinch 0.5 - 6 Volts Highlevel 1.3 - 13 Volts |
|
Input impedance RCA / Cinch |
20 kOhms |
|
Input impedance highlevel |
9 - 33 Ohms |
|
Outputs |
4 x Speaker output |
|
Output voltage RCA / Cinch |
- |
|
Signal converter for digital input |
- |
|
Frequency response |
10 Hz - 30,000 Hz |
|
Bass boost |
- |
|
Highpass |
15 Hz - 4,000 Hz adjustable |
|
Lowpass |
40 Hz - 4,000 Hz adjustable |
|
Bandpass |
15 Hz - 4,000 Hz adjustable |
|
Subsonic |
- |
|
Phase |
- |
|
Slope high- / lowpass |
12 dB/Oct. |
|
Slope subsonic / lowpass |
- |
|
Signal-to-noise ratio digital input |
- |
|
Signal-to-noise ratio analog input |
98 dB (A-weighted) |
|
Distortion (THD) |
0.05 % |
|
Damping factor |
100 |
|
Operating voltage |
18 - 36 Volts (max. 5 sec. down to 12 Volts) |
|
Idle current |
550 mA |
|
Operating temperature range |
-40° C to +70° C |
|
Fuse |
2 x 15 A Maxi-fuse (APX) |
|
Power rating |
DC 24 V ⎓ 25 A max. |
|
Additional features |
Active, adjustable crossover, input mode switch, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP) |
|
Dimensions (H x W x D) |
50 x 230 x 154 mm / 2.00 x 9.06 x 6.06” |
For more information, please visit the manufacturer's website.
