Brand: Hertz
SKU: HCP1MDK
Availability: Out Of Stock
Class D Mono Block Marine Amplifier (1 channel)
1x 740 watts RMS @ 4Ω
1x 1240 watts RMS @ 2Ω
Dimensions: 315 x 190 x 50mm

Purchase

If you are interested in buying this item please contact us via our contact page.

Contact Us
$15 Flat rate shipping*

Description
Description
x

Hertz Marine HCP1MDK Mono Amplifier

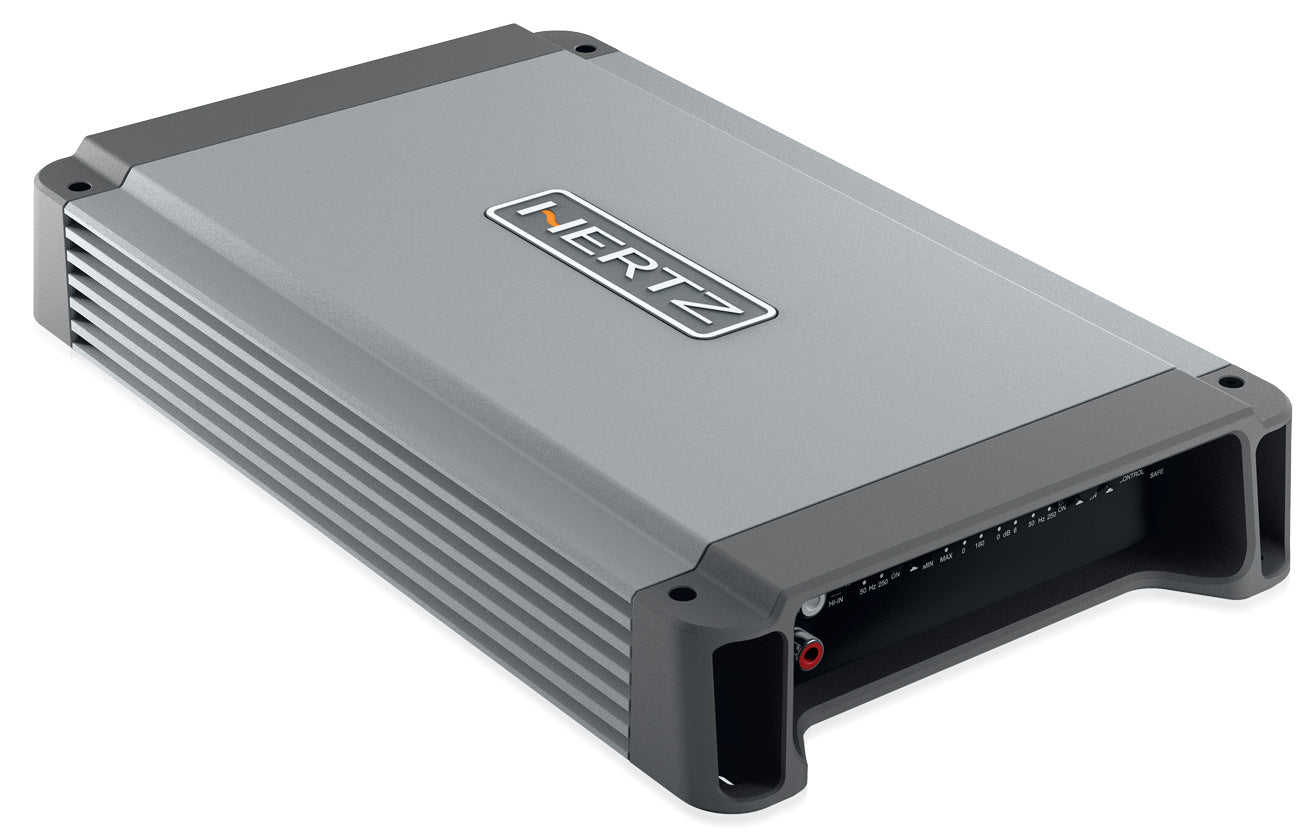

HCP 1MDK mono marine amplifier features latest generation D-Class 2Ω stable output stage reaching the impressive RMS power of 740 W x 1 (4 Ω). Engineered and tested for the real environment of application (UV, salt-fog, vibrations, high/low temperature, thermal shock, dust), HCP 1MDK features a compact design built from extruded aluminium heatsink with top side ensuring effective heat transfer. The special balanced input circuitry reject electro-magnetic disturbances and the Hi-Level and lo-level inputs are compatible with any source. The Adjustable Bass Boost (50 Hz) with continuity between 0 dB and 6 dB adds more punch to subwoofer and SUBSONIC filter (24 dB – 25 Hz), removes very low subsonic frequencies from music signal to prevent damage to the subwoofer. The continuously adjustable PHASE control (0 to 180°) optimizes alignment of woofer bass frequencies with sub ones. The Optional Remote Volume Control (HRC) provides the ability to adjust subwoofer volume level from the dashboard.

Features

  • 2 Ω STABLE - Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 Ω stable output stage.
  • CORROSION PROTECTION - Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marine grade (epoxy coated) PCB boards.
  • WATER JET TESTED - The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
  • LATEST GENERATION D-CLASS - Latest generation D-Class 2Ω stable output stage reaching the impressive RMS power of 150 W x 4 with the excellent S/N ratio of 105 dB.
  • SALT FOG TESTED - To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

Specifications

General Specs


Channels

1

POWER SUPPLY


Power supply voltage / fuse:

11 ÷ 15 VDC / 3 x 30 A

Idling current (power ON/OFF)

0.8 A / 1 mA

Consumption @ 2 Ω, 14.4 VDC (Max Musical Power):

45 A

Remote In:

7 ÷ 15 VDC - 1 mA

ART:

Automatic Remote Turn-On/Off with Speaker-In

AMPLIFIER STAGE


Distorsion - THD (100 Hz @ 4 Ω):

0.25%

Bandwidth:

10 ÷ 500 Hz

S/N Ratio (A weighted @ 1 V):

100 dB

Damping factor (100 Hz @ 4 Ω):

> 100

Pre-In sensitivity:

0.2 ÷ 5 VRMS

Speaker-In sensitivity:

0.8 ÷ 20 VRMS

Load impedance (MIN)


@ 1 Ch:

2 Ω

Max size (mm / in.):

315 x 190 x 50 / 12.40 x 7.48 x 1.97

Weight (kg / lb.):

3 / 6,61

Adjustable Crossovers

yes

Output Power


Output Power (RMS) @ 14.4 VDC, THD 1%


1 Ch:

600 W x 1 (4 Ω)

1 Ch:

1100 W x 1 (2 Ω)

Output Power (RMS) @ 14.4 VDC, THD 10%:


1 Ch:

740 W x 1 (4 Ω)

1 Ch:

1240 W x 1 (2 Ω)

CEA 2006-A Ratings:


RMS Power (4 Ω, ≤1 %THD + N, 14.4 V):

600 W x 1 Ch

S/N Ratio (ref. 1 W output):

80 dBA

Total Power RMS

1240 W

INPUTS / FILTERS


INPUTS:

PRE IN / SPEAKER IN

Pre out Hi-Pass:

50 ÷ 250 Hz @ 12 dB/Oct.

Filters FULL:

Yes

Lo-Pass:

50 ÷ 250 Hz @ 24 dB/Oct.

SUBSONIC (on/off):

25 Hz @ 24 dB/Oct.

BOOST 50 Hz (adjust):

(0 ÷ 6) dB

PHASE(adjust):

(0 ÷ 180) deg

Remote Volume Control (adjust):

(-50 ÷ 6) dB



For more information, please visit the manufacturer's website.
