Class D 6 channel Marine Amplifier
6x 290 watts RMS @ 2Ω
6x 160 watts RMS @ 4Ω
Corrosion & water jet resistant & salt fog proof
Dimensions: 330 x 200 x 54mm
6x 290 watts RMS @ 2Ω
6x 160 watts RMS @ 4Ω
Corrosion & water jet resistant & salt fog proof
Dimensions: 330 x 200 x 54mm
Purchase
If you are interested in buying this item please contact us via our contact page.
$15 Flat rate shipping*
Description

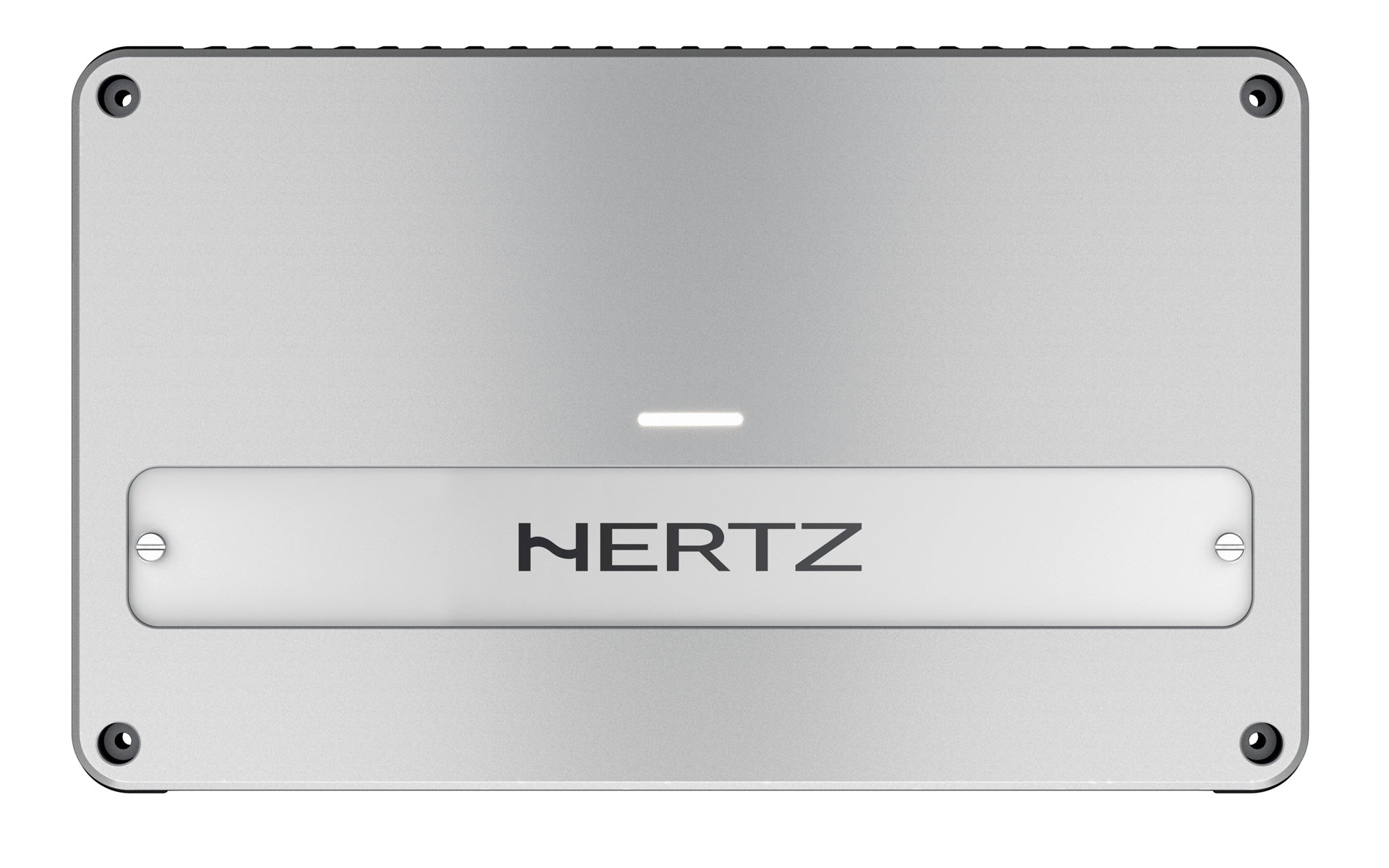

xHertz Venezia HMV6 6 Channel Marine Amplifier
Venezia V6 is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
Features
- Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.
- Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit, overload, and thermal protections with auto-resetting.
- Plug&Play Input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
Specifications
|
General Specs |
|
|
Channels |
6 - 5 - 4 - 3 |
|
POWER SUPPLY |
|
|
Power supply voltage |
9 ÷ 16 VDC |
|
ldling current (power ON/OFF): |
1.8 A / 0.04 mA |
|
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): |
75 A |
|
Remote In: |
7 ÷ 15 VDC - 1 mA |
|
AMPLIFIER STAGE |
|
|
Distorsion - THD (100Hz @ 4Ω): |
<0,06% |
|
Bandwidth: |
10 ÷ 42 kHz |
|
S/N Ratlo (A welghted @ 1 V): |
100 dB |
|
Damping factor (100Hz @ 4Ω) |
130 |
|
Pre-ln sensitivity: |
0.2 ÷ 5 VRMS |
|
Pre-ln impedance: |
10 kΩ |
|
Load impedance (MIN) |
|
|
@6Ch: |
2Ω |
|
@5Ch: |
2Ω + 2Ω + 2Ω +2Ω + 4Ω |
|
@4Ch: |
2Ω + 2Ω +4Ω + 4Ω |
|
@3Ch: |
4Ω |
|
Adjustable Crossovers |
yes |
|
Output Power |
|
|
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% |
|
|
6Ch |
160 W x 6 (4Ω) |
|
6Ch |
290 W x 6 (2Ω) |
|
5Ch |
160 x 4 (4Ω) + 580 x 1 (4Ω) |
|
5Ch |
290 x 4 (2Ω) + 580 x 1 (4Ω) |
|
4Ch |
160 x 2 (4Ω) + 580 x 2 (4Ω) |
|
4Ch |
290 x 2 (2Ω) + 580 x 2 (4Ω) |
|
3Ch |
580 x 3 (4Ω) |
|
Total Power RMS |
1740 W |
|
INPUTS / FILTERS |
|
|
lnputs: |
A Ch. Pre in |
|
B Ch. Pre in |
|
|
C Ch. Pre in |
|
|
Pre Out: |
No |
|
Ch. A filters: |
|
|
MONO IN (on/off) |
Yes |
|
By-pass |
Yes |
|
Hi-pass: |
50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
|
Ch. B filters: |
|
|
MONO IN (on/off) |
Yes |
|
By-pass |
Yes |
|
Hi-pass: |
50 ÷ 500 Hz @ 12 dB/Oct |
|
Band-pass: |
50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
|
Ch. C filters: |
|
|
MONO IN (on-off) |
Yes |
|
By-pass |
Yes |
|
Hi-pass: |
50 ÷ 500 Hz @ 12 dB/Oct |
|
Lo-pass: |
50 ÷ 500 Hz @ 12 dB/Oct |
|
Physical Specs |
|
|
Weight |
3.72kg |
|
Dimensions |
330 x 200 x 54mm |
For more information, please visit the manufacturer's website.
