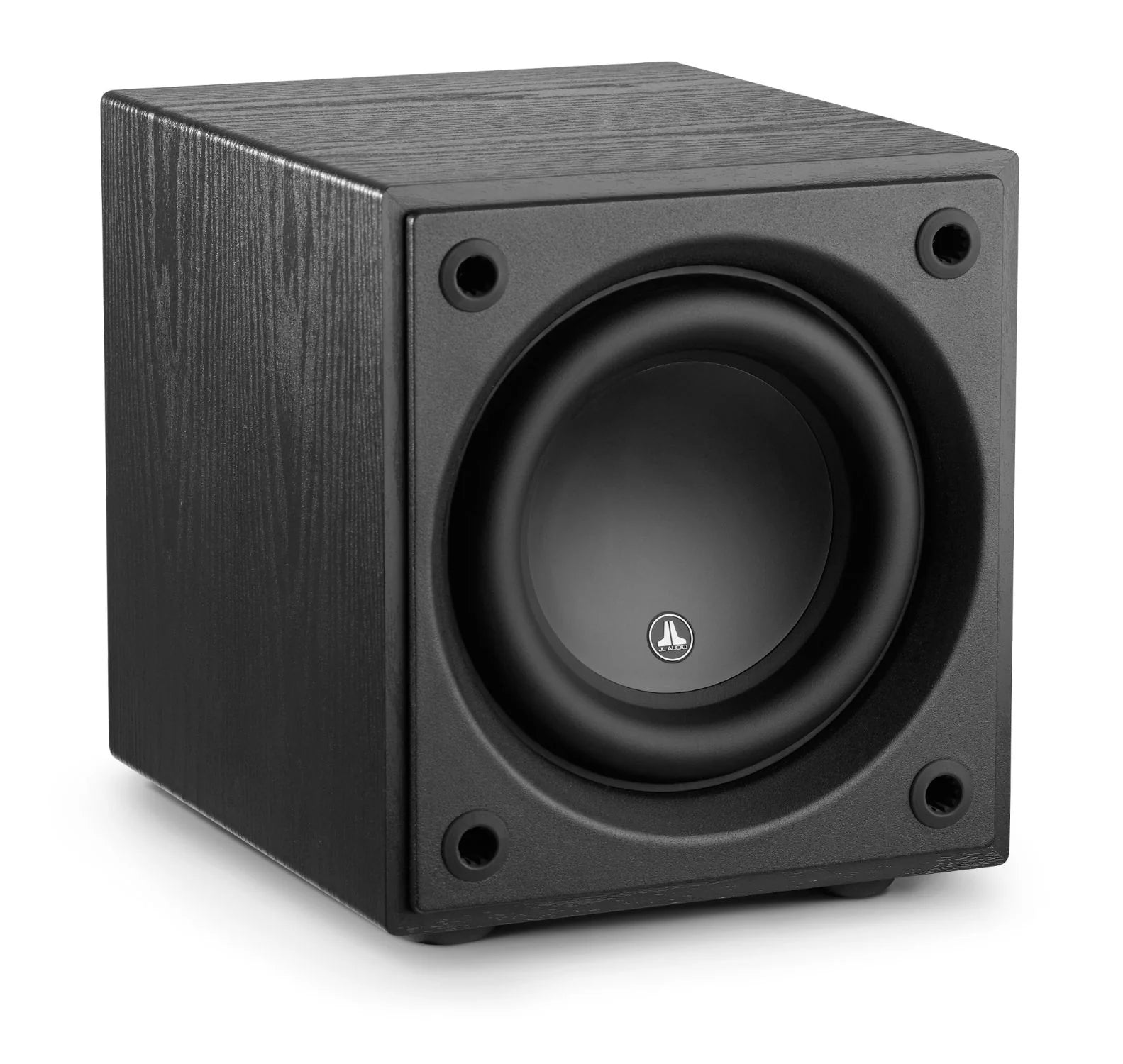

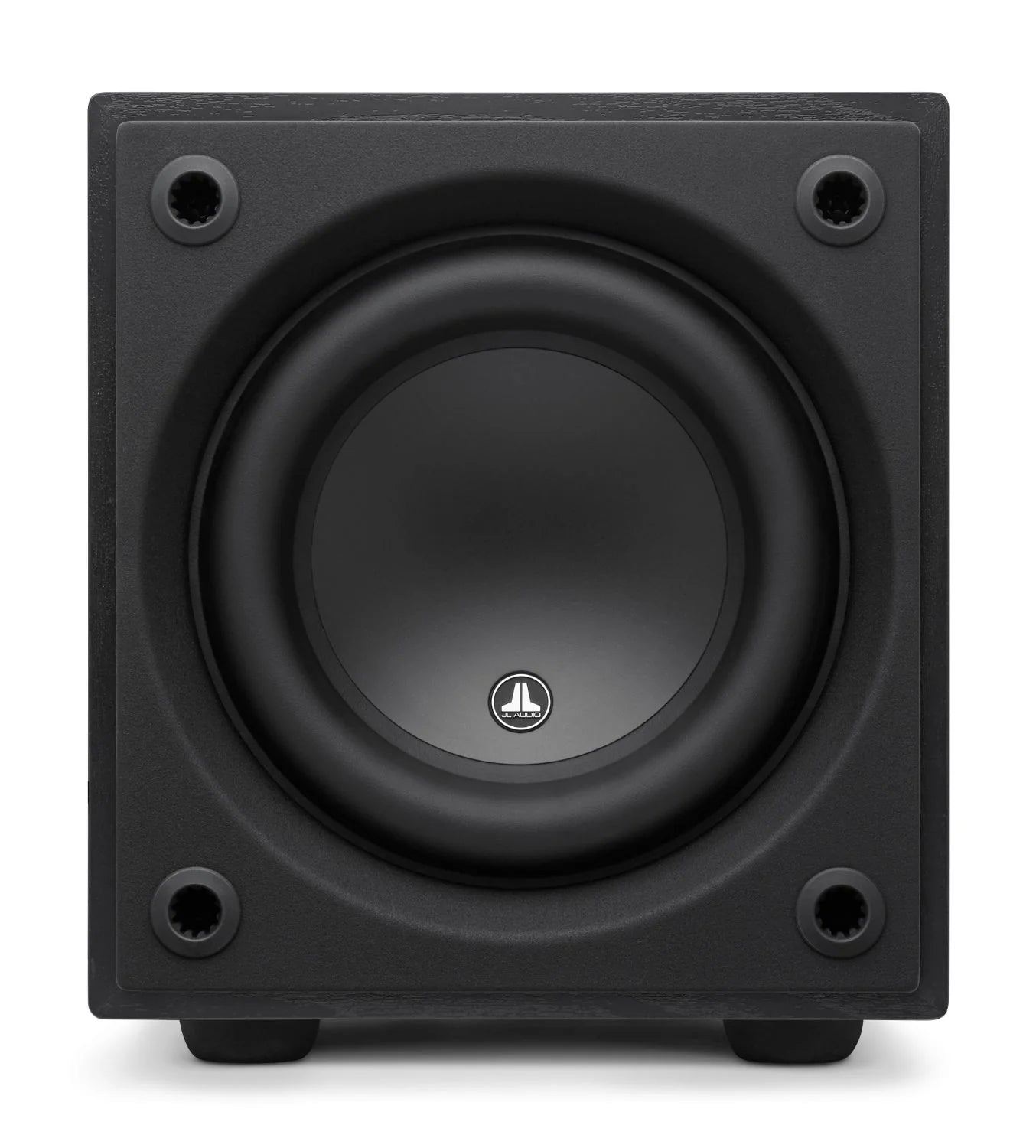

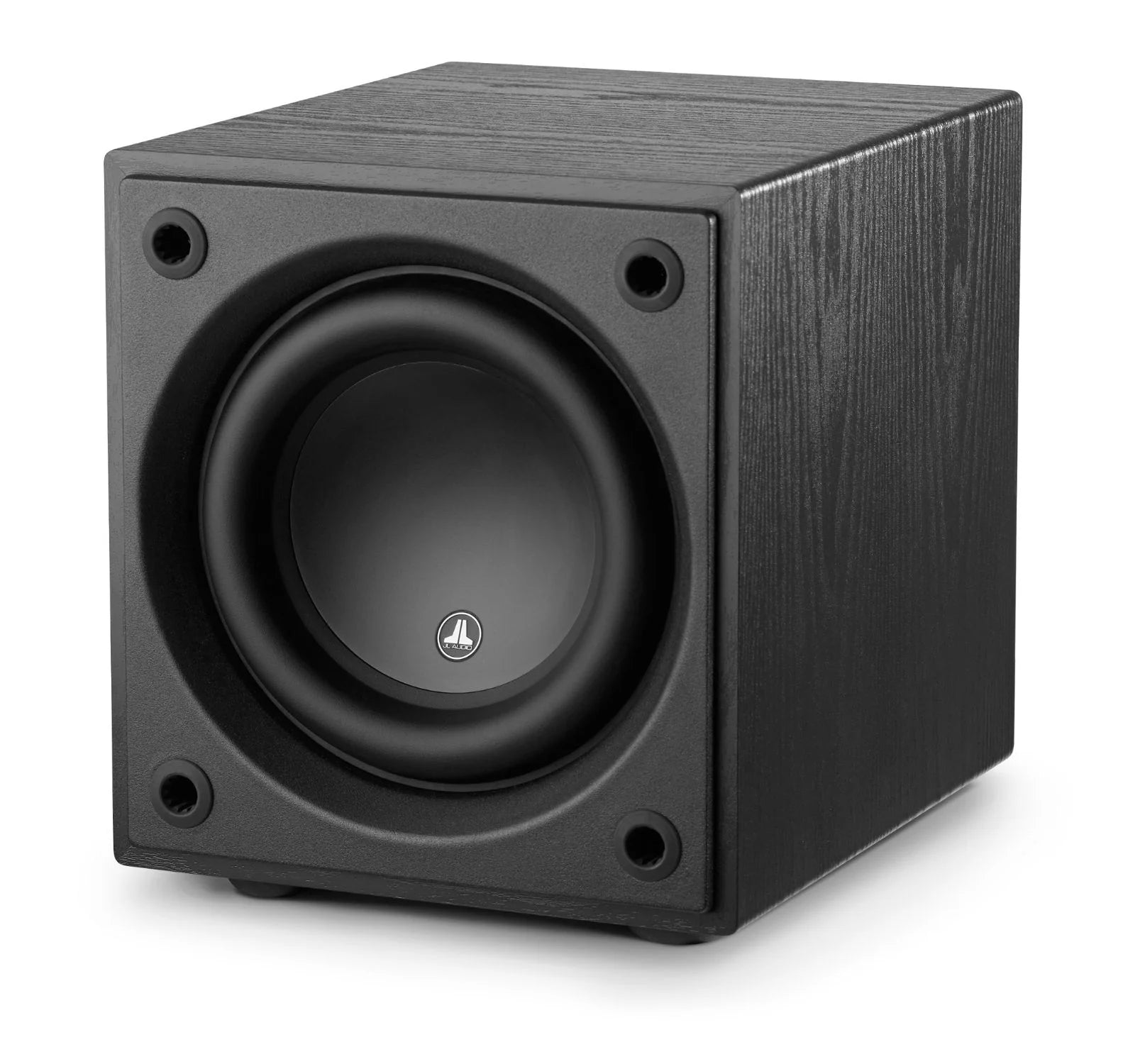

xJL AUDIO 8-inch (200 mm) Powered Subwoofer, Black Ash Finish
Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

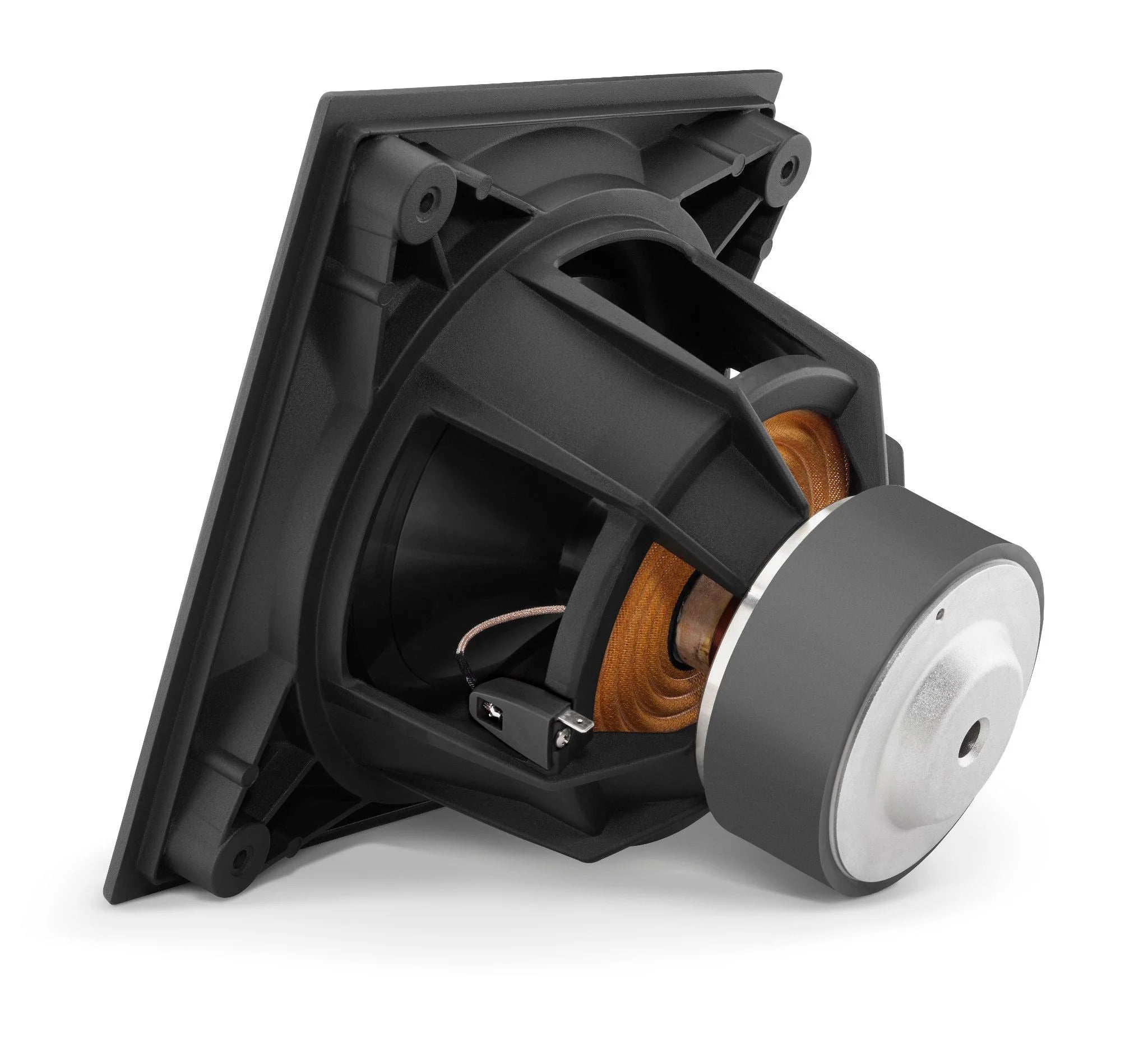

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

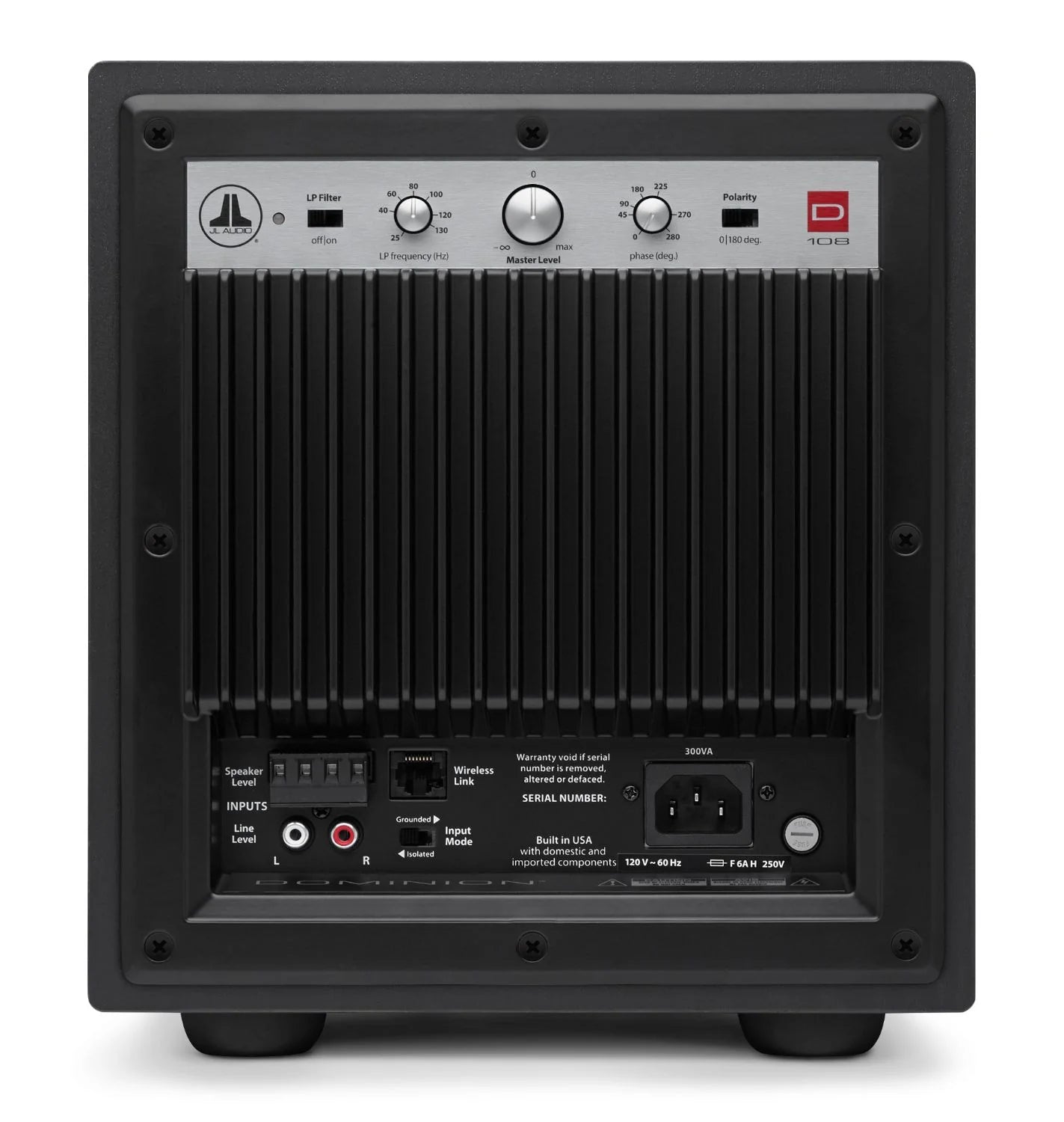

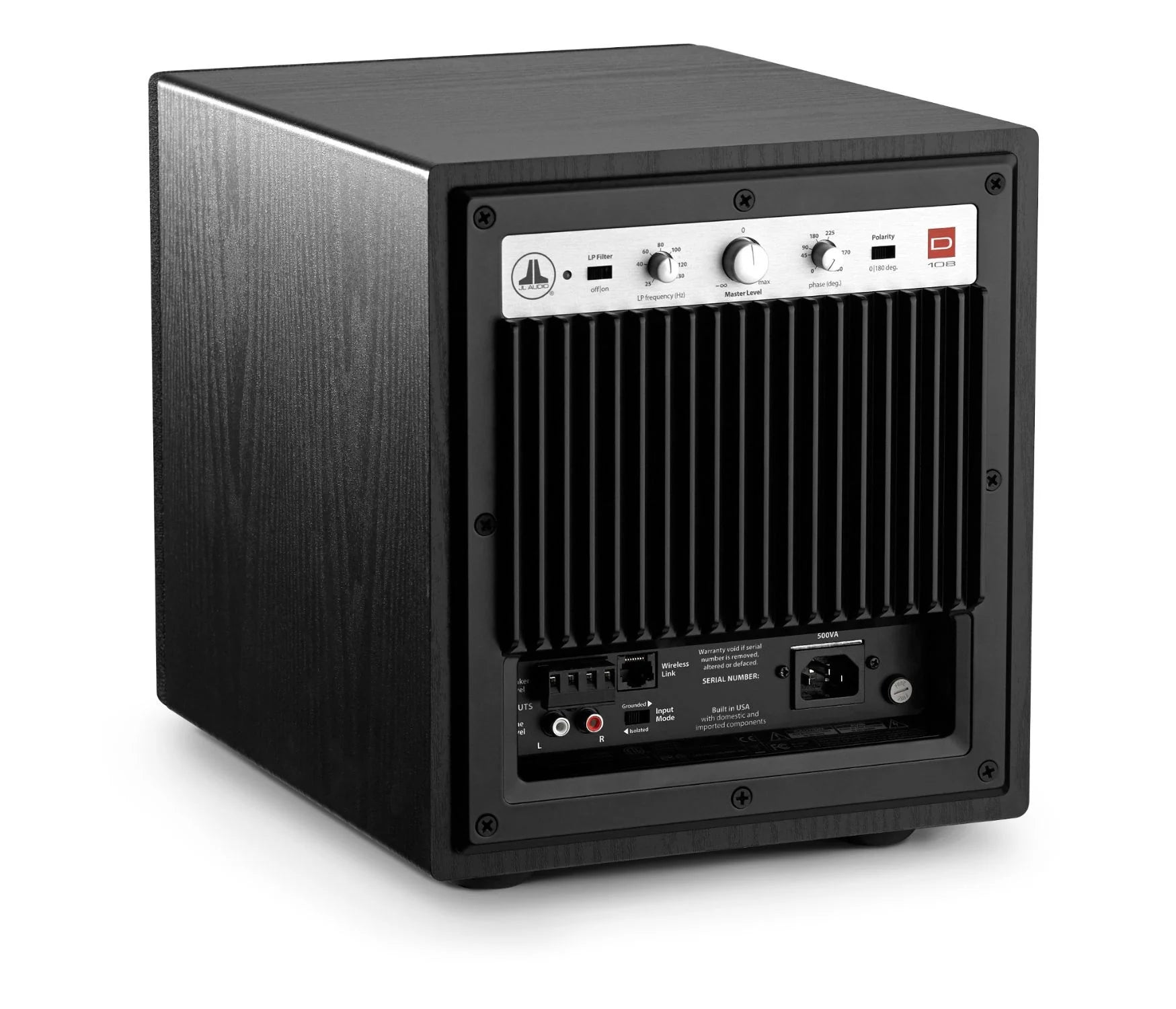

With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.
To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
Finish: Black Ash

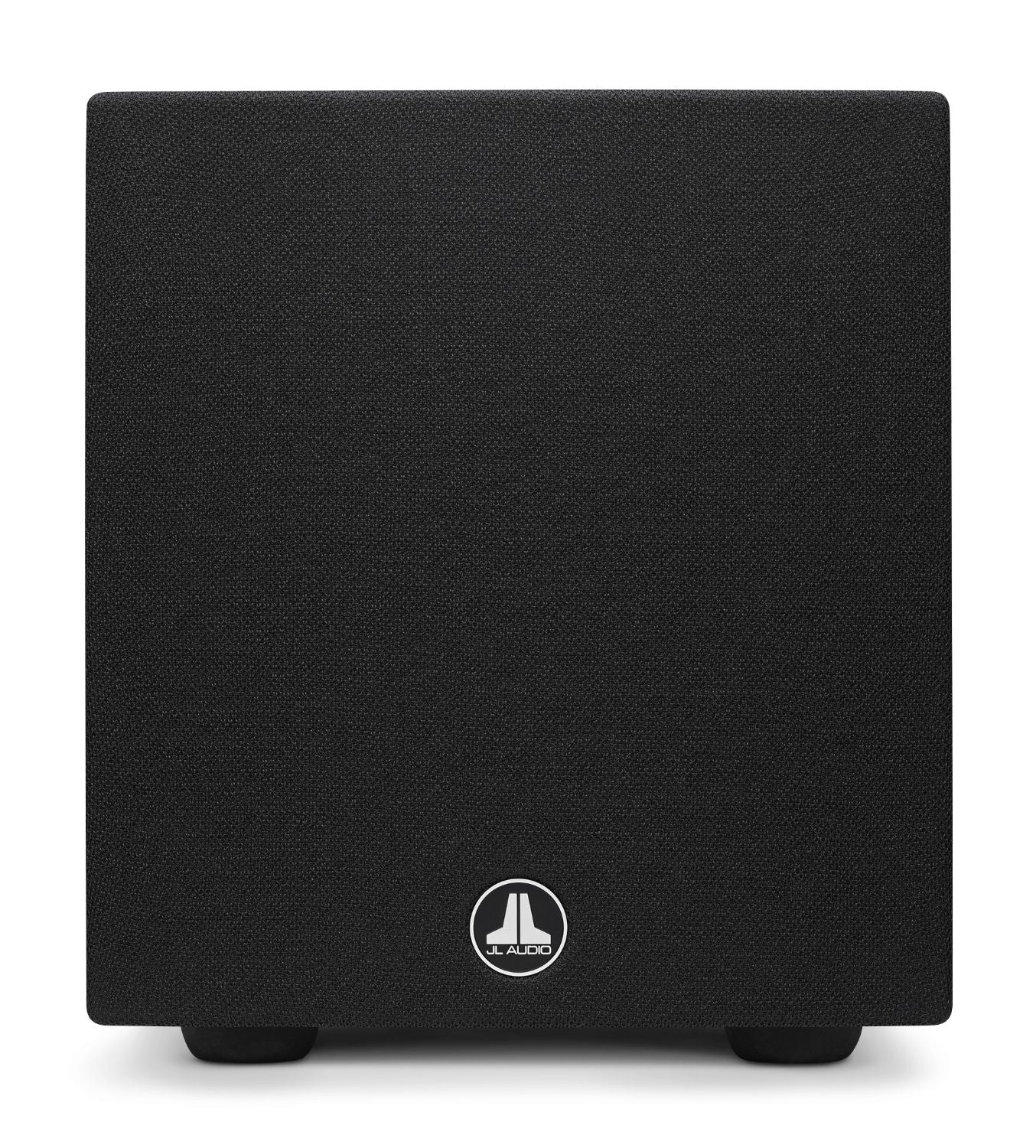

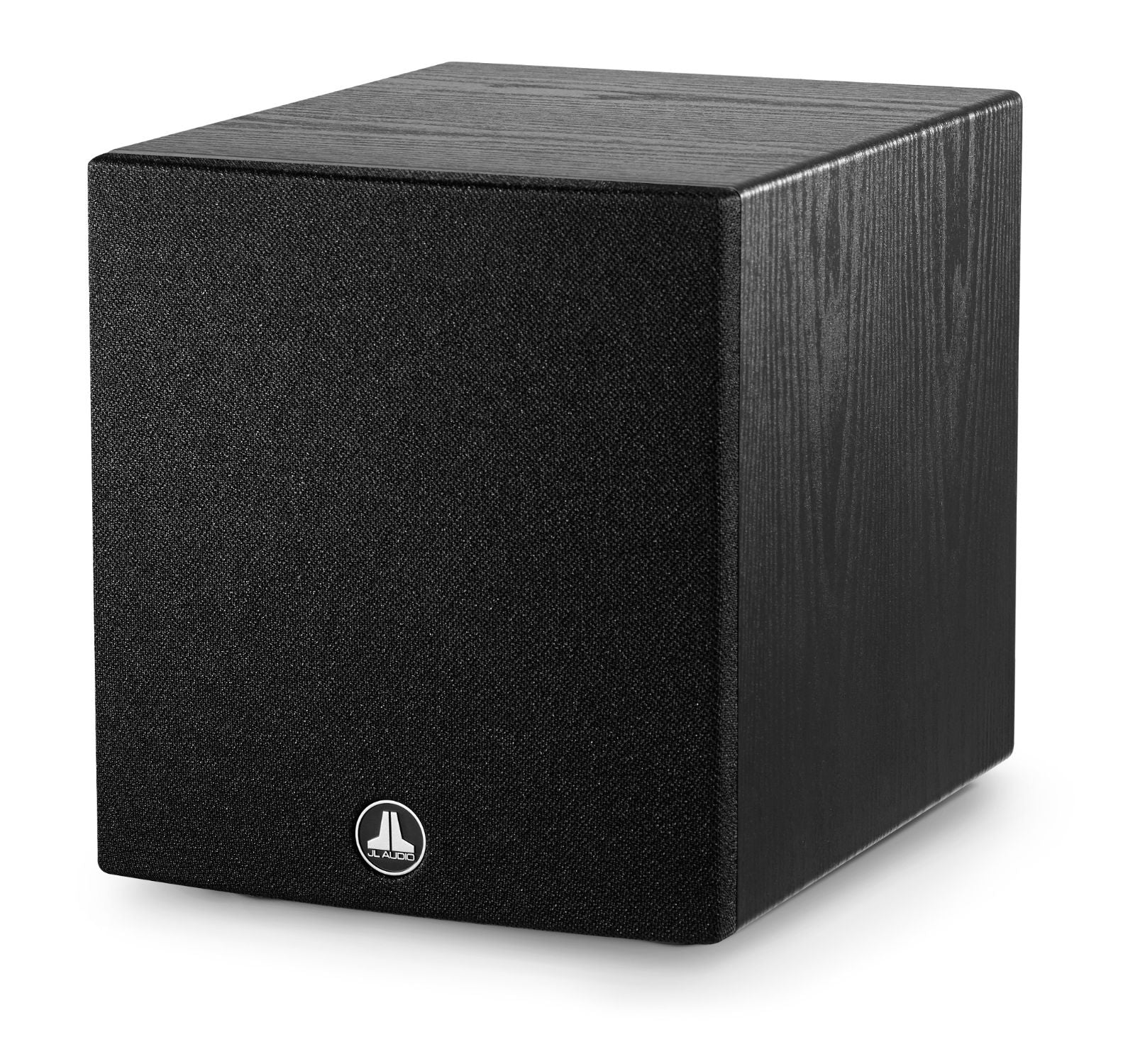

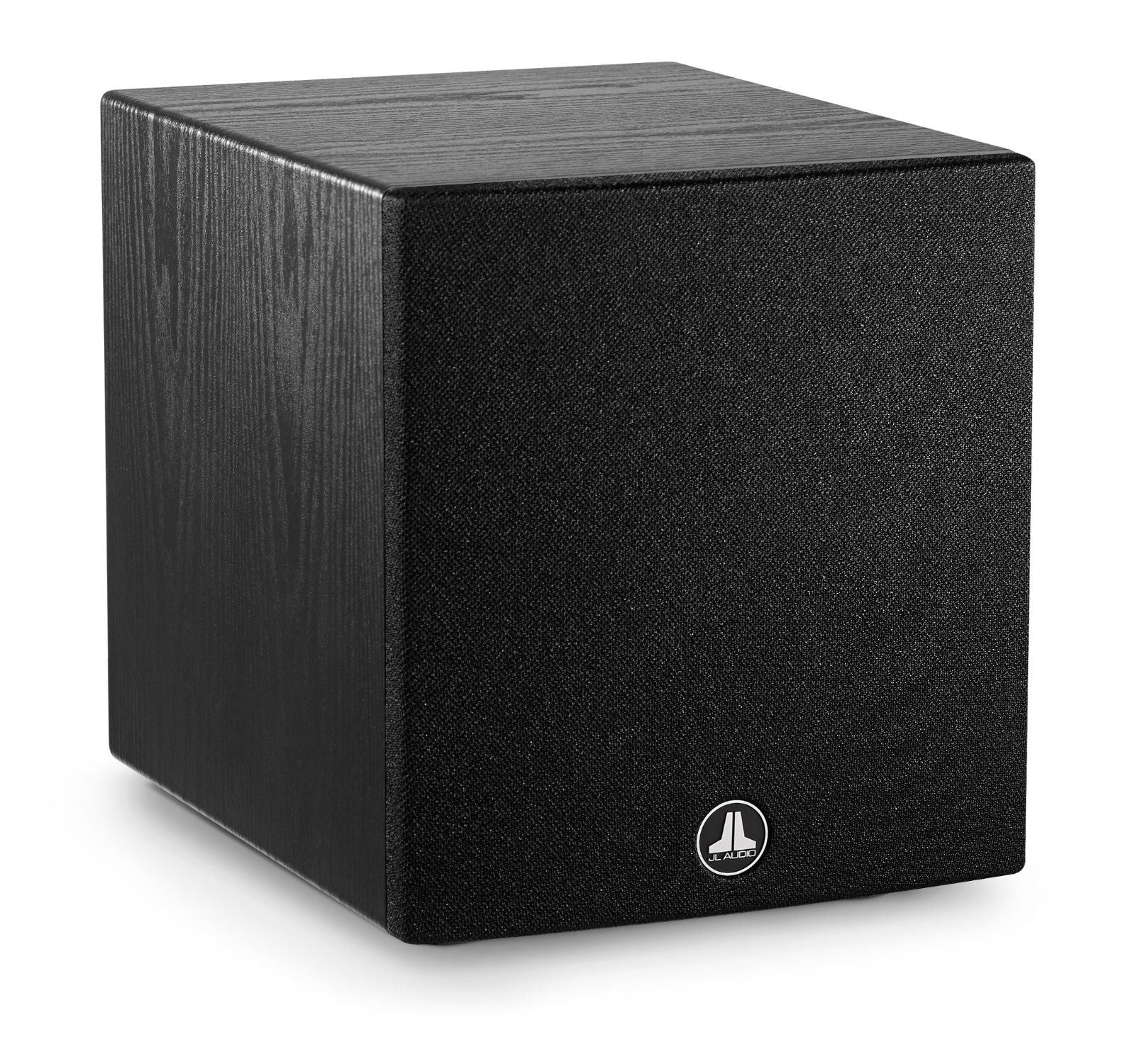

Grille Finish: Black Fabric
Enclosure Construction: MDF
Specifications
|
General Specifications |
|
|
Enclosure Type |
Sealed |
|
Enclosure Finish |
Black Ash |
|
Frequency Response (Anechoic) |
31 - 112 Hz (±1.5dB) -3 dB at 29 Hz / 119 Hz -10 dB at 21 Hz / 143 Hz |
|
Effective Piston Area (Sd) |
32.18 sq in / 0.0208 sq m |
|
Effective Displacement |
80 cu in / 1.3 L |
|
Amplifier Power |
500 W RMS short-term |
|
Power Mode |
Automatic (Signal-Sensing) |
|
Light Modes |
N/A |
|
Signal Processing |
|
|
Unbalanced Inputs |
Stereo or Mono (two RCA jacks) |
|
Balanced Inputs |
N/A |
|
Speaker/High-Level Inputs |
Stereo or Mono (removeable plug) |
|
Input Grounding |
Isolated or Grounded |
|
Input Modes |
N/A |
|
Level Control |
Variable, from full mute to +15dB over reference gain |
|
Filter Mode(s) |
Low-Pass |
|
Filter Slope(s) |
24 dB/octave |
|
Filter Frequency Range |
25 Hz - 130 Hz |
|
Filter Defeat Function |
Yes |
|
Polarity |
0 or 180 degrees |
|
Phase |
Variable, 0- 280 degrees, referenced to 80 Hz |
|
Extreme Low Frequency (E.L.F.) Trim |
N/A |
|
Line Outputs |
N/A |
|
Output to Slave |
N/A |
|
Calibration Mode |
N/A |
|
Physical Specifications |
|
|
Width (W) |
10 in / 254 mm |
|
Height (H) |
11.37 in / 289 mm |
|
Depth (D) |
13.23 in / 336 mm |
|
Net Weight |
26.4 lb / 12 kg |
For more information, please visit the manufacturer's website.
