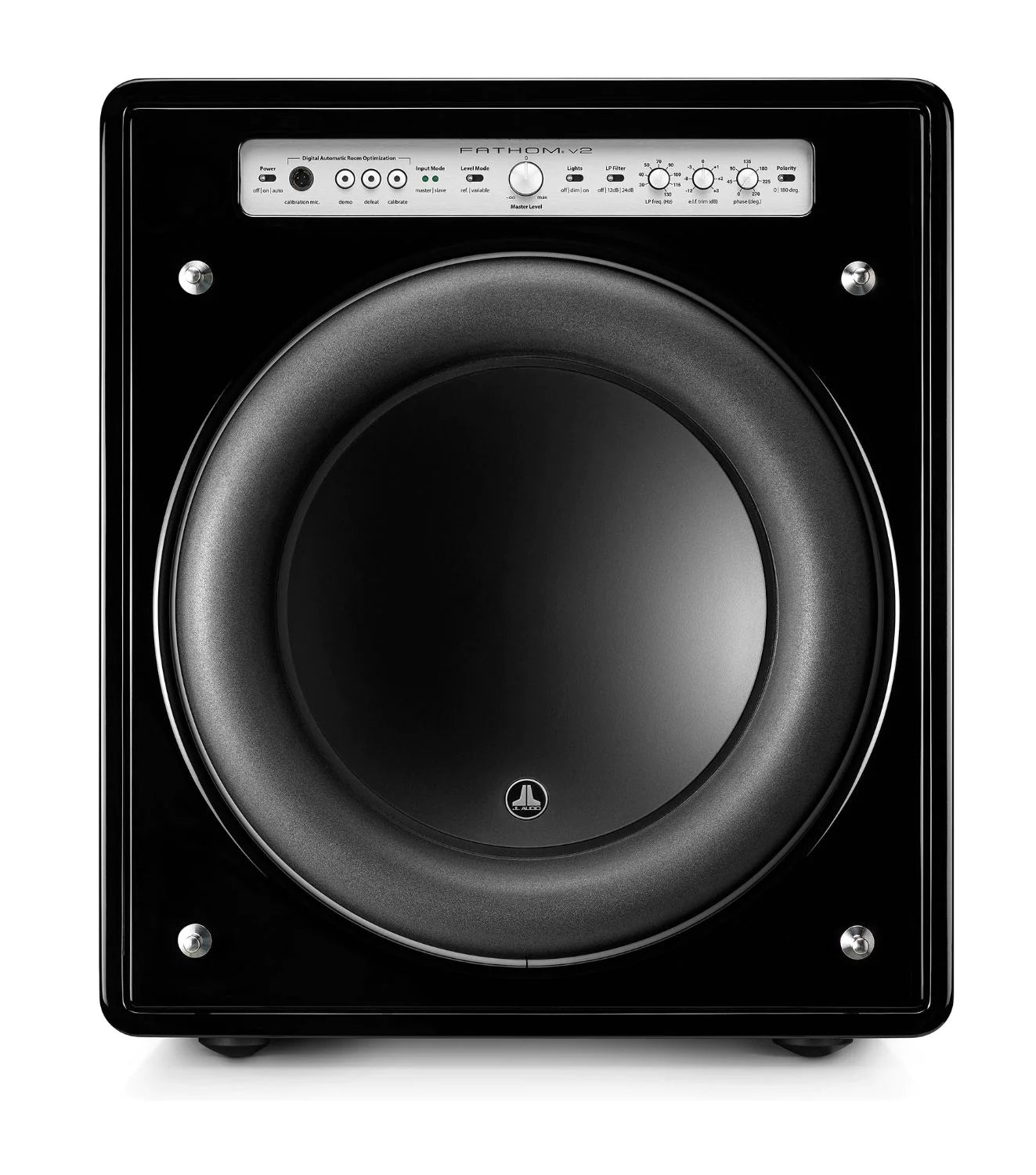

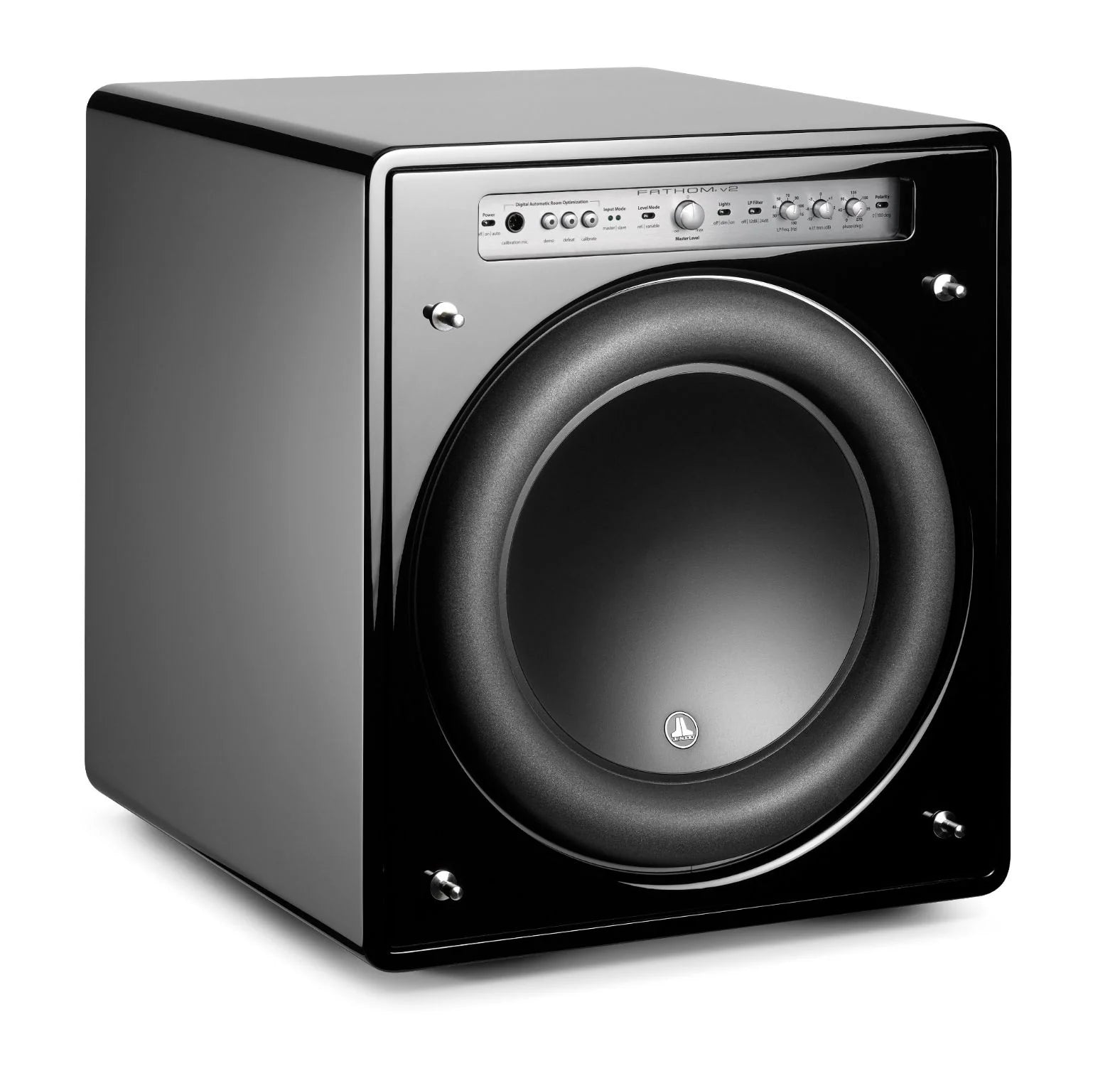

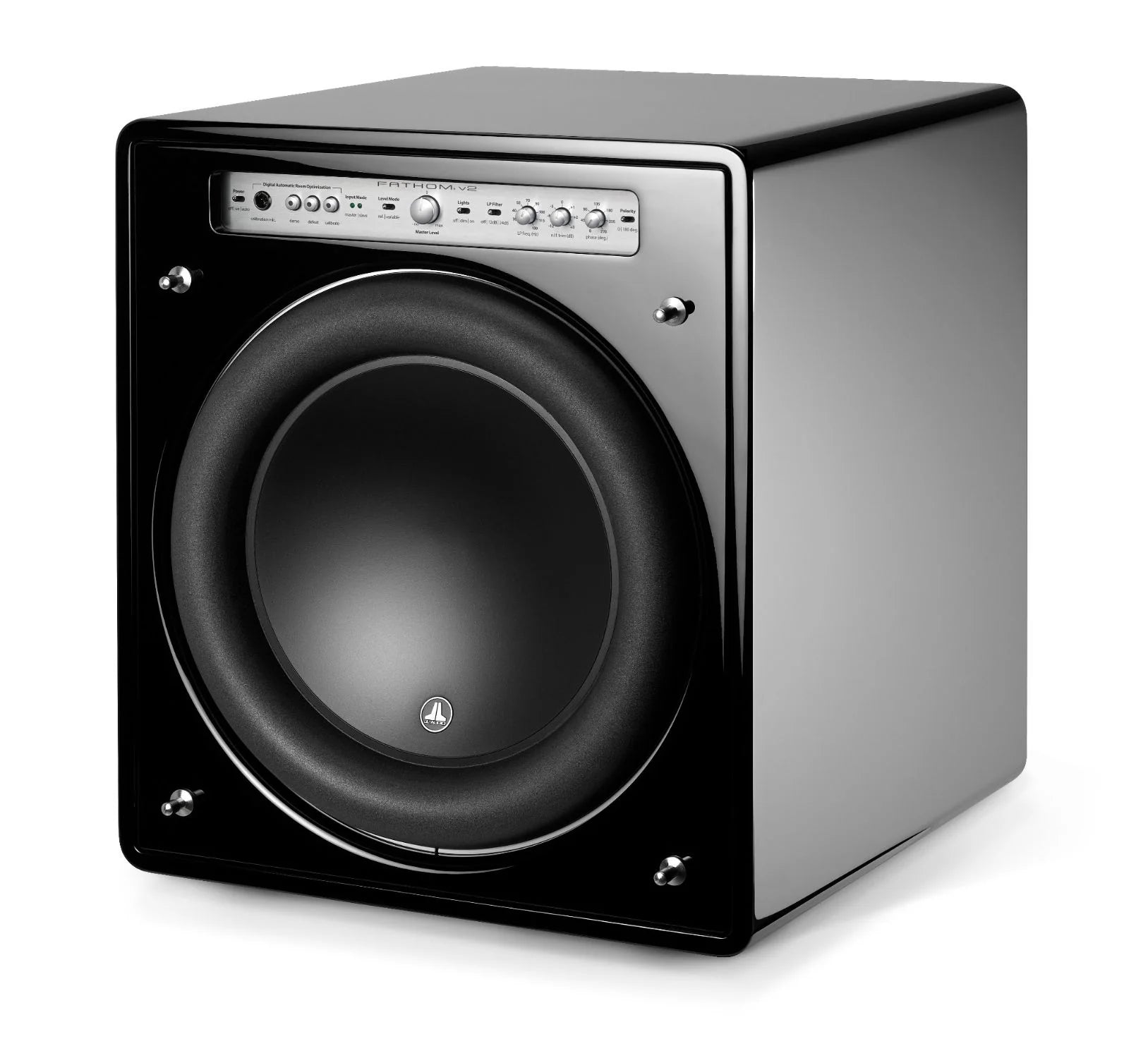

JL AUDIO Powered Subwoofer 13.5-inch 3000 watts Black Gloss

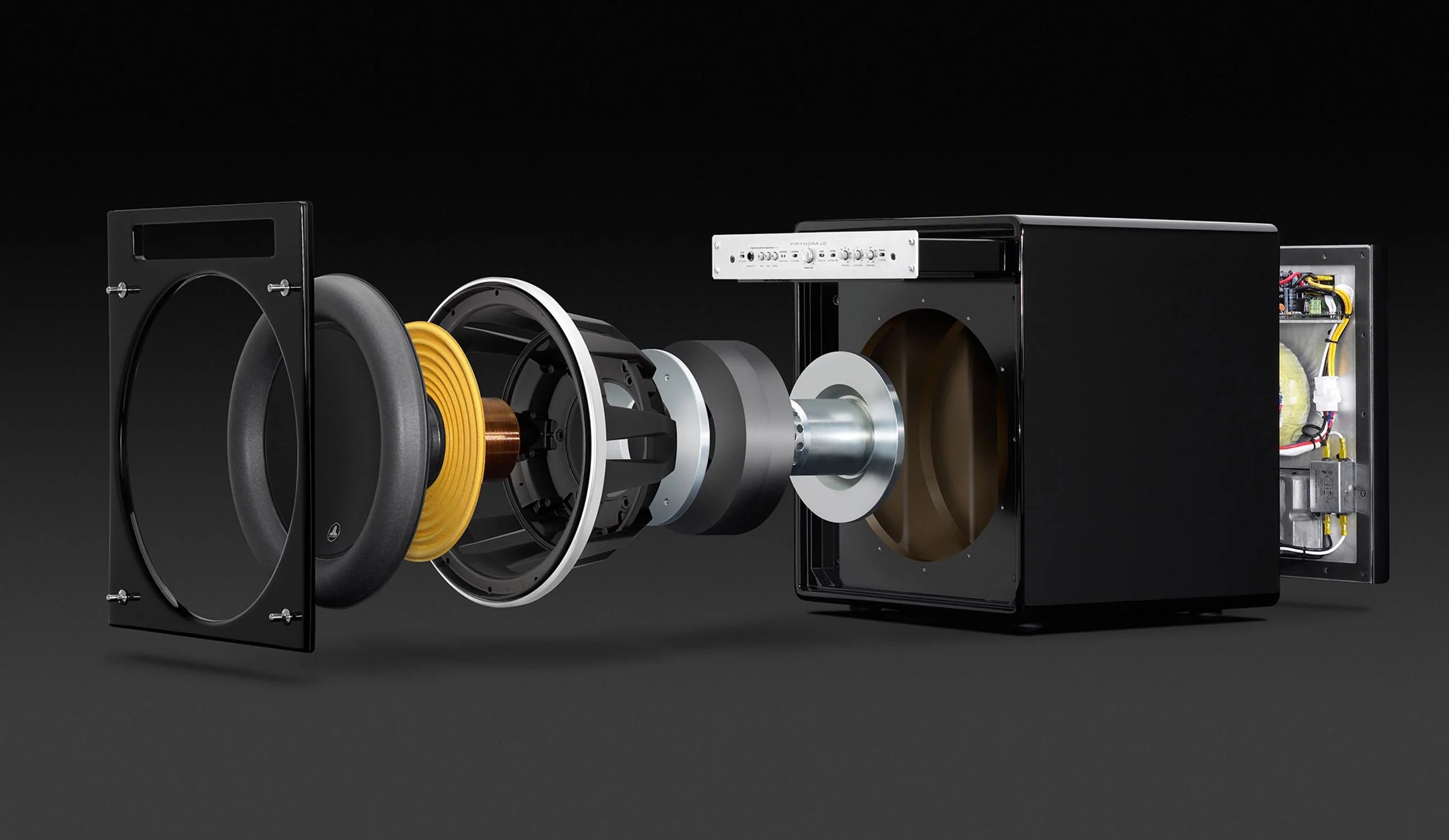

The Fathom f113v2 is a heavyweight subwoofer capable of filling the most demanding rooms with powerful low-frequency output and reference-class sound quality. The combination of an ultra-long throw W7 13.5-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.
Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f113v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

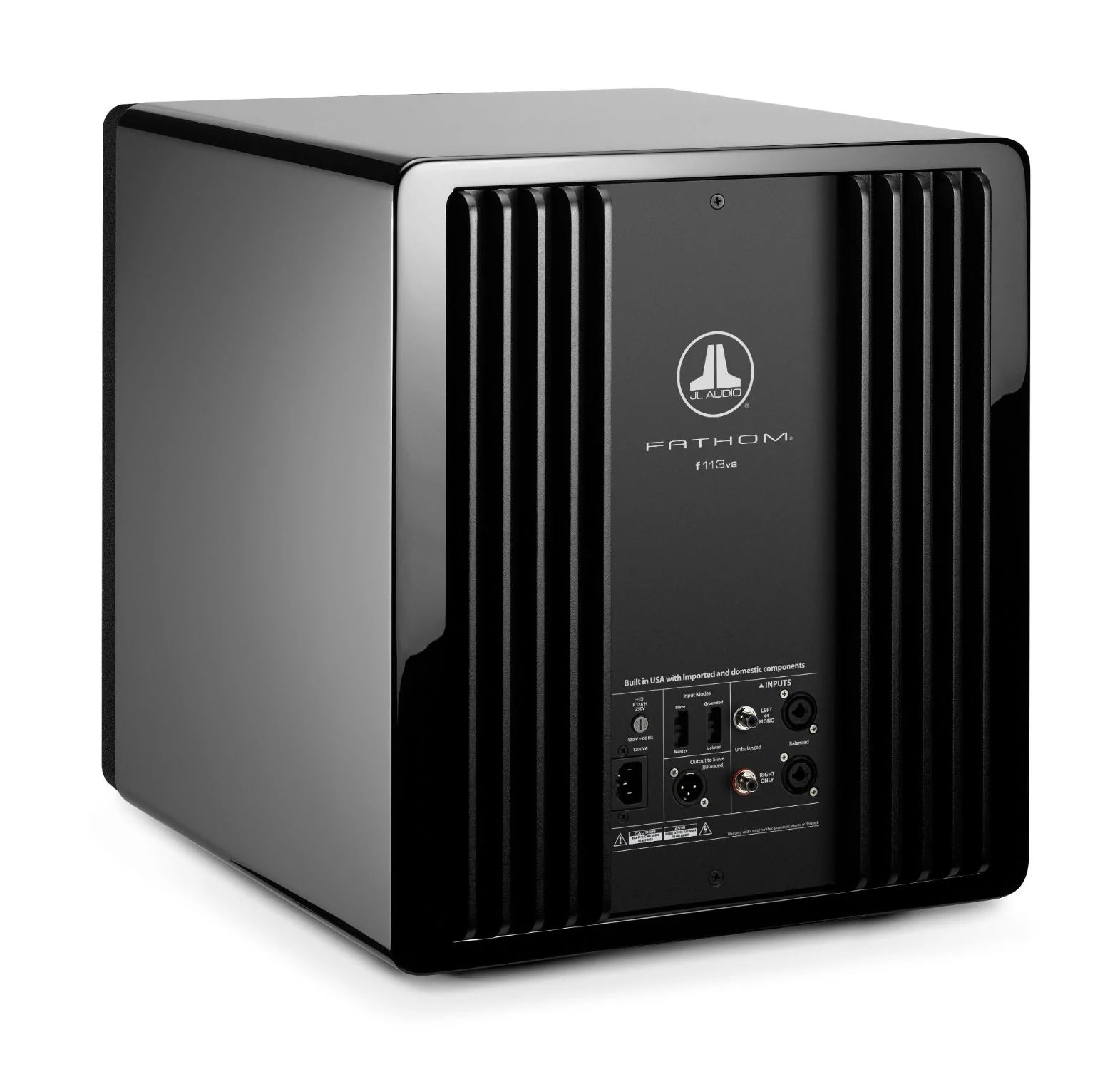

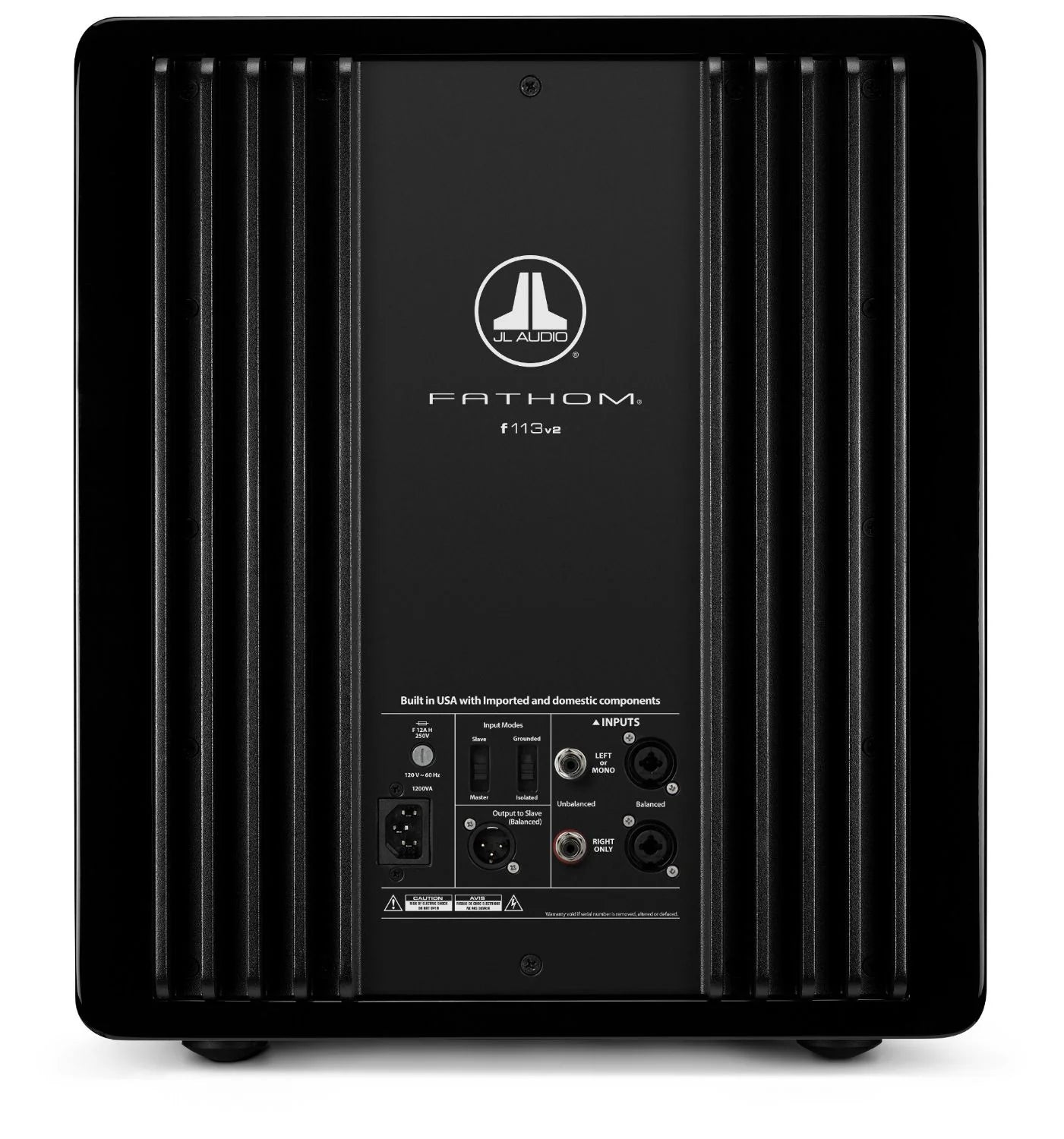

A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.
Finish: Gloss Black
Grille finish: Black fabric
Enclosure Construction: MDF
Specifications
|
General Specifications |
|
|
Enclosure Type |
Sealed |
|
Enclosure Finish |
Black Gloss |
|
Frequency Response (Anechoic) |
20 - 86 Hz (±1.5dB) -3 dB at 18 Hz / 127 Hz -10 dB at 16 Hz / 154 Hz |
|
Effective Piston Area (Sd) |
107.35 sq in / 0.0693 sq m |
|
Effective Displacement |
386 cu in / 6.3 L |
|
Amplifier Power |
3000 W RMS short-term |
|
Power Mode(s) |
Off, On or Automatic (Signal-Sensing) |
|
Light Modes |
Off, On or Dim |
|
Signal Processing |
|
|
Unbalanced Inputs |
Stereo or Mono (two RCA jacks) |
|
Balanced Inputs |
Stereo or Mono (two female XLR jacks) |
|
Speaker/High-Level Inputs |
N/A |
|
Input Grounding |
Isolated or Grounded |
|
Input Modes |
Master or Slave |
|
Level Control |
Reference (fixed gain) or Variable, from full mute to +15dB over reference gain |
|
Filter Mode(s) |
Low-Pass |
|
Filter Slope(s) |
12/24 dB/octave |
|
Filter Frequency Range |
30 Hz - 130 Hz |
|
Filter Defeat Function |
Yes |
|
Polarity |
0 or 180 degrees |
|
Phase |
Variable, 0 - 280 degrees |
|
Extreme Low Frequency (E.L.F.) Trim |
Variable, -12 dB to +3 dB at 25 Hz |
|
Line Outputs |
N/A |
|
Output to Slave |
Balanced (one male XLR jack) |
|
Calibration Mode |
Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone |
|
Physical Specifications |
|
|
Width (W) |
16.50 in / 419 mm |
|
Height (H) |
19.25 in / 489 mm |
|
Depth (D) |
19.25 in / 489 mm |
|
Net Weight |
133 lb / 60 kg |
For more information, please visit the manufacturer's website.
