In-Ceiling subwoofer system with 8-inch subwoofer
Enclosure Construction: CNC-Cut birch plywood
Driven by a rack-mountable amplifier
Amplifier Power: 300 watts RMS
Grille finish: Primer white (paintable)
Enclosure Construction: CNC-Cut birch plywood
Driven by a rack-mountable amplifier
Amplifier Power: 300 watts RMS
Grille finish: Primer white (paintable)
$15 Flat rate shipping*
Description
xJL AUDIO In-Ceiling Subwoofer System with Single 8-inch Subwoofer, 300 watts
Created from the same innovative technologies used to develop our free-standing powered subwoofers, the Fathom® ICS in-ceiling subwoofer systems are engineered to deliver outstanding bass performance, with nearly unlimited placement freedom.

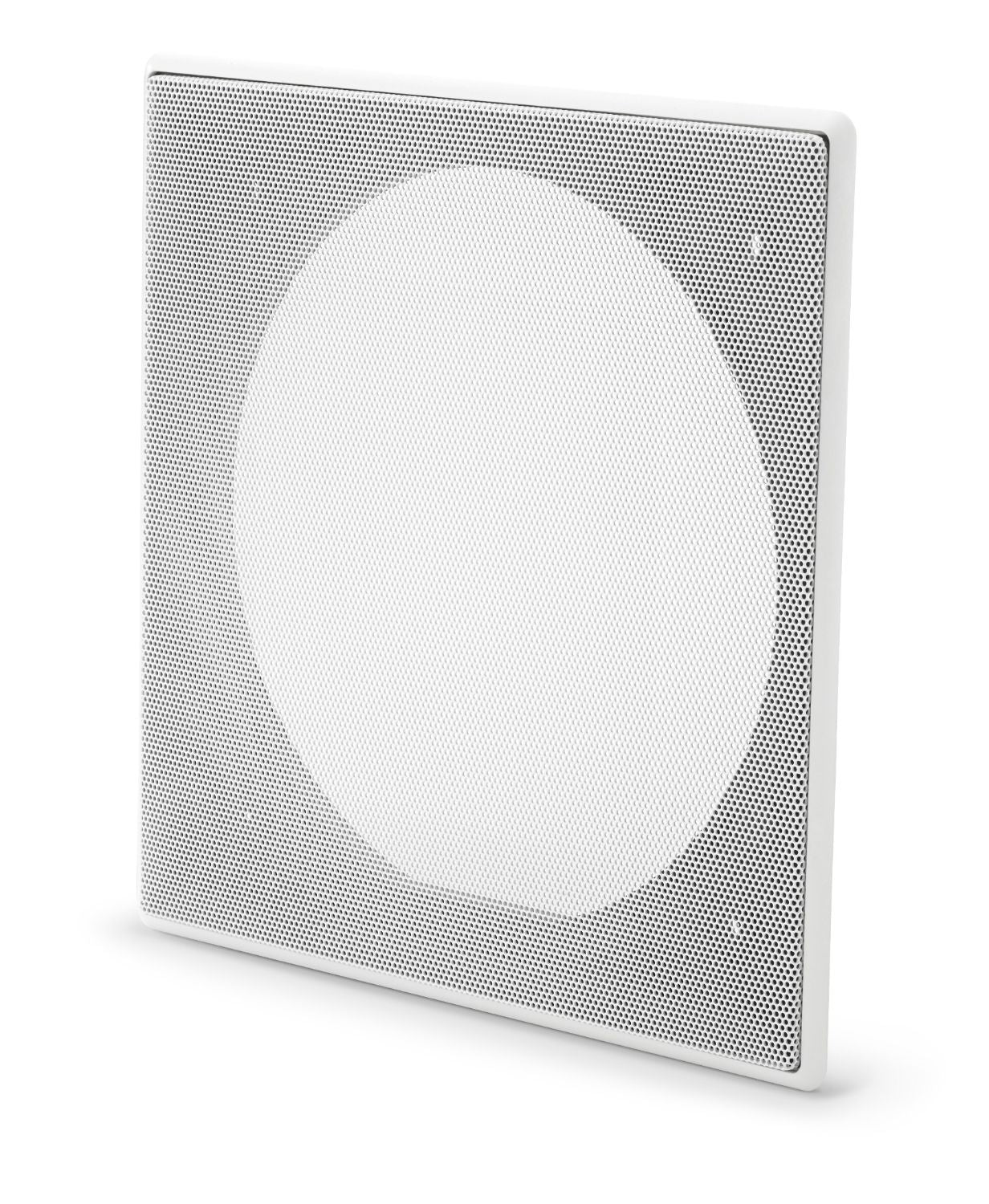

Purpose-built to disappear into the ceilings of most home audio/theater environments, the 8-inch Fathom® ICS systems are designed to fit 2" x 6" or larger ceiling joists and a wide range of assembled joist widths, while operating through very small grilles. The grille’s clever design accommodates all common drywall thicknesses and can be easily painted to match a room’s decor.

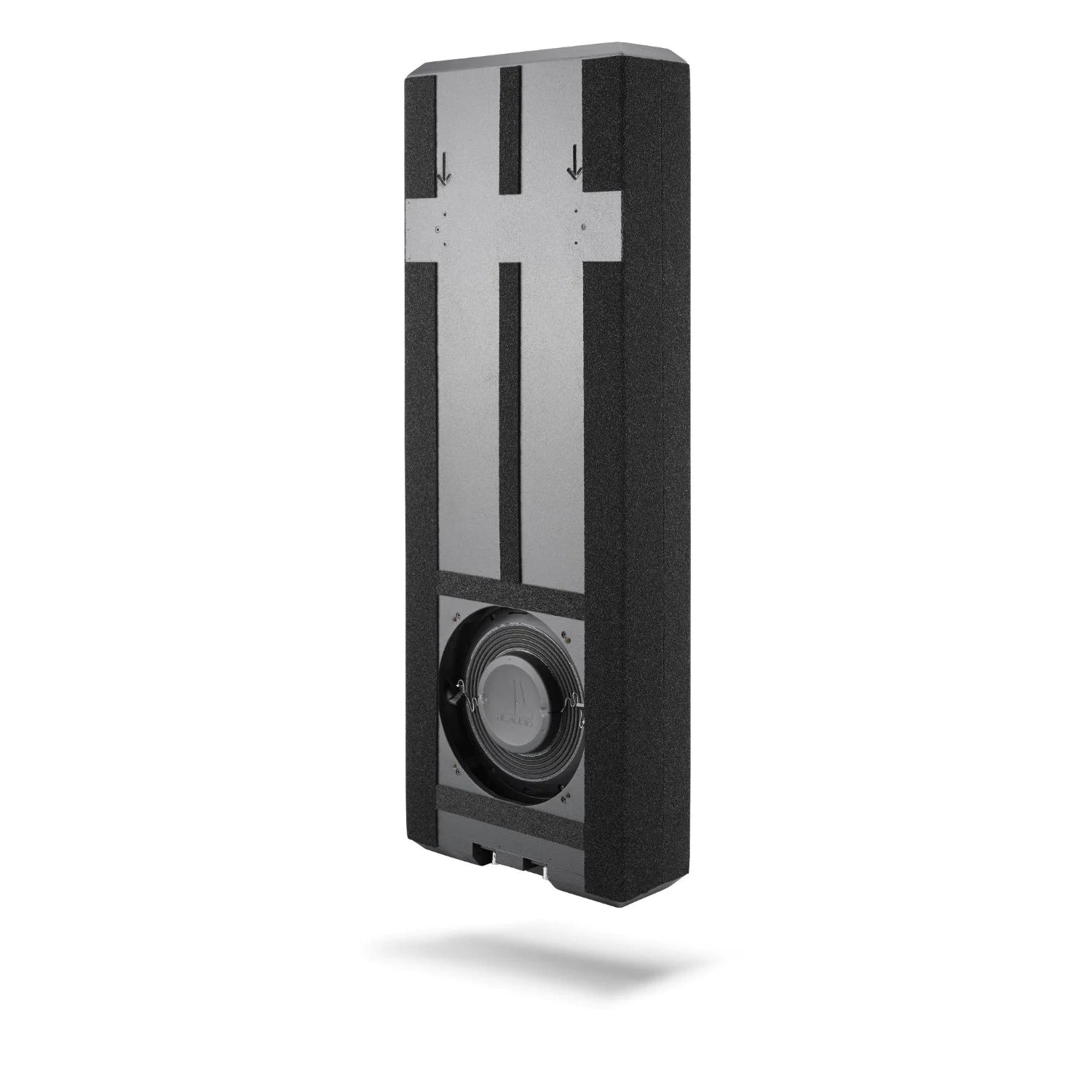

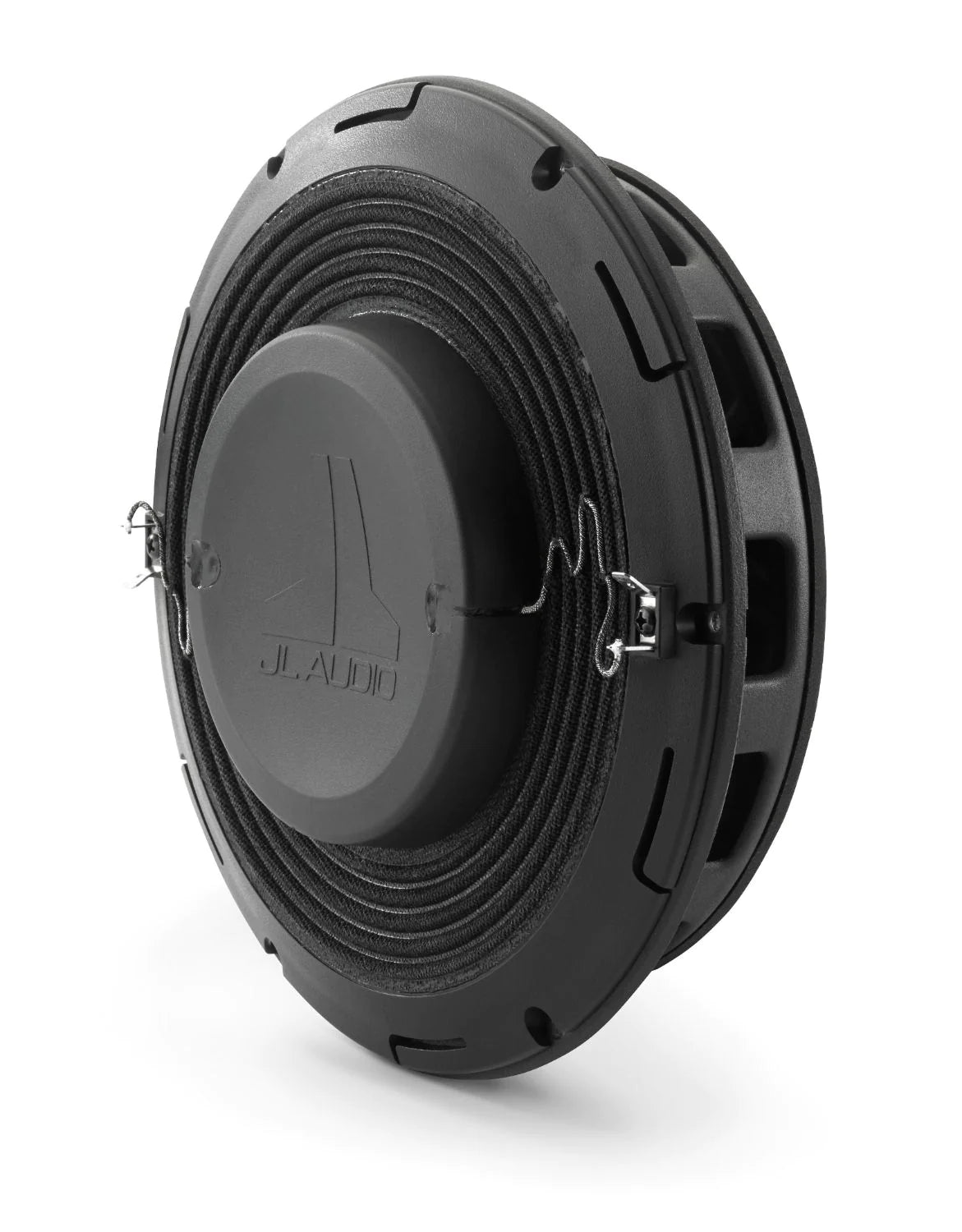

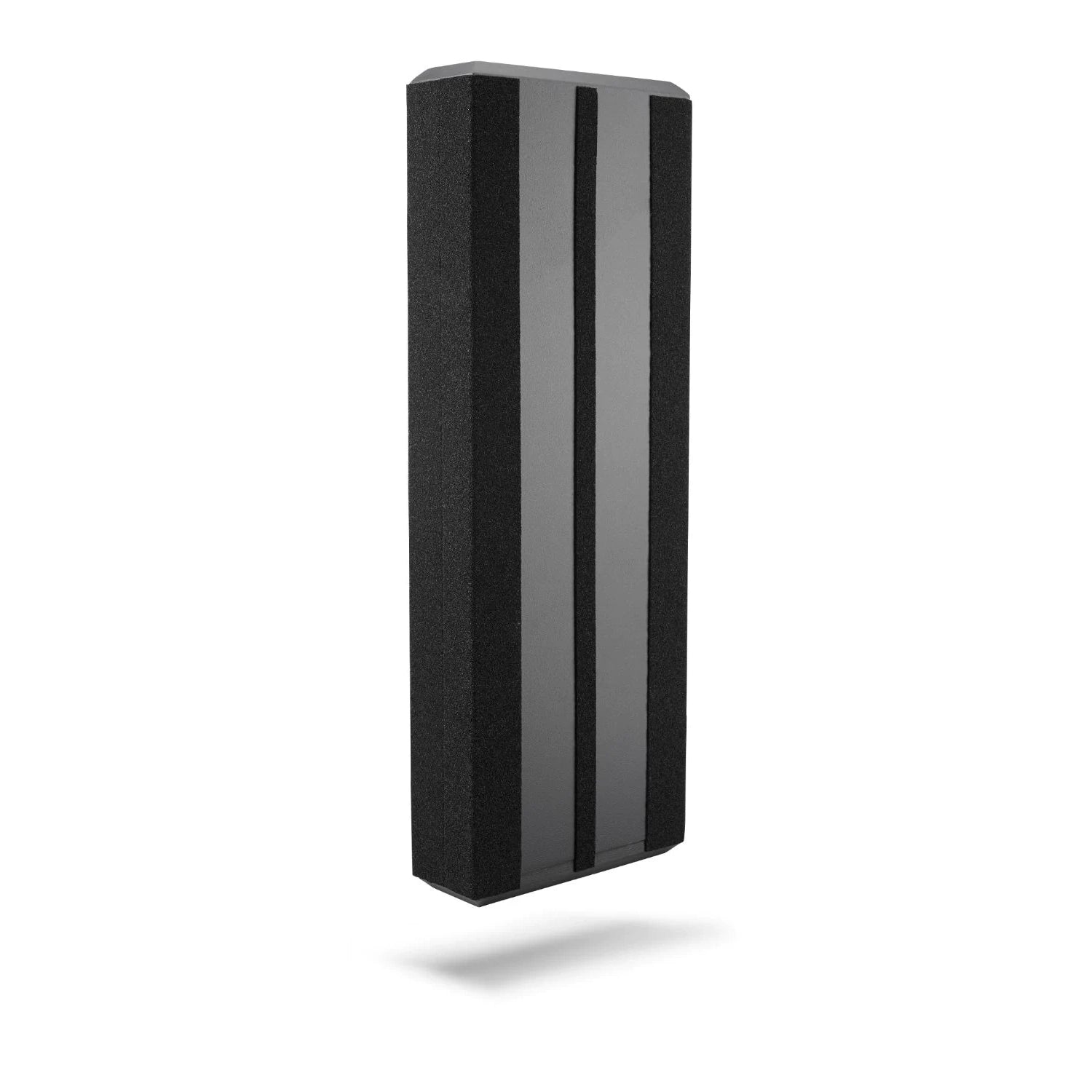

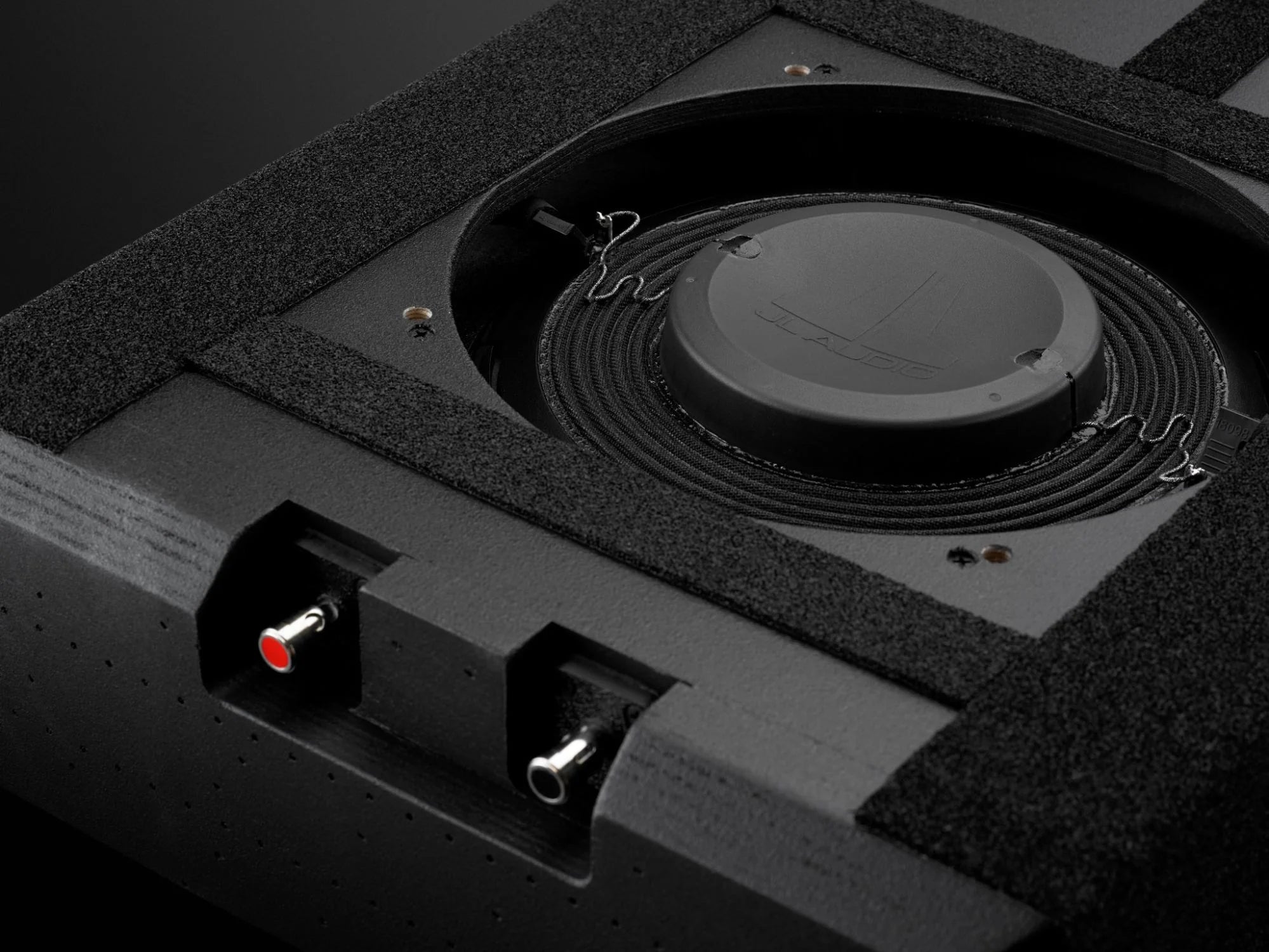

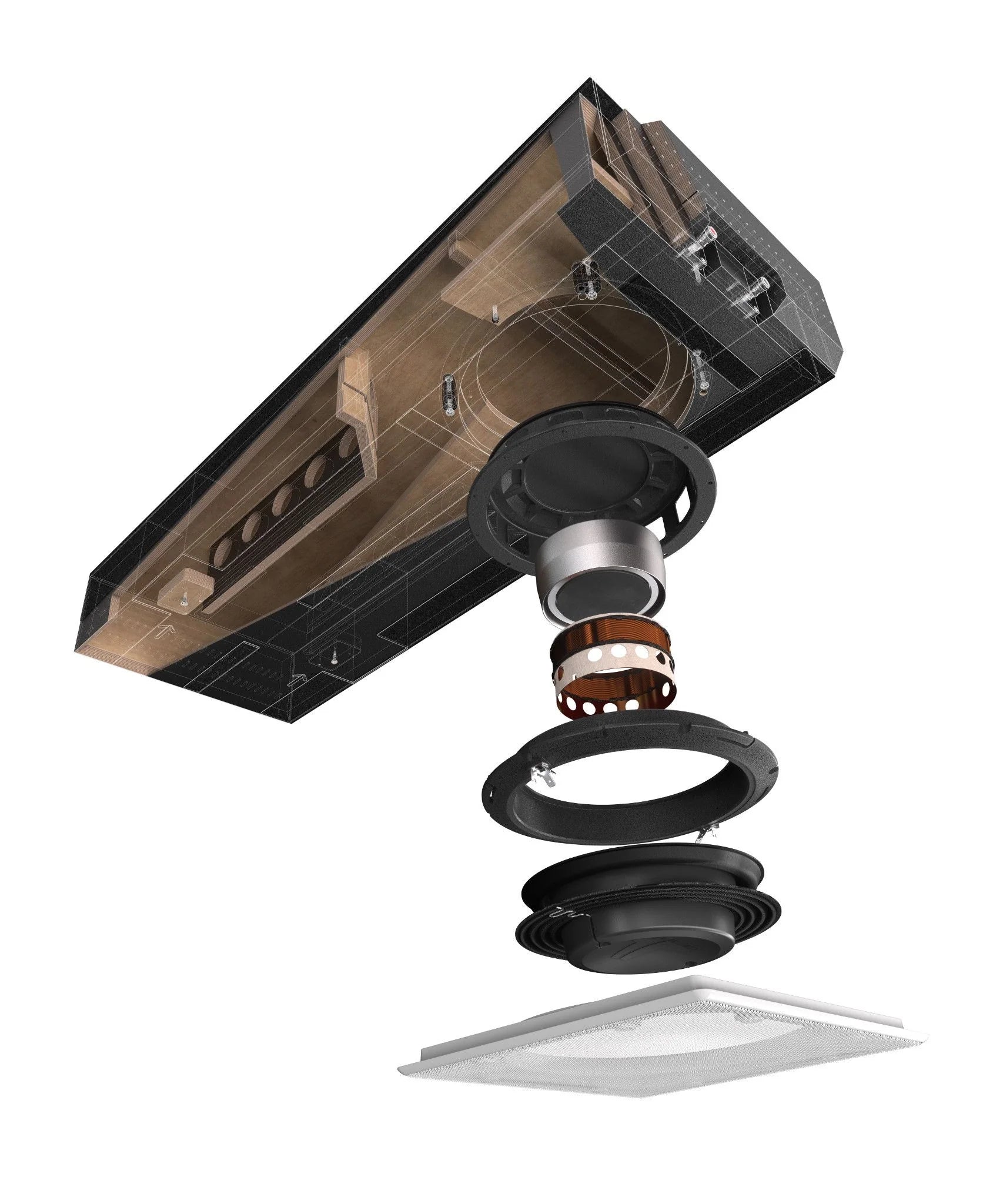

The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® ICS products.

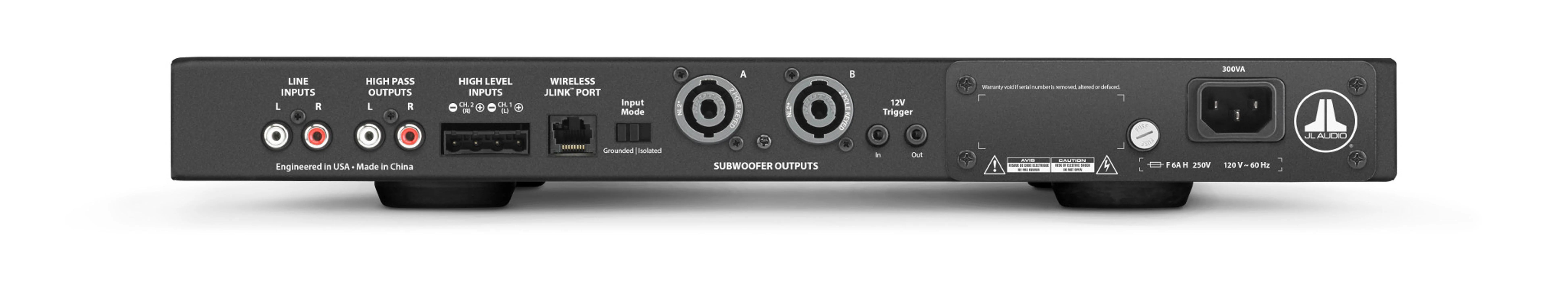

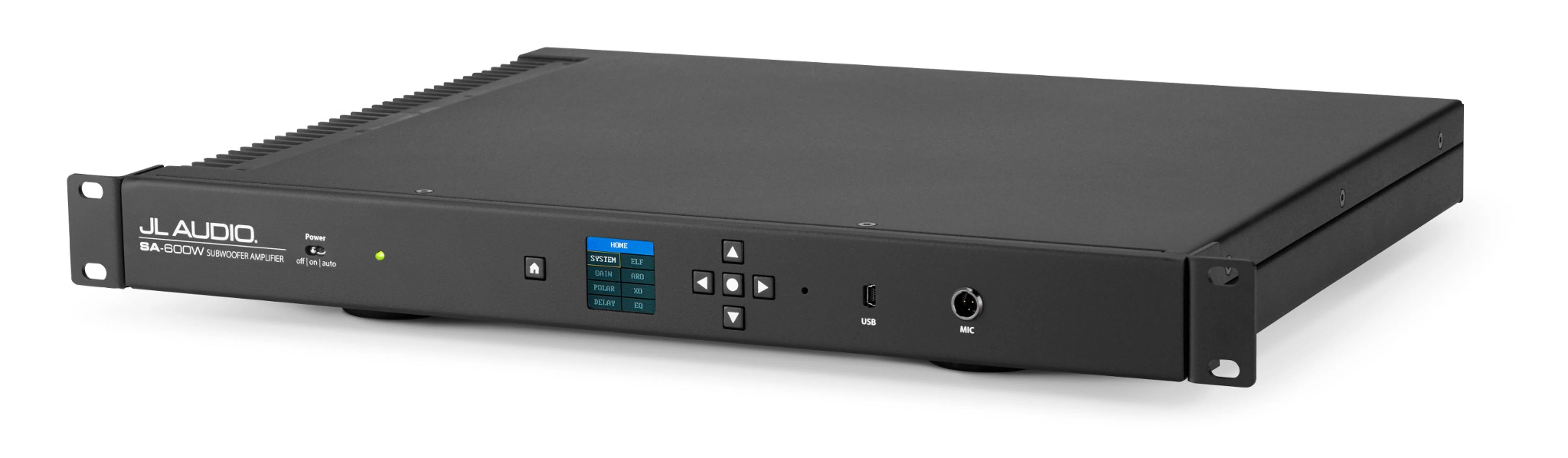

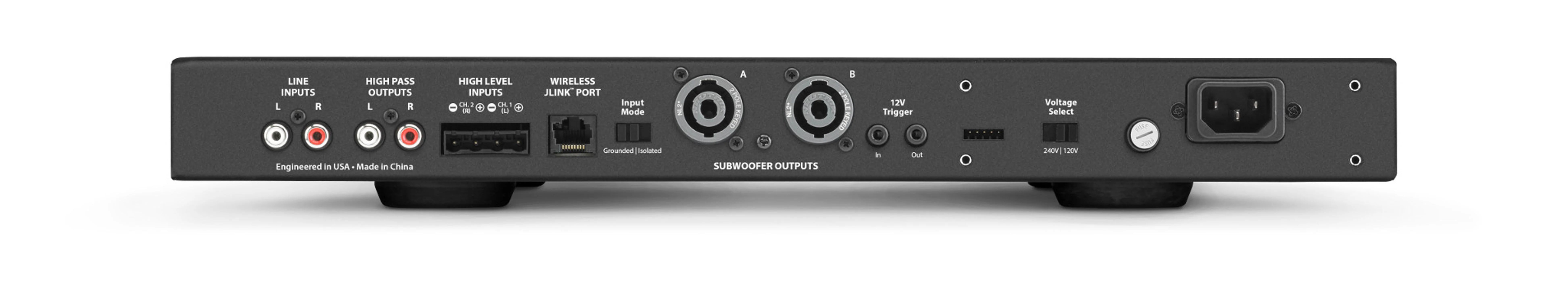

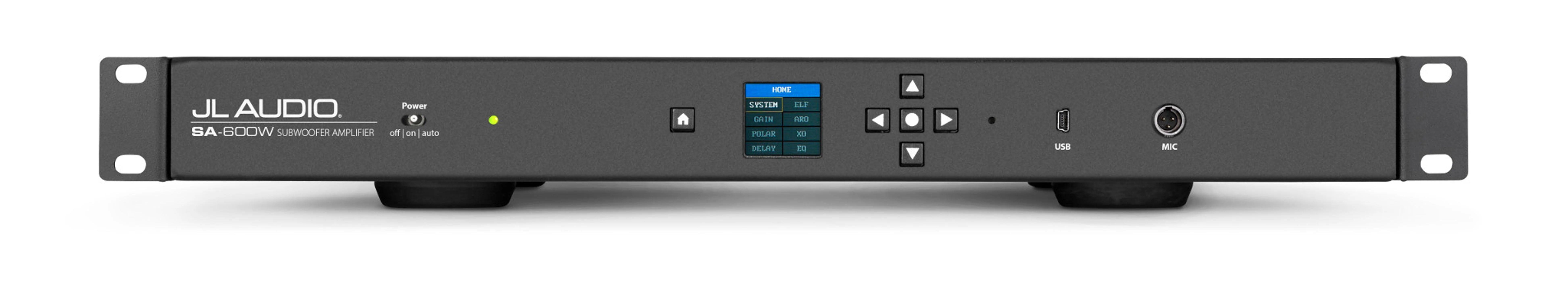

Each 8-inch Fathom® ICS system is driven by a rack-mountable amplifier with up to 600 watts of clean power, programmed specifically for each system, and capable of driving up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, and high-pass crossover outputs, all accessible via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).
The ICS-108 System fits 2" x 6" ceiling joists or larger, with assembled joists ranging from 16-inches to 25 1/2-inches on center. Consult your Authorized JL Audio Dealer for specific application information.
Enclosure Finish: Flat Black (hidden from view when installed)
Grille finish: Primer White (paintable)
Enclosure Construction: CNC-Cut Birch Plywood
Specifications
|
General Specifications |
|
|
Enclosure Type |
Ported |
|
Enclosure Finish |
Black Texture-Coated |
|
Frequency Response (Anechoic) |
24.9 Hz - 109 Hz (± 1.5 dB) -3dB at 24.6 Hz / 111 Hz -10dB at 23.4 Hz / 118 Hz |
|
Effective Piston Area (Sd) |
31.62 sq in / 0.0204 sq m |
|
Effective Displacement |
47.5 cu in / 0.78 L |
|
Amplifier Power |
300 W RMS short-term |
|
Power Mode(s) |
Off, On or Automatic (Signal-Sensing or 12V Trigger) |
|
12V Trigger Output Capacity |
150 mA (1/8-inch/3.5mm mini jack) |
|
Light Modes |
N/A |
|
Signal Processing |
|
|
Unbalanced Inputs |
Stereo or Mono (two RCA jacks - Input Impedance of 50k Ohms) |
|
Speaker/High-Level Inputs |
Stereo or Mono (removable plug - Input Impedance of 4.4k Ohms) |
|
Input Grounding |
Isolated or Grounded |
|
Level Control |
Reference (fixed gain) or Variable from -50dB to +15dB over reference gain (0.5 dB increments) |
|
Filter Mode(s) |
Low-Pass, with tracking High-Pass Outputs |
|
Filter Slope(s) |
12/24 dB/octave |
|
Filter Frequency Range |
30 Hz - 130.1 Hz |
|
Filter Defeat Function |
Yes |
|
Polarity |
0 or 180 degrees |
|
Delay (Phase) |
Variable from 0 – 25 ms (0.1 ms increments, Sub and HP outputs) |
|
Extreme Low Frequency (E.L.F.) Trim |
Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments) |
|
Line Outputs |
Stereo or Mono (two RCA jacks - Pass-Through or High-Pass) |
|
Subwoofer Outputs |
Neutrik speakOn® 2-Pole Connectors (uses Neutrik part NL2FX) |
|
Calibration Mode |
Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately) |
|
Equalizer Bands |
3 |
|
Equalizer Frequency Range |
20 to 160 Hz (1 Hz increments) |
|
Equalizer Gain Range |
-12 dB to +12 dB (0.2 dB increments) |
|
Equalizer Q Range |
0.7 to 5.0 (0.1 increments) |
|
2 x 6-inch Joist/Stud Enclosure Physical Specifications |
|
|
Joist/Stud Cavity Width (W) |
Minimum: 16 in / 406 mm Maximum: 25.5 in / 648 mm (on center) |
|
Joist/Stud Cavity Height (H) |
Minimum: 58 in / 1,473 mm |
|
Width (W) |
14 in / 355 mm |
|
Height (H) |
40.71 in / 1,034 mm |
|
Depth (D) |
5.13 in / 130 mm |
|
Note |
Enclosure dimensions do not include L-brackets or vibration-dampening padding. |
|
Grille Physical Specifications |
|
|
Grille Height (H) |
10.50 in / 267 mm |
|
Wallboard Thickness Compatibility |
0.5 in to 1.75 in / 13 mm to 44 mm |
|
Grille Width (W) |
10.50 in / 267 mm |
|
Wall Opening Height (H) |
9.75 in / 248 mm |
|
Wall Opening Width (W) |
9.75 in / 248 mm |
|
Amplifier Physical Specifications |
|
|
Width (W) |
16.84 in / 428 mm |
|
Height (H) |
1.75 in / 44 mm |
|
Depth (D) |
13.63 in / 346 mm |
|
Net Weight |
13.5 lb / 6.12 kg |
|
Note |
Single Rack Unit - Amplifier Height Dimensions do not include feet. |
For more information, please visit the manufacturer's website.
