xJL AUDIO Dual In-Wall System with Single 8-inch Subwoofer, 600 watts
Born from the same groundbreaking technologies used to develop our free-standing powered subwoofers, the Fathom® IWS in-wall subwoofer systems deliver remarkable bass performance, while remaining largely concealed within most home audio/theater environments.
The 8-inch Fathom® IWS systems are smaller and easier to integrate than our larger in-wall Fathoms, fitting in all standard, 16-inch, on-center stud openings, and operating through very small grilles. These grilles accommodate all common drywall thicknesses, and can be easily painted to match the wall.

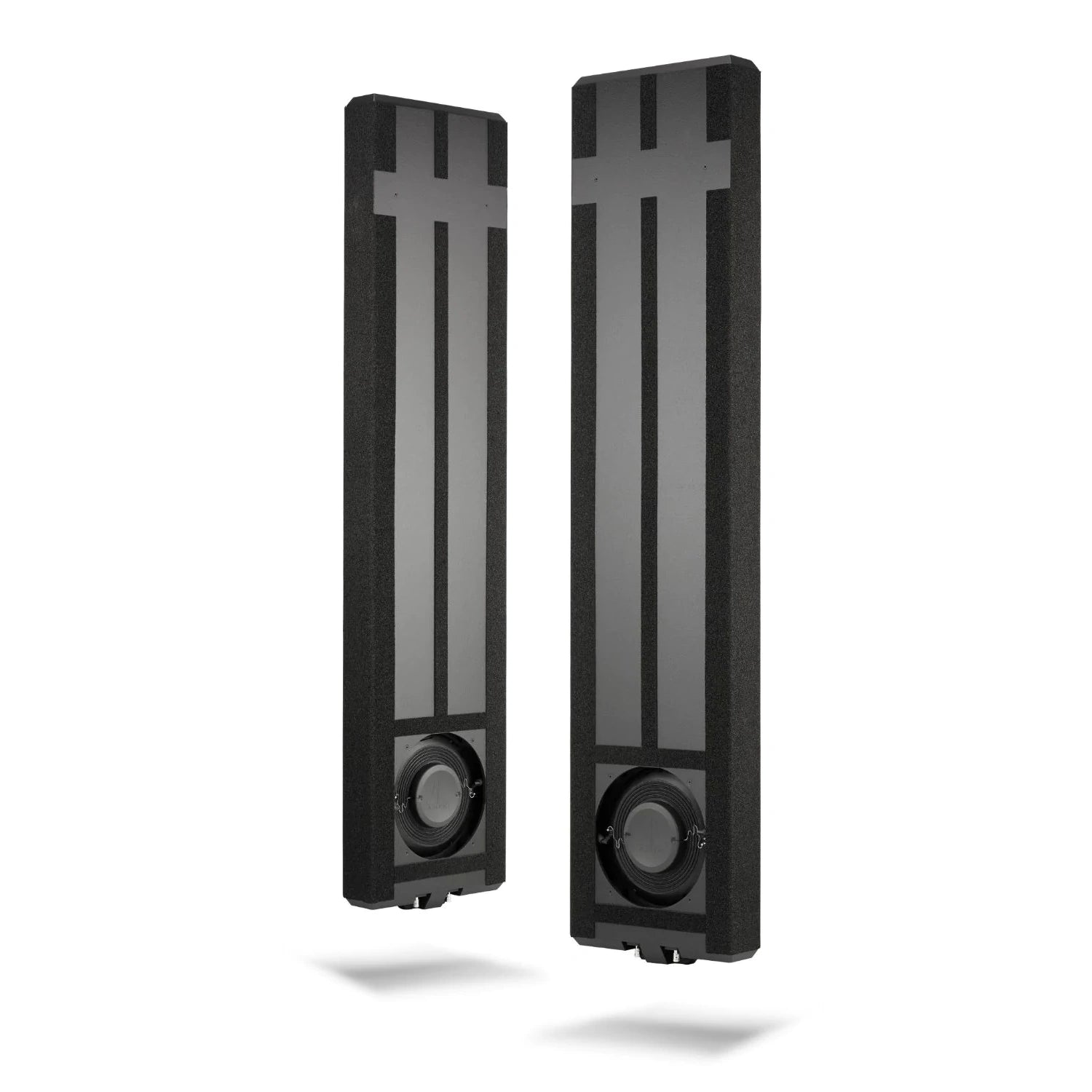

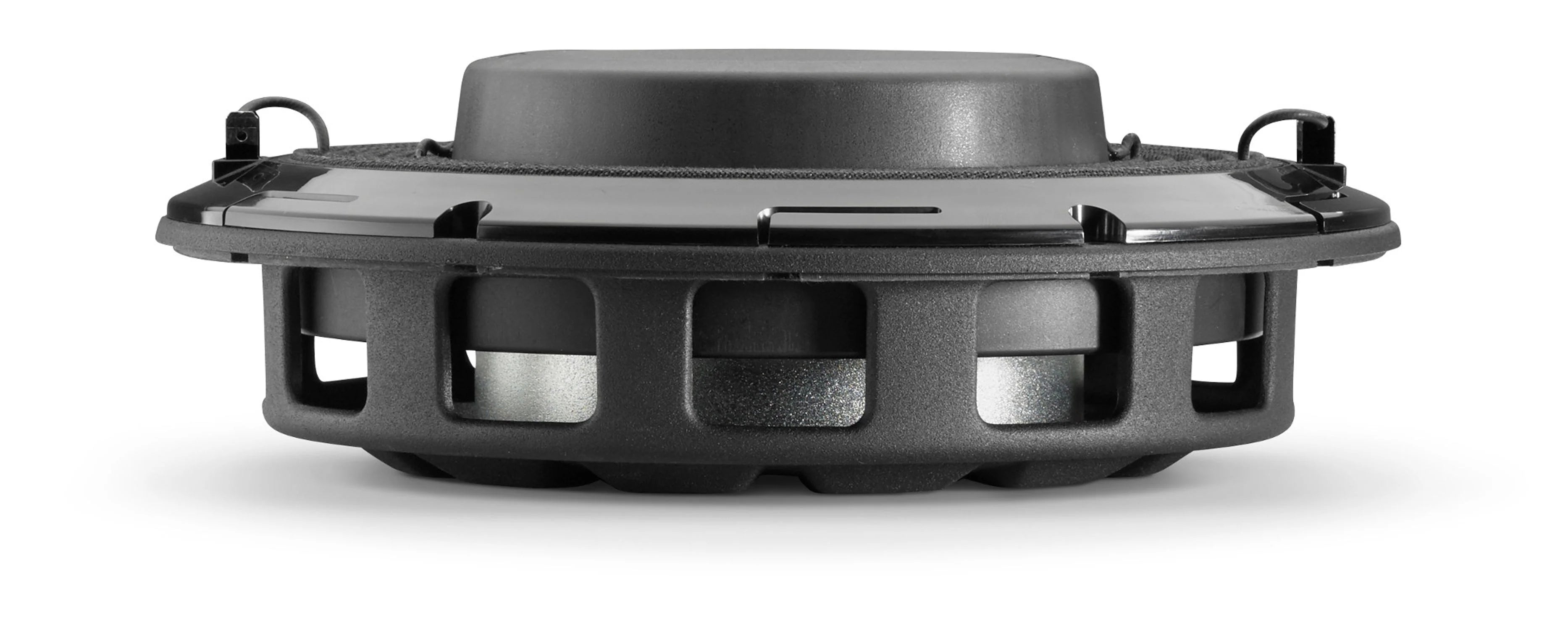

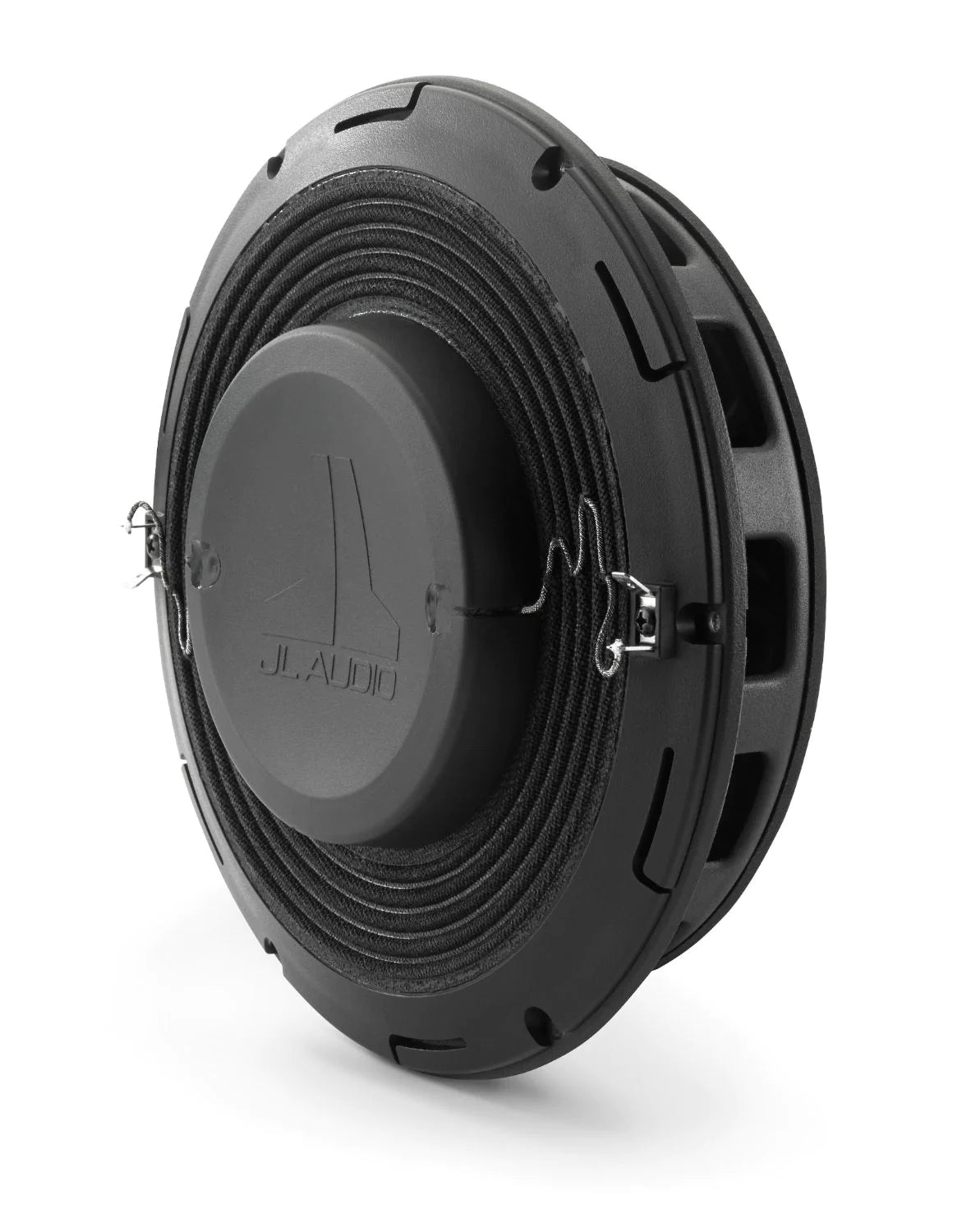

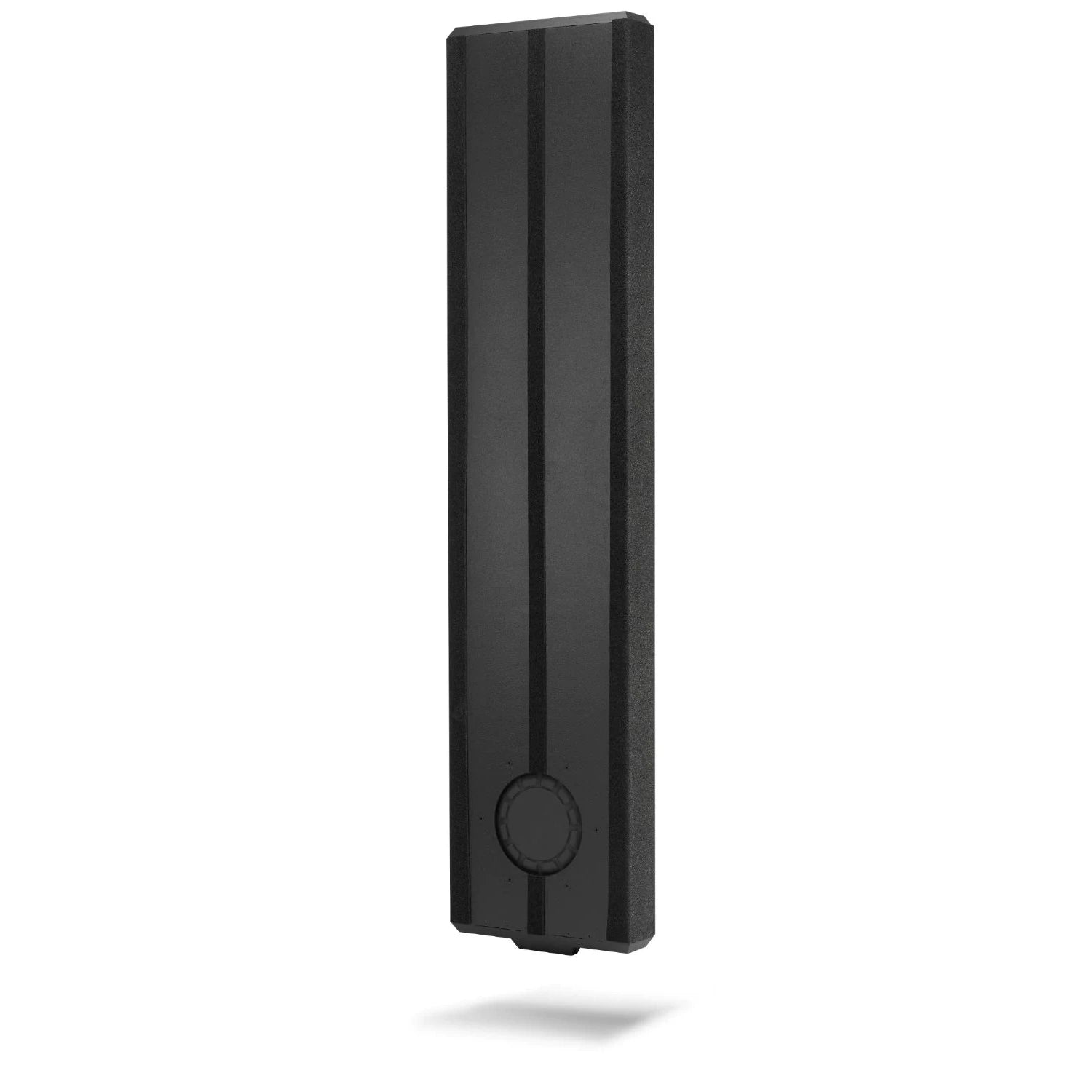

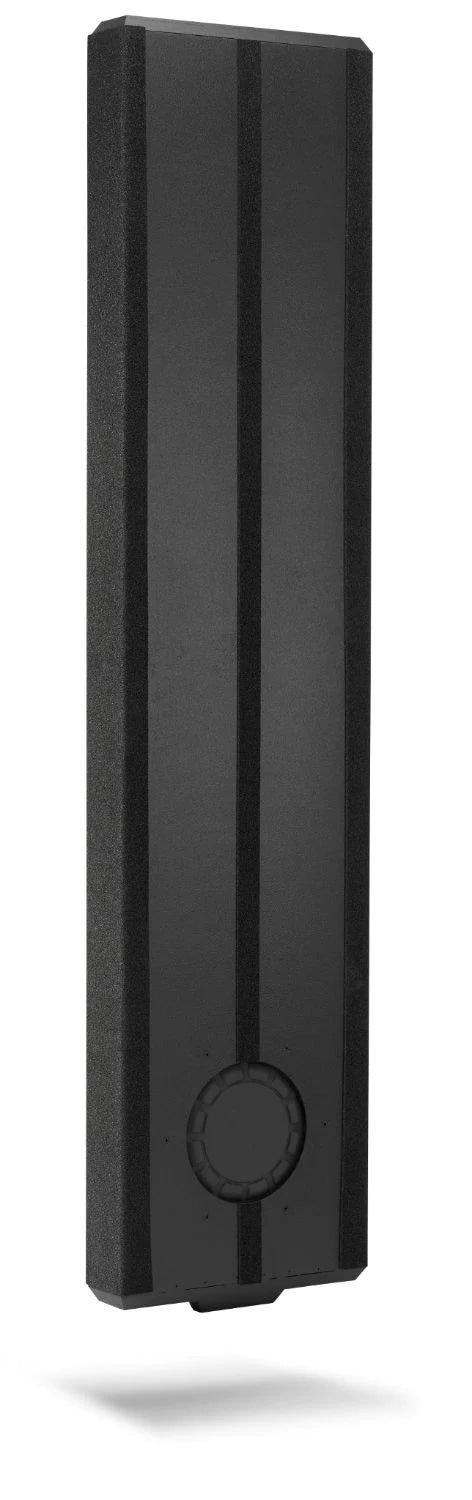

The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® IWS products.

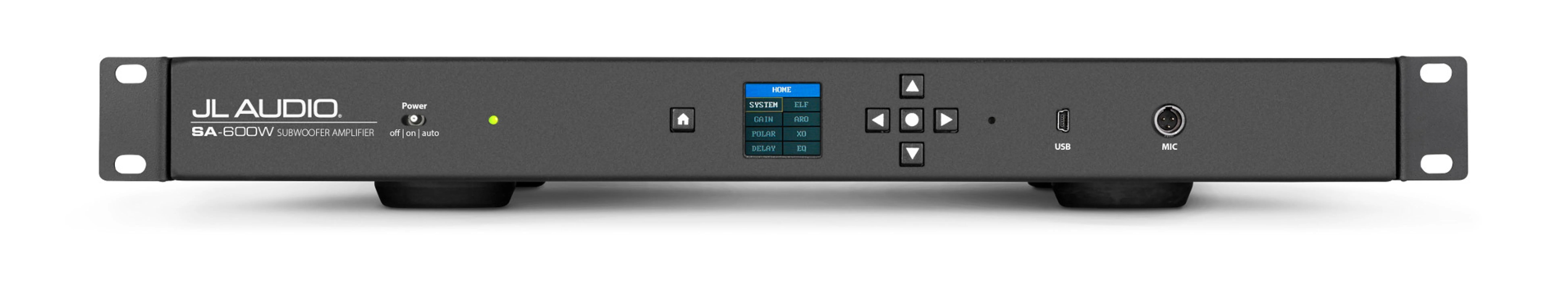

Each 8-inch Fathom® IWS system is powered by a rack-mountable amplifier, capable of generating up to 600 watts of clean power and can drive up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, all managed via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).
The IWS-108 System fits 2" x 4" wall studs or larger. Consult your Authorized JL Audio Dealer for specific application information.
Enclosure Finish: Flat Black (hidden from view when installed)
Grille finish: Primer White (paintable)
Enclosure Construction: CNC-Cut Birch Plywood
Specifications
|
General Specifications |
|
|
Enclosure Type |
Ported |
|
Enclosure Finish |
Black Texture-Coated |
|
Frequency Response (Anechoic) |
24.9 Hz - 109 Hz (± 1.5 dB) -3dB at 24.6 Hz / 111 Hz -10dB at 23.4 Hz / 118 Hz |
|
Effective Piston Area (Sd) |
63.24 sq in / 0.0408 sq m |
|
Effective Displacement |
95.0 cu in / 1.56 L |
|
Amplifier Power |
600 W RMS short-term |
|
Power Mode(s) |
Off, On or Automatic (Signal-Sensing or 12V Trigger) |
|
12V Trigger Output Capacity |
150 mA (1/8-inch/3.5mm mini jack) |
|
Light Modes |
N/A |
|
Signal Processing |
|
|
Unbalanced Inputs |
Stereo or Mono (two RCA jacks - Input Impedance of 50k Ohms) |
|
Speaker/High-Level Inputs |
Stereo or Mono (removable plug - Input Impedance of 4.4k Ohms) |
|
Input Grounding |
Isolated or Grounded |
|
Level Control |
Reference (fixed gain) or Variable from -50dB to +15dB over reference gain (0.5 dB increments) |
|
Filter Mode(s) |
Low-Pass, with tracking High-Pass Outputs |
|
Filter Slope(s) |
12/24 dB/octave |
|
Filter Frequency Range |
30 Hz - 130.1 Hz |
|
Filter Defeat Function |
Yes |
|
Polarity |
0 or 180 degrees |
|
Delay (Phase) |
Variable from 0 – 25 ms (0.1 ms increments, Sub and HP outputs) |
|
Extreme Low Frequency (E.L.F.) Trim |
Variable, -12 dB to +3 dB at 25 Hz (0.5 dB increments) |
|

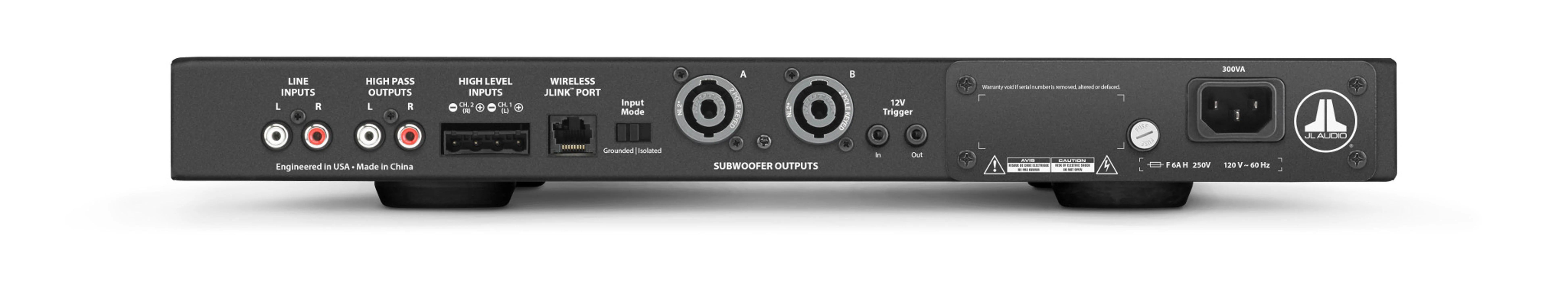

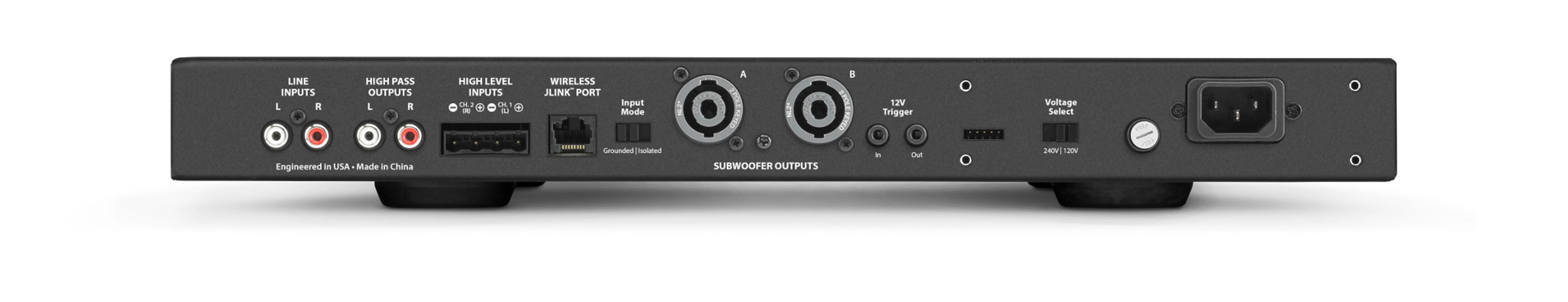

Line Outputs |
Stereo or Mono (two RCA jacks - Pass-Through or High-Pass) |
|
Subwoofer Outputs |
Neutrik speakOn® 2-Pole Connectors (uses Neutrik part NL2FX) |
|
Calibration Mode |
Digital Automatic Room Optimization (D.A.R.O.), requires microphone (sold separately) |
|
Equalizer Bands |
3 |
|
Equalizer Frequency Range |
20 to 160 Hz (1 Hz increments) |
|
Equalizer Gain Range |
-12 dB to +12 dB (0.2 dB increments) |
|
Equalizer Q Range |
0.7 to 5.0 (0.1 increments) |
|
2 x 4-inch Wall Stud Enclosure Physical Specifications |
|
|
Wall Cavity Width (W) |
Minimum 14.375 in / 365 mm Maximum 15.500 in / 394 mm |
|
Wall Cavity Height (H) |
Minimum 75 in / 1,905 mm |
|
Width (W) |
14 in / 355 mm |
|
Height (H) |
61.26 in / 1,565 mm |
|
Depth (D) |
3.25 in / 83 mm |
|
Note |
Enclosure dimensions do not include L-brackets or vibration-dampening padding. |
|

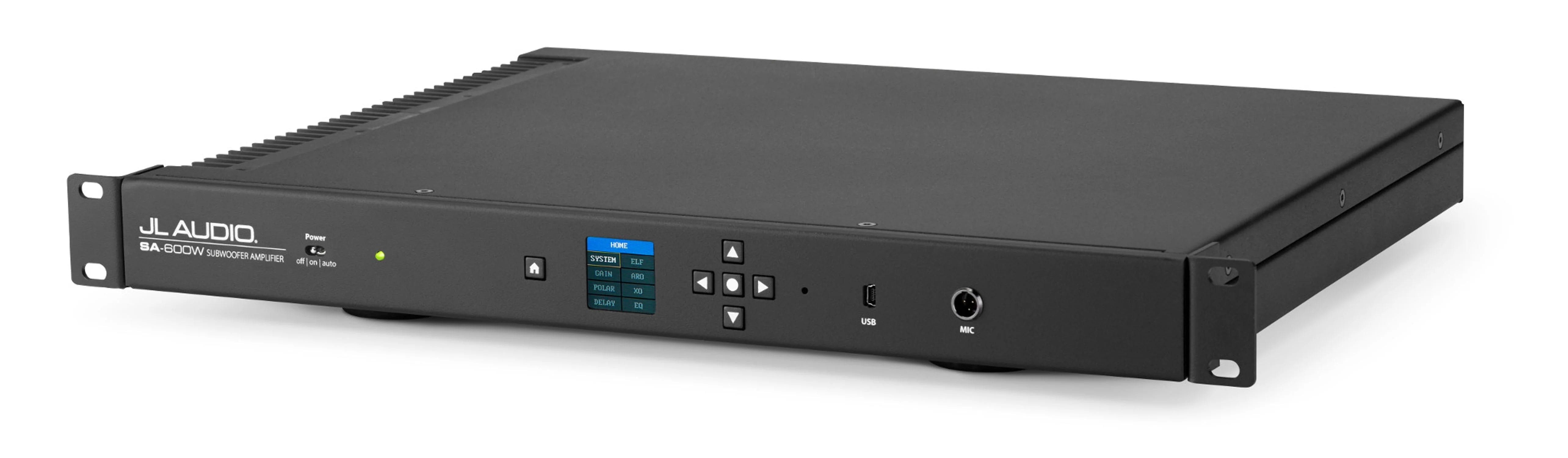

Amplifier Physical Specifications |
|
|
Width (W) |
16.84 in / 428 mm |
|
Height (H) |
1.75 in / 44 mm |
|
Depth (D) |
13.63 in / 346 mm |
|
Net Weight |
13.5 lb / 6.12 kg |
|
Note |
Single Rack Unit - Amplifier Height Dimensions do not include feet. |
|

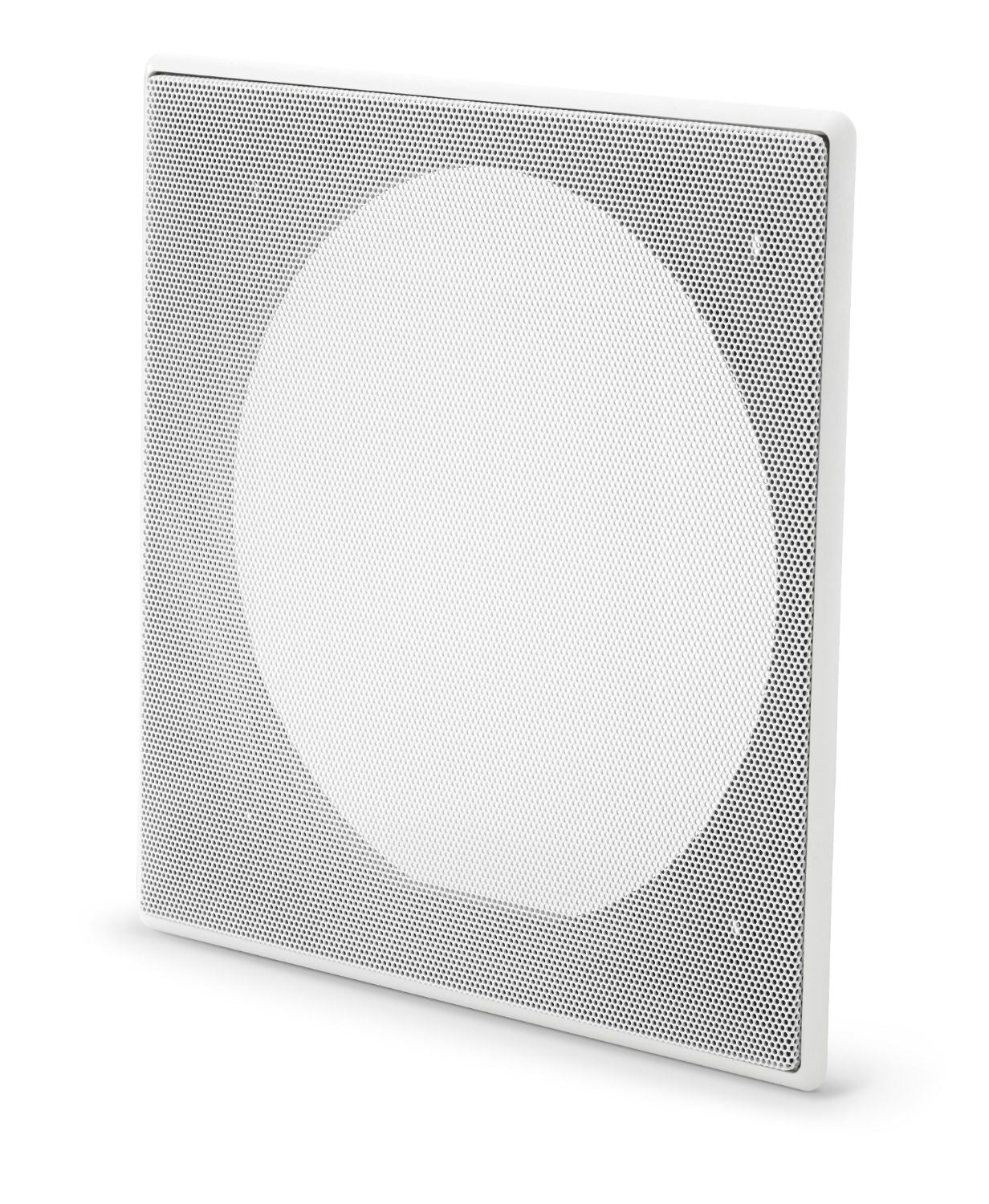

Grille Physical Specifications |
|
|
Grille Height (H) |
10.50 in / 267 mm |
|
Wallboard Thickness Compatibility |
0.5 in to 1.75 in / 13 mm to 44 mm |
|
Grille Width (W) |
10.50 in / 267 mm |
|
Wall Opening Height (H) |
9.75 in / 248 mm |
|
Wall Opening Width (W) |
9.75 in / 248 mm |
For more information, please visit the manufacturer's website.
