Magnat Cinema Ultra LCR 100-THX On-Wall Speaker

MAGNAT Cinema Ultra LCR 100-THX on-wall Speaker - Designed & Engineered in Germany

Never before in the history of THX®: Despite the strict requirements regarding dispersion characteristics, the LCR 100-THX was granted the coveted THX Ultra2™ certification for both horizontal and upright operation. Two 17 cm subwoofers as well as the large tweeter cone ensure distortion-free levels up to beyond 110 decibels as well as outstanding purity of sound. The 42 mm tweeter cone runs in an optimally linear way from 1,500 – 27,500 hertz thanks to the installed horn (Waveguide) and sound distribution lens. This helps the LCR 100-THX to achieve a level of efficiency far in excess of 90 decibels. In other words: Even smaller AV receivers make it possible to experience a great cinema feeling with Cinema Ultra. The enclosure of the LCR 100-THX is flat and is perfectly suitable for unobtrusive wall mounting via wall brackets and VESA fittings.

Features

• Perfection for home cinema enthusiasts thanks to THX Ultra 2 certification
• The only front speaker in the world with THX Ultra 2 certification for both horizontal and vertical operation

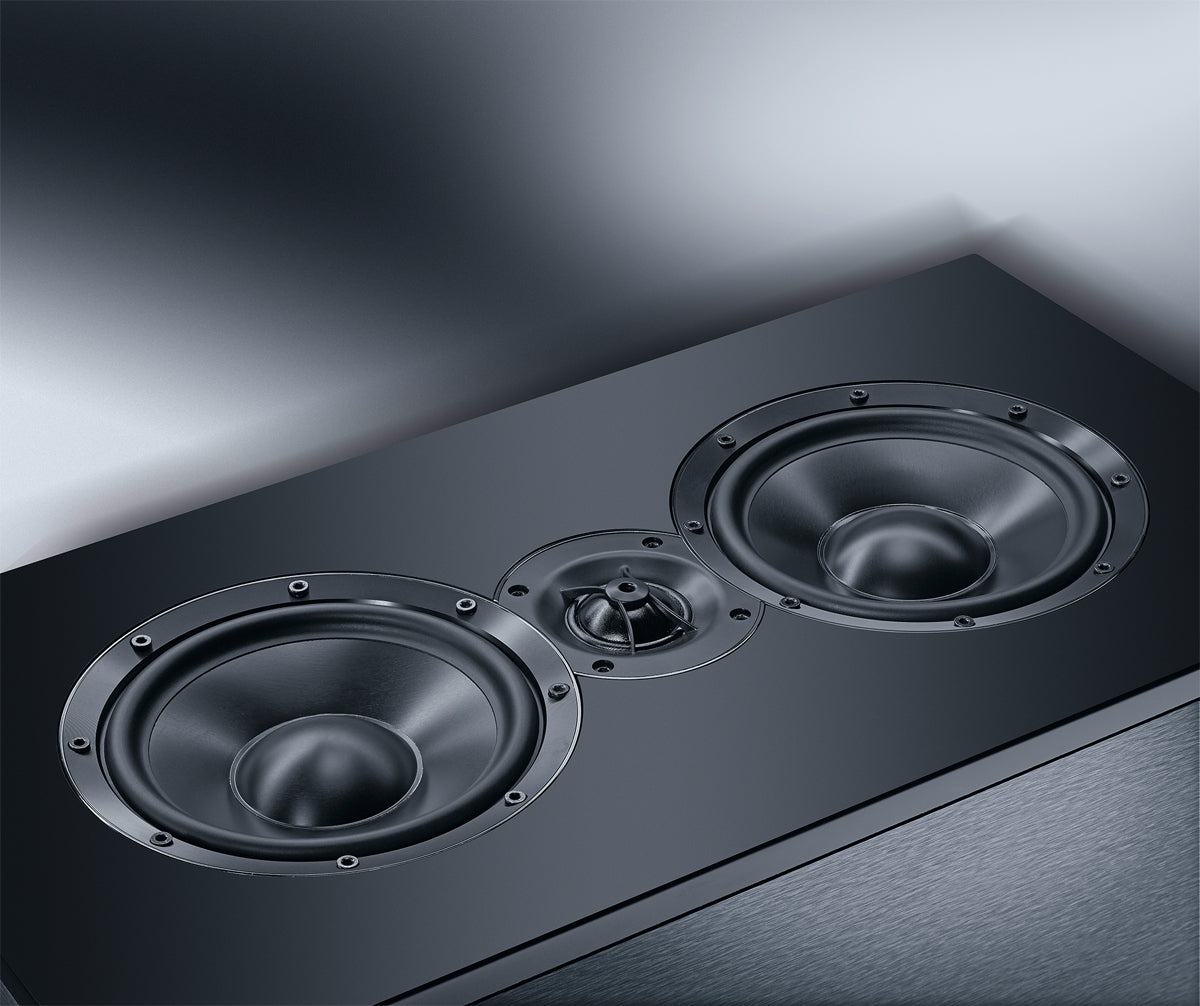

• Extremely large 42 mm high-performance dome tweeter with a wave guide front panel for ideal dispersion characteristics
• Two exceptionally powerful 17 cm woofers for maximum dynamics, precision and performance
• Extremely sturdy MDF cabinet with low-resonance 30 mm baffle
• THX Ultra2-certified front loudspeaker / centre loudspeaker for the Magnat Cinema Ultra set

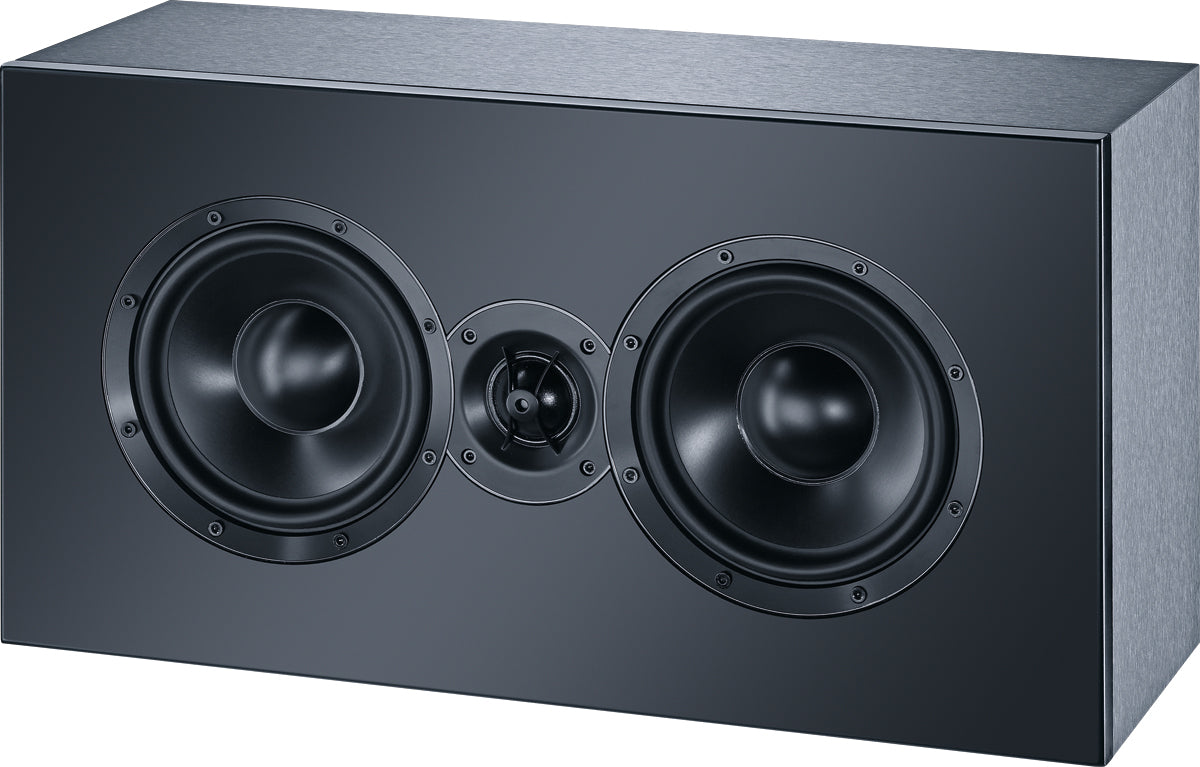

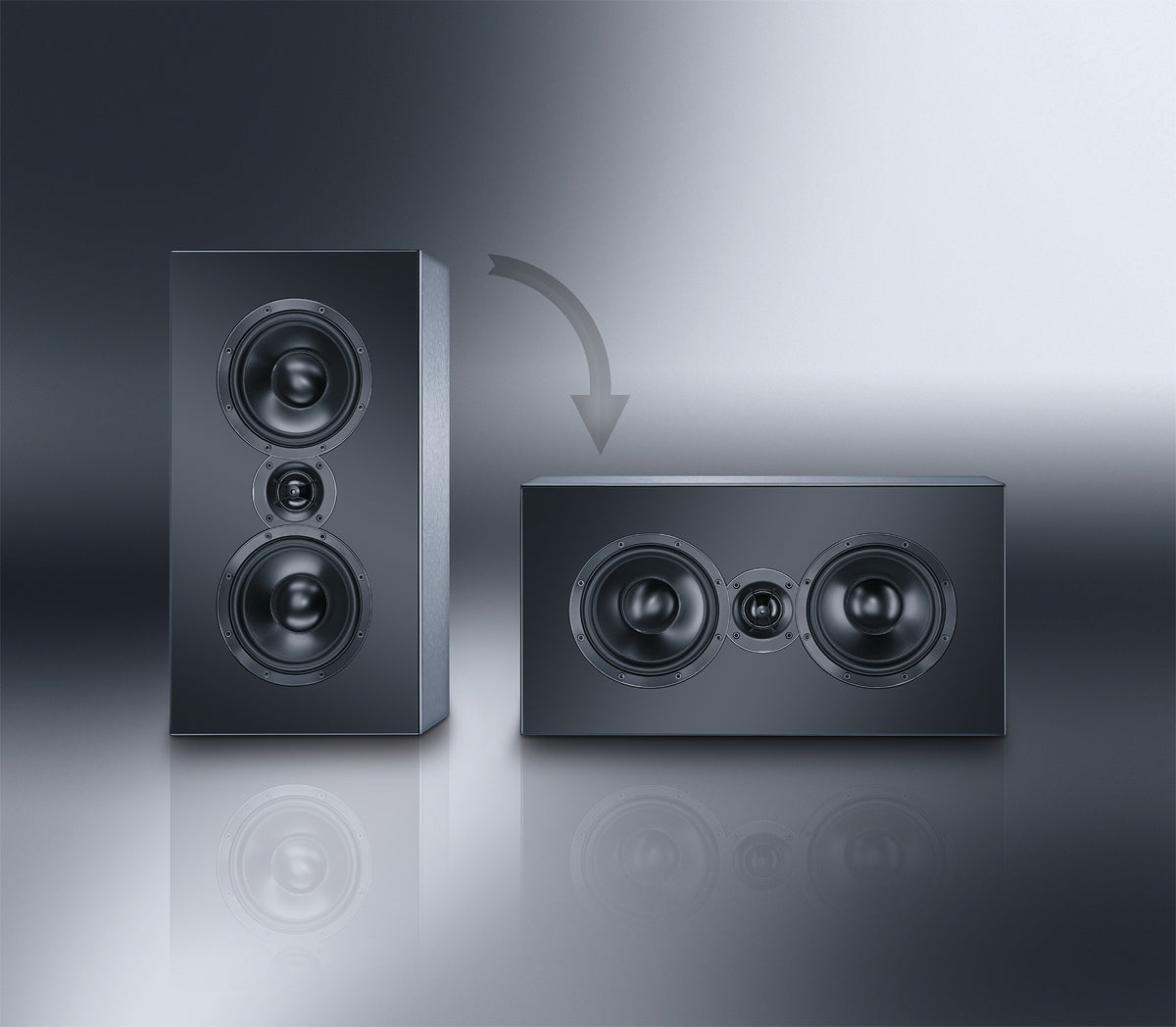

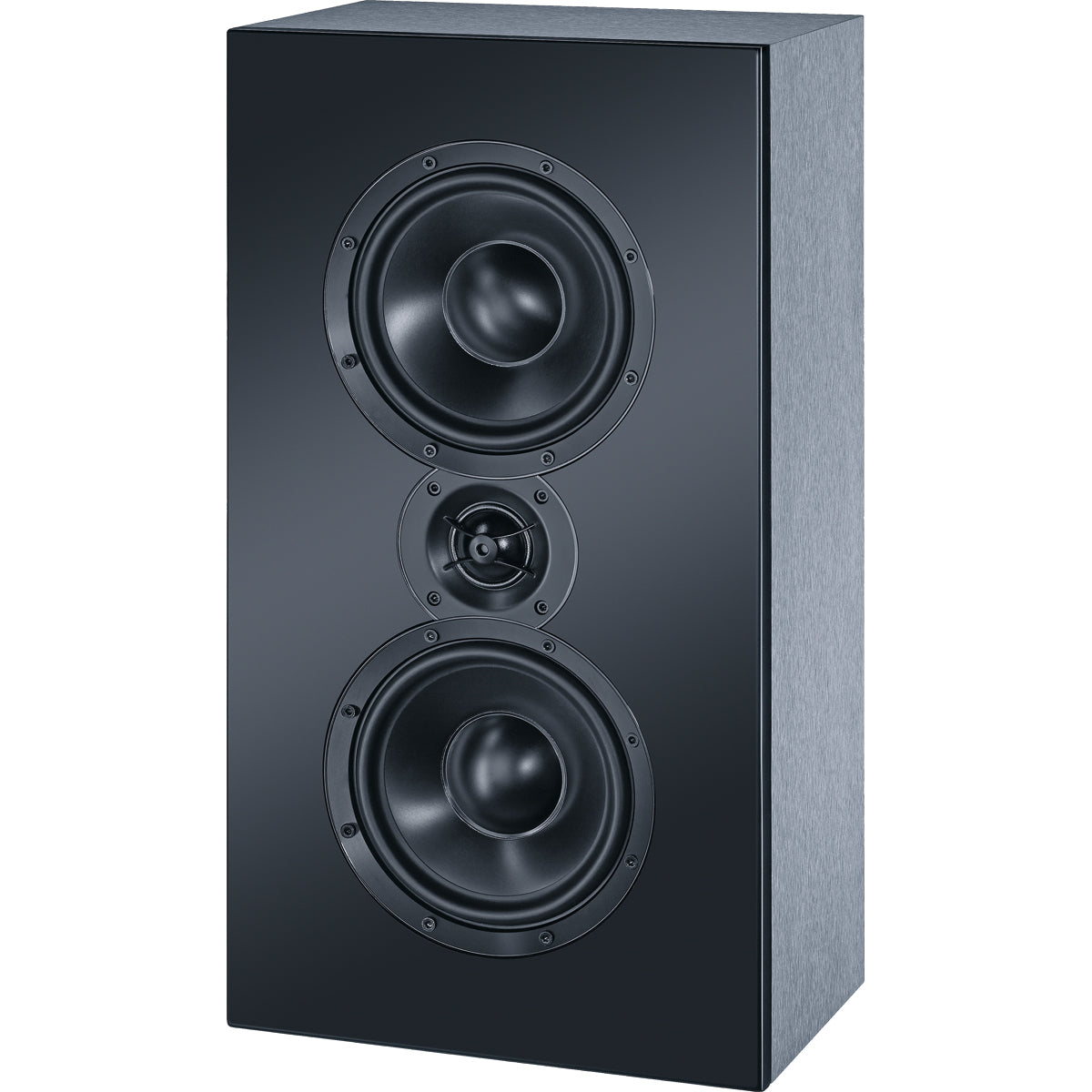

• Can be operated in a vertical or horizontal position, ensuring maximum set-up flexibility
• All of the chassis have been specially developed for the Cimema Ultra set in order to meet the very strict requirements of the THX Ultra2 standard
• The loudspeaker chassis are identical to the dipole surround sound loudspeaker RD 200-THX for optimum tonal harmony
• Particularly tight-fitting chassis layout and specially tuned crossover for uniquely homogeneous horizontal and vertical dispersion characteristics
• Top acoustic performance through individual components developed for high performance in all details
• Perfect tonal harmony through identical loudspeakers for all three front channels
• Markedly compact and flat enclosure for easy and unobtrusive integration into every home cinema system
• Various set-up and wall-mounting options
• Can also be used according to THX Ultra2 guidelines as a directly emitting surround or rear surround loudspeaker
• Flow-optimised, highly stable die-cast aluminium cage to avoid compression effects and resonances
• Metal-Core-Technology
• Rigid ceramic/aluminum sandwich cone and dust cap for optimum precision
• 8 screw fixings for firm anchoring in the baffle
• Extremely large 42 mm high-performance polyfibre-compound cone
• Computer-optimised Waveguide front panel with integrated diffusor for optimum dispersion characteristics according to the strict THX Ultra2 standard
• Extremely powerful neodymium annular magnet system for the highest efficiency and outstanding broadband capability
• Highly resilient precision voice coil on a ventilated aluminium support
• Solid die-cast aluminium enclosure with large pole piece hole
• Multiple damped coupling volume for particularly low resonance frequency
• Particularly elaborate, amplitude and phase-optimised crossover to meet the strict THX Ultra2 standard

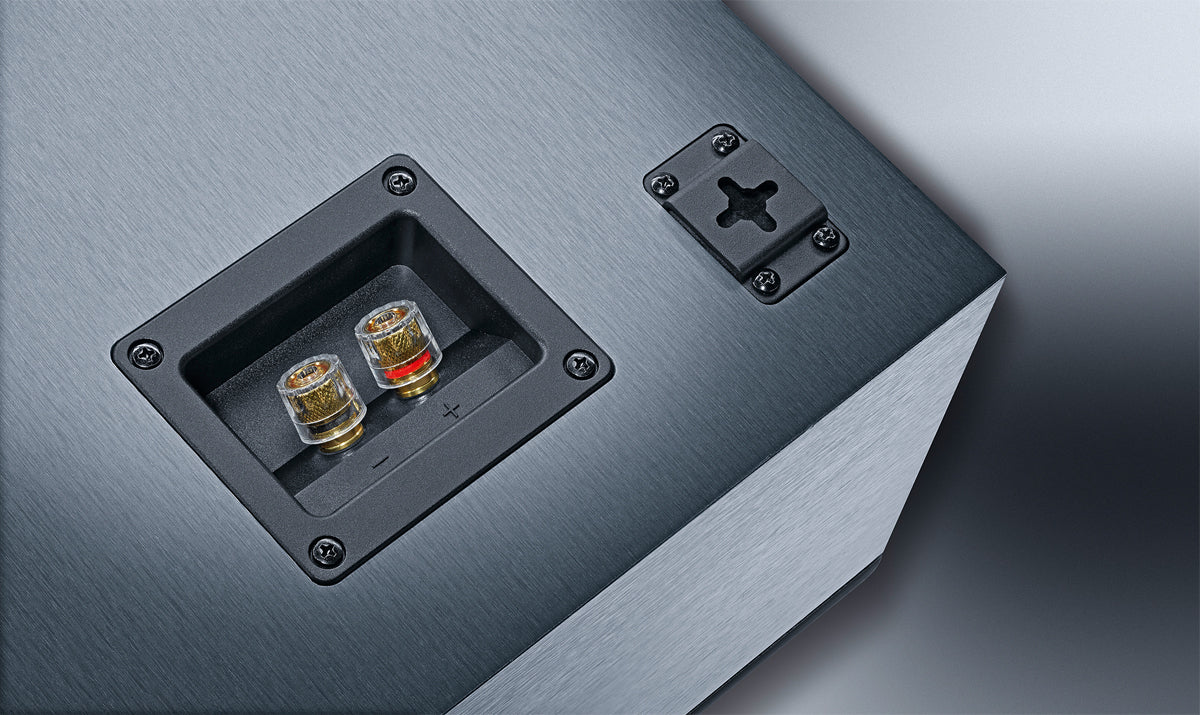

• Single-wiring connection terminal with gold-plated, acrylic sealed terminals
• Very stable, braced MDF enclosure with particularly low-resonance, 30 mm thick baffle
• Cinema Ultra stealth design comprising: o offset baffle in a high-quality deep black silk matt lacquer finish o durable brushed-metal textured film in anthracite on the body o front panel and trim rings in matt black with a black chrome gloss ring o magnetically held cloth cover on a thin MDF frame o low-reflection metal logo in brushed titanium look
• Closed housing for reproduction absolutely free of background noise at high levels according to the THX Ultra2 standard
• Rotating Magnat/THX logo for correct alignments in vertical or horizontal operation

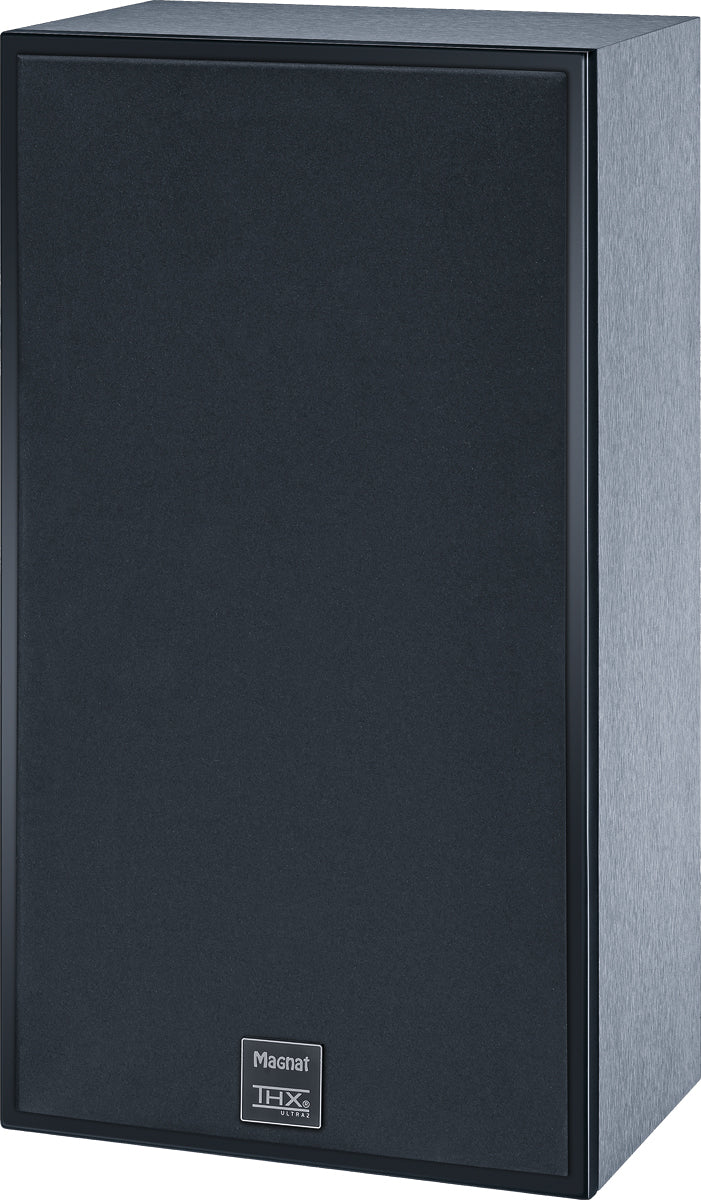

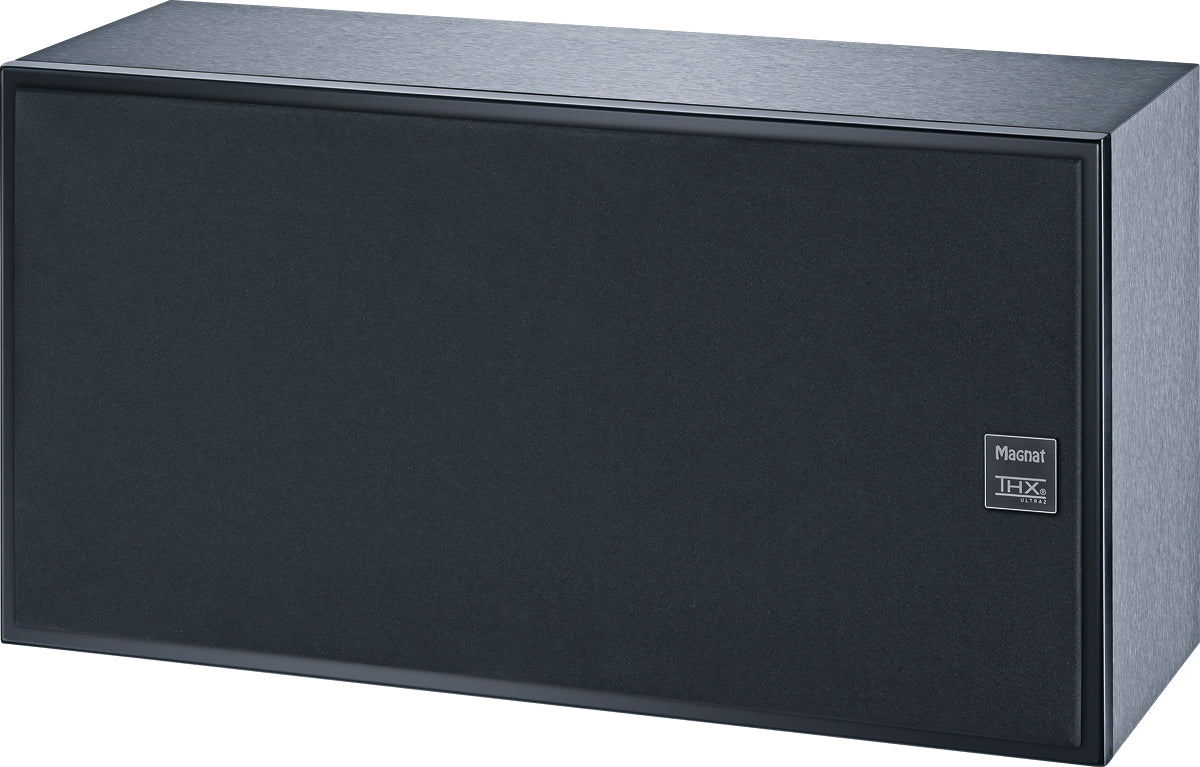

• Removable fabric protection grille with optimum sound transmission and invisible magnet attachment

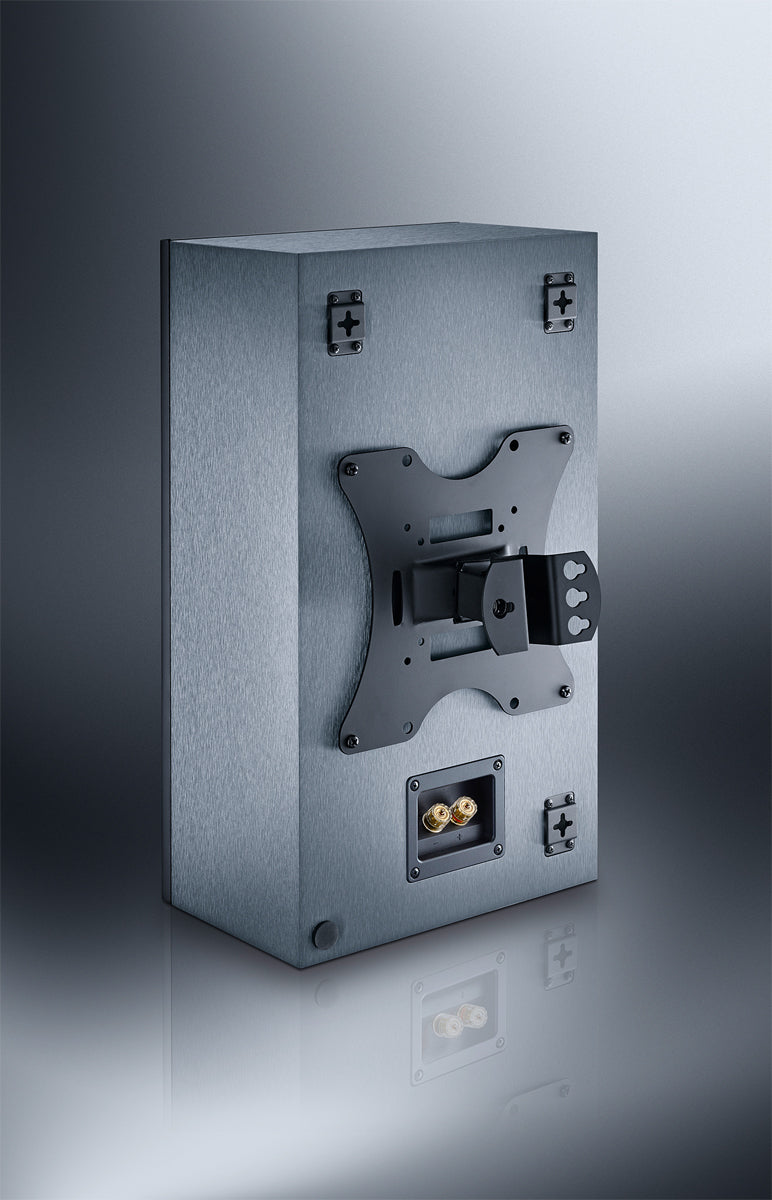

• Sophisticated mounting system with numerous variations o Wall-fixing mountings according to the widespread VESA standard, hole pattern 200x200mm M6 o Sturdy metal wall brackets for vertical and horizontal mounting with silicone spacer
• Front: black silk matt / body: textured film – anthracite

Specifications

For more information, please visit the manufacturer's website.
