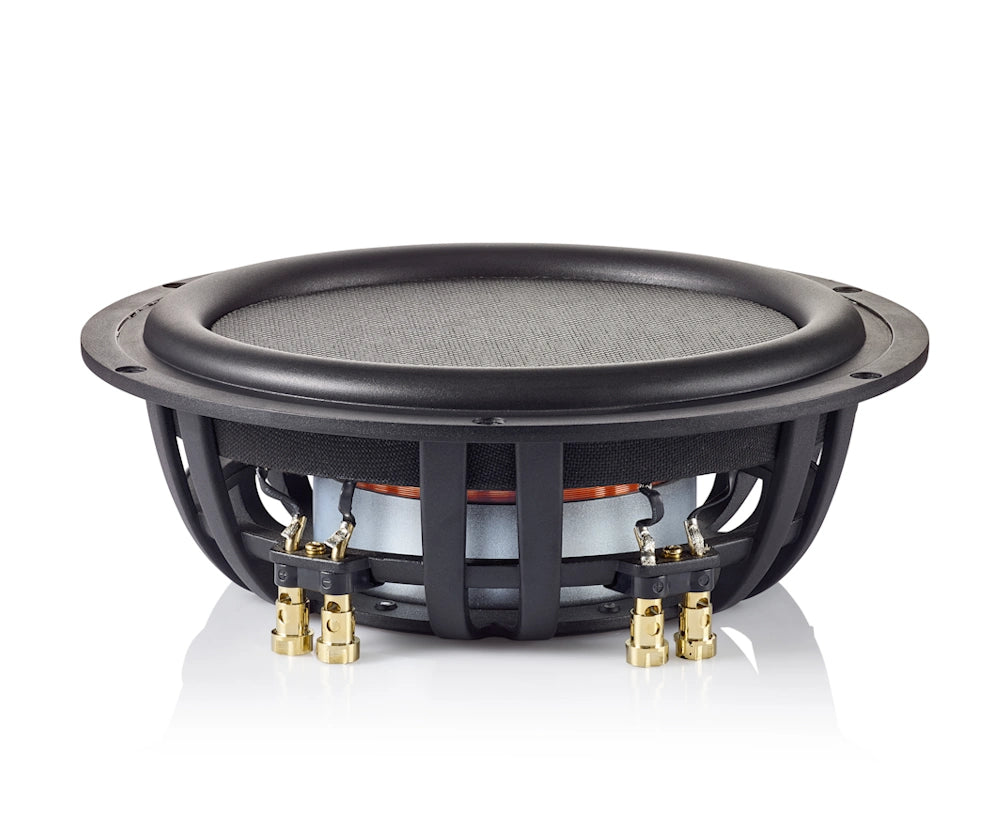

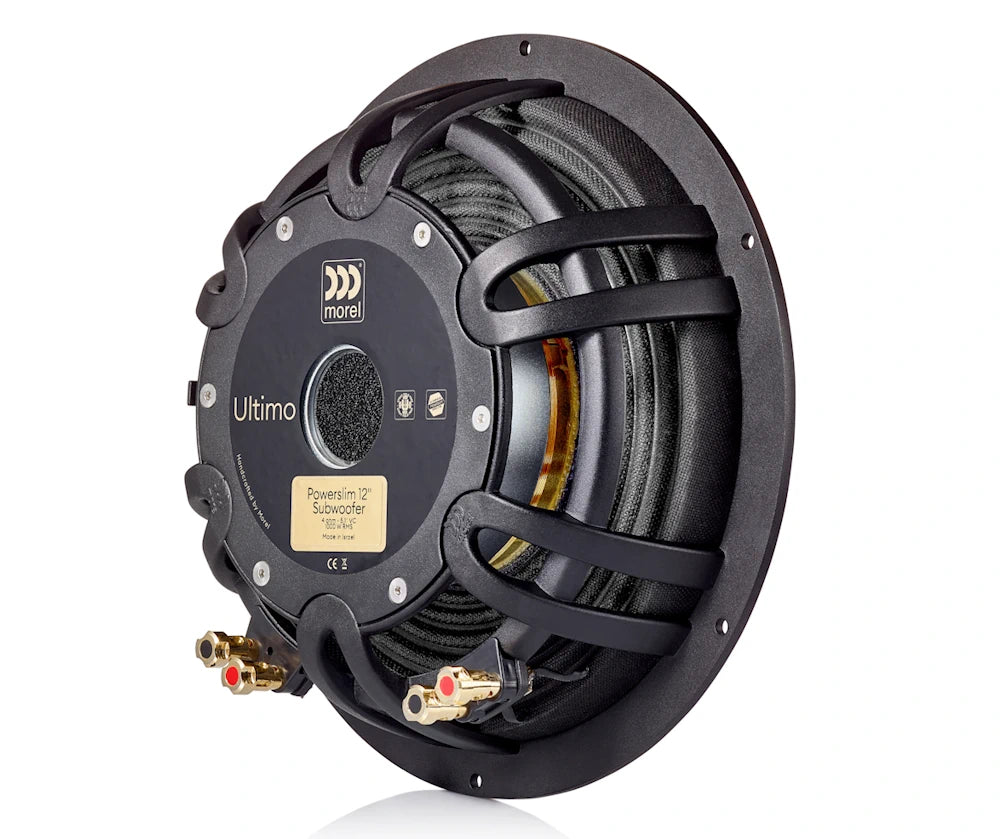

Morel Ultimo Power Slim 12 Inch Subwoofer

Morel Ultimo Power slim 12 Inch Subwoofer Dual 4Ω

The Morel Ultimo PowerSlim subwoofers redefine what’s possible in the world of bass reproduction. From their compact yet powerful architecture and state-of-the-art engineering, they are an unrivaled force in the realm of shallow subwoofers.

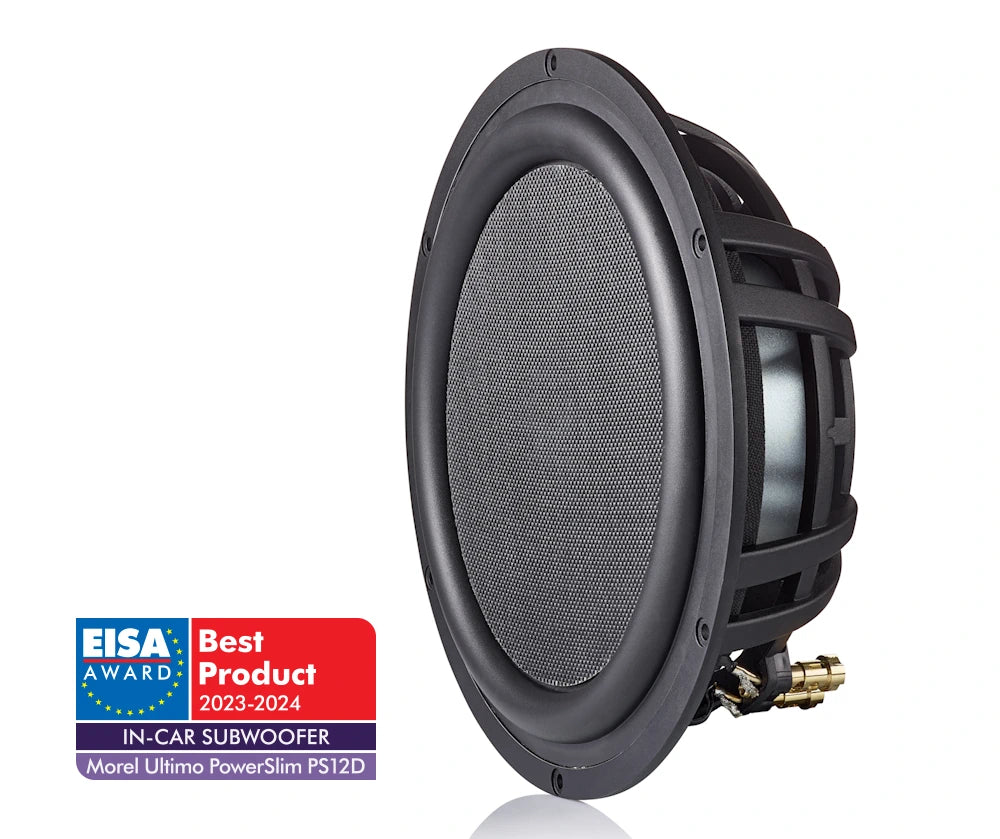

As a testament to their design, the Ultimo PowerSlim subwoofers were bestowed the esteemed EISA “Best In-Car Subwoofer” award for 2023-2024. This accolade defines Morel’s relentless commitment to pioneering audio technology and delivering unparalleled sonic encounters.

In developing a no-compromise shallow subwoofer, much inspiration was taken from what was learned with our renowned Ultimo Titanium but reimagined to deliver the ultimate bass performance in a compact space. At the heart of the Ultimo PowerSlim is our advanced EVC™ (External Voice Coil) motor technology featuring a massive 5.1-inch diameter voice coil. Its large size, combined with the use of our lightweight aluminum Hexatech™ voice coil wire, give it power handling that is simply unmatched in the shallow subwoofer category while serving up superb linearity and control, ensuring a rich, accurate and dynamic bass experience.

The Ultimo PowerSlim subs are indeed slim. Available in 10 and 12-inch, mounting depth measures 3.1” (78mm) and 3.4” (86mm), respectively. This is made possible with the development of our Uniflow die-cast aluminum chassis, unique Progressive Field Symmetry (PFS) suspension, HexaCore carbon fiber and aluminum honeycomb flat piston cone. These components were maximized to provide remarkable excursion for high output in the most compact of dimensions.

The uncompromising design of the Ultimo PowerSlim series redefines the shallow subwoofer category. They deliver everything you expect in your bass in nearly half the space.

DMM motor

Morel’s double drive system generates more magnetic energy than a single magnet of similar size, increasing efficiency and the dynamic range. The position of the secondary magnet fixed above the top plate in the motor is the key in controlling stray magnetic flux, thus generating a more focussed magnetic field while also contributing to the “shielded” characteristic of our speakers.

Hexatech™ Aluminium Voice Coil

Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.

EVC motor

Morel speakers with EVC™ technology utilize voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.

HexaCore Carbon Fiber Flat Cone

Morel’s HexaCore carbon fiber flat cone features an ultra-strong aerospace-derived design with a honeycomb aluminum core sandwiched between two layers of woven carbon fiber sheets. This results in an exceptional balance between weight and strength, accompanied by an outstanding damping factor that produces unparalleled audio clarity and realism.

Uniflow™ Chassis

Uses an open design that is aerodynamically efficient, allowing air and sound waves to flow uniformly and smoothly. Its geometric shape also eliminates interference with the woofer’s moving components, enabling the use of a low-profile spider for greater support and stability.

Specifications

For more information, please visit the manufacturer's website.
