Description

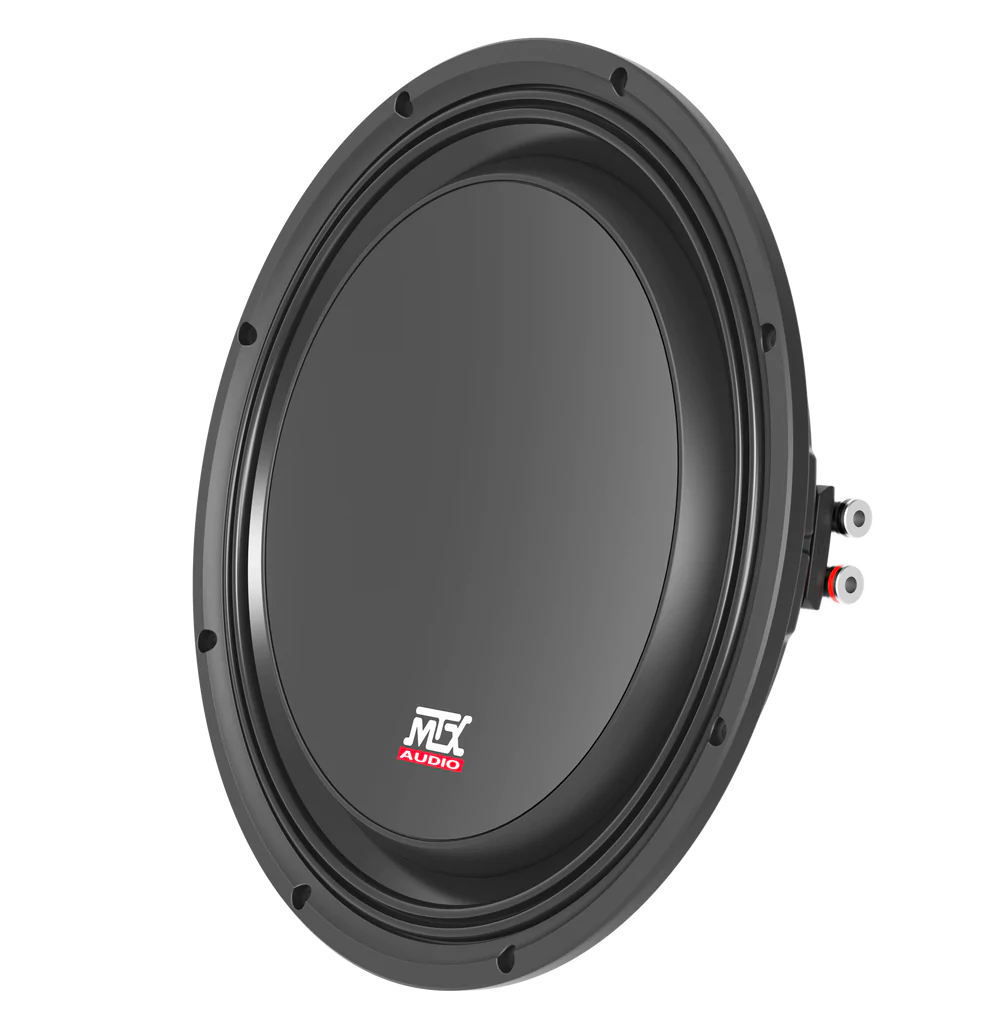

xThe FPR Series shallow mount subwoofers are designed to deliver true, hard-rocking subwoofer bass in a form that has a mounting depth of 3.375". MTX engineers recognised that there are scenarios where you just can't fit a full-size subwoofer behind the seat in a pickup truck, in convertibles, in the trunk with golf bags, strollers, or whatever other assorted goodies we grab for the drive. Or maybe you want to custom mount your subs into some odd-shaped console. The FPR shallow depth often makes the difference. Other shallow mount subwoofers in the market are not able to deliver full, rich subwoofer performance. They are often made more like midbass drivers, unable to play those powerful low notes that make installing a subwoofer worthwhile. The result of this research is the patented One Piece Spider Cone Assembly design that delivers true subwoofer performance in an ultra compact design.
The Design

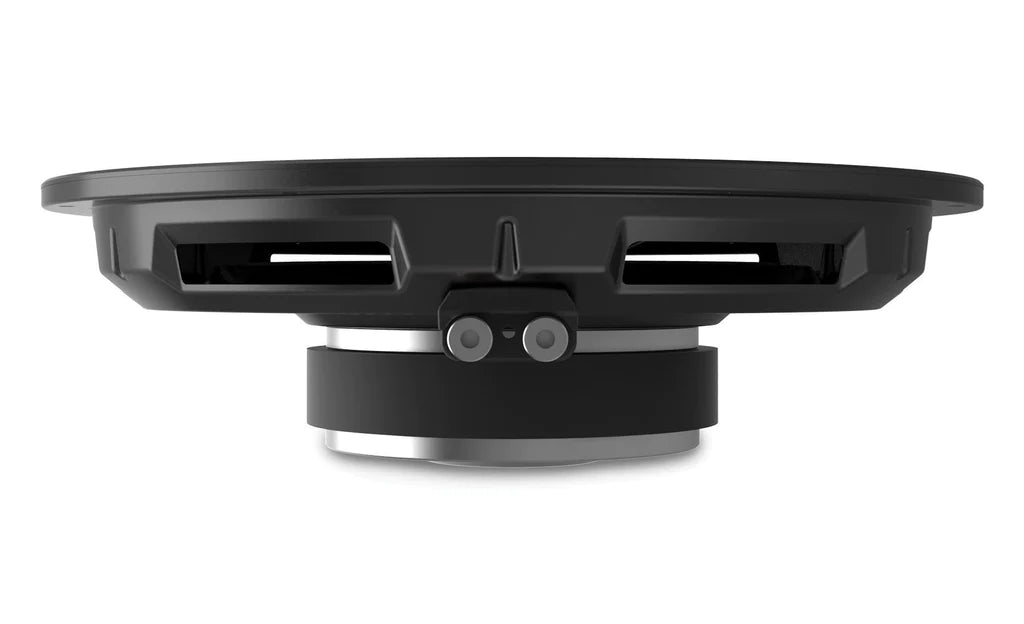

The FPR is a patented and unique in that the cone is attached directly to the spider. This design allows the spider to better control the cone movement especially its one way motion, Xmax. The angled design of the basket allows the cone to travel farther than a conventional subwoofer which would be limited by the spider's connection to the basket. Additionally, the cone utilises a curved design where it connects to the surround. This not only advantageous as it more easily connects to the spider but it also increases the surface diameter of the cone. The increased Xmax and surface diameter gained as a result of the design allow the subwoofer to move more air and generate higher SPL.
Thermal Management
The FPR subwoofer uses two design elements to regulate the high temperatures generated at the voice coil. Like other MTX subwoofers the FPR series uses the mechanical cooling process, Spider Plateau Venting, to continually circulate air to the voice coil eliminating distortion resulting from excessive temperatures. Additionally, the dustcap in the cone connects directly to the voice coil and transfers heat away from the voice coil further ensuring reliability and sound quality.
Features
- SPV Technology
- Original MTX steel frame
- 85.7mm! Depth
- Bubble shape cone with Aluminium dust cap
- Butyl rubber surround
- 1.75" / Ø44mm high temp (220°) aluminium voice coil
- High-end, heavy duty terminals designed by StreetWires
- Designed for small sealed enclosures from 21 Liters and up
Specifications
| RMS Power | 300W |
| Max Power | 600W |
| Frequency response | 23Hz - 130Hz |
| Sensitivity | 84,4 dB/1W/1m |
| Fs | 29.6Hz |
| Xmax | 10.21mm (One-way) |
| Ø30cm (12’’) |
For more information, please visit the manufacturer's website.
