Description

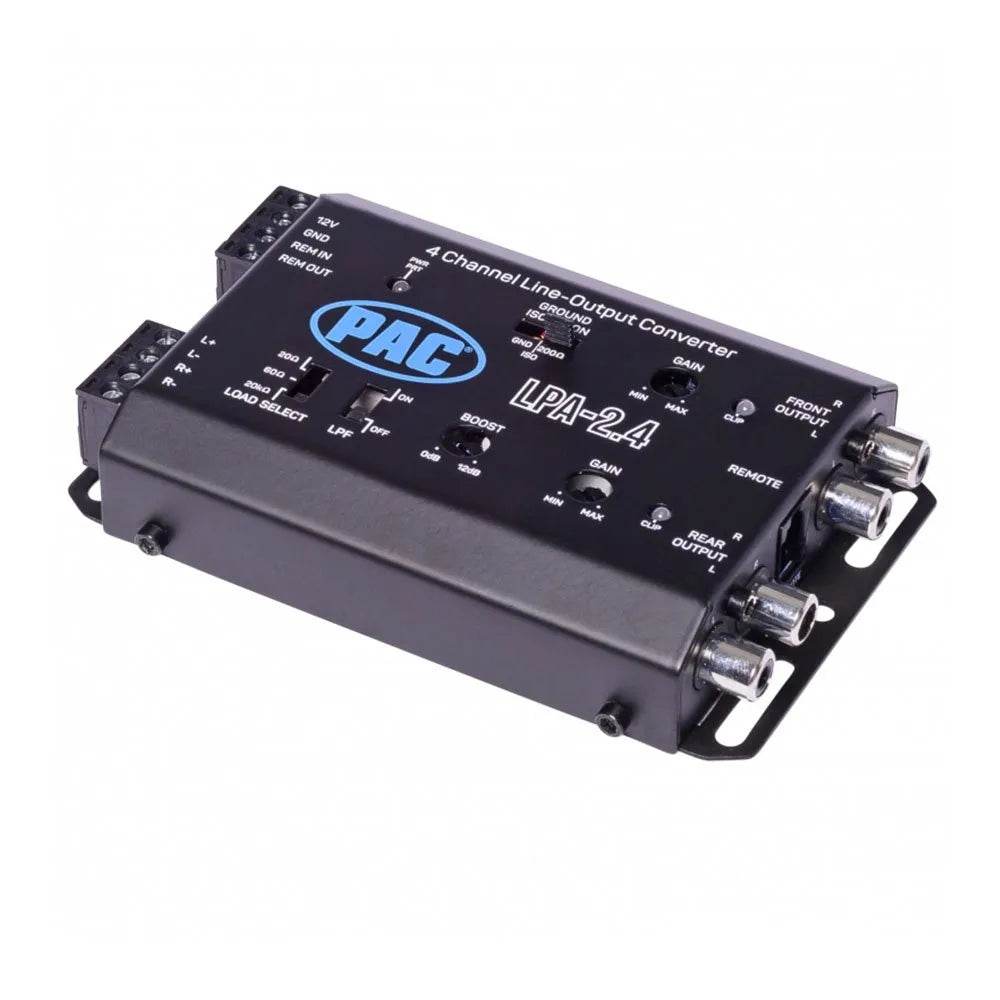

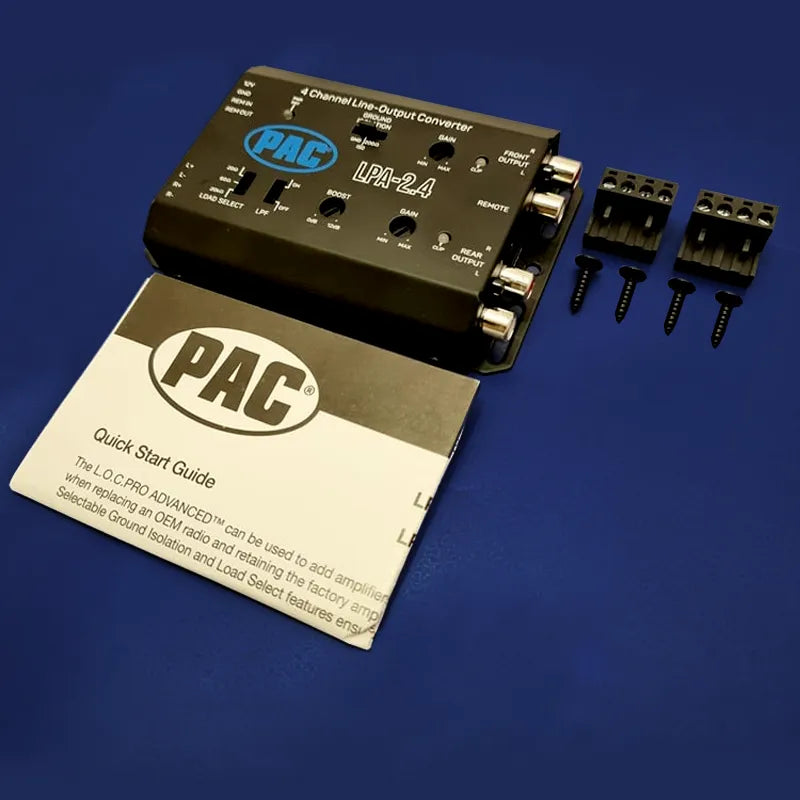

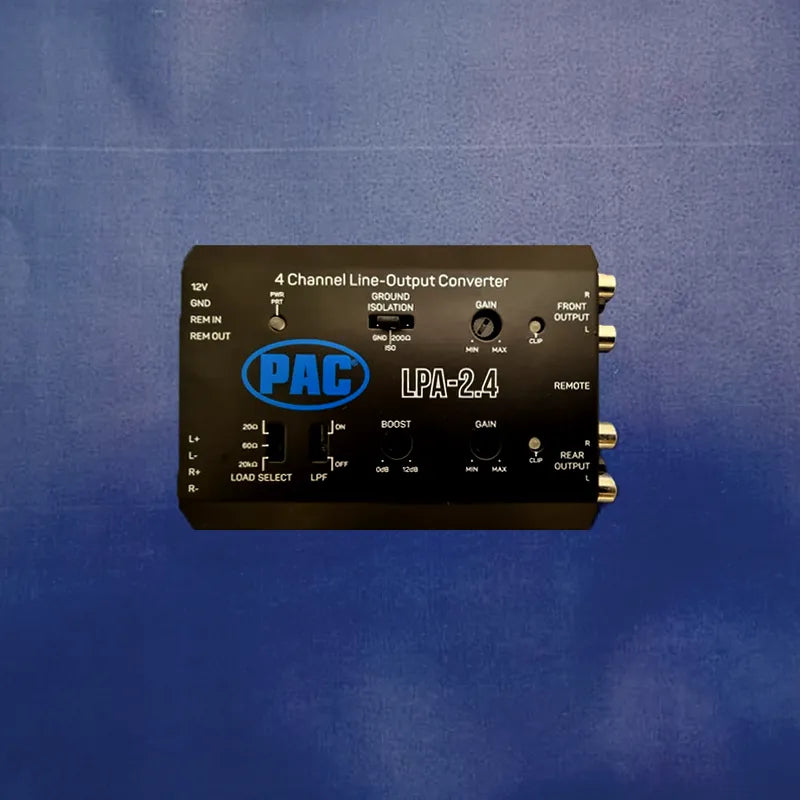

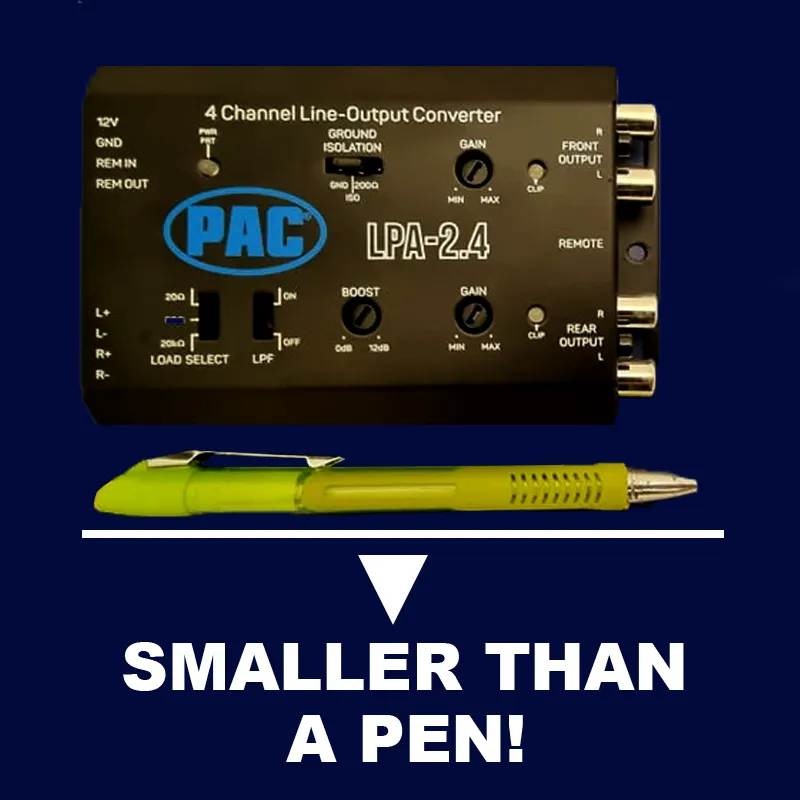

xPAC LPA-2.4 4ch Line Level Converter with load generator
LocPRO ADVANCED line output converters feature incredible input power capabilities, enhanced output controls, and noise isolation countermeasures. Combined with the newest vehicle systems’ compatibility, these features are the gateway for your audio aspirations.
LocPRO ADVANCED can be used to add amplifiers to an audio system that does not have RCA outputs or when replacing an OEM radio and retaining the factory amplified system. Variable Gain Controls with Clipping Indicators, Selectable Ground Isolation and Load Select features ensure a pure, noise-free signal for any type of audio system.
Optional PAC LPA Remote Bass Level Controller
Features
- Steel housing
- 40V / 400W maximum @ 20kΩ
- Low pass filter (CH3/4 only)
- Bass boost (CH3/4 only)
- Dual variable gain controls
- Selectable ground (common, ISO or 200Ω)
- Load selections: 20Ω, 60Ω, 20KΩ
- Clip indicator
- Turn-on mode selection (remote and DC)
- 9.5V Output voltage
- Removable quick-connect with screw-type terminal
- Wide range DC offset
Specifications
|
Model Number |
LPA-2.4 |
|
Channels |
2 IN — 4 OUT |
|
Operating Voltage |
9V-16V |
|
Max Input Level (20kHΩ Load Setting) |
40V / 400W @ 4 Ohms |
|
Auto Turn On |
DC Offset / Remote |
|
Output Voltage MAX @ 13.8V |
9.5V RMS |
|
Turn On Trigger (DC-Offset) |
3V—7V |
|
Load Input Impedance |
20Ω, 60Ω, 20KΩ |
|
Output Impedance |
<120Ω |
|
Variable Gain Adjustment |
-28dB—+1dB |
|
Signal To Noise |
>110dBA @ 6.4V Output |
|
THD+N |
< 0.01% |
|
Input Sensitivity |
0.5V—40V |
|
Frequency Response |
10Hz—20kHz |
|
Current Draw (Max) |
40mA |
|
Low Pass Filter |
<250Hz |
|
Bass Boost |
0dB to +12dB |
|
Clip Indicator |
YES |
|
Remote Level Control |
OPTIONAL (PN: LPA-REM) |
|
Chassis Type |
Stamped Steel |
|
Terminal Gauge |
18AWG / Quick Connect |
For more information, please visit the manufacturer's website.
