Description

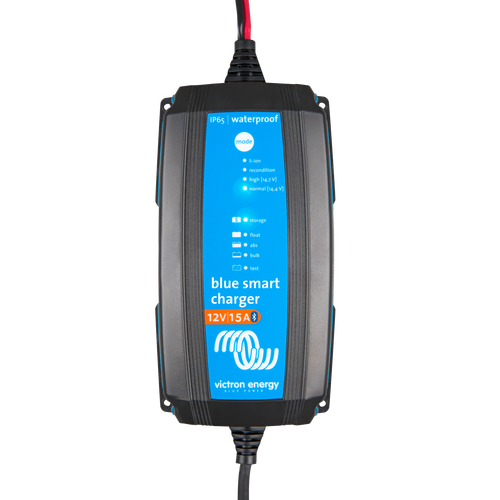

xVICTRON BLUE SMART IP65 CHARGER 12V/15A
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Highly efficient and reliable charger
When it comes to charging a battery, the chargers available in the market generate a lot of heat. Compared to those chargers, Blue Smart IP65 creates 4 time less heat that helps in enhancing the life of your battery. Moreover, after charging the battery completely, it consumes only 0.5 Watt power that is plus point and enhances the battery life even longer.
Recovery of fully discharged batteries
Once the battery is connected, the charger immediately detects voltage and polarity. If the battery is connected incorrectly, all status-LEDs will start blinking. No sparks will occur. Most of such chargers do not charge the fully discharged batteries. Whereas, Blue Smart IP65 charger will get it done by starting with low power and when it is charged with adequate voltage, it will come to normal charging.
Features
- It is resistant to chemical, durst, and water
- It has a 7 step smart charging technology
- Charges small batteries with low power mode
- It has an automatic power supply feature
- Many other features for enhance the life of your battery
Specifications
|
Input voltage range |
110-130 VAC (2-3A) |
|
Efficiency |
94% |
|
Standby power consumption |
0.5W |
|
Minimum battery voltage |
Starts charging from down to 0V |
|
Charge voltage 'absorption' |
Normal 14.4V High 14.7V Li-ion 14.2V |
|
Charge voltage 'float' |
Normal 13.8V High 13.8V Li-ion 13.5V |
|
Charge voltage 'storage' |
Normal 13.2V High 13.2V Li-ion 13.5V |
|
Charge current |
15 |
|
Charge current in low current mode |
4 |
|
Temperature compensation (lead-acid batteries only) |
16 mV/°C (9mV/°F) |
|
Can be used as power supply |
Yes |
|
Back current drain |
0.7Ah/month (1mA) |
|
Protection |
Reverse polarity Output short circuit Over temperature |
|
Operating temp. range |
-20 to +60°C (full rated output up to 30°C) 0 to + 140°F (full rated output up to 90°F) |
|
Humidity (non condensing) |
Max 95% |
|
Battery-connection |
Black and red cable of 1.9 meter (6 feet) |
|
120 V AC-connection |
Cable of 1.8 meter (6 feet) with US NEMA 1-15 plug |
|
Weight |
0.9kg (2lbs) |
|
Dimensions (h x w x d) |
12/5, 12/7: 47x95x190mm |
|
|
0ther: 60x105x190mm |
|
Safety |
EN 60335-1, EN 60335-2-29 (UL1236 / CSA C22.2) |
|
Emission |
EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
|
Immunity |
EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
For more information, please visit the manufacturer's website.
