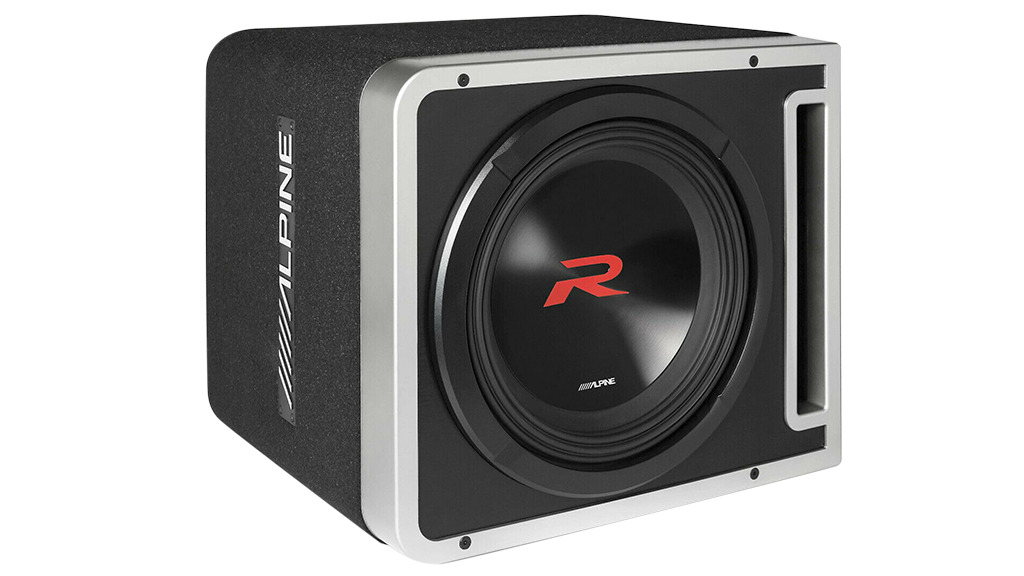

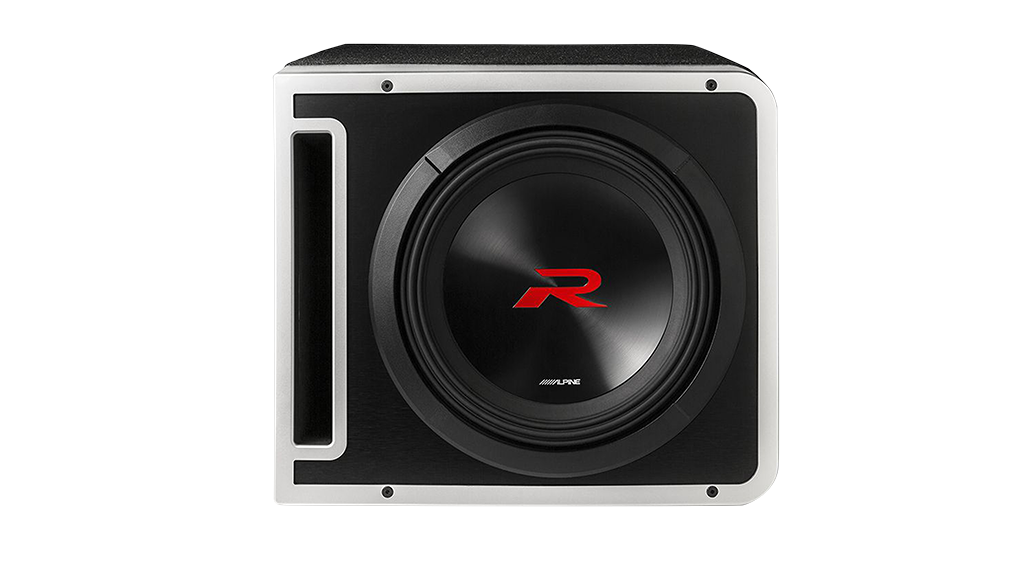

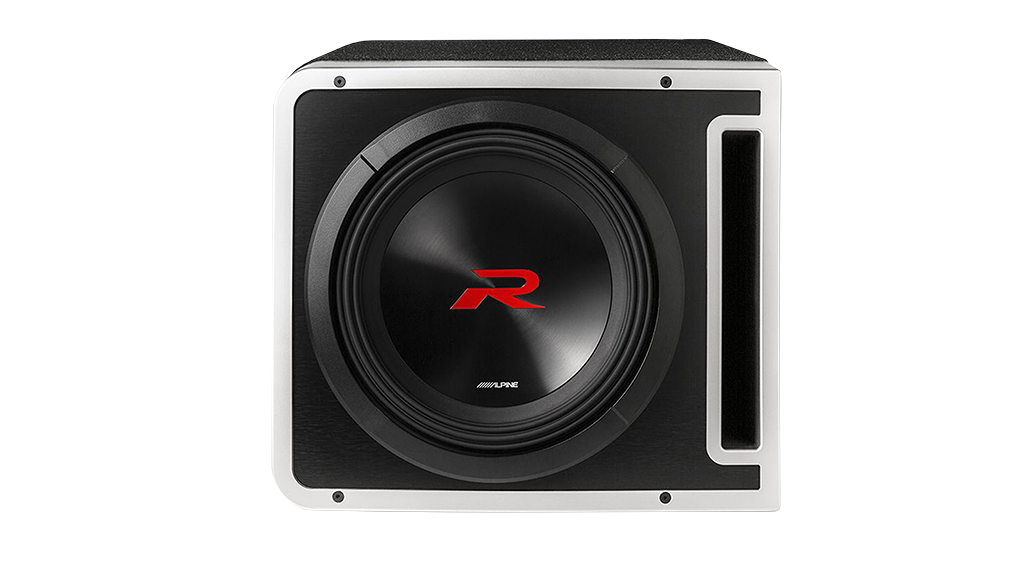

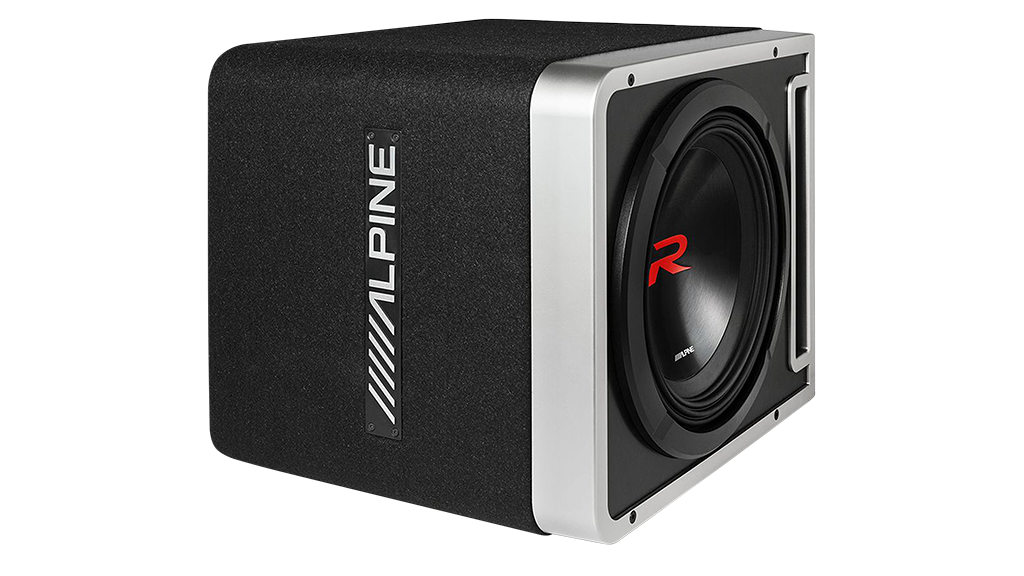

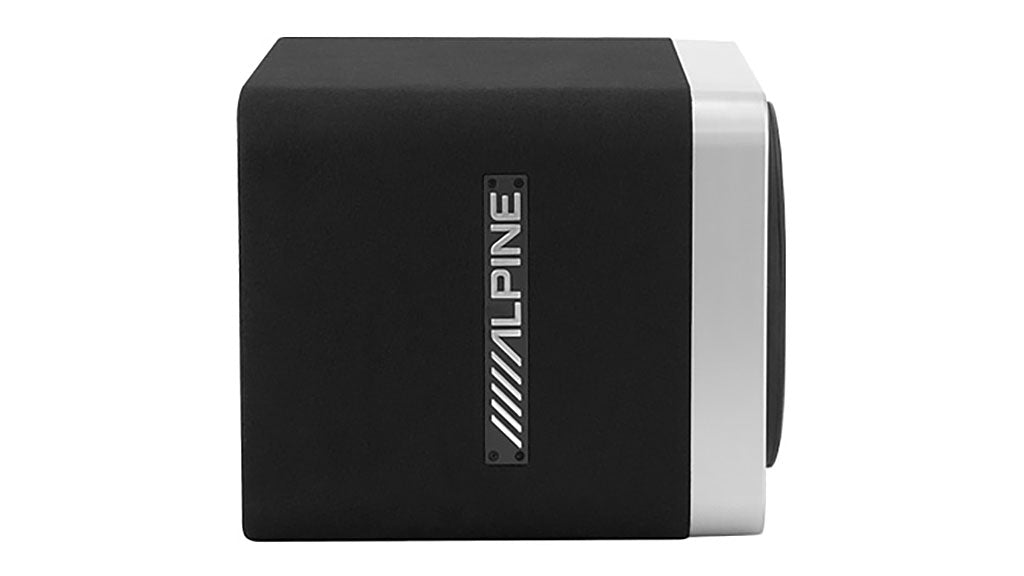

A subwoofer enclosure that sounds as good as it looks. Alpine’s preloaded, linkable subwoofer enclosures give you powerful performance with the unique Alpine Halo design and ProLink™. The new 2nd generation R-Series subwoofers take bass performance to extreme levels, delivering thunderous, ground-pounding bass. With Alpine’s enhanced sound performance, the R-Series subwoofers are highly accurate, creating a perfectly matched sound system to R-Series amplifiers and R-Series speakers – building an overall cohesive theme with its entire full-range Hi-RES Audio certified system. The R2-SB12V is designed for amplifier compatibility with 2Ω loads.
The R2-SB12V delivers incredible low-down, ground-pounding bass for the ultimate sound experience. The USA designed enclosure features an optimised vent and rounded internal port edges that maximises output performance of the subwoofer. The result is a higher total sound output for deep, powerful and accurate bass coupled with R-Series renowned reliability and endurance.
Without compromise the R2-SB12V is built from high-quality construction materials to achieve a custom look, without the custom work. Made from 3/4-inch medium density fibreboard (MDF) with internal edge bracing, the R-SB12V is sturdy and rugged, yet stylish with a premium black carpet covering and brushed aluminium finish on the metallic front baffle.

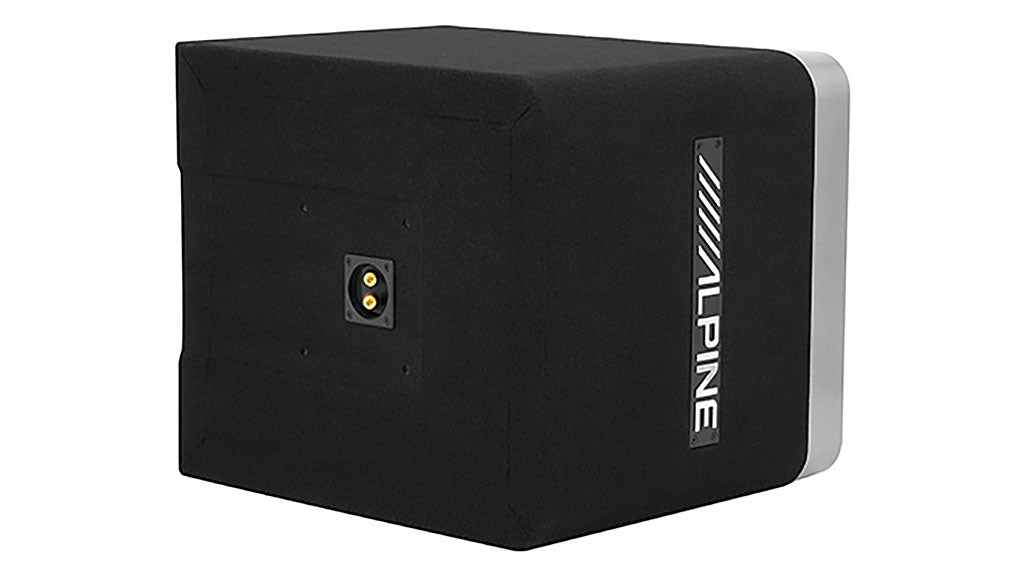

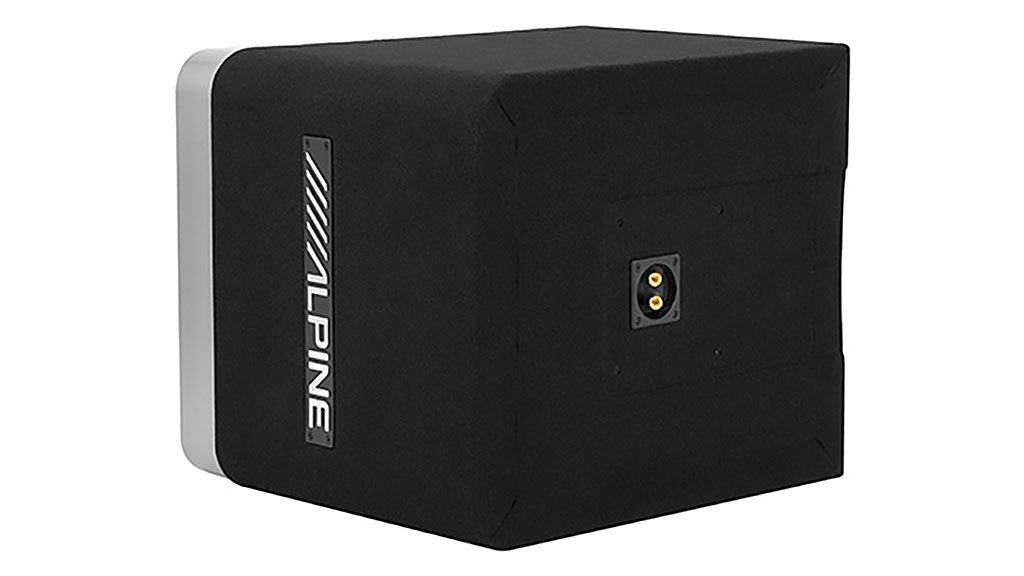

The R2-SB12V includes a preloaded R-Series R2-W12D4 12-inch subwoofer that’s tuned to 35Hz for optimised performance with Alpine R-Series sound system speakers and amplifiers. Dual 4Ω voice coils are wired in parallel for a 2Ω load that’s compatible with the R-Series R-A75M Mono Power Amplifier. Gold-plated binding post terminals allow for speaker wire, ring terminal, or quick disconnect banana plug connections.
The Alpine Halo platform modernises the look and feel of any vehicle. Drawing inspiration from the sleek, tapered lines and silver accent of the Alpine Halo Display, the R2-SB12V shares the same design cues, with a curved silver trim and a metallic front baffle. The R2-SB12V offers not only premium sound performance, but also elevates the interior of the vehicle for a subwoofer you can be proud to show off.
Peak Power Handling |
2250W |
RMS Power Handling |
750W |
High-Excursion Overhung Voice Coil Configuration |
|
65.5mm Voice Coil with High-Temp 4-Layer DVC Winding on Aluminium Former |
|
Stacked High-Grade Strontium Ferrite Magnets |
|
Cast Aluminium Frame |
|
Progressive Spider with Reinforced Layer Tinsel Leads |
|
Airflow Management & Heat Transfer System |
|
Optimised Dual Flare Pole Vent |
|
Concealed Mount Gasket |
|
Reinforced Parabolic Cone Structure (Pulp/Kevlar & PP/Mica/Talc Dust Cap) |
|
High-Amplitude Multi-Roll (HAMR) Surround |
|
Dimensions |
17” W x 14.625” H x 15” D |
Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M) |
|
12 Gauge OFC Speaker Box Wire |
|
Binding Post Terminal Cup |
|
Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation) |
|
Nominal Impedance |
4Ω+4Ω Dual Voice Coil |
2Ω Impedance Loading |
(4Ω+4Ω Parallel Circuit) |
Frequency Response |
24Hz-200Hz |
Vented Enclosure Tuning Frequency |
35Hz |
Sensitivity |
84dB |
For more information, please visit the manufacturer's website.
