Description

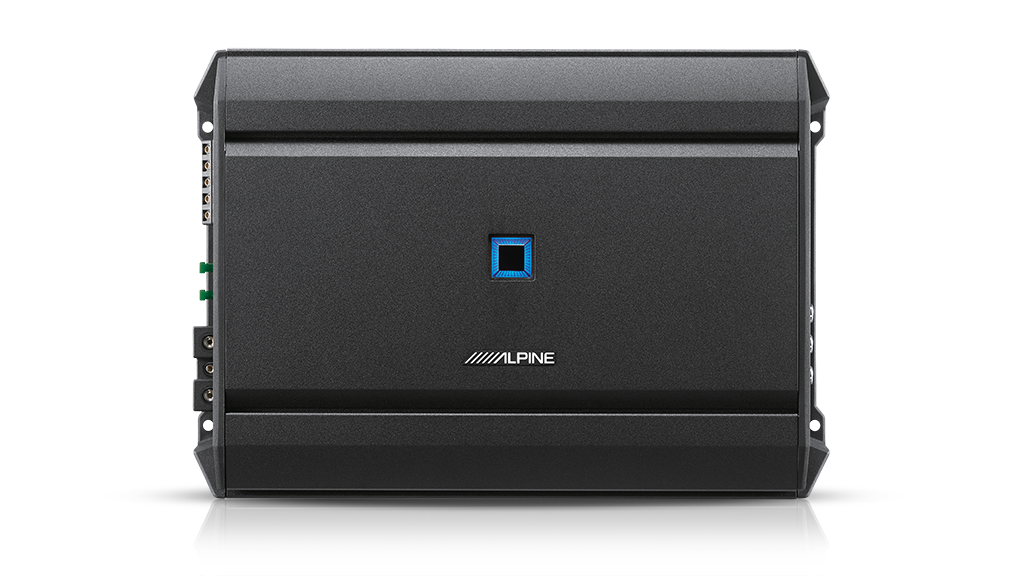

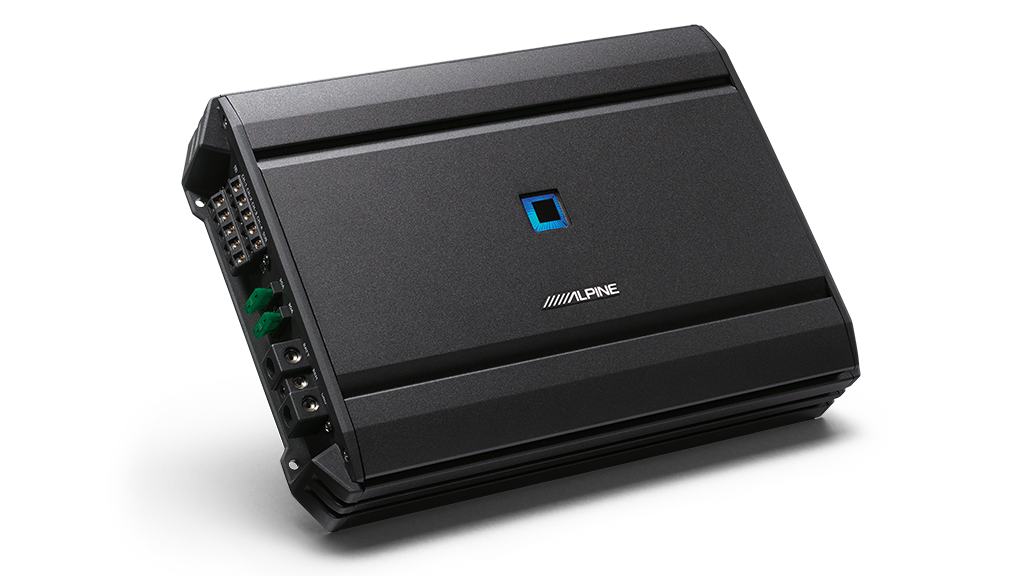

xThe all-new Alpine S-Series amplifiers pack a real punch with even more performance and value to you. Experience hard hitting bass and long hours of limitless play with the S-A55V 5-channel amplifier.
These amplifiers offer great value with over 20% more power through increased watt handling. The exceptional strength and resistance is supported by optimising a heat thermal management processor to ensure exceptional reliability so you can enjoy your music with the bass cranked up for hours on end without any power shutdown.
Features
- Amplifier Type: Class-D (Digital)
- Channel Design: 5/4/3 Channel
- Thermal Management Control
- Top Mounted LED Power/Status Indicator
- Speaker Level Input with remote turn on
- Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
- Gain Control: Adjustable
- Bass EQ (subwoofer channel)
- Bass Control: Remote Bass Control (RUX-KNOB.2) Ready
- Terminal Layout: One side
- Small footprint for easy installation
- Screw terminals (for speaker and power cables)
- Heavy gauge power terminals (AWG 4)
All Digital Design
The all-new S-Series utilise Alpine’s advanced digital design which unlike a typical Class-D amplifier circuit adds all-digital dual post-filter feedback loop for unmatched accuracy and control, while minimising internal noise.
Thermal Protection
Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.
One-sided Cable Terminals

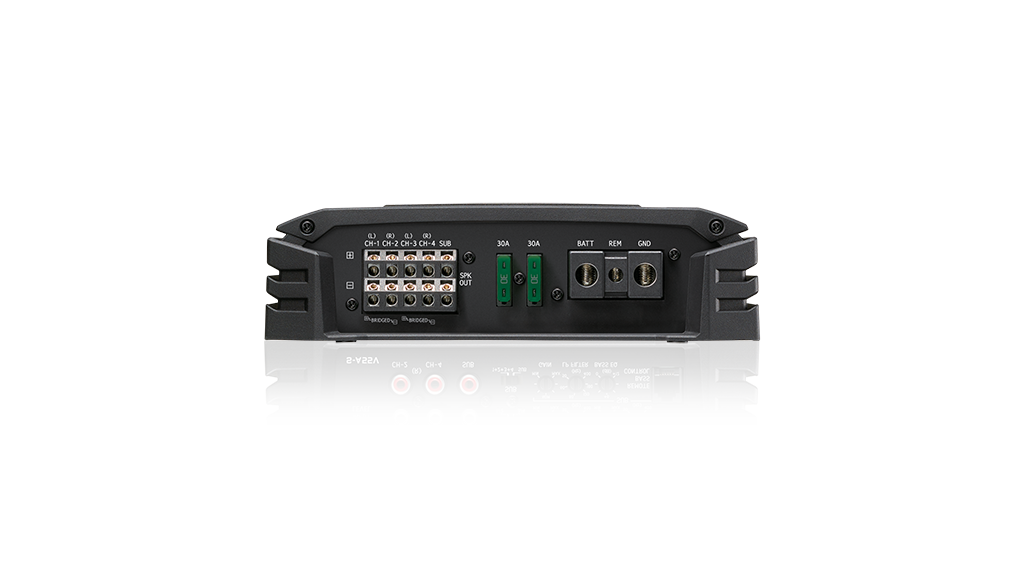

The speaker and power cable terminals are conveniently located on the left hand side of the amplifier providing an easy and clean installation. The power cable terminals accept heavy gauge cables.
Low/High-Power Speaker Signal Inputs
The S-Series amplifiers are equipped with low-level RCA inputs, which can also accept high-level speaker signal inputs. This allows for installation of the R-Series amplifiers into virtually any aftermarket or OEM factory audio system.
High-Pass / Low-Pass Filter
With the High-Pass and Low-Pass filter you can assign the amplification channel to be used for door speakers or a subwoofer. You can then adjust the cut-off frequency for more precise tuning.
Specifications
|
Max Power Output Ratings |
|
|
Total Max Power |
1100W |
|
RMS Power Ratings |
|
|
Per Channel into 2 Ohms, 14.4V (≤1%THD+N) |
4 x 60W + 1 x 300W |
|
Per Channel into 4 Ohms, 14.4V (≤1%THD+N) |
4 x 40W + 1 x 200W |
|
Bridged into 4 Ohms, 14.4V (≤1%THD+N) |
2 x 120W |
|
Sound Tuning |
|
|
Crossover |
Variable LPF, 50-400Hz (-12dB/oct ) |
|
Crossover |
Variable HPF, 50-400Hz (-12dB/oct ) |
|
General |
|
|
Power Requirements |
14.4 V.DC (9 – 16 V allowable) |
|
Input Sensitivity (RCA Input) |
Hi 0.5 – 10 V Lo 0.2 – 4.0 V |
|
High Level Input with automatic power on |
|
|
Cable size |
Power Cable AWG 4, SPK Cable AWG 12 |
|
Frequency Response (+0, -3dB 1W into 4 ohms) for CH-1/2/3/4 |
10Hz – 30kHz |
|
Frequency Response (+0, -3dB 1W into 4 ohms) for CH-5 |
10Hz – 400Hz |
|
THD+N (@ 10W into 4 ohms) |
<0.03% |
|
THD+N (@ 50W into 4 ohms) |
<0.07% |
|
Damping Factor |
Channel 1/2/3/4 >100, Channel 5 >750 |
|
Signal to Noise (@ 50 Watts into 4 Ohms) |
>98dB |
|
Weight |
2.9 kg |
|
Dimensions |
|
|
Heat Sink (WxHxD) mm |
286 x 58 x 204 |
For more information, please visit the manufacturer's website.
