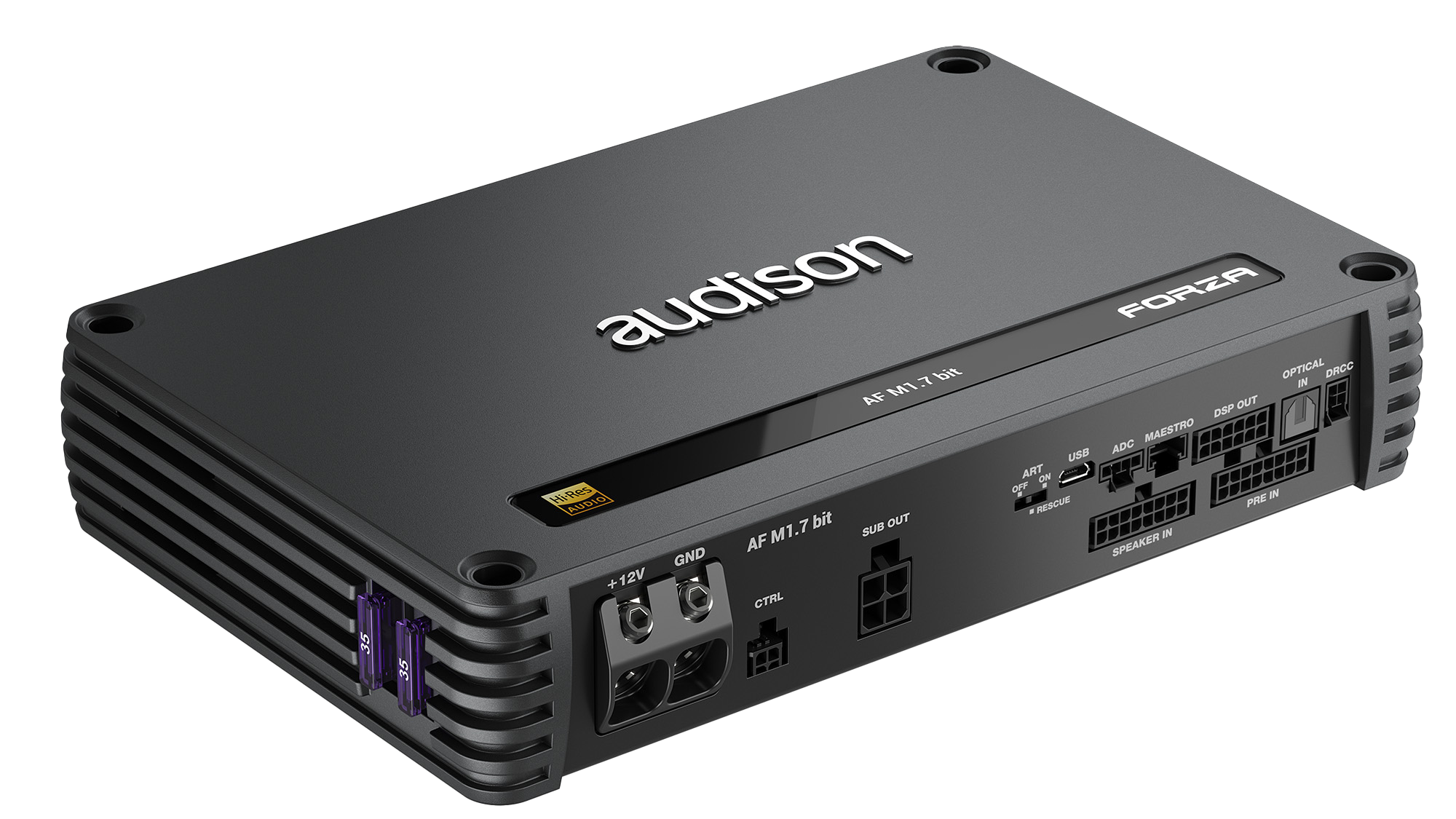

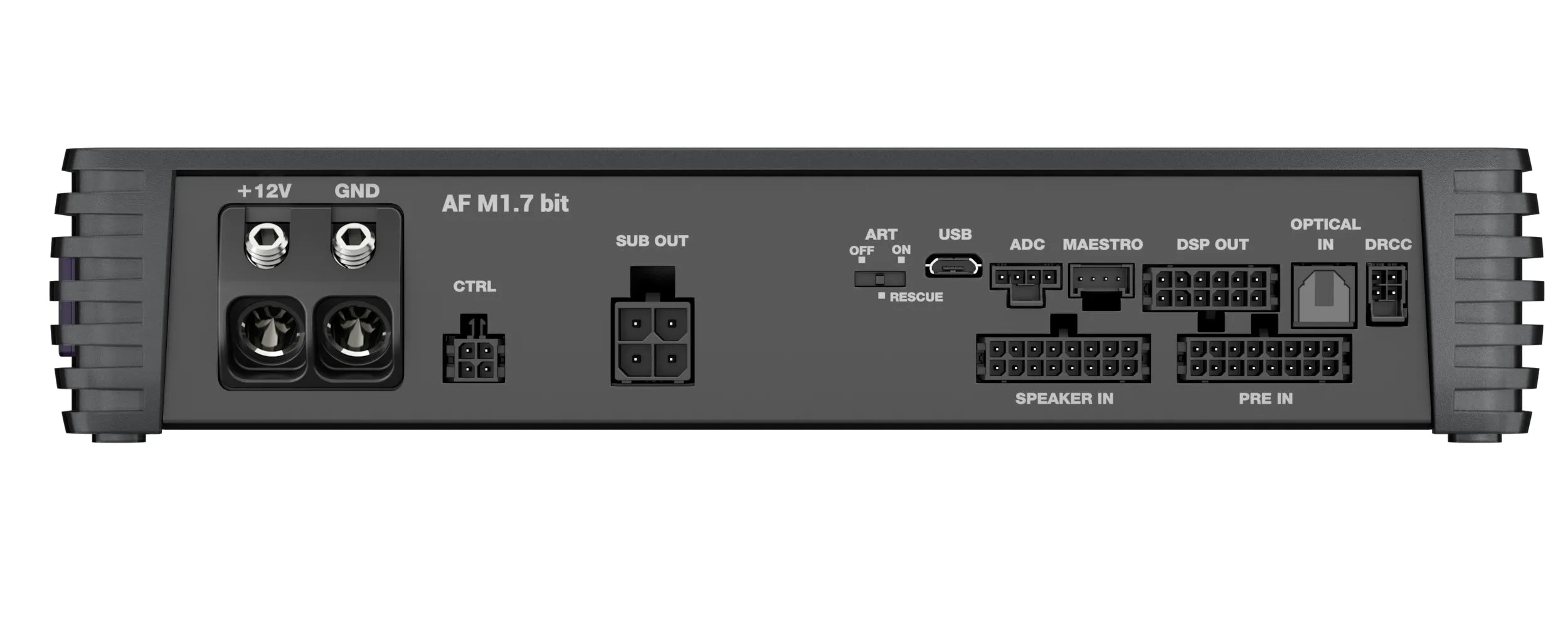

Audison Forza AFM1.7bit 7ch DSP Mono Amplifier

Audison Forza AFM1.7bit 7ch DSP Mono Amplifier

DSP Amplifier | 1200 W | 7 CH DSP + 1 x 1200 W @ 1 ohm | D-class

The Audison Forza AF M1.7 bit combines a powerful Class-D amplifier with cutting-edge DSP technology. This amplifier delivers 600W RMS at 4Ω, 1000W at 2Ω, and 1200W at 1Ω—matching the proven Forza AF M1D—but adds a powerful 24-bit, 96kHz DSP. The bit Drive software for the AF M1.7 bit includes specific algorithms for optimizing in-car subwoofer performance. The DSP provides equalization, crossover, time delay management, level adjustments, and dynamic loudness.

The AF M1.7 bit also features the exclusive “Bass-Magnifier” function, which maximizes low-frequency output in the cabin for an immersive listening experience and realistic dynamic response. It supports 8 input channels and up to 12 using the optional F4IN card with flexible routing and mixing capabilities via the bit Drive software. It includes the Universal Speaker Simulator (USS) circuit for perfect integration with OEM audio systems.

The AF M1.7 bit is compatible with the high-resolution Bluetooth receiver B-CON and its B-CON go app for remote control from a smartphone. Compatibility extends to the new DRC MP CAN and DRC AC remote controllers. The AF M1.7 bit is ideal for car audio enthusiasts seeking exceptional sound quality and advanced control features.

Features

• State-of-the-Art DSP Technology: features subwoofer-specific DSP processing, including EQ, crossovers, delay, Dynamic Bass EQ, and Audison’s proprietary Bass Magnification Processing for enhanced in-car subwoofer performance.
• High Power Output: delivers 600W RMS @ 4Ω, 1000W @ 2Ω, and 1200W @ 1Ω, based on the proven AF M1D subwoofer amplifier design.
• Versatile Input Options: 8 input channels and up to 12 with optional AF4IN expansion card, allowing for integration with all OEM systems.
• Advanced DSP management of input channels: includes eRTA for accurate alignment of channels amplitude, phase, and time, ensuring linearity before tuning.
• Advanced DSP management of output channels: bit Drive software provides flexible control over routing and mixing, managing the bit processor’s 6 preamp outputs.
• ACCORDO automated system tuning: acoustically tunes a car-audio system to a selected target-curve, with time and phase alignment, in just a few steps.
• Universal Speaker Simulator (USS): ensures compatibility with OEM systems by providing a load that satisfies speaker-test expectations.
• Optional F2O card: 2nd Toslink in and coaxial SPDIF in.
• Full integration with B-CON hi-res receiver: AF M1.7 bit supports Absolute Volume control of B-CON Go and it’s compatible with B-CON Go app control.
• Flexible System Integration: AF M1.7 bit is the ideal solution for Add-a-Sub installations, full DSP-managed systems, and pairing with Forza companion amplifiers.
• Enhanced Control Options: AF M1.7 bit is fully compatible with the new DRC MP CAN and DRC AC for advanced user control and customization.

Specifications

For more information, please visit the manufacturer's website.
