Class AB Mono Block Amplifier (1 channel)
1x 1700 watts RMS @ 1Ω
1x 1300 watts RMS @ 2Ω
1x 700 watts RMS @ 4Ω
1x 1700 watts RMS @ 1Ω
1x 1300 watts RMS @ 2Ω
1x 700 watts RMS @ 4Ω
Purchase
If you are interested in buying this item please contact us via our contact page.
$15 Flat rate shipping*
Description

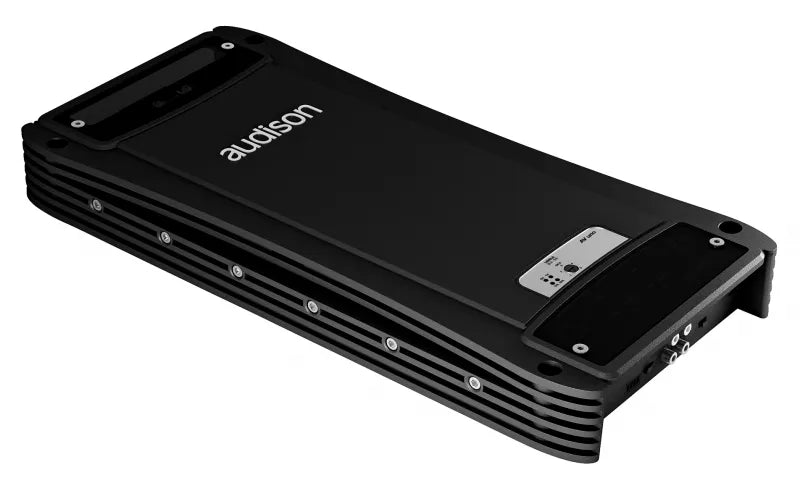

xAudison Voce AV UNO Mono Amplifier
AV uno is an amplifier featuring an innovative circuitry called POD (Power On Demand). It allows to combine the plus points, in terms of audio quality and robustness, of the AB Class traditional amplifiers with the efficiency of the D Class amplifiers.
AV uno is a mono amplifier designed to drive the subwoofer but also suitable for high power Dual Mono systems.
Power, control and outstanding final stages are capable to unbelievable bass and extraordinary musical quality on the whole frequency range.
AV uno also allows you to replace the analog input board with the digital one(AV bit IN).
Features
- POD (Power On Demand) circuitry to combine AB Class sound with the efficiency of the D Class.
- Suitable for high-power Dual Mono systems and subwoofer systems.
- 1 x 1700 W RMS @ 1ohm stable.
Specifications
|
Amplifier Tech Data |
|
|
Channels |
1 |
|
Class |
AB-Class |
|
Hi Level Input |
Yes |
|
Low Level Input |
Yes |
|
Digital Input |
No |
|
Power supply voltage / fuse |
11 ÷ 15 VDC |
|
Idling current |
2 A |
|
Idling current when off |
0.02 mA |
|
Consumption @ 14.4 VDC, 1Ω, Max Musical Power |
120 A |
|
Remote OUT |
12 VDC - 50mA |
|
Remote IN |
7 ÷ 15 VDC - 1mA |
|
Amplifier Stage |
|
|
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power |
0.04 % |
|
Bandwidth A |
(-3 dB, 2 VRMS, 4 Ω): 7 ÷ 20k Hz |
|
S/N ratio A |
(A weighed @1 V): 95 dBA |
|
Damping factor A |
(1kHz, 4 Ohms): 160 |
|
Input sensitivity Pre-In |
0.3 ÷ 5 V RMS |
|
Pre In Impedance |
15k Ω |
|
Input sensitivity Speaker-In |
1.4 ÷ 24 V RMS |
|
Input impedance Speaker-In |
5k Ω |
|
Total Power RMS |
1300 W |
|
Minimum load impedance |
1Ω |
|
Output Power (RMS) @14.4 VDC, 1% THD |
1 Ch: 700 W x 1(4Ω) 1 Ch: 1300 W x 1(2Ω) 1 Ch: 1700 W x 1(1Ω) |
|
Adjustable Crossover |
Yes |
|
CEA Specifications |
|
|
Output power @ 4Ω, 1% THD+N, 14.4 V |
Output power @ 4Ω, 1% THD+N, 14.4 V: 700 W x 1 |
|
SN ratio (ref. 1W output) |
SN ratio (ref. 1 W output): 80 dBA |
|
Inputs |
|
|
Input Type |
Pre IN / Speakers IN |
|
Filters Outputs |
Hi-Pass Pre OUT (50 ÷150 Hz) |
|
Filter Pass A |
(Full/Lo-Pass): 50 ÷ 150 Hz @ 24dB/Oct. |
|
Inputs/Outputs Bass Boost |
50-70-90 Hz / 0 ÷ 6 dB |
|
Inputs/Outputs Subsonic |
Off ÷ 50 Hz @ 24dB/Oct. |
|
Remote Sub Volume |
(-50 ÷ 6) dB |
|
Other |
|
|
Fuse |
100 A |
|
Weight |
7.2 kg |
Â
For more information, please visit the manufacturer's website.
