Power: 300 watts RMS
Impedance: Dual 2Ω
Downward firing compact enclosure
Dimensions (H x W x D): 187 x 470 x 375 mm
$15 Flat rate shipping*
We offer a $15 flat rate Australia-wide shipping service, no matter how many items, however large or heavy items may incur a higher freight charge. If your item/s is subject to additional freight charges due to being large or heavy, this will be calculated at checkout. If any damage occurs during shipping, it is the responsibility of the customer to notify us within 24 hours of the order arriving. This is a requirement of our freight insurance and we are unable to lodge any claims after 24 hours from delivery.

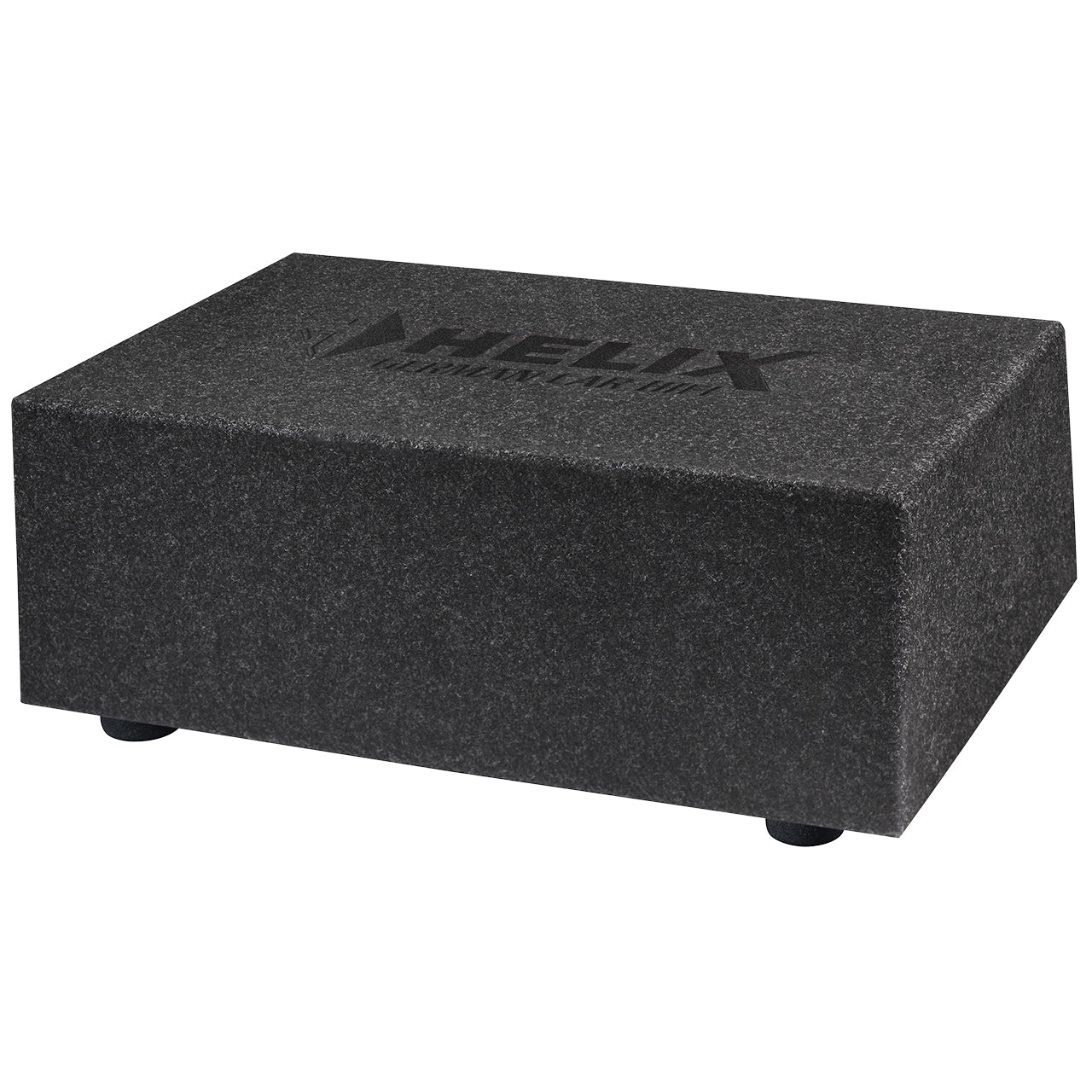

Compact in size but huge in sound. The K-Series enclosure subwoofers don´t show any mercy when their powerful beats excite you.
Smart downfire housing design
Lots of technical finesse was necessary to fulfill the demands of SPL junkies and audiophile music lovers at the same time. The design of the downfire subwoofer is aimed using the floor as a reflection surface. It also allows a flatter design so that the woofer can be stored under the false floor in the trunk to save space.
Rock-solid cones made from hand-scooped paper in combination with heavy-duty voice coils easily transform the power of your amplifier into loads of sound pressure without neglecting neither acoustical details nor sonic precision.
The double voice-coil design offers more flexibility when selecting an appropriate power amp. No matter if 1 x 4 Ohms, 2 x 2 Ohms or 1 x 1 Ohm – these "deep bass warrantors" make any configuration easily possible.
10“ / 250 mm high excursion woofer with hand-scooped paper cone and dual voice coil
Downfire enclosure technology for perfect protection of the speaker and ideal bass dispersion in the vehicle
Sturdy carpet surface with embroidered HELIX logo
Plugable screw terminal for a quick and safe installation or removal
Voice coil impedance configurable via connection terminal – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
Compact enclosure dimensions
Dimensions (H x W x D): 187 x 470 x 375 mm
Power RMS / max.
300 / 600 Watts
2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion
+/- 8.0 mm
Port tuning frequency
Efficiency 1 W / 1 m
Dimensions (H x W x D)
187 x 470 x 375 mm / 7.4 x 18.5 x 14.8”
Recommended DSP settings
Recommended "self-define" highpass filter with 37 Hz cut-off frequency and Q = 1.5; additional EQ filter 115 Hz / Q = 0.7 / -2 dB
