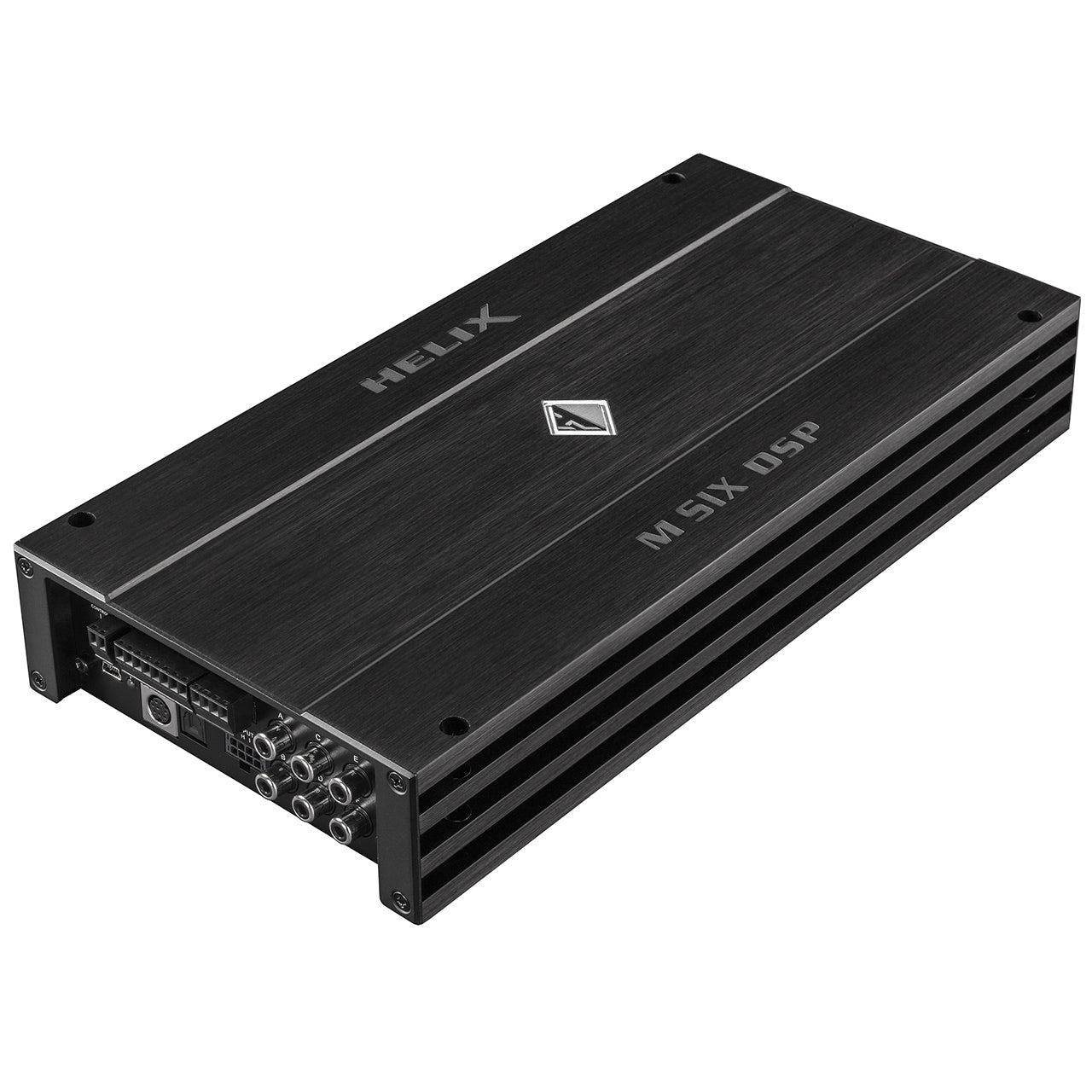

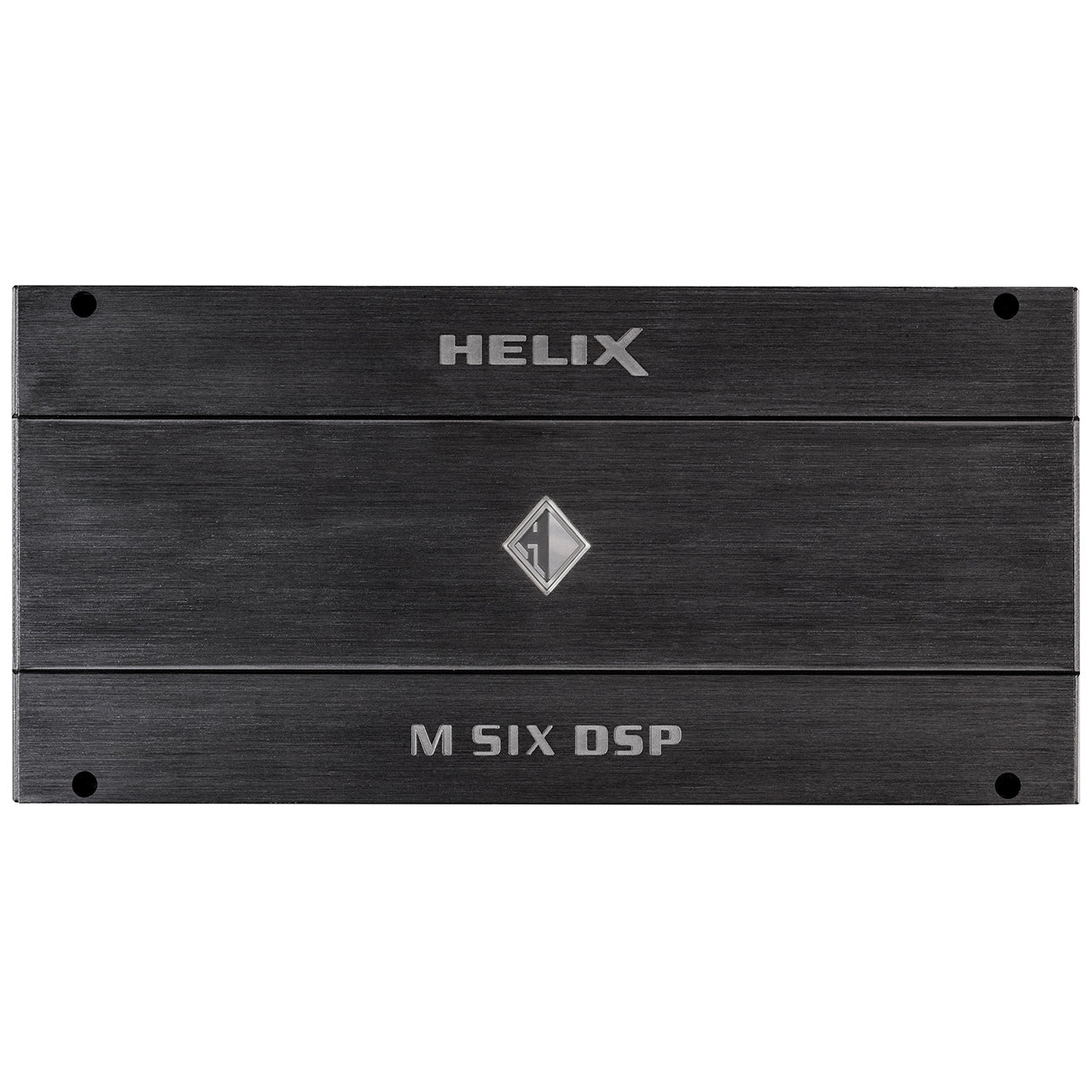

Helix M Six DSP 6ch Amplifier And 10ch DSP

$1,500.00
$0.00
$1,500.00
Brand: Helix
SKU: HEL M SIX DSP
Availability: In Stock
10ch audio signal processor
6 x 100 watts class D amplifier
Smart 6-channel highlevel input with ADEP.3 circuit
Four RCA / Cinch line outputs
German Made DSP
$15 Flat rate shipping*

HELIX M SIX DSP AMP

Helix M Six DSP 6ch Amplifier And 10ch DSP

$1,500.00
HELIX M SIX DSP AMP
HELIX M SIX DSP AMP
HELIX M SIX DSP AMP
HELIX M SIX DSP AMP

Helix M Six DSP 6ch Amplifier And 10ch DSP

$1,500.00
Description
Description
x

The M SIX DSP is more than “just” another six-channel amplifier – rather, despite its small dimensions, you are dealing with a powerful control center that has not less than a total of ten processed DSP channels. In addition, the amplifier delivers plentiful output power with generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load.

Features

  • Up to 130 Watts RMS max. output power per channel into 4 & 2 Ω

  • Extremely powerful 64 Bit “fixed point” Audio DSP and state-of-the-art AD and DA signal converters

  • ACO – Advanced 32 Bit CoProcessor platform for enhanced system and DSP features like:

    • ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals

    • SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.

  • Smart 6-channel highlevel input with ADEP.3 circuit

  • Four RCA / Cinch line outputs with max. 6 Volts output voltage

  • Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems

  • Bridgeable amplifier channels for driving powerful woofer or subwoofer

  • DSP-board manufactured in Germany

  • Dimensions (H x W x D): 50 x 320 x 154 mm

Specifications

Power RMS  ≤ 1% THD+N

- @ 4 Ohms

6 x 100 Watts

- @ 2 Ohms

6 x 100 Watts

- @ 1 Ohm

-

- bridged @ 4 Ohms

3 x 200 Watts

- bridged @ 2 Ohms

-

Max. output power per channel*

Up to 130 Watts RMS @ 4 / 2 Ohms

Amplifier technology

Class D

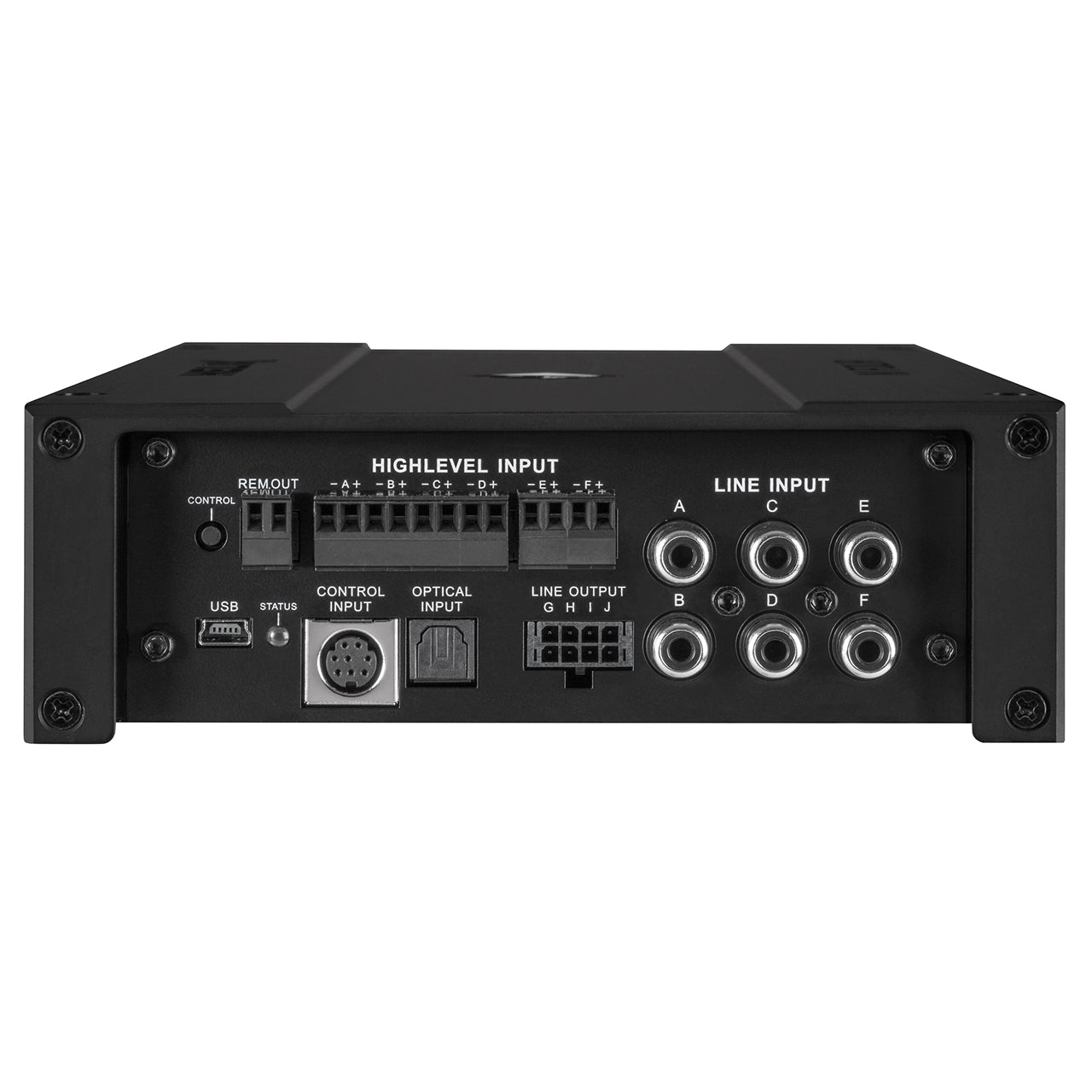

Inputs

6 x RCA / Cinch 6 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote In

Input sensitivity

RCA / Cinch 1 - 4 Volts Highlevel 5 - 20 Volts

Input impedance RCA / Cinch

22 kOhms

Input impedance highlevel

9 - 33 Ohms or 20 kOhms

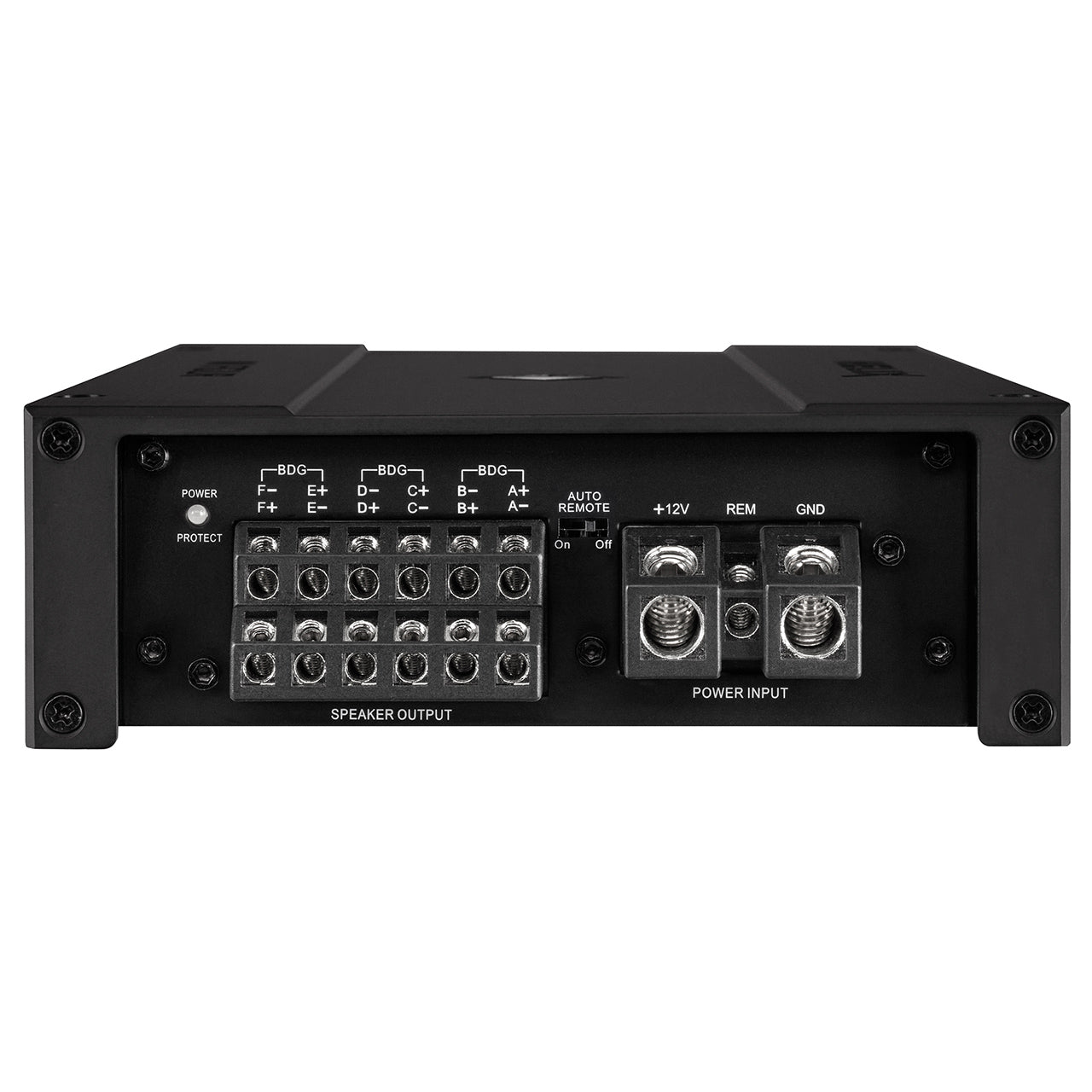

Outputs

6 x Speaker output 4 x RCA / Cinch 2 x Remote Out

Output voltage RCA / Cinch

6 Volts

Frequency response

20 Hz - 22,000 Hz

DSP resolution

64 Bit

DSP power

295 MHz (1.2 billion MAC operations/second)

Sampling rate

48 kHz

DSP type

Audio signal processor

Signal-to-noise ratio digital input

105 / 108 dB Speaker / Line Output (A-weighted)

Signal-to-noise ration analog input

102 / 105 dB Speaker / Line Output (A-weighted)

Distortion (THD)

< 0.03 / 0.005 % Speaker / Line Output

Damping factor

100

Operating voltage

10.5 - 16 Volts (max. 5 sec.down to 6 Volts)

Idle current

1950 mA

Max. remote output current

500 mA

Fuse

2 x 35 A Maxi-fuse (APX)

Power rating

DC 12 V ⎓ 80 A max.

Additional features

ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input

Dimensions (H x W x D)

50 x 320 x 154 mm / 2.00 x 12.60 x 6.06”


For more information, please visit the manufacturer's website.
