Description

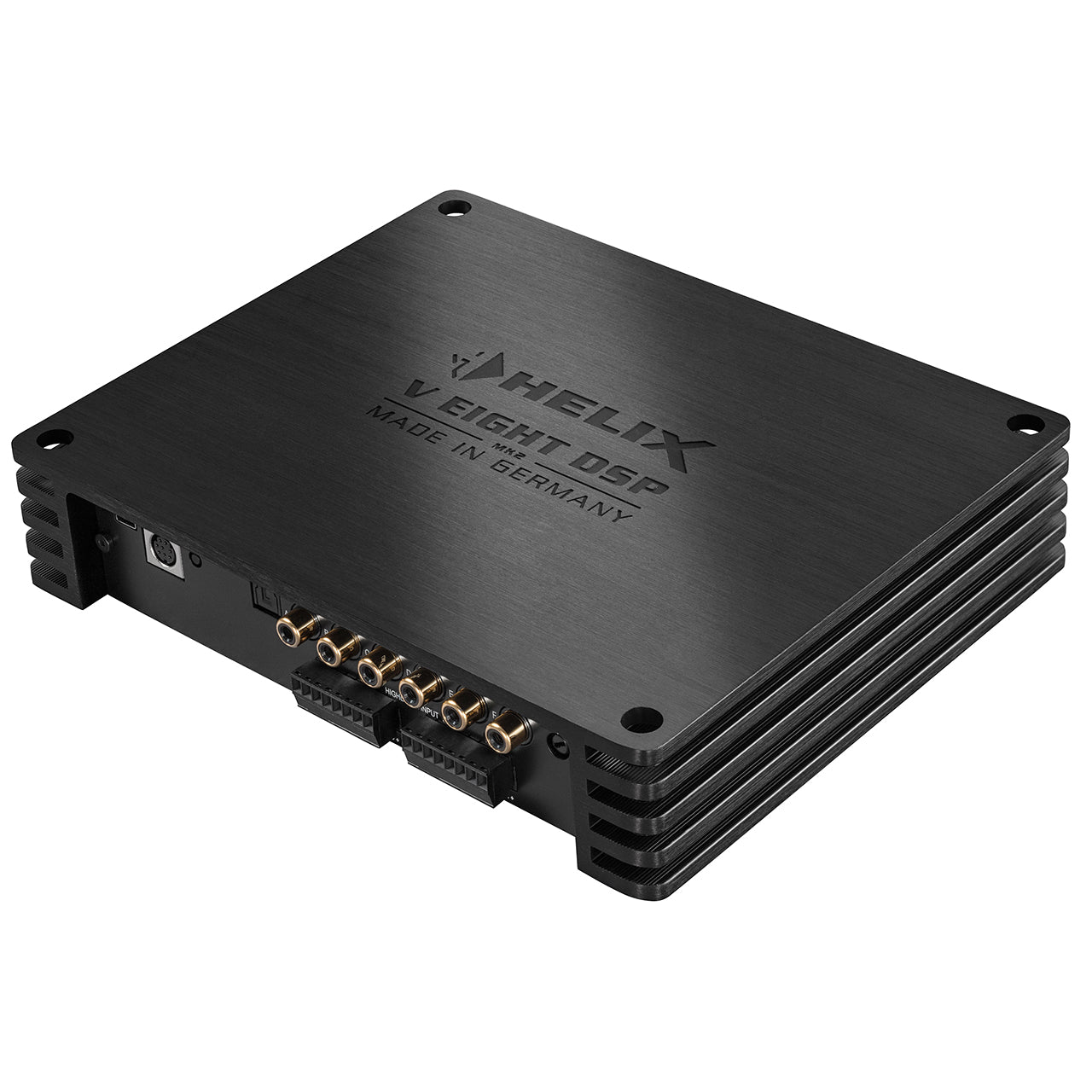

xThe small addition in the product name makes the big difference – the V EIGHT DSP MK2 is the logical evolution of its already more than impressive predecessor. Same look as before but in the inside we brought in all of our expertise to substantially optimize the hardware. The result is an 8-channel amplifier with ten processed DSP channels that is unrivaled in many ways.
Faster is better – the particularly powerful 32 Bit ACO platform takes over all control tasks and ensures the decisive speed increase, especially for data communication with our DSP PC-Tool software but also for the lightning-fast switching between up to ten sound setups. But ACO offers much more – fantastic sound effects such as Augmented Bass Processing or RealCenter are implemented as well as a channel-separated Input EQ including the Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios.
Audiotec Fischers proprietary Pure Class GD concept takes the efficiency of conventional Class D amps to the next level. By varying the internal supply voltage depending on the amplifier’s input signals, idle losses are significantly reduced and overall efficiency is close to maximum at any time.
Features
- Up to 160 W RMS output power per channel into 2 Ω
- “Pure Class GD” concept for outstanding sound quality combined with best possible efficiency
- Extremely powerful 64 Bit “fixed point” Audio DSP
- ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
- ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
- SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
- High power 8-channel highlevel input with up to 32 V RMS input sensitivity and ADEP.3 circuit
- Two processed RCA / Cinch outputs
- 1 to 1 Input / Output Routing (IOR) – same number of highlevel inputs and amplifier outputs
- Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems
- HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.
- Compact design with low heat dissipation thanks to extraordinary efficiency
- Dimensions (H x W x D): 44 x 220 x 180 mm
Specifications
| Power RMS ≤ 1% THD+N | |
| - @ 4 Ohms | 75 Watts per channel |
| - @ 2 Ohms | 120 Watts per channel |
| - @ 1 Ohm | - |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| Max. output power per channel* | Up to 160 Watts RMS @ 2 Ohms |
| Amplifier technology | Pure Class GD |

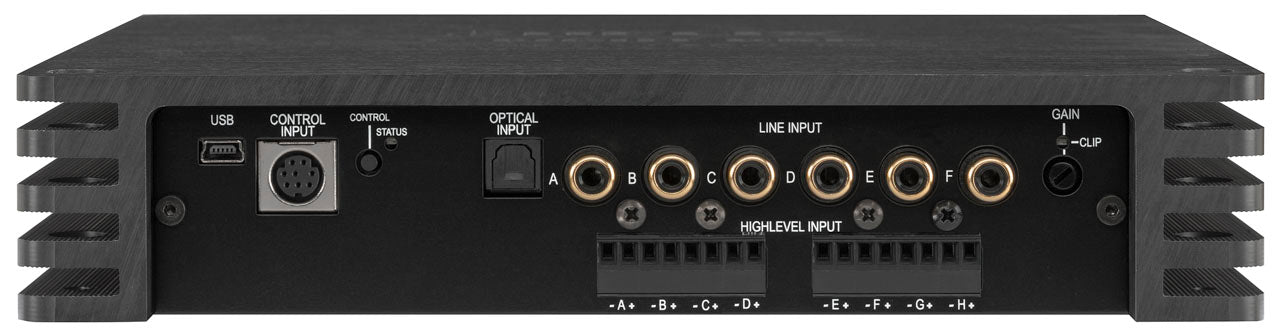

| Inputs | 6 x RCA / Cinch 8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Remote In |
| Input sensitivity | RCA / Cinch max. 4 V or max. 8 V Highlevel max. 16 V or max. 32 V |
| Input impedance RCA / Cinch | 12 kOhms |
| Input impedance highlevel | 9 - 33 Ohms or 20 kOhms |

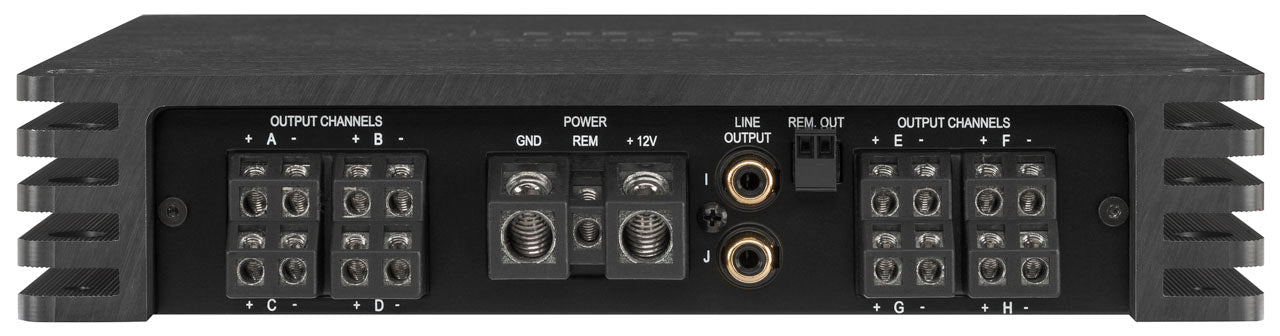

| Outputs | 8 x Speaker output 2 x RCA / Cinch 2 x Remote Out |
| Output voltage RCA / Cinch | 3 Volts RMS |
| Frequency response | 20 Hz - 22,000 Hz |
| DSP resolution | 64 Bit |
| DSP power | 295 MHz (1.2 billion MAC operations/second) |
| Sampling rate | 48 kHz |
| DSP type | Audio signal processor |
| Signal converters | A/D: AKM 32 Bit D/A: AKM 32 Bit |
| Signal-to-noise ratio digital input | 107 dB (A-weighted) |
| Signal-to-noise ration analog input | 102 dB (A-weighted) |
| Distortion (THD) | < 0.015 % |
| Damping factor | > 70 |
| Operating voltage | 10.5 - 16 Volts (max. 5 sec.down to 6 Volts) |
| Idle current | 540 mA |
| Max. remote output current | 500 mA |
| Fuse | 2 x 30 A LP-Mini-fuse (APS) |
| Additional features | HEC slot, ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input |
| Dimensions (H x W x D) | 44 x 220 x 180 mm / 1.73 x 8.66 x 7.09“ |
For more information, please visit the manufacturer's website.
