Description

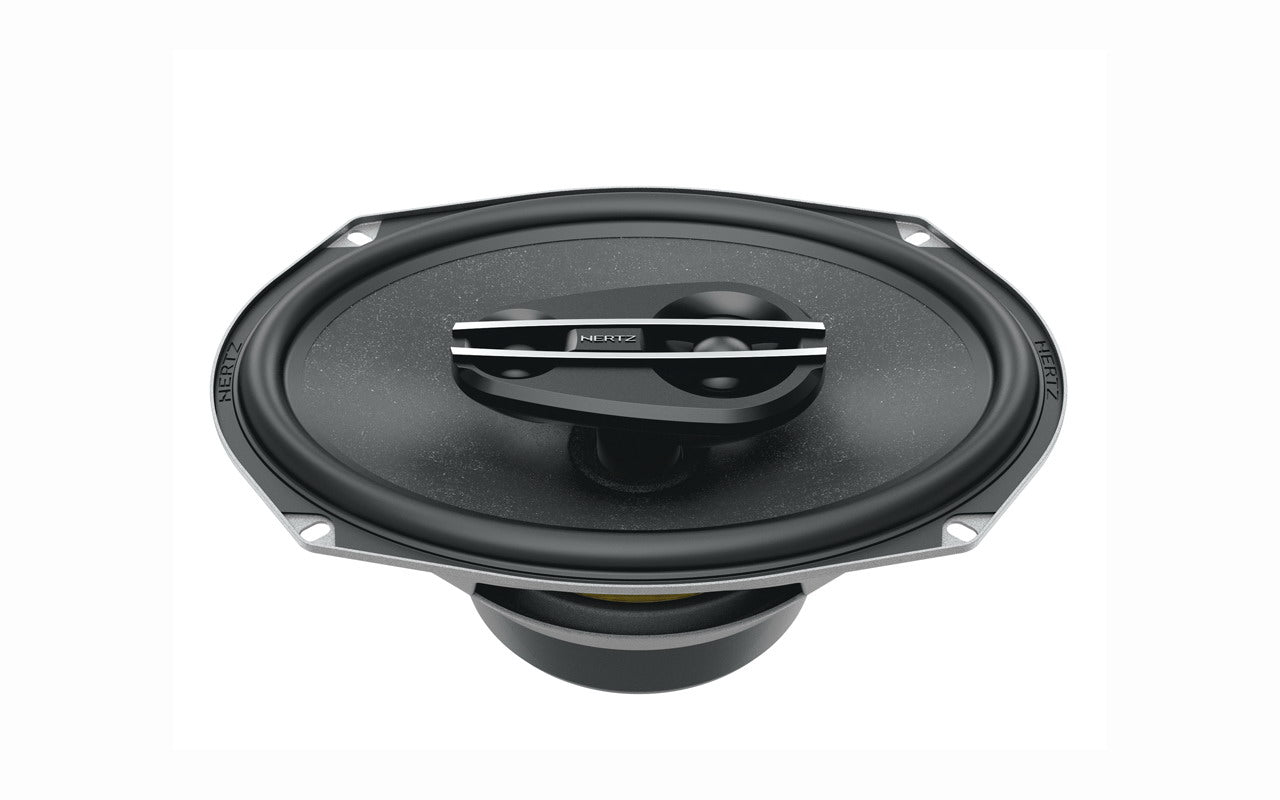

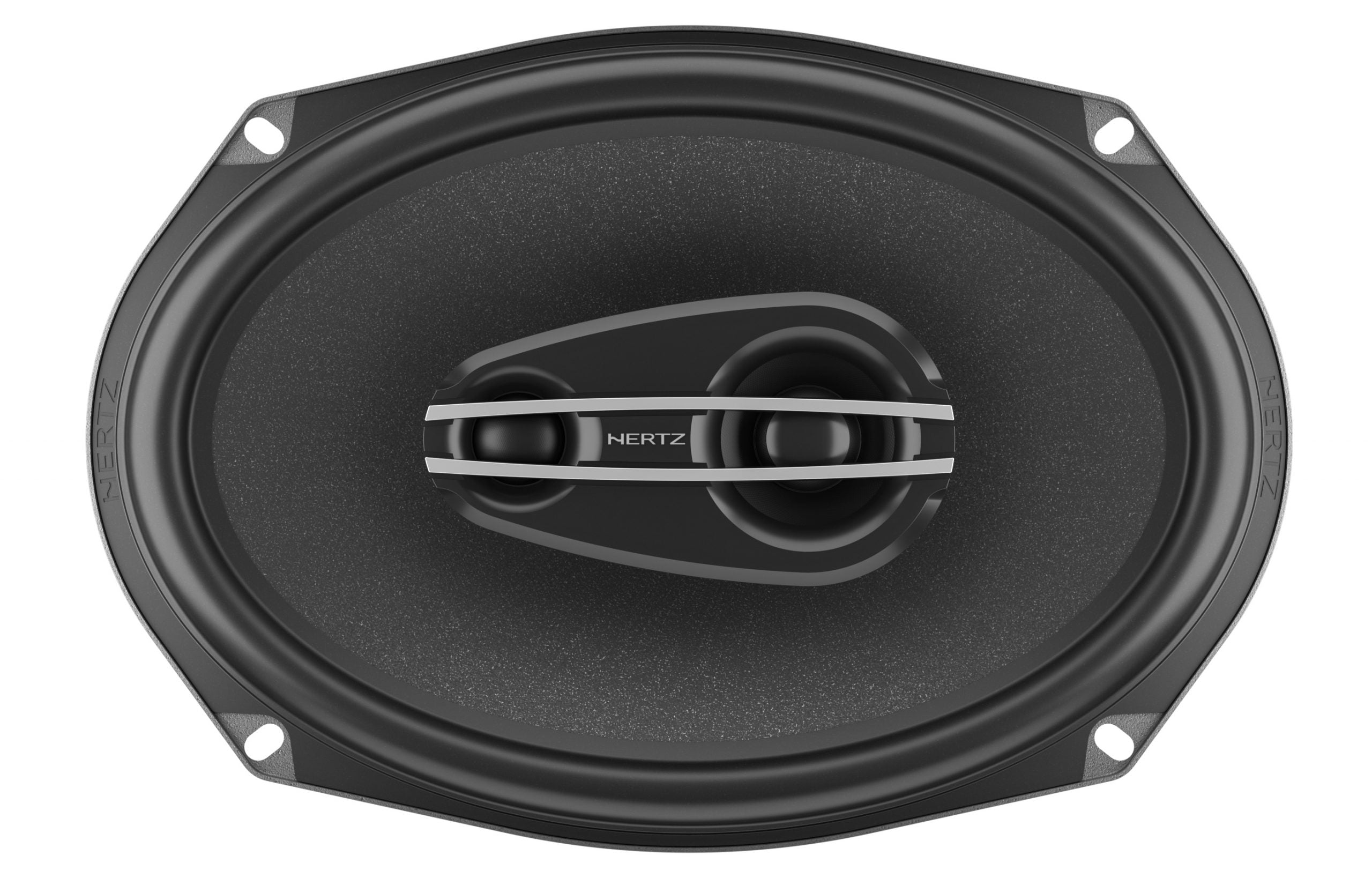

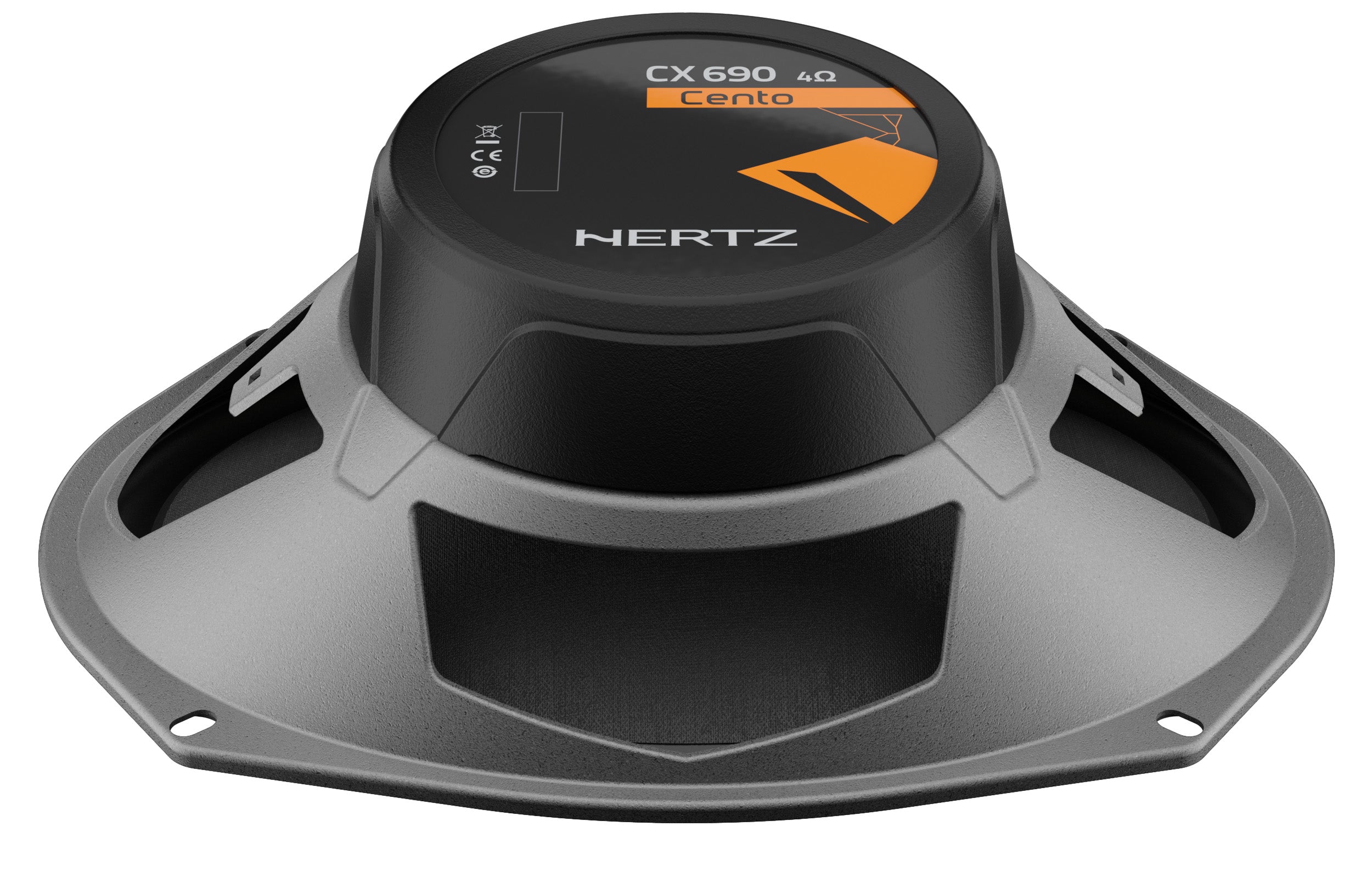

xThe three-way elliptical coax CX 690 featuring a 6x9 in. cone was designed to achieve maximum performance in horizontal installations and offering, even in this difficult condition, an exceptional tone balance and power handling.
Features
- 6×9 in. semi-pressed paper elliptical cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
- Wide rubber suspension engineered for a long excursion and excellent sound damping.
- High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
- Basket with metallic finish acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
- 40 mm (1.58 in.) dome tweeter for efficient distortion-free mid-high frequency reproduction.
- 20 mm (0.8 in.) dome supertweeter to maximize the level of very high frequencies in horizontal installations.
- Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
- Provided elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Specifications
|
Component |
Coaxials |
|
Size mm (in.) |
(6 x 9) |
|
Power Handling - Continuous W |
100 |
|
Power Handling - Peak W |
300 |
|
Impedance Ohm |
4 |
|
Tweeter diaphragm mm (in.) |
40 (1.58) |
|
Woofer Voice Coil Ø mm (in.) |
30 (1.2) |
|
Tweeter Voice Coil Ø mm (in.) |
28 (1.1) |
|
Frequency Response Hz |
40 ÷ 23k |
|
Woofer Magnet size D x d x h mm (in.) |
100 x 32 x 15 (3.94 x 1.26 x 0.59) |
|
Tweeter Magnet size D x h mm (in.) |
19 x 3 (0.75 x 0.12) |
|
Weight of one speaker kg (lb.) |
1,55 (3.42) |
|
Woofer Magnet |
High density flux ferrite |
|
Tweeter Magnet |
Neodymium |
|
Cone |
Semi-pressed paper + Mica |
|
Dome |
PEI |
|
Xmech mm (in.) |
5,5 (0.22) |
For more information, please visit the manufacturer's website.
