Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers
Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers
Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers
Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers
Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers
Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers
Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers
Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers

Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers

$165.00
$165.00
Brand: Hertz
SKU: DCX170.3
Availability: In Stock
2-way slim coaxial speakers
Diameter: 17cm (6.7″)
RMS Power: 50 watts
Frequency response: 60Hz - 21,000Hz

Purchase

If you are interested in buying this item please contact us via our contact page.

Contact Us
$15 Flat rate shipping*

Description
Description
x

Hertz DCX 170.3 Dieci 6.7 Inch 2-Way Slim Coaxial Speakers

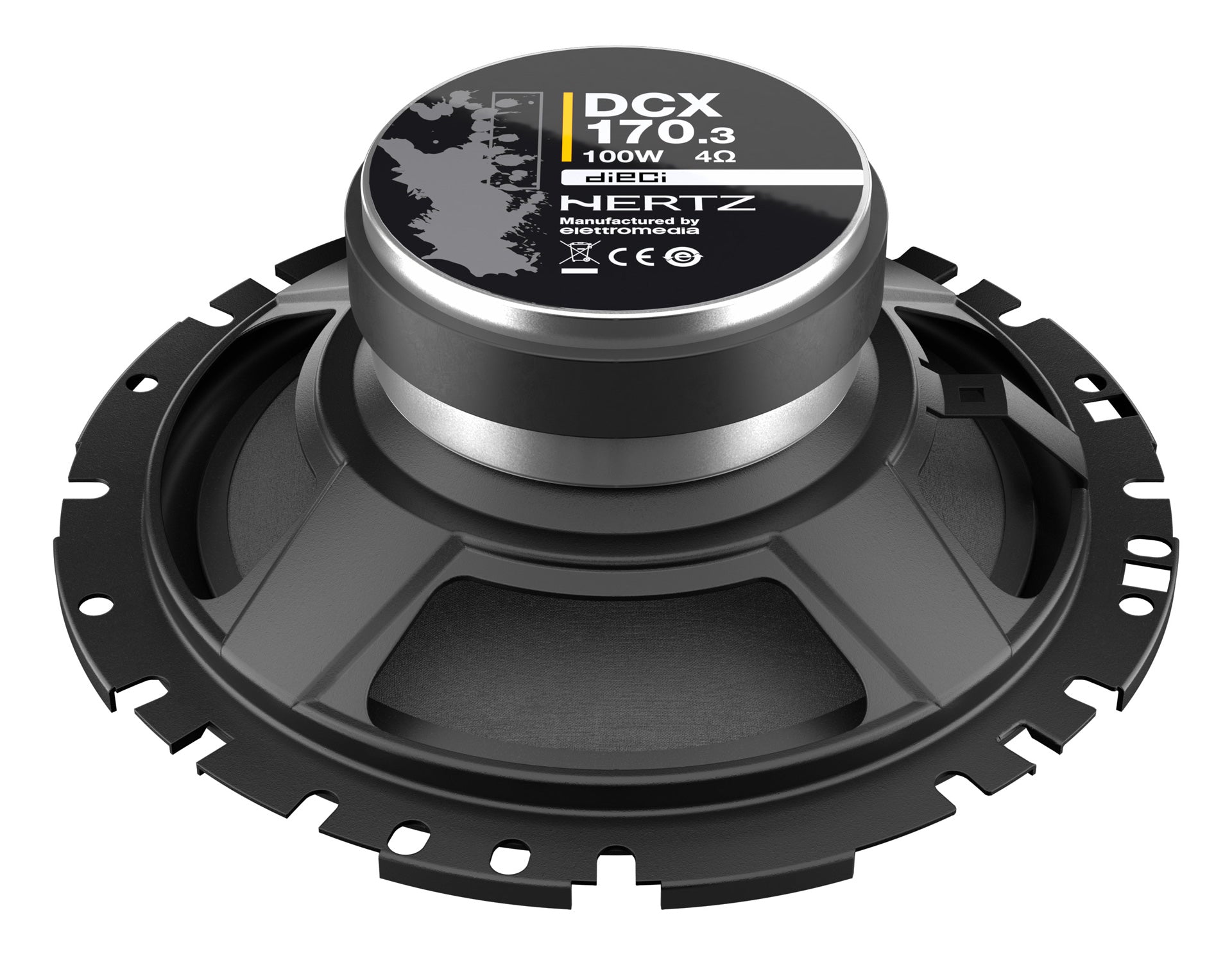

With its 51 mm (2,0 in.) maximum depth Hertz DCX 170.3 car audio coaxial, is a “flat” model optimized for installation in a vehicle’s door and/or other reduced spaces, without giving up on acoustic reproduction quality. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround, a copper voice coil wound on a Conex former and painstaking care in its build ensures performance surpassing other components within the same category.

Features

  • Shallow profile for an easy replacement of factory speakers.
  • Pure copper voice coil, wound on conex former, for maximum lightness.
  • Water-repellent treated paper cone.
  • TPU surround, for wide excursion and resonance damping.
  • Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
  • DIN size basket protected by abrasion-proof dust paint.
  • Tin-plated, high current terminals.
  • Silver-plated lead wires for maximum reliability and conductivity.
  • Epoxy glue for basket and motor system provides perfect coupling.
  • Low carbon content plates for maximum magnetic permeability and high heat dissipation.

Specifications

Component

Two way coaxial

Size mm (in.)

170 (6.7)

Power Handling - Continuous W

50

Power Handling - Peak W

100

Impedance Ohm

4

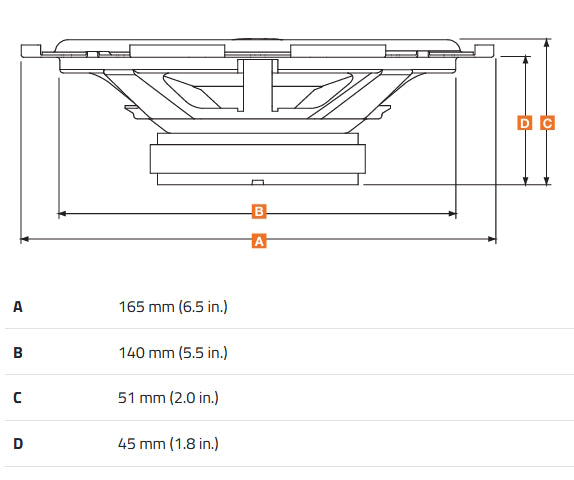

Depth mm (in.)

51 (2.0)

Woofer Voice Coil Ø mm (in.)

25 (1.0)

Frequency Response Hz

60 ÷ 21k

Woofer Magnet size D x d x h mm (in.)

80 x 32 x 10 (3.1 x 1.3 x 0.4)

Weight of one speaker kg (lb.)

0,56 (1.23)

Woofer Magnet

High density flux ferrite

Tweeter Magnet

Neodymium

Cone

Water-repellent pressed paper

Dome

PEI



For more information, please visit the manufacturer's website.
