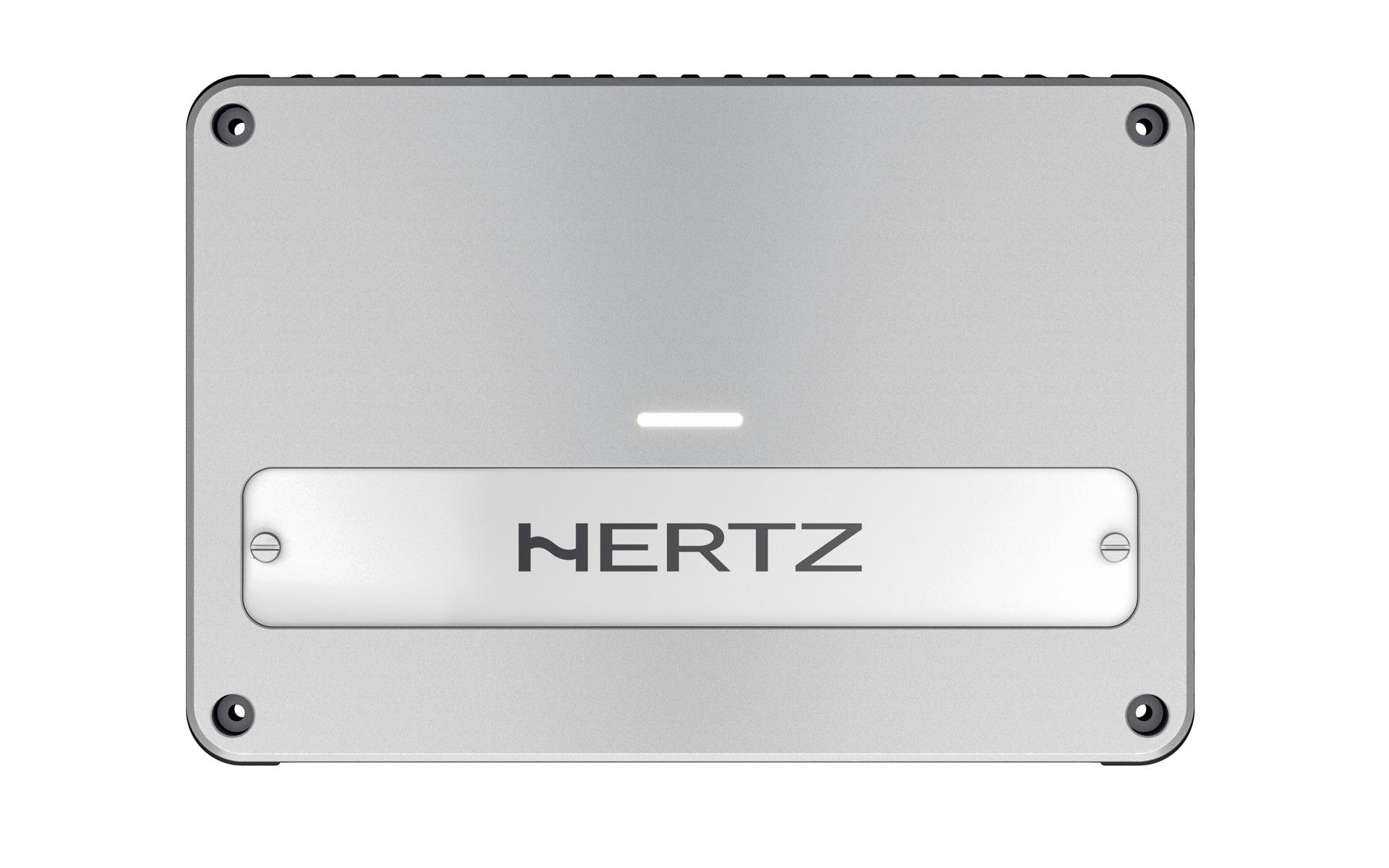

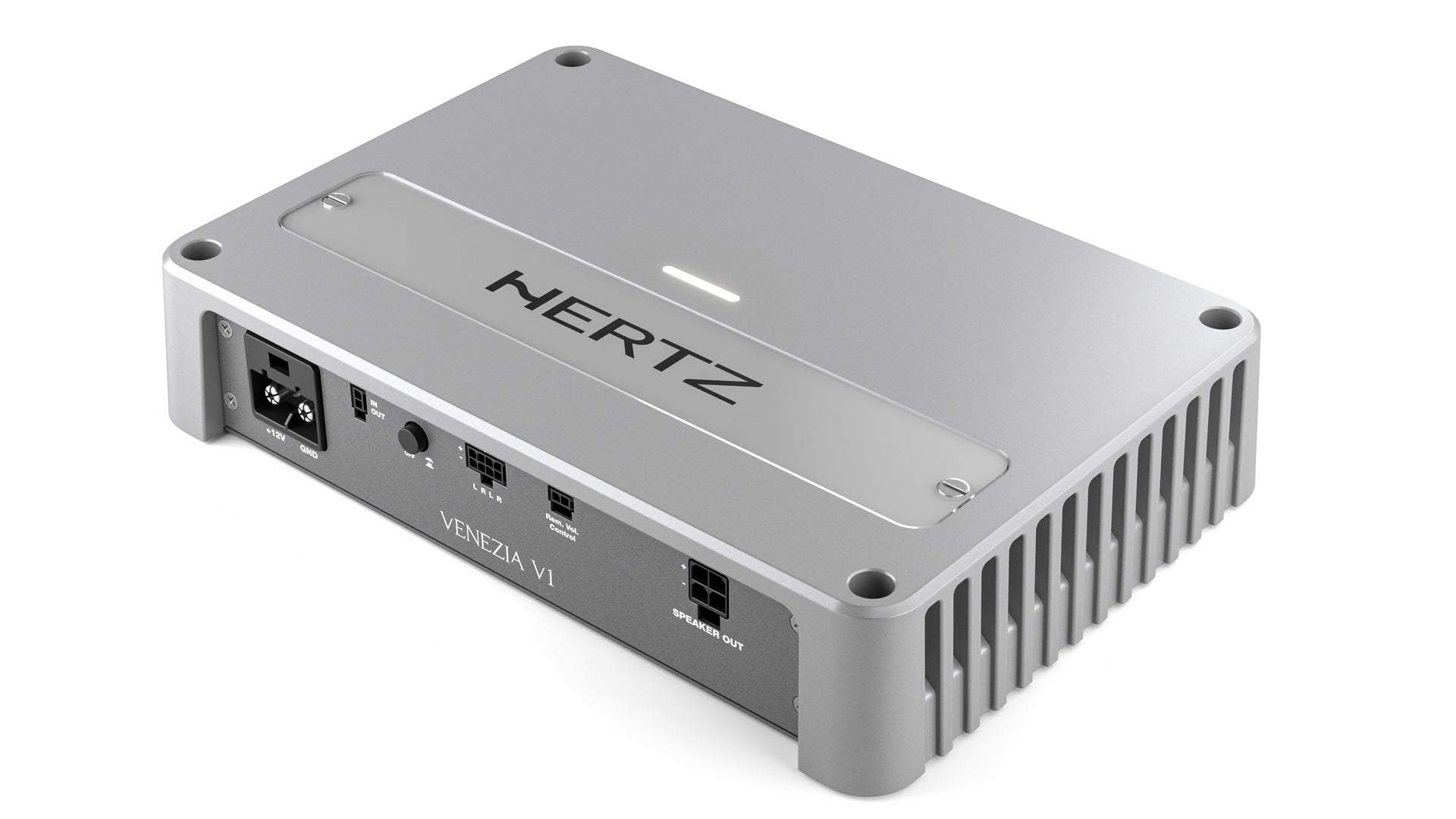

xHertz Venezia HMV1 Mono Marine Amplifier
Venezia V1 is the most-powerful mono Hertz marine amplifier ever, featuring 1260 W @ 1Ω stable! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation. Venezia V1 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V1 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
Features
- Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 1Ω stable output stage providing high performance with superior efficiency.
- Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit, overload, and thermal protections with auto-resetting.

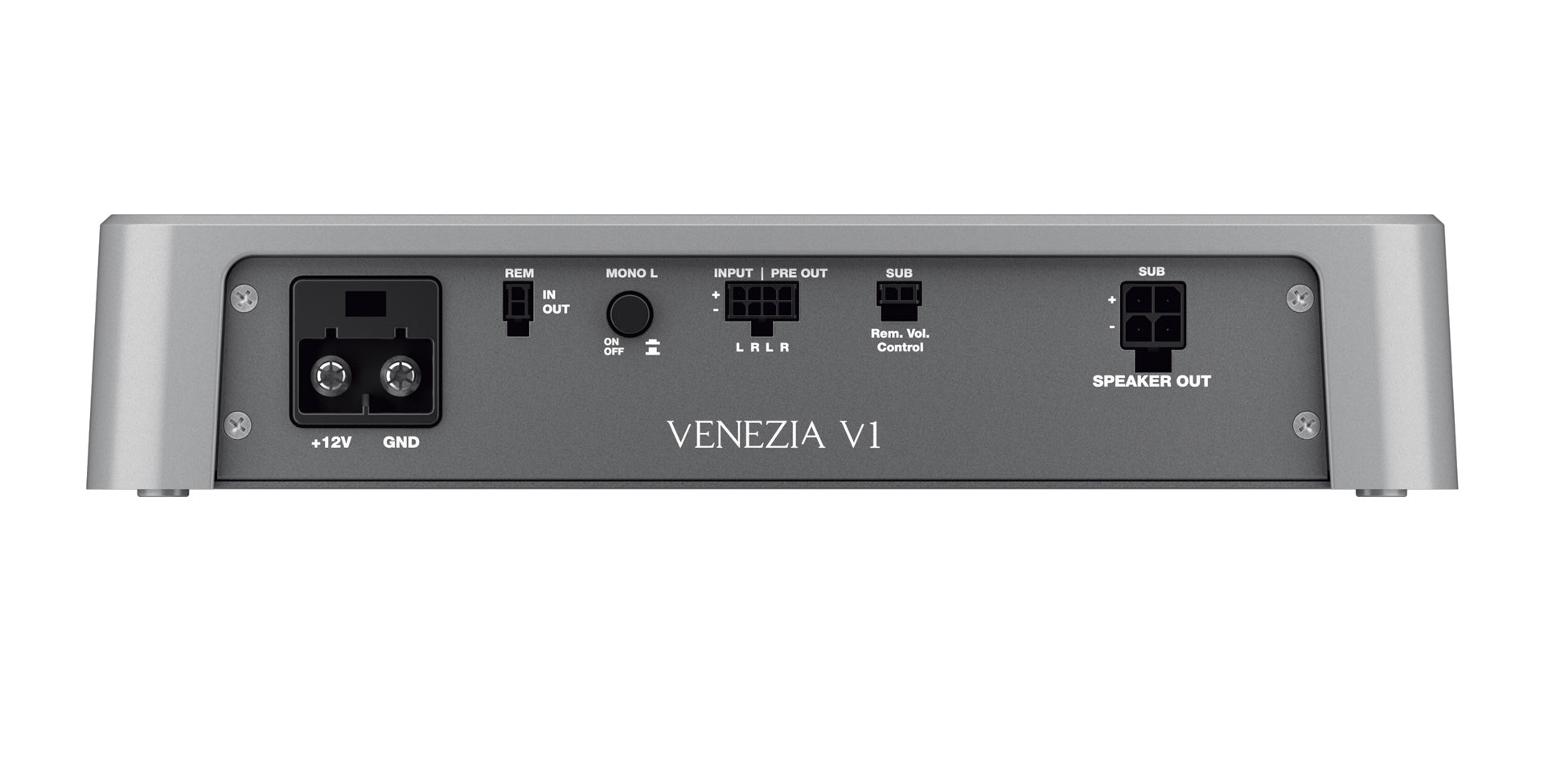

- Plug&Play Input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
Specifications
|
General Specs |
|
|
Channels |
1 |
|
POWER SUPPLY |
|
|
Power supply voltage |
9 ÷ 16 VDC |
|
ldling current (power ON/OFF): |
1 A / 0.04 mA |
|
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): |
52A |
|
Remote In: |
7 ÷ 15 VDC - 1 mA |
|
AMPLIFIER STAGE |
|
|
Distorsion - THD (100Hz @ 4Ω): |
<0,02% |
|
Bandwidth: |
10 ÷ 500 Hz |
|
S/N Ratlo (A welghted @ 1 V): |
102 dB |
|
Damping factor (100Hz @ 4Ω) |
500 |
|
Pre-ln sensitivity: |
0.2 ÷ 5 VRMS |
|
Pre-ln impedance: |
10kΩ |
|
Load impedance (MIN) |
1 Ω |
|
Adjustable Crossovers |
yes |
|
Output Power |
|
|
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% |
|
|
1Ch |
700 W (4Ω) |
|
1Ch |
1260 W (2Ω) |
|
1Ch |
1260 W (1Ω) |
|
Total Power RMS |
1260 W |
|
INPUTS / FILTERS |
|
|
lnputs: |
PRE IN |
|
Pre Out: |
Hi-Pass filter 50 ÷ 250 Hz @ 12 dB/Oct |
|
Filters: |
Yes |
|
By-pass |
Yes (Full) |
|
Lo-Pass: |
50 ÷ 500 Hz @ 24 dB/Oct |
|
Phase (adjust): |
(0 ÷ 180°) |
|
Subsonic: |
25 Hz @ 24dB/Oct. |
|
Bass boost 50 Hz (adjust): |
(0 ÷ 12) dB |
|
Physical Specs |
|
|
Weight |
2.72kg |
|
Dimensions |
270 x 185 x 54mm |
For more information, please visit the manufacturer's website.
