4ch Class D Amplifier + 8ch DSP
4x 135 watts RMS @ 2Ω
4x 100 watts RMS @ 4Ω
Dimensions: 220 x 44 x 150mm
4x 135 watts RMS @ 2Ω
4x 100 watts RMS @ 4Ω
Dimensions: 220 x 44 x 150mm
Purchase
If you are interested in buying this item please contact us via our contact page.
$15 Flat rate shipping*
Description
xMusway M4+ 4ch Amplifier with 8ch DSP
The new M4+v3 DSP amplifier can be considered as the little brother of the M6 model. The only difference: The M4+ four amplified speaker channels, but offers more power per channel than the larger M6. Both models also share the very compact dimensions, which is achieved due to its cleverly designed 4-way cladded circuit-board. The newly engineered Class D technology is particularly resistant to EMC interference, which is virtually indispensable in today‘s electronics-packed vehicles.
Each speaker output provides 135 watts RMS per channel (2 Ω) or 100watts RMS (4 Ω), the M4+v3 offers remarkable output power with a total of 540 watts RMS. With the included wiring harness, ISO plug and optional Plug + Play harnesses, the M4 + is perfect for tuning original 4-channel sound systems. Four additional DSP-tunable pre-amp outputs allow the integration of further amplifiers. Finally, the new M4+ amp also provides a high-level input with error protection system for trouble-free connection to OEM factory radios.
Features
- Intelligent High Level Input (Error Protection System)
- Start-Stop ready, Auto Turn-On
- Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
- Dual 32bit, 330 MHz DSP technology, controllable via new V3 PC software or V3 App
- Soft-Clipping (power attenuation) in 2 Ohm operation
- Signal-to-noise Ratio ≥90dB
- Frequency Response 15 Hz – 22 kHz (-3dB)
- THD ≤0,1% (1 kHz, 4Ω, 90% Power)
- Separately controllable input sensitivity (Channel 1-6, AUX), Clipping LEDs
- Plug+Play with vehicle-specific cable sets
- External Bluetooth® USB-Dongles BTS, BTS-HD & BTA2 for Audio Streaming & App Control (optional)
- Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

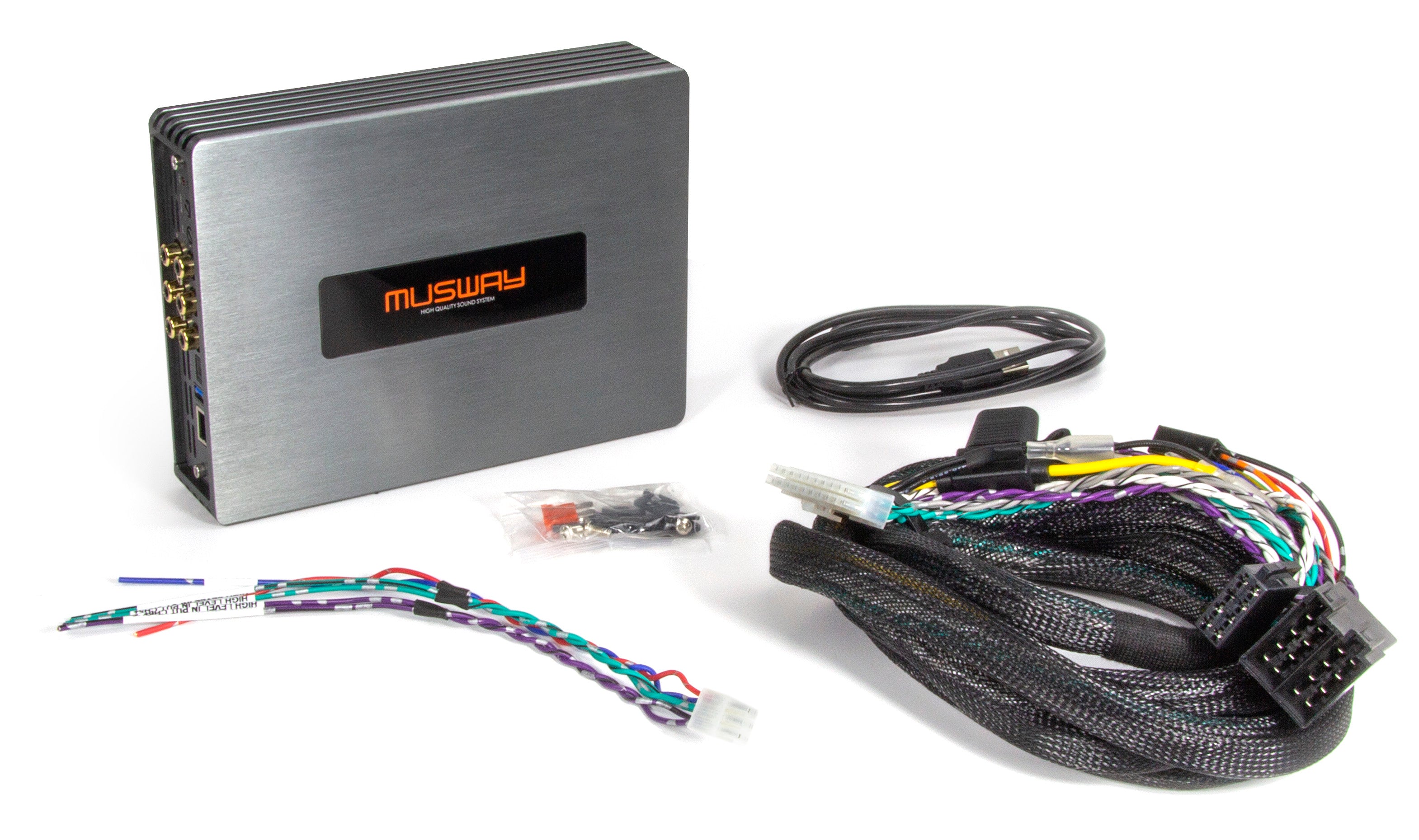

What’s included
- 1 x M4+V3 DSP Amplifier
- 1 x 2.5 m ISO Cable Harness with System Connector incl. 20 A Fuse
- 1 x 1.5 m USB Cable
- 1 x 6-pole Cable Adapter (INPUT CH5/6, REM IN/OUT)
- 4 x Mounting Bracket incl. Screws
- 1 x Owner’s Manual (English/German)
- 1 x 40 A replacement fuse
- 1 x 3 mm hex key
Specifications
|
Power output(RMS) @ 13.8 VDC, 1% THD |
4 x 100/135 Watts RMS @ 4/2 Ω or 2 x 270 Watts RMS @ 4 Ω bridged |
|
6 x High Level Input |
|
|
6 x RCA Low Level Input* |
|
|
2 x AUX/RCA Input, 1 x Optical Input/Stereo |
|
|
4 x Loudspeaker Output amplified |
|
|
4 x Pre-Amplifier Output/RCA (configurable via DSP) |
|
|
Dimensions |
220 x 44 x 150 mm |
|
* only with optional MPK-RCA6/MPK-RCA6-PP cable set |
|
For more information, please visit the manufacturer's website.
