Compact 4ch Class D Amplifier with 8ch DSP
Power output: 4 x 55rms
Inputs: Highlevel / RCA
Dimensions: 150 x 45 x 95mm
Power output: 4 x 55rms
Inputs: Highlevel / RCA
Dimensions: 150 x 45 x 95mm
Purchase
If you are interested in buying this item please contact us via our contact page.
$15 Flat rate shipping*
Description

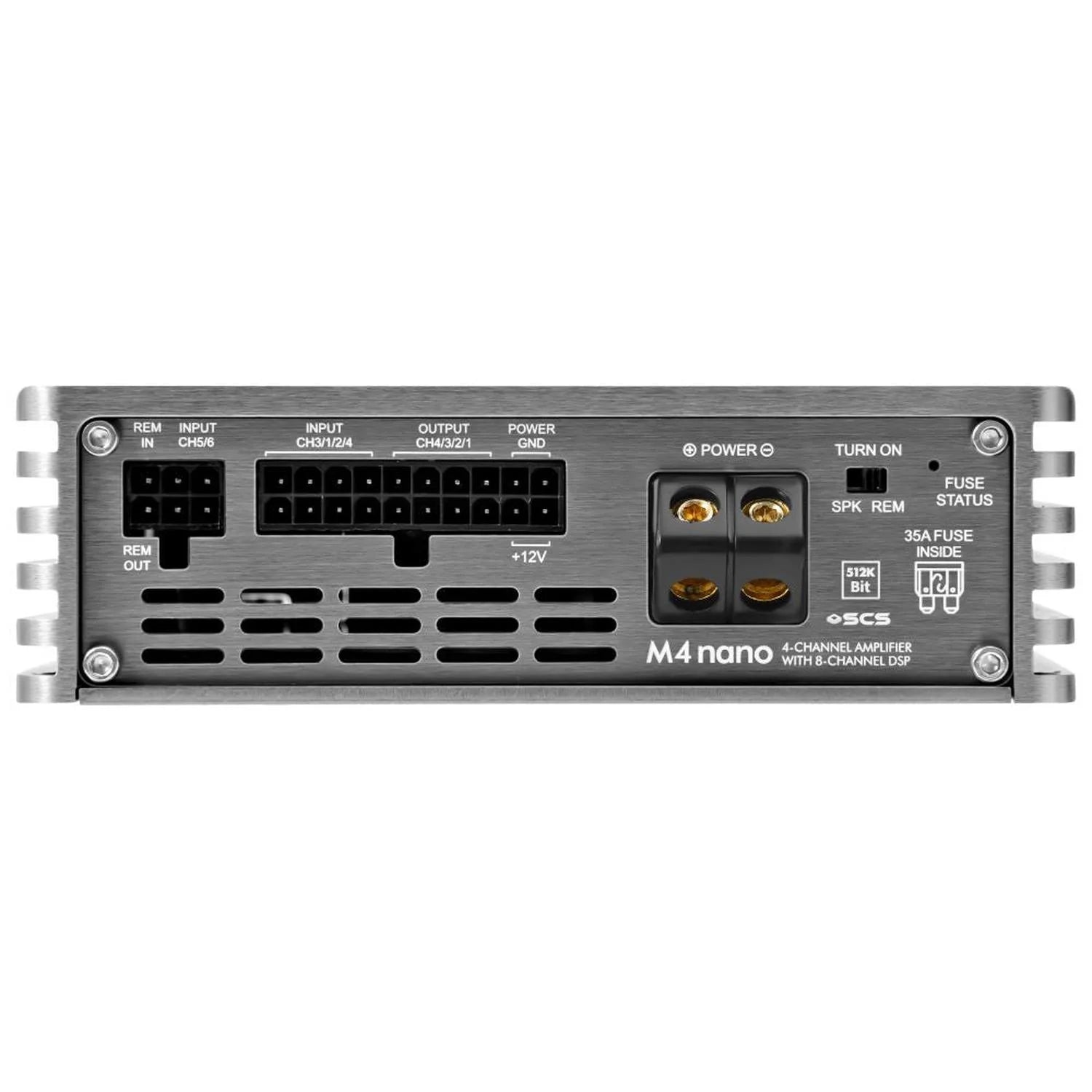

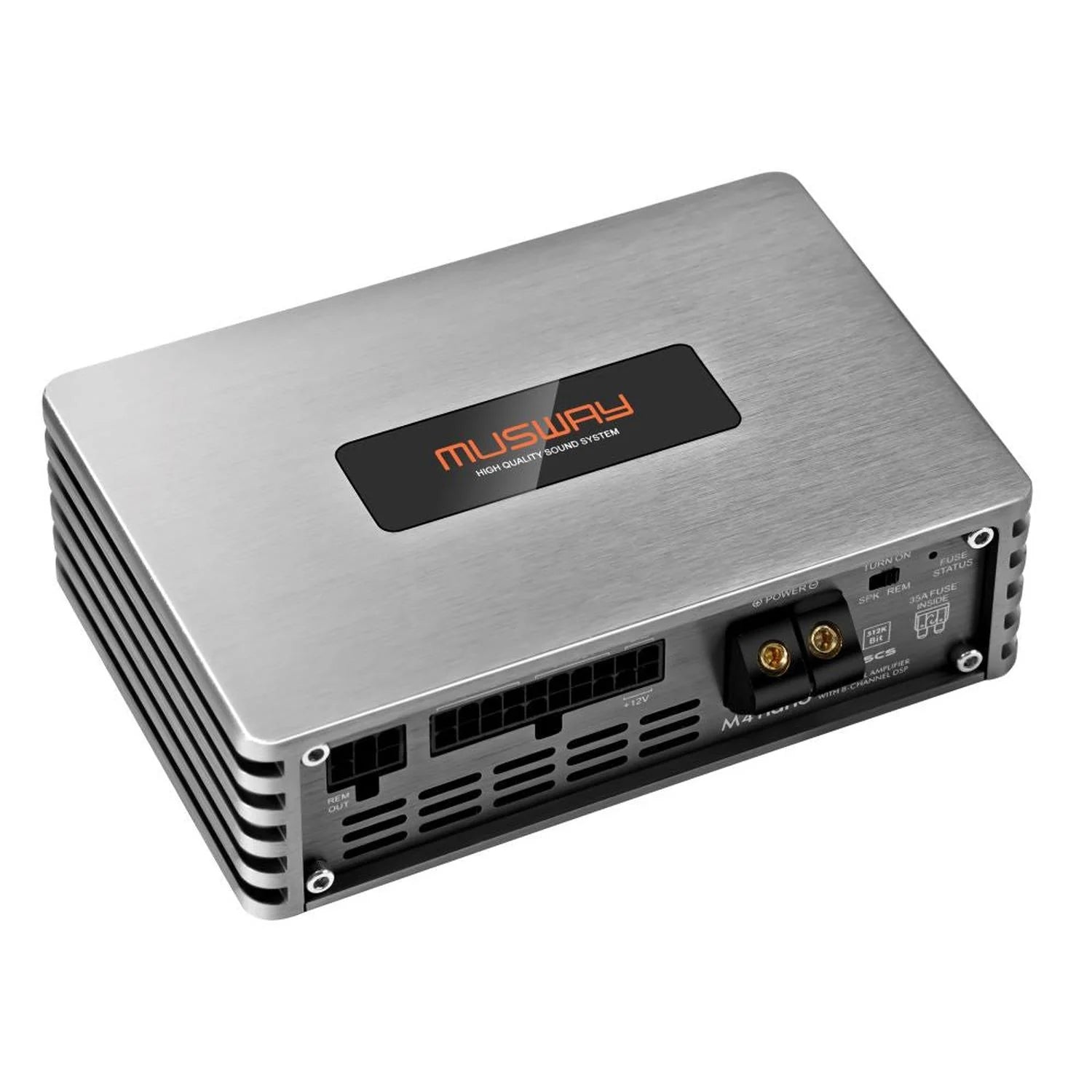

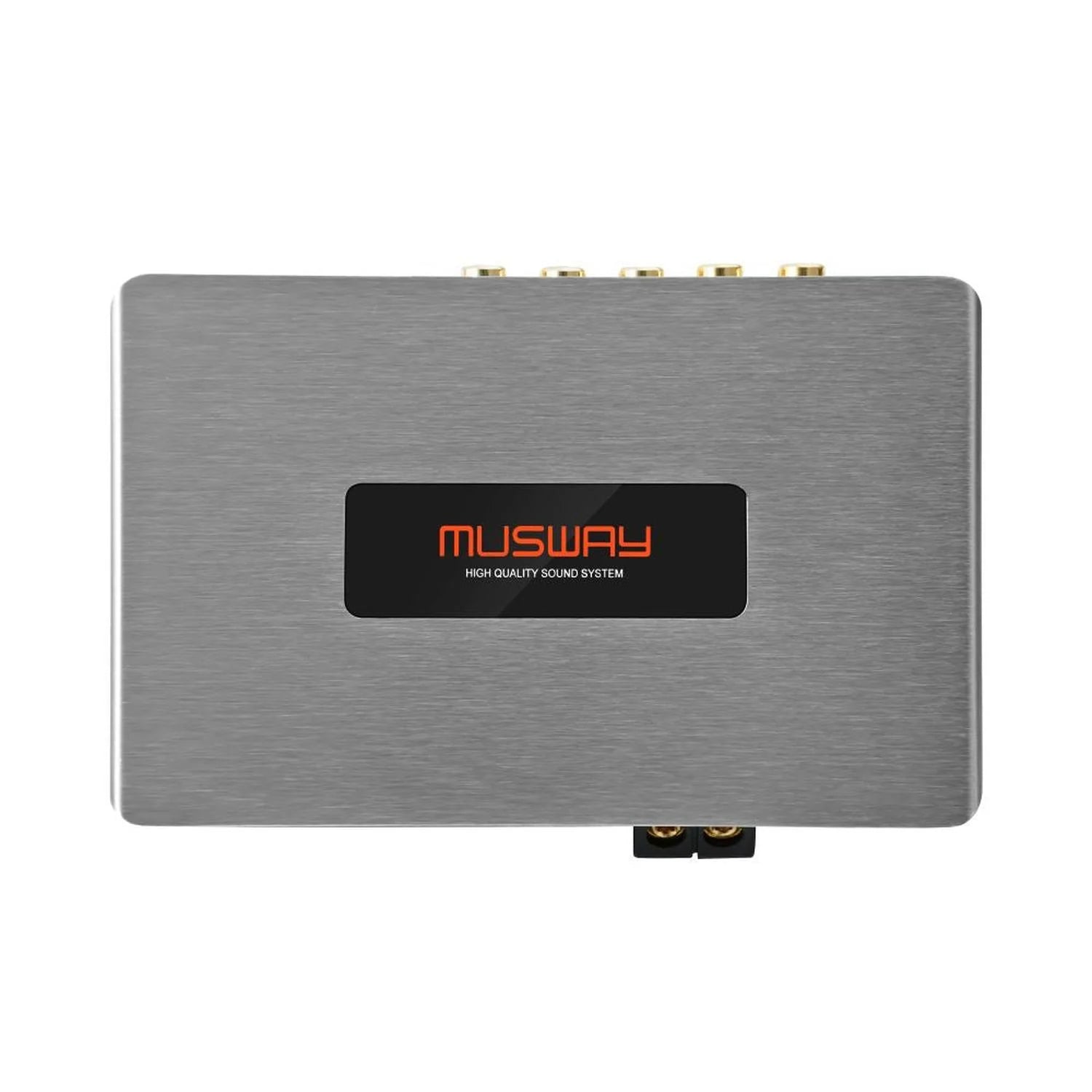

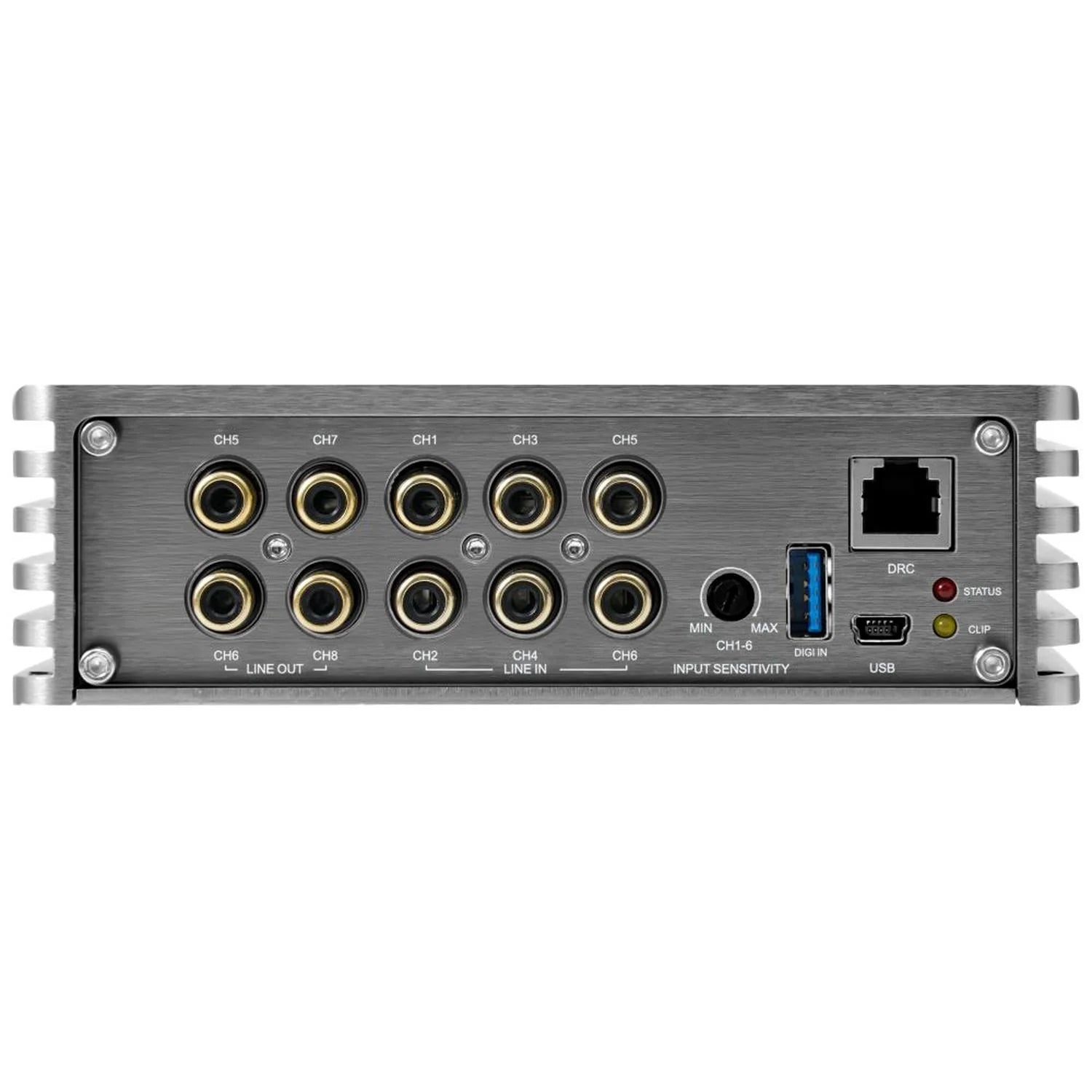

xMusway M4 Nano 4 Channel DSP Amplifier
Small in size, massive in performance, the MUSWAY M4 Nano redefines what a compact amplifier can do. Engineered with advanced Class D technology, this 4-channel amplifier provides detailed, dynamic sound with minimal heat generation and high efficiency.
The M4 Nano offers flexible installation options thanks to its ultra-compact housing, making it perfect for under-seat mounting or hidden installations. With stable operation at 2 ohms and bridged capability at 4 ohms, it delivers versatile system-building options whether you're powering component speakers, coaxials, or bridging channels for more output.
Specifications
|
POWER SUPPLY |
|
|
Voltage |
8-17 VDC |
|
Idle Current |
0.75 A |
|
Switched off |
< 0.1 mA |
|
Remote IN |
7.5-17 VDC (1 mA) |
|
Remote OUT |
7.5-17 VDC (300 mA) |
|
Fuse |
35 A (inside) |
|
AMPLIFIER STAGE |
|
|
Distortion - THD, 1 kHz @ 4Ω, 5 W |
0.01% |
|
Bandwidth -3 dB, 2 V/RMS, 4Ω @ -1 dB |
10 Hz - 22 kHz |
|
S/N ratio @ A weighted, 1 V, Max. Power |
100 dB |
|
Damping factor @ 1 kHz, 2 V/RMS, 4 Ω |
> 75 |
|
Input Sensitivity |
3-24 V/RMS (high-level) 0.7-6 V RMS (low-level) |
|
Input Impedance |
18Ω (high-level) |
|
Load Impedance (Min.) |
4CH @ 2Ω 2 CH bridged @ 4Ω |
|
Output Power RMS @13.8 VDC, 1% THD |
4 x 55/95 Watts @ 4/2Ω 2 x 200 Watts bridged @ 4Ω |
|
Output Power RMS @ 14.4 VDC, 1% THD |
4 x 60/100 Watts @ 4/2Ω 2 x 220 Watts bridged @ 4Ω |
|
SIGNAL OUTPUTS RCA OUT CH5/6/7/8 |
7 V/RMS Max. |
|
DIGITAL SIGNAL PROCESSOR (64 bit Clock speed 295 MHz) |
|
|
Crossover |
Full/Hi Pass/Lo Pass / Band Pass |
|
Crossover type and slope |
Bessel / Butterworth / Linkwitz @ 6/12/18/24/30/36/42/48 dB |
|
Crossover Frequency |
1 Hz step @ 20 Hz - 20 kHz |
|
Phase inversion |
0° / 180° |
|
Output Equalizer |
31-Band Parametrical Equalizer ±15 dB |
|
Time Alignment Distance |
0-342 cm |
|
Time Alignment Delay |
0-9.3 ms |
|
Time Alignment Step |
0.02 ms; 0.7 cm |
|
Time Alignment Fine Set |
0.02 ms; 0.7 cm |
|
Presets (Local Stored) |
6 Presets |
|
GENERAL REQUIREMENTS |
|
|
PC connections |
Mini USB (1.1/2.0/3.0) |
|
Software/PC requirements |
Microsoft Windows (32/64 bit) XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11 |
|
Graphic card min. resolution |
1400 x 900 px |
|
Ambient operating temperature range |
0-55 °C |
|
SIZE/WEIGHT |
|
|
Size without brackets (mm) |
150 x 45 x 95 |
|
Net Weight (kg) |
0.83 |
Â
For more information, please visit the manufacturer's website.
