8" Subwoofer dual 2Ω voice coils
Power: 300 watts RMS
Peak Power: 600 watts
Installation Depth: 138mm
Power: 300 watts RMS
Peak Power: 600 watts
Installation Depth: 138mm
Purchase
If you are interested in buying this item please contact us via our contact page.
$15 Flat rate shipping*
Description

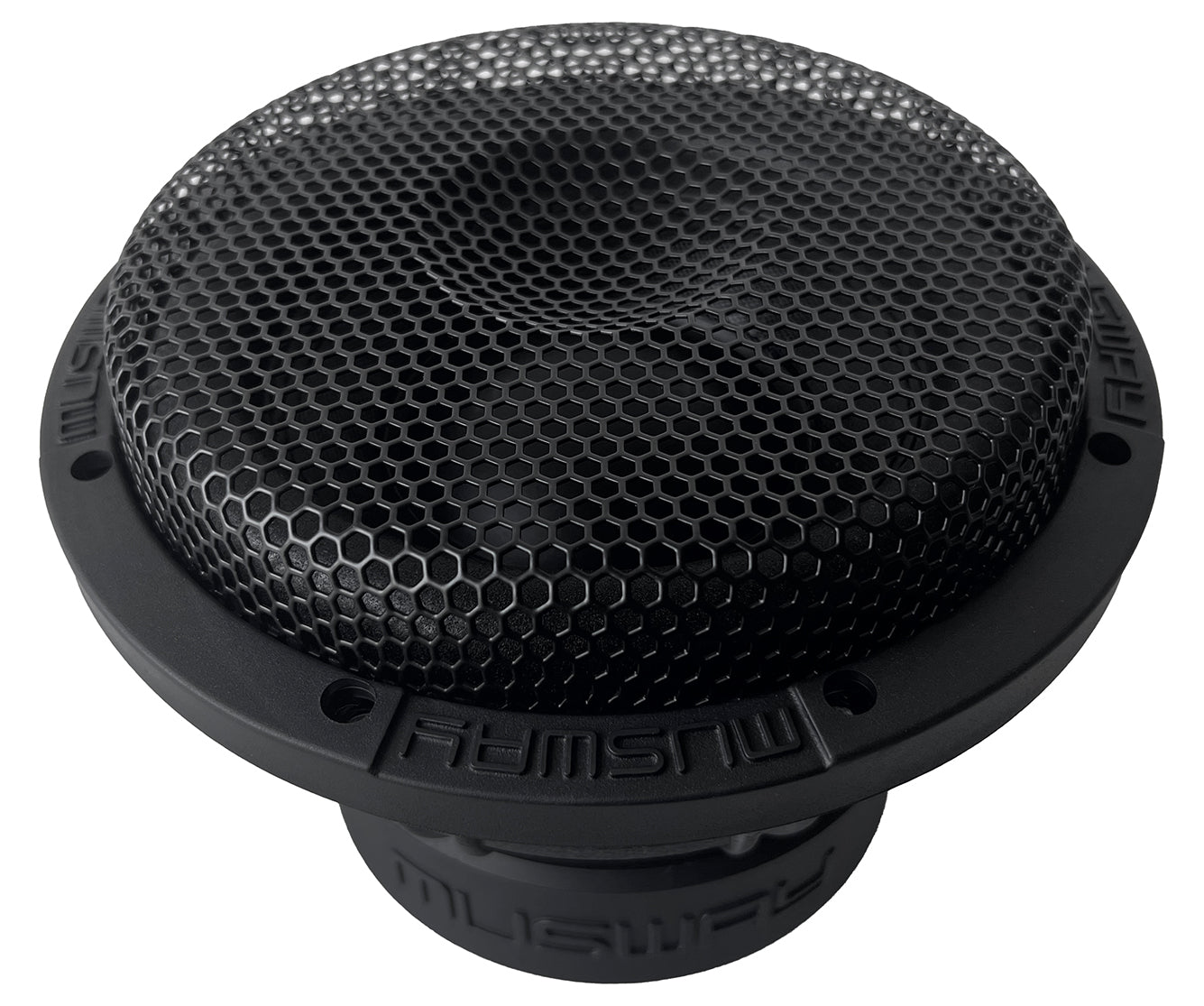

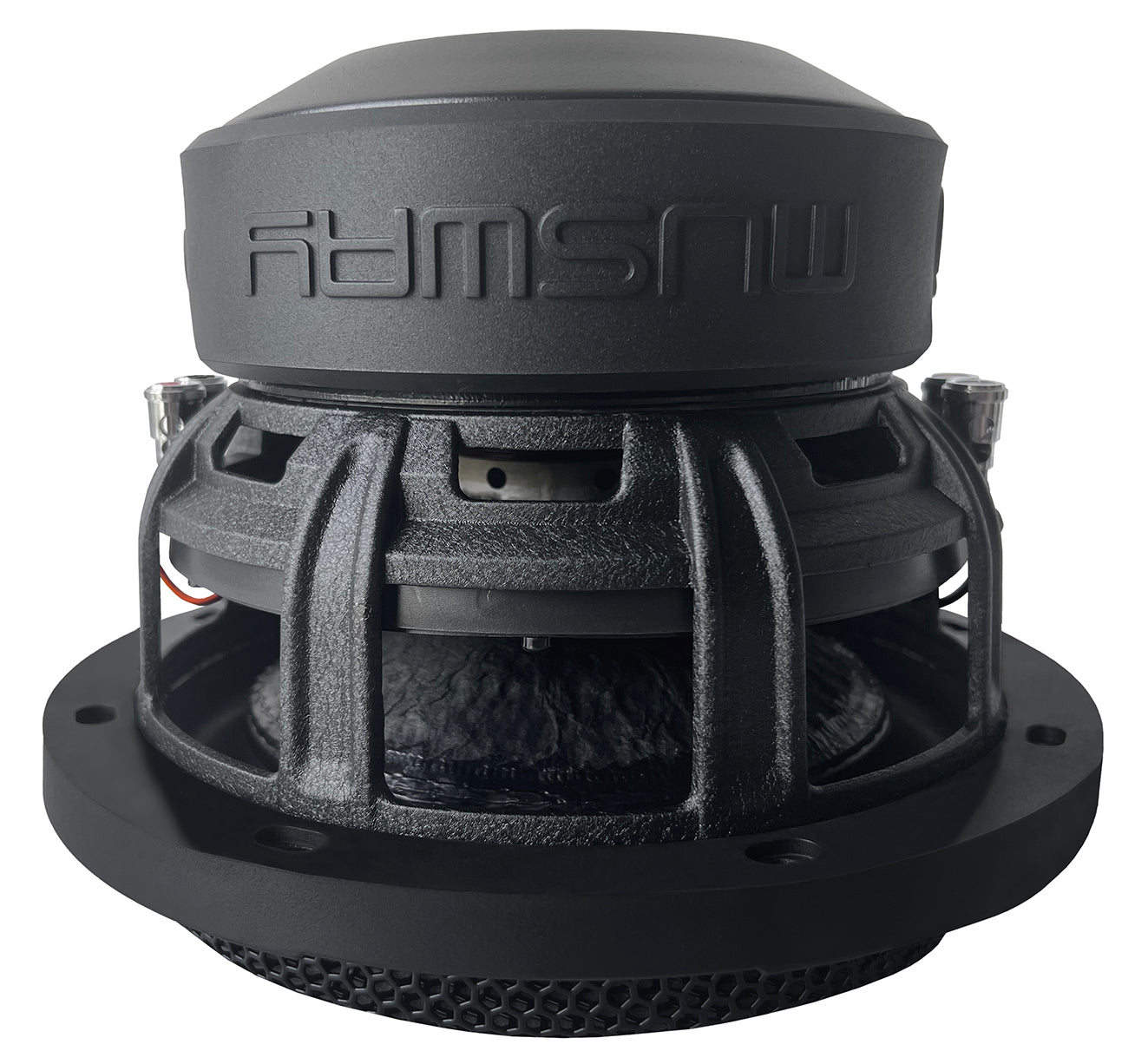

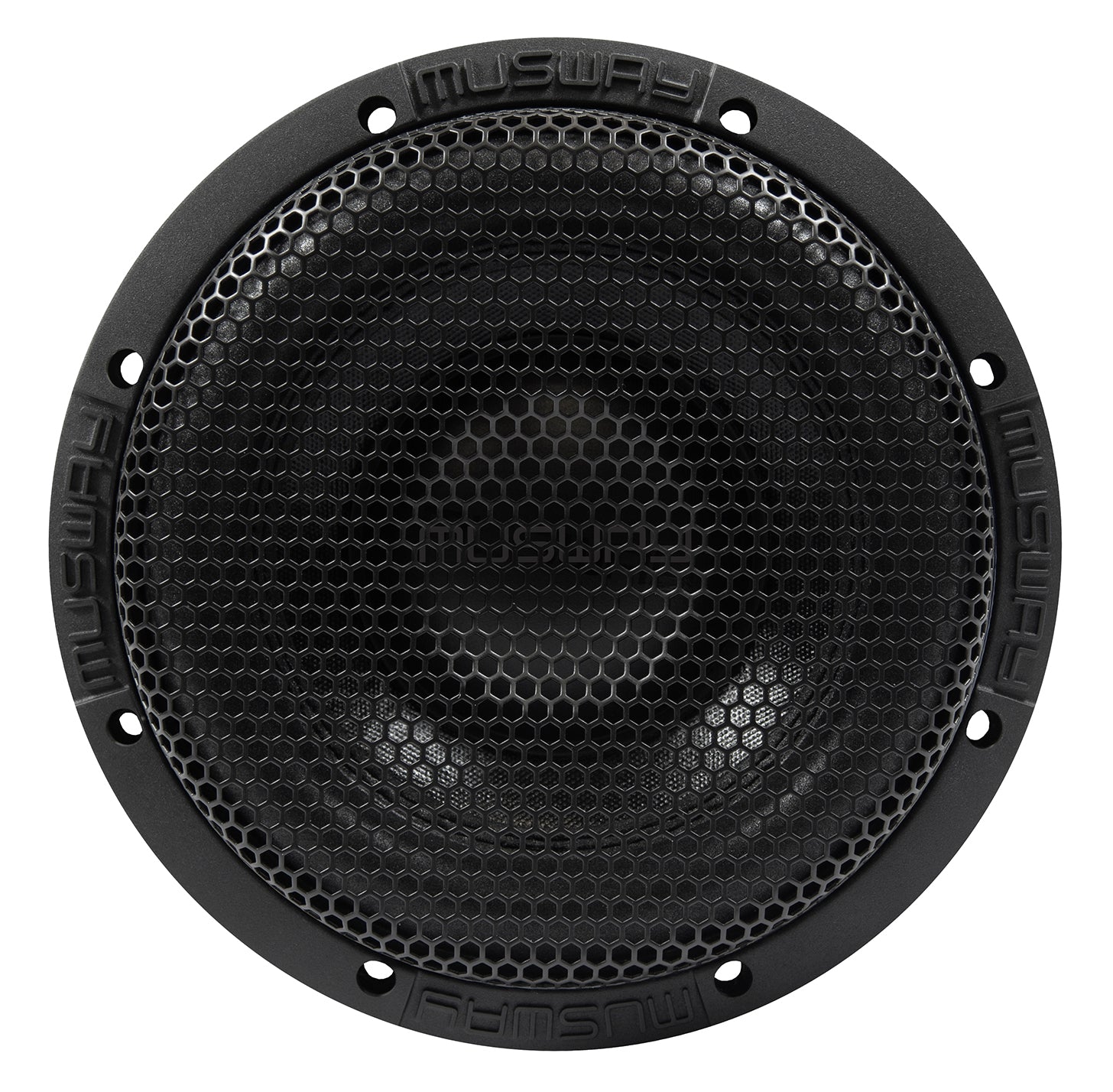

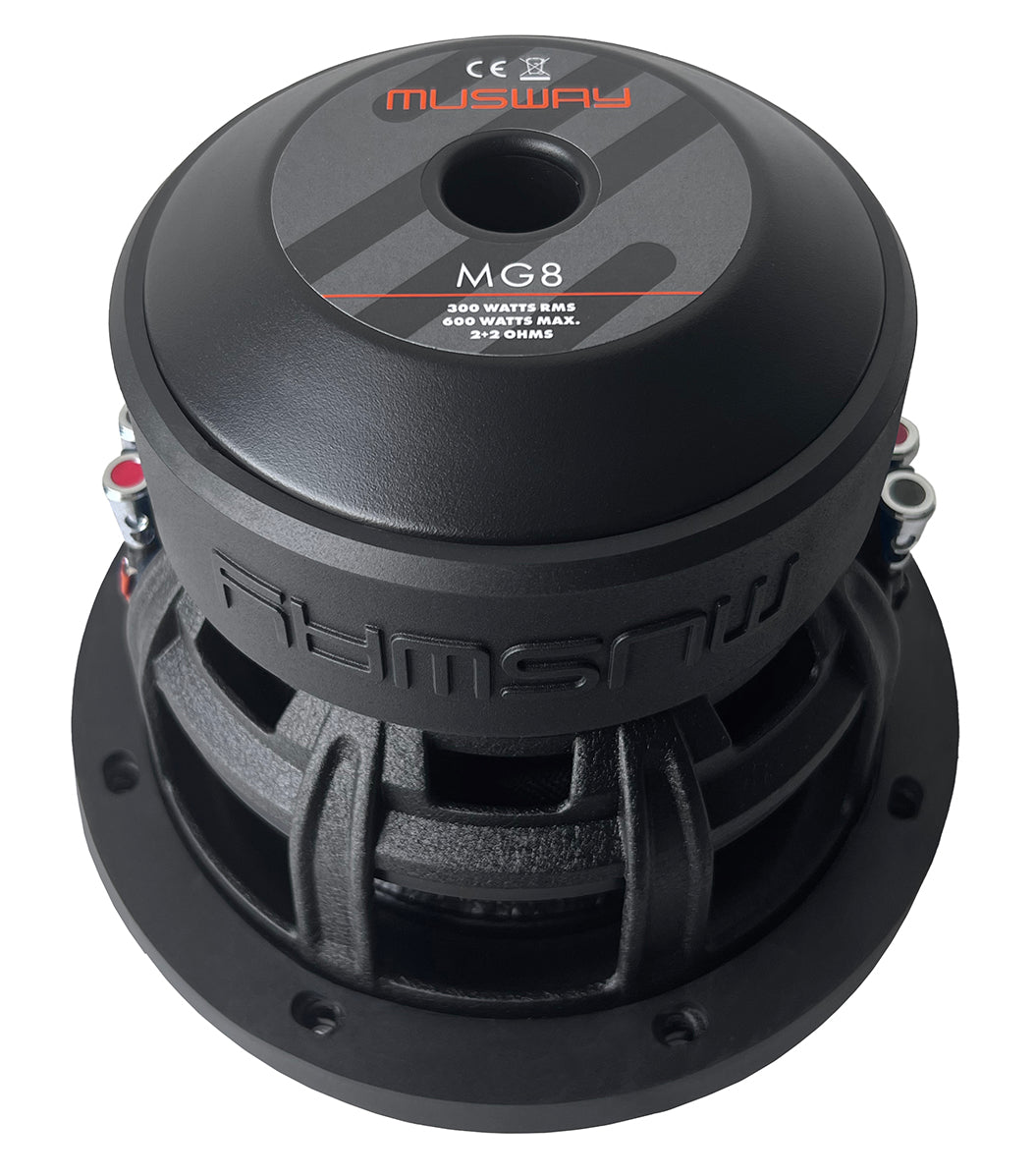

xMusway MG8 8 Inch Subwoofer Dual 2Ω Voice Coils
The visual highlight of every MG woofer is undoubtedly the newly designed, elegantly crafted aluminum cast basket with its delicate struts and large ventilation windows behind the spider.
Not only is the first look convincing, the technology in detail is also impressive: all woofers are characterized by a particularly long and even membrane stroke. The moving mass (Mms) could also be kept low by using copper-clad aluminum voice coils (CCAW). All of the measures result in very favorable Thiele/Small parameters, so that the subwoofers are also very suitable for closed housings. Anyone who attaches great importance to high impulse fidelity and cleanliness should choose this version.
If you like it fuller at the bottom, you should opt for bass reflex constructions. Due to their design, these can produce even more deep bass by utilizing the air in the housing with a specially tuned reflex channel. Here all three woofers unfold their potential and are easily able to play down to below 30 Hz.
Specifications
|
RMS Power |
300 Watts |
|
Max Power |
600 Watts |
|
Magnet |
2 x 1.4 kg (50 oz.) |
|
Impedance |
2 x 2 Ohms |
|
Voice Coil Diameter |
50.8 mm |
|
Voice Coil Winding Height |
35 mm |
|
Max. Linear Excursion |
+/- 13,5 mm |
|
Max. Mechanical Excursion |
+/- 19 mm |
|
Cone Area |
207 cm² |
|
Moving Mass |
75.6 g |
|
DC Resistance |
2 x 1.8 Ohms |
|
Resonance Frequency |
46 Hz |
|
Mechanical Q-Factor |
3.89 |
|
Electrical Q-Factor |
0.49 |
|
Total Q-Factor |
0.44 |
|
Equivalent Air Volume |
9.5 L |
|
VC Inductance |
1.51 mH |
|
Flux Density |
12.5 N/A |
|
Efficiency 1W/1m |
84.5 dB |
|
Construction |
Aluminium Basket Non-pressed Paper Cone Rubber Surround Injected PP Dustcap Dual Polycotton Spider Dual Magnet 2 x 50 oz (2.835 g) Magnet Size: Ø145 x 40 mm ASV Voice Coil Former |
|
Dimensions & Weight |
External Diameter: 221 mm Mounting Diameter: 185 mm Mounting Depth: 138 mm Shipping Weight: 7.1 kg |
For more information, please visit the manufacturer's website.
