Micro Class D 2 Channel Amplifier
2 x 160 watts RMS @ 4Ω
2 x 275 watts RMS @ 2Ω
1 x 550 watts RMS @ 4Ω bridged
Compact size: 89 x 41 x 138mm
2 x 160 watts RMS @ 4Ω
2 x 275 watts RMS @ 2Ω
1 x 550 watts RMS @ 4Ω bridged
Compact size: 89 x 41 x 138mm
Purchase
If you are interested in buying this item please contact us via our contact page.
$15 Flat rate shipping*
Description

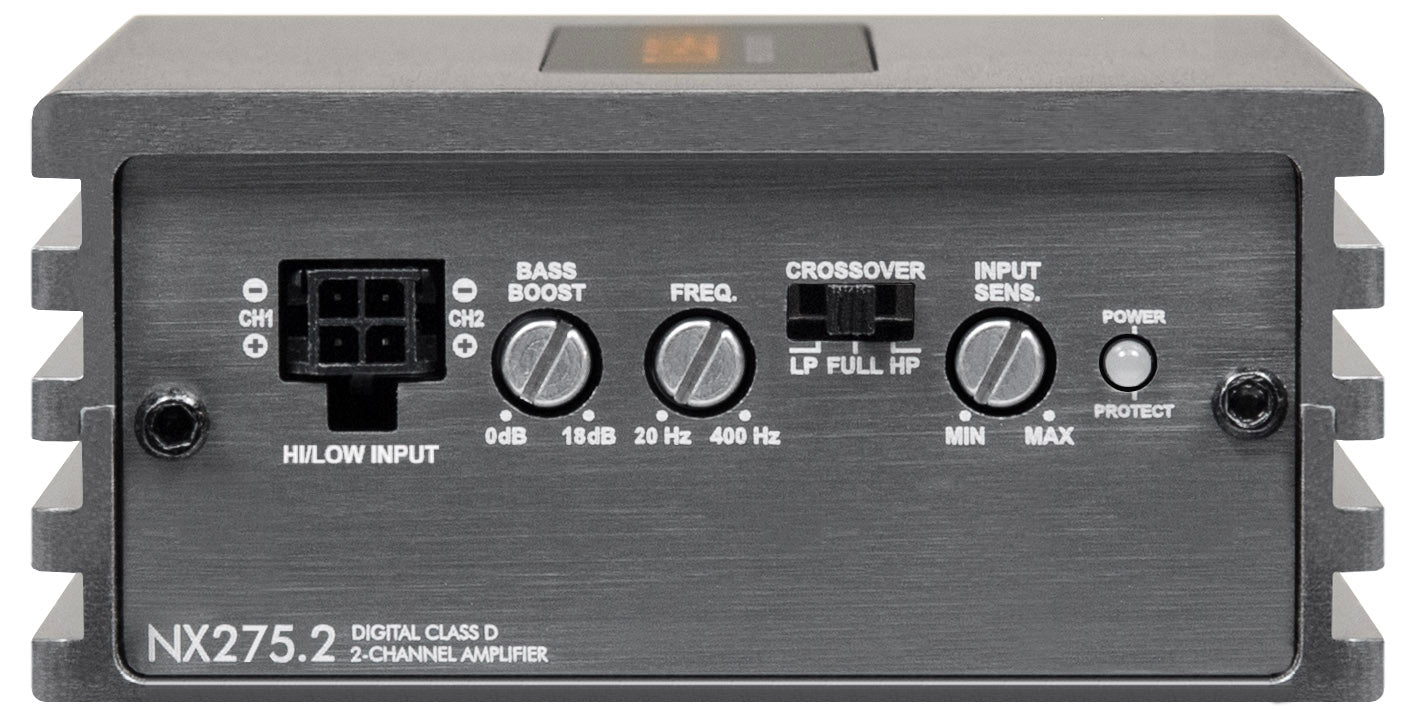

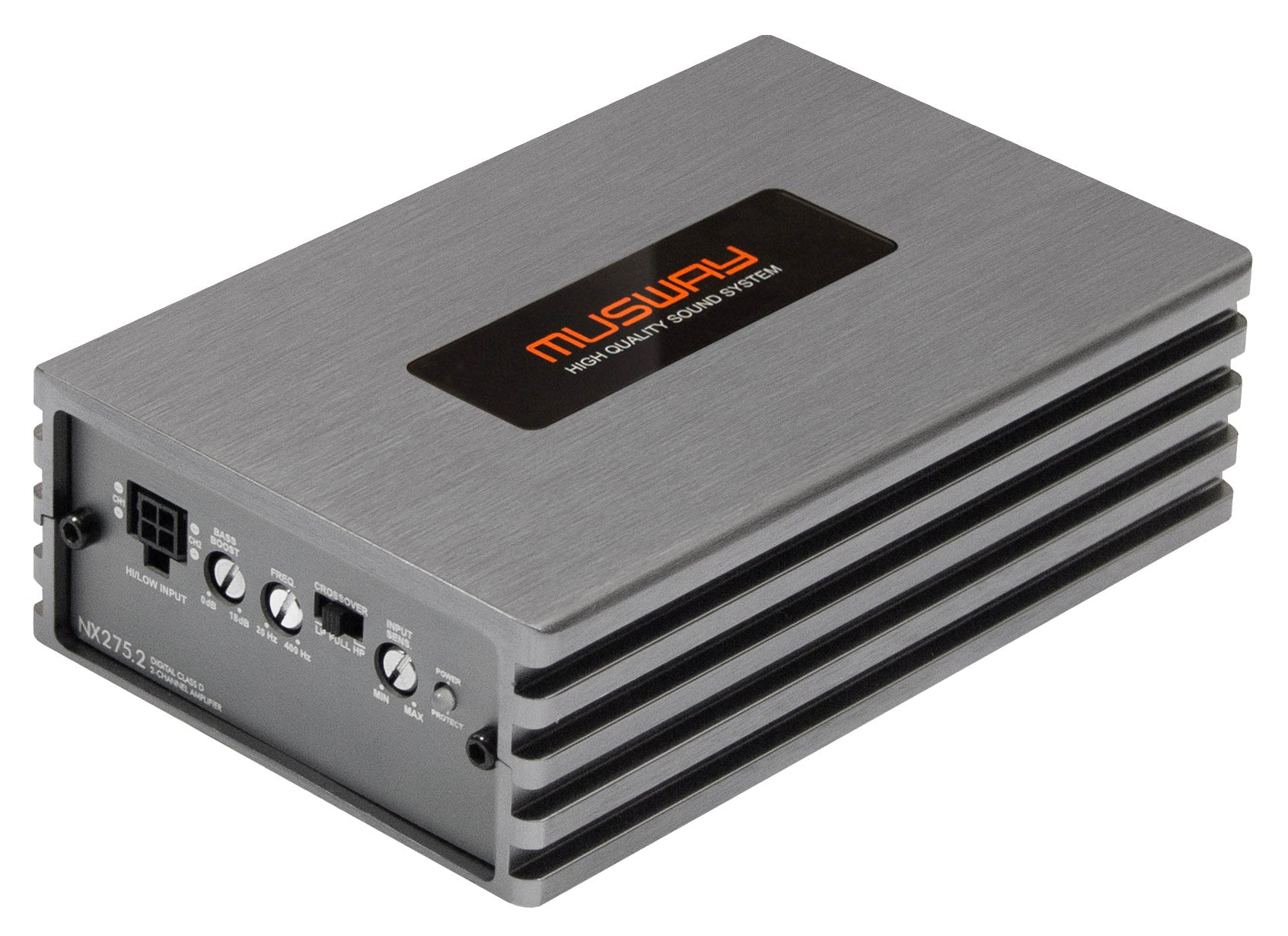

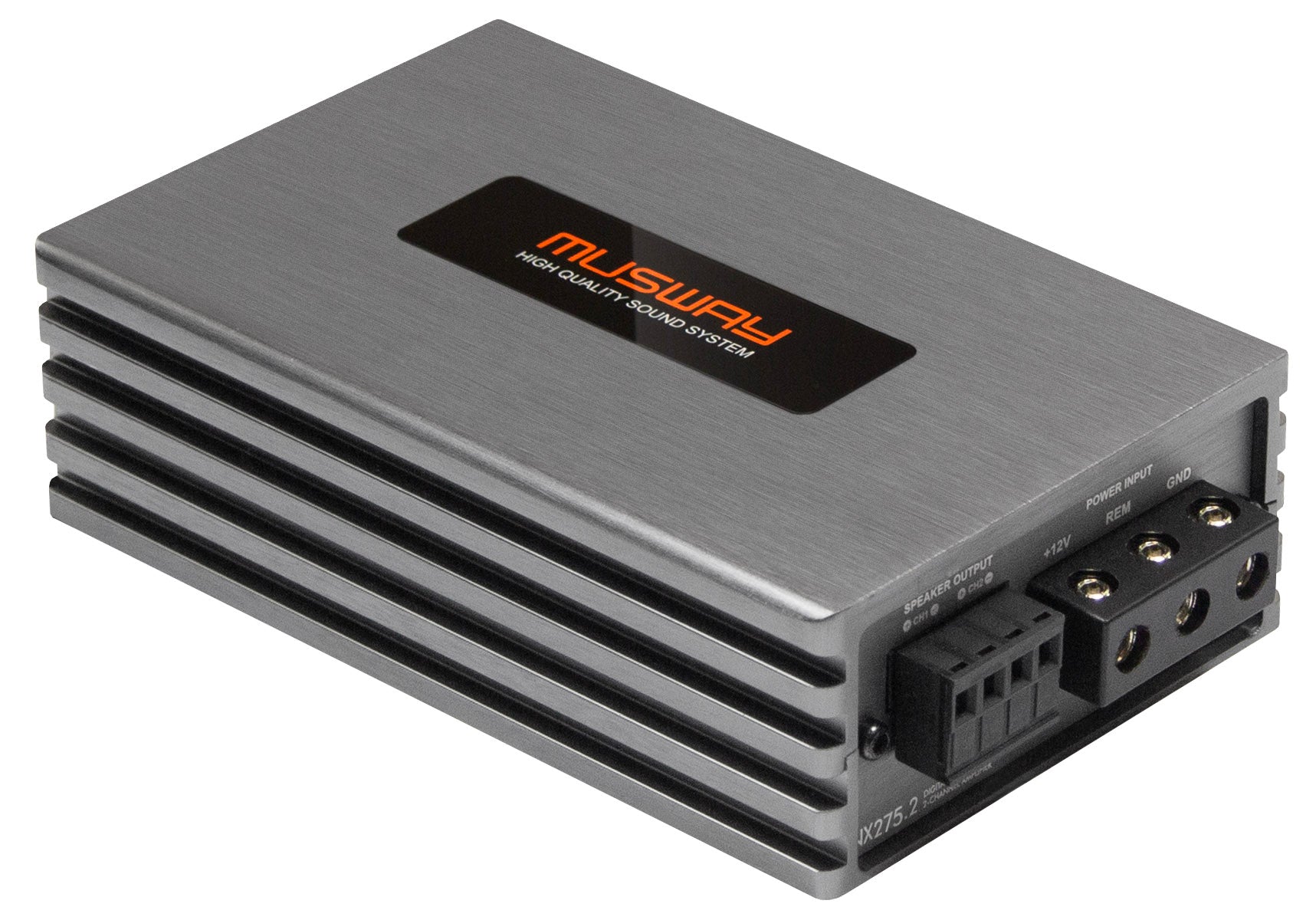

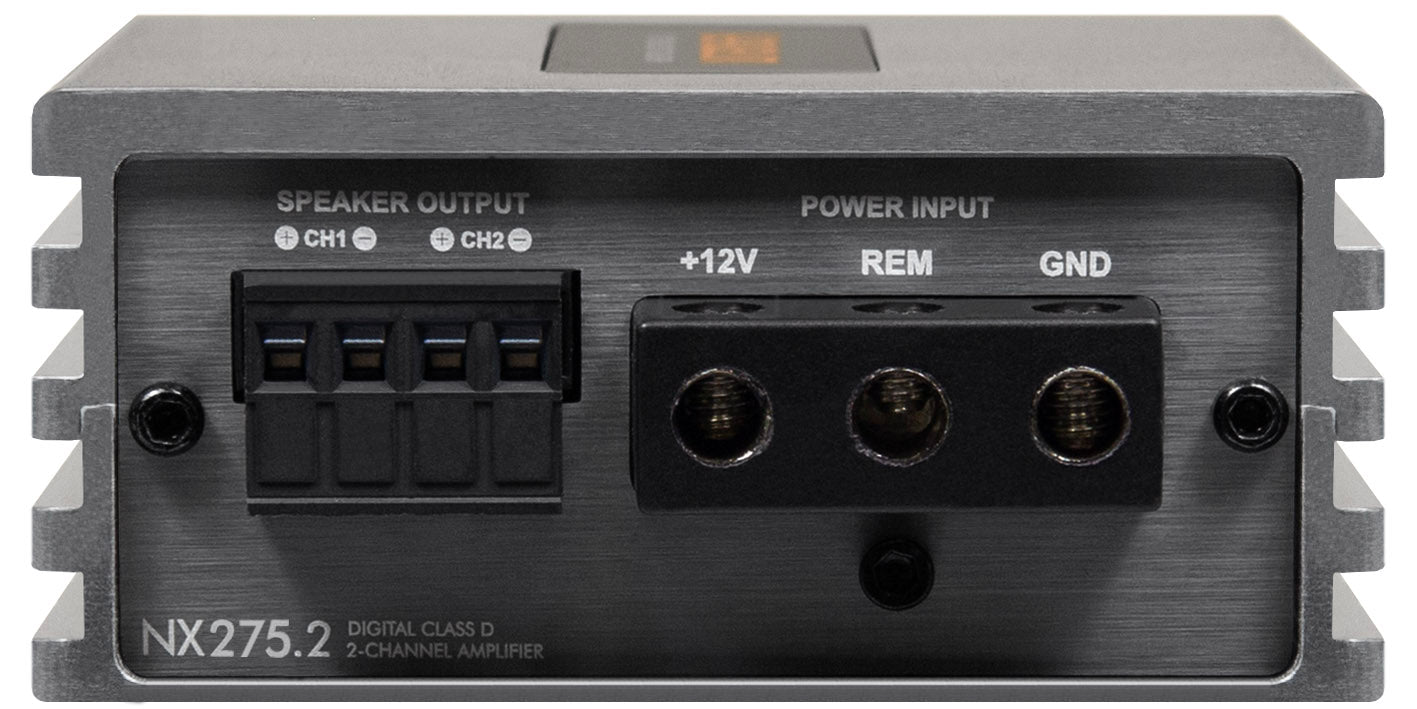

xMusway NX275.2 Micro 2 Channel Amplifier
With the new NX series, Musway presents what is arguably the most comprehensive range of Class D micro-amplifiers seen in recent years: twelve perfectly tuned models, crafted with exceptional workmanship, offer the ideal solution for virtually any application.
The standout feature of the NX series is its extremely compact design. Measuring just 8.9 cm in width and 4.1 cm in height, it completely redefines the performance capabilities of modern Class D micro-amplifiers. Never before has so much power been packed into such small housings.
Despite their minimal dimensions, every amplifier incorporates state-of-the-art Musway technology. From high-level inputs with EPS technology to comprehensive crossover networks, everything is built right in. Even with the compact form factor, Musway fans don't have to miss out on the attractive logo illumination, which is set behind a high-quality real glass window. In terms of sound, the Musway NX series also sets new benchmarks. Thanks to extremely low distortion and expert tuning, it delivers precise, dynamic, and detailed music reproduction.
Features
- Start-Stop ready
- EPS® (Error Protection System)
- Interference Free Technology, EMC proved
- Efficiency up to 88%
- THD 0,01% @ 5W
Specifications
|
Model |
NX275.2 |
|
Channels |
2 |
|
Circuit |
Digital Class D |
|
Power RMS @ 14.4 V (≤1% THD+N) |
CH1-CH4/SUB |
|
Watts @ 4 Ohms |
2 x 160 |
|
Watts @ 2 Ohms |
2 x 275 |
|
Watts @ 4 Ohms bridged |
1 x 550 |
|
Frequency Range |
6 - 43000 Hz @ -3 dB |
|
Signal-to-noise Ratio |
> 99 dB |
|
THD+N @ 5 W |
< 0.02 % |
|
Input Sensitivity |
400 mV - 8.5 V |
|
Filter Section Low Pass Filter or High Pass Filter Bass Boost @ 40 Hz |
20 - 400 Hz 0 - 18db |
|
Operating Voltage |
10.5 - 16.5 V (max. 5 sec. down to 7 V) |
|
Start-stop Capability |
Yes |
|
High Level Input with EPS** only via included Cable Connector |
Yes Type D |
|
Auto Turn-on only via High Level Input |
Yes |
|
Fuse (external) |
50 A |
|
Dimensions |
Width 89 mm Height 41 mm Length 138 mm |
Â
For more information, please visit the manufacturer's website.
