Made in Italy
Integrated Stereo Hybrid Amplifier
Preamplifier stage: Tube (2 x 6922 ECC88), class A
Final stage: MOSFET, class AB
2 x 110 watts RMS @ 8Ω (Both channels driven.)
$15 Flat rate shipping*
We offer a $15 flat rate Australia-wide shipping service, no matter how many items, however large or heavy items may incur a higher freight charge. If your item/s is subject to additional freight charges due to being large or heavy, this will be calculated at checkout. If any damage occurs during shipping, it is the responsibility of the customer to notify us within 24 hours of the order arriving. This is a requirement of our freight insurance and we are unable to lodge any claims after 24 hours from delivery.

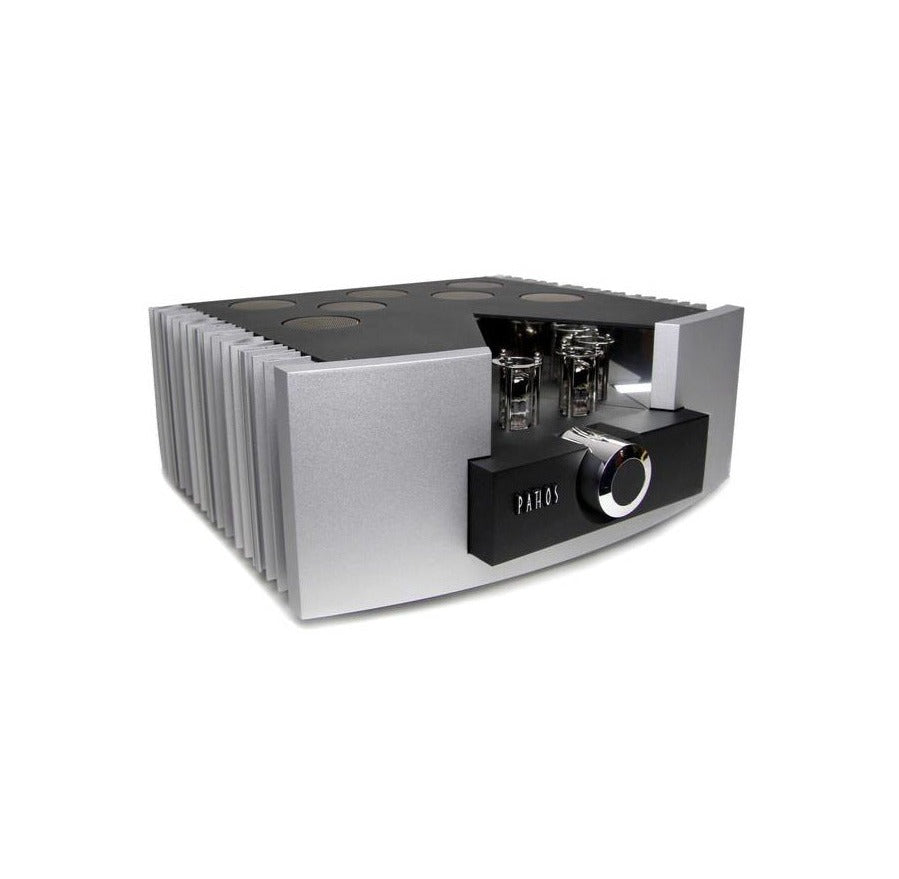

Pathos Acoustics Logos MK2 Integrated Stereo Hybrid Amplifier - Made in Italy
Available in padouk wood or matte metallic black finish. Due to being a special order product, we will contact you to confirm your choice of order (colour, board) and estimated arrival time from manufacturer.
In 2002, long before other companies jumped on the tube hybrid bandwagon, Pathos opened the audio world’s eyes with the Logos: the first hybrid to capture so much of the magic of what a pure tube amplifier can produce, but without the maintenance. Pathos also created a design and package so inspiring and universally loved, it remained unchanged for well over ten years. When a product like Logos is so close to perfection, it’s difficult to improve it. But with new power supply upgrades as well as a redesign of the tube preamp section, the MKII was born.
It’s easy to look at the amazing exterior design and be bowled over. There’s a choice of stunning matte metallic black or exotic padouk wood which is cut, sanded, and finished by hand in-house at the Pathos factory in Vicenza, Italy. In fact, the entire amplifier is produced by hand in Italy, including the PCBs, chassis, capacitors, right down to the heatsinks that proudly spell out the name ‘Pathos’.
Look inside and this is where the magic begins. The Logos MKII is a tour de force of engineering prowess, careful selection of the finest components, and a healthy dose of Italian creativity and passion in a one-box solution, built to inspire your musical entertainment for a lifetime.
Start with the massive dual-mono power transformer, potted and encapsulated to reduce vibrational and electromagnetic noise. A transformer so massive, the Logos weighs over 60 pounds! There are three separate stages of regulation; one for each channel of the power amp section, and one for the tube preamp section, offering the widest and deepest soundstage. That, along with a massive 44,000 uF custom-made Italian capacitors per channel promise superb bass response and a sense of grace, even when program material and speaker impedance become demanding.
The Logos uses MOSFETs in the output stage, known for their tube-like transfer characteristics, in a design that attempts to come sonically as close as possible to Pathos’ patented InPol circuitry. InPol is the only amplifier design, hybrid or solid-state, that gives the full glory of a tube amplifier but with control. Look at the numbers: 110 watts per channel into 8 ohms, and an amazing 220 watts into 4 ohms, with full bandwidth
How about finesse? And beauty? And liquidity? The tube section is run in a fully-balanced configuration to guarantee the lowest noise. Pathos then implements their well-known “resistive volume control” which gives you the low noise, linearity, and perfect channel balance offered by the best electronic designs without the electronic “sheen” and “glare” often encountered with lesser brands.
Details matter. So the new LOGOS, the MKII, boasts the ability to individually adjust input levels for all your sources, so they play at the same volume. An ingenious protection circuit ensures a lifetime of enjoyment, with no audible downside. Logos also has fixed-level and preamp output jacks to add subwoofers, allow bi-amplification, and a myriad of other possibilities. Even the remote is a hand-crafted in Italy.
Integrated stereo amplifier, Hybrid technology. Preamplifier stage Tube (2×6922 ECC88), class A Final stage; Mosfet, class AB
2×110 W RMS@8Ohm (Both channel driven)
5Hz – 140KHz ± 0,5dB
Max input voltage
500mV RMS (39dB Gain)
32KOhm unbalanced, 20KOhm balanced
Non- inverting. Balanced pin 2 +
Burr Brown PGA2310 (100 steps)
0,02% @ 1W; 0,2% @ 110W
200W @ 100WPC / 130W @ zero volume < 0,5W@standby
2 balanced XRL line, 5 unbalanced RCA line
Installation of (optional) HiDac Mk2 board is required to enable these inputs 1 USB port type “B” for PC, 2 SPDIF coaxial
Available for Windows; Mac and Linux systems do not require drivers
